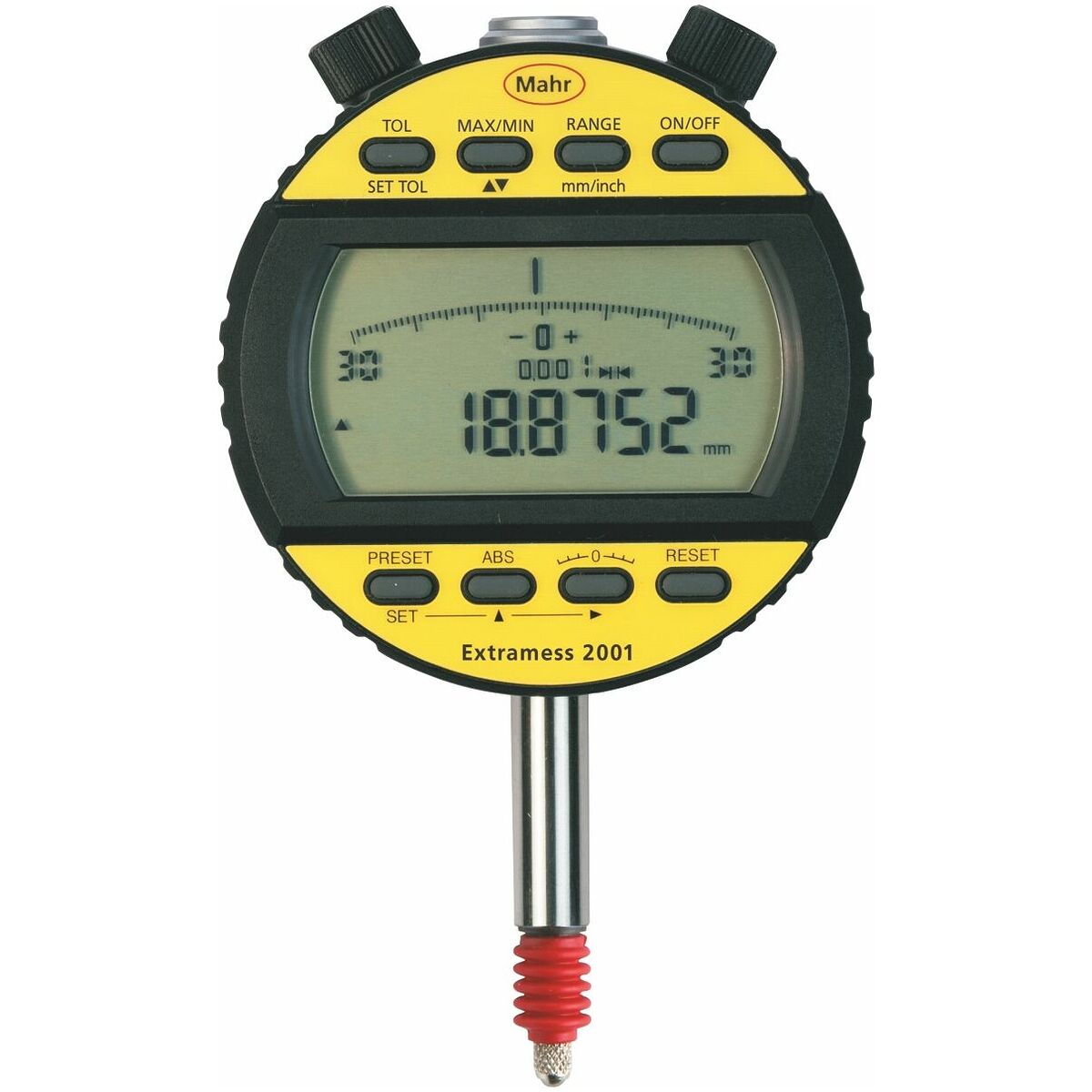

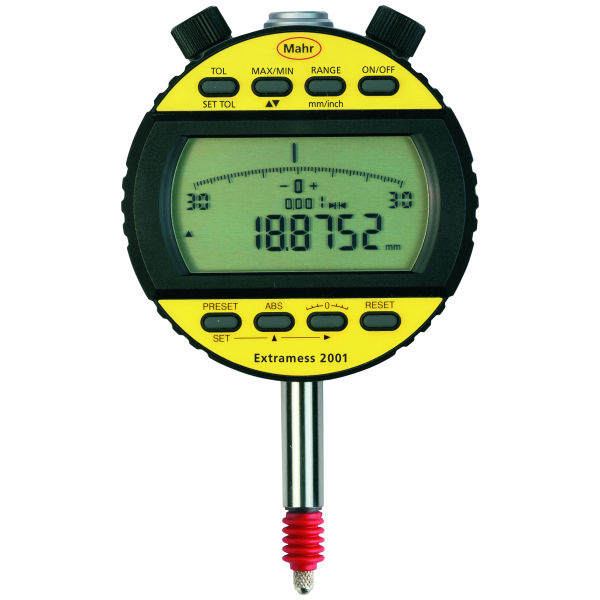

Inductive precision comparator Extramess, Type: 2001
Article no.: 434670 2001
Article code:
Product details
Technical Data
| Housing diameter | 65 mm | |
| Replaceable rechargeable battery | no | |
| Operating time | 40 h | |
| Rechargeable | yes | |
| IP index of protection | IP54 | |
| Thickness of housing | 35 mm | |
| Manufacturer’s designation | Extramess 2001 | |
| Material of the housing | plastic | |
| DIsplay | analogue; digital | |
| Min. measuring range | -0.9 mm | |
| Max. measuring range | 0.9 mm | |
| Min. measuring force | 0.7 N | |
| Max. measuring force | 0.9 N | |
| Free stroke | 2.4 mm | |
| Power supply | battery-powered; mains-powered | |
| Error limit | 0.001 mm | |
| Clamping shank diameter | 8 mm | |
| Clamping shank tolerance | h6 | |
| Standard | works standard | |
| Index of protection / protection class | IP degree of protection | |
| Scale graduations | 0.001 mm; 0 mm | |
| Reading per pointer revolution | 0.3 mm | |
| Illuminated display | yes | |
| Adjustable tolerance marks | yes; yes | |
| Unit for reading | millimetre; inch | |
| Reading, millimetre | 0.0002 mm | |
| Reading, inch | 0 in | |
| Height of numerals | 6.5 mm | |
| Interface | USB interface | |
| Preset function | yes | |
| Content | single part | |
| Can be calibrated | yes | |
| Type of product | precision dial comparator |
Identification & Classification
| Article number | 434670 2001 | |
| EAN / GTIN | 4059192014940 | |
| Manufacturer number | 4346100 | |
| Manufacturer/responsible person | MAHR GmbH, Carl-Mahr-Straße 1, 37073 Göttingen, Germany, www.mahr.de |
Description
Version:
Linearised inductive measuring system with very high accuracy. Sharp contrast LCD display, 6.5 mm high figures, scale display with 4 mm long pointer for easier reading in roundness and flatness tests as well as finding the turning point in bore measurements. Power supply from integral batteries (40 hrs) or power supply unit. The precision dial comparator can be operated remotely via an interface. Operation / display unit can be rotated 280°.
MAX / MIN memory for roundness testing.
Function:
IP54: Protected against splashed water from all directions and protected against penetration of dust into the inside (protected against dust), also completely protected against touching.
Supplied with:
Mains adapter, rubber bellows, key for adjusting the pre-lift.
Optional extras:
Data cable No. 498938. External operating unit on request.
Attention:
German version. Order free UK adapter plug No. 08 1174_GB.
