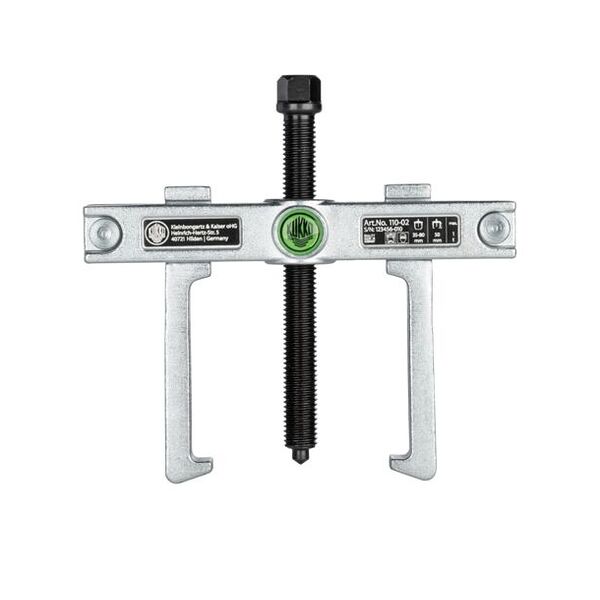

Two-leg extractor, Type: 1
Article no.: 880930 1
Article code:
Product details
Technical Data
| Manufacturer’s designation | 110 | |
| Internal clamping range min. | 80 mm | |
| Internal clamping range max. | 105 mm | |
| External clamping range min. | 28 mm | |
| External clamping range max. | 100 mm | |
| Max. clamping depth | 100 mm | |
| Max. torque | 35 Nm | |
| Number of hooks | 2 | |
| Performance | 2 t | |
| Type of product | two-leg extractor | |
| External hexagon drive | 17 mm | |
| Material | steel | |
| Weight | 1.18 kg | |
| Content | single part |
Identification & Classification
| Article number | 880930 1 | |
| EAN / GTIN | 4021176923777 | |
| Manufacturer number | 110-1 | |
| Manufacturer/responsible person | Kleinbongartz & Kaiser oHG, Heinrich-Hertz-Straße 5, 40704 Hilden, Germany, www.kukko.com |
Description
Version:

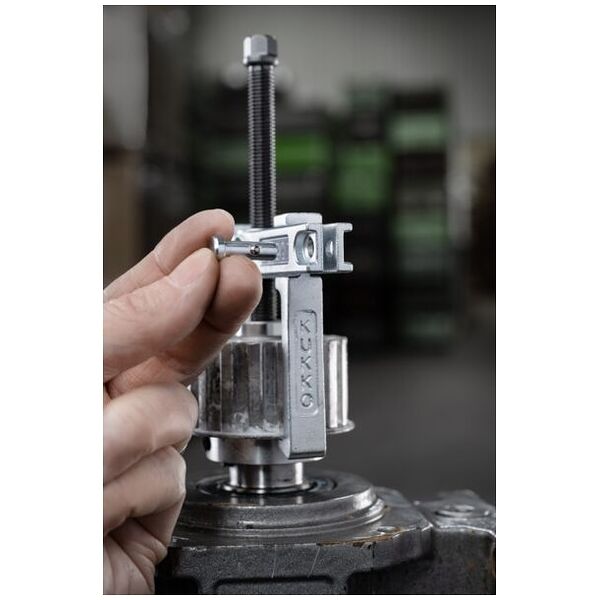

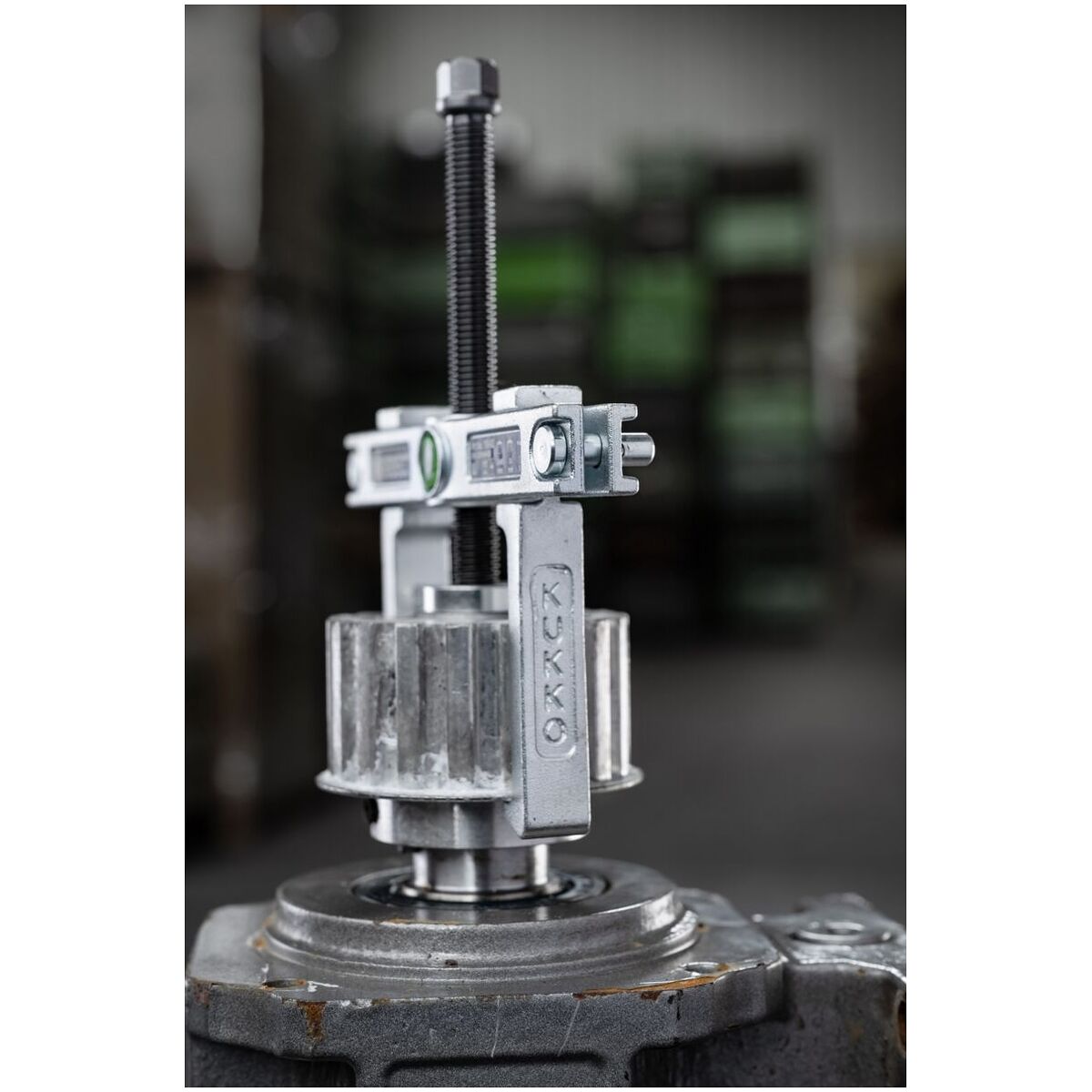

With reversible extractor legs (for external and internal extraction),strong cross beam and powerful spindle. The desired span is adjusted simply by moving the extraction legs.
Application:

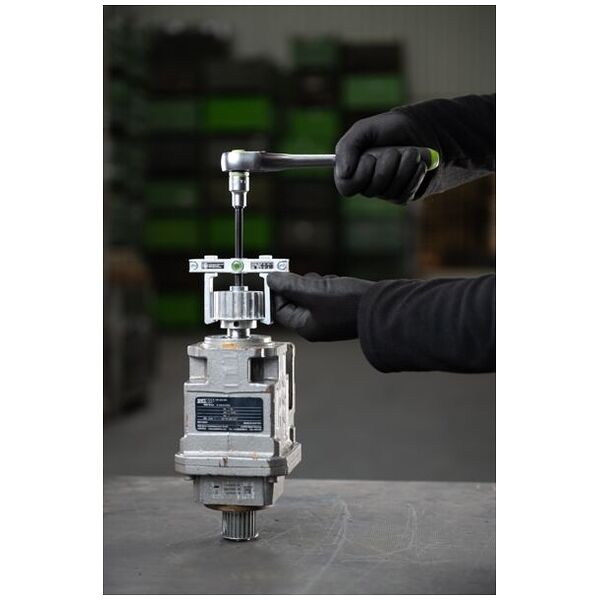

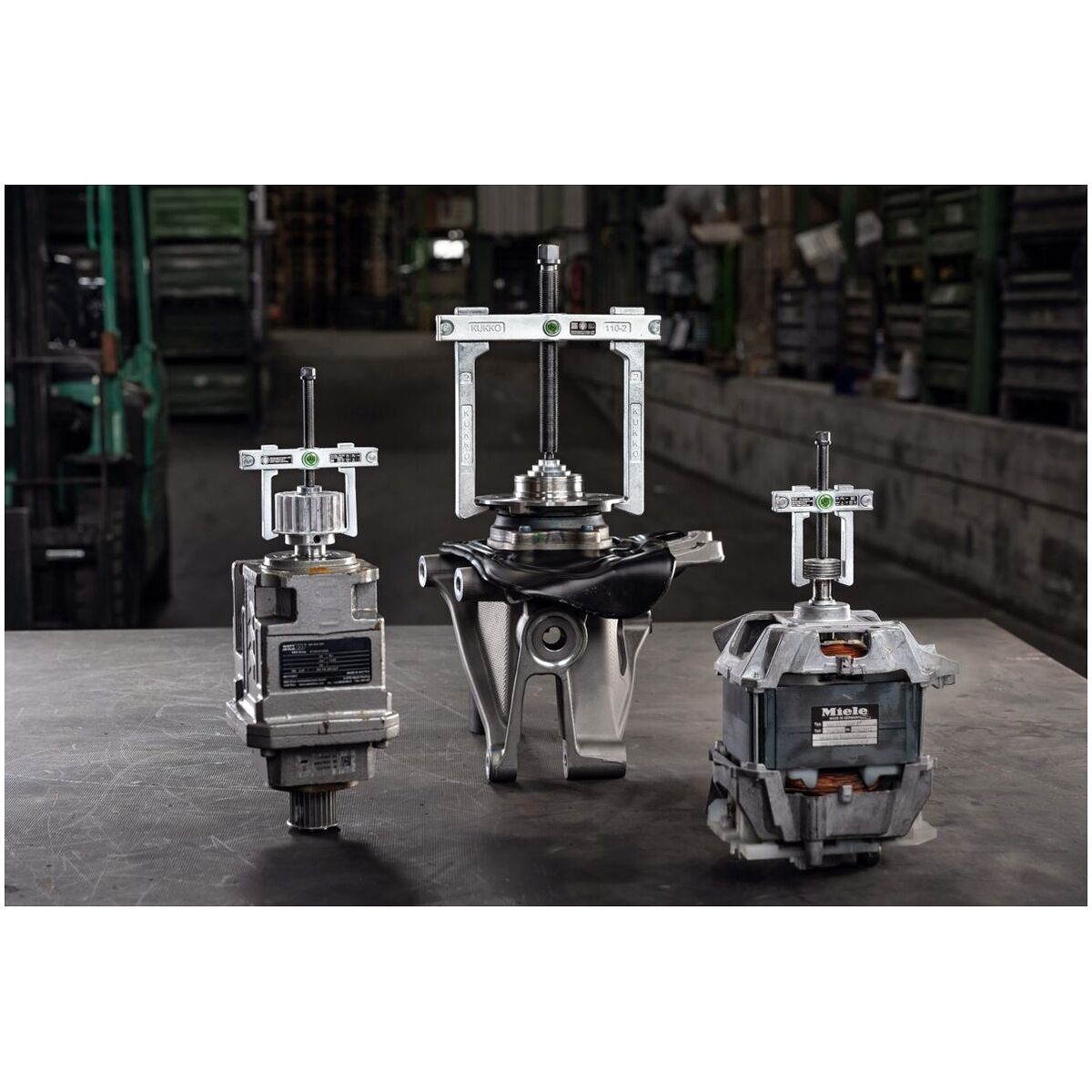

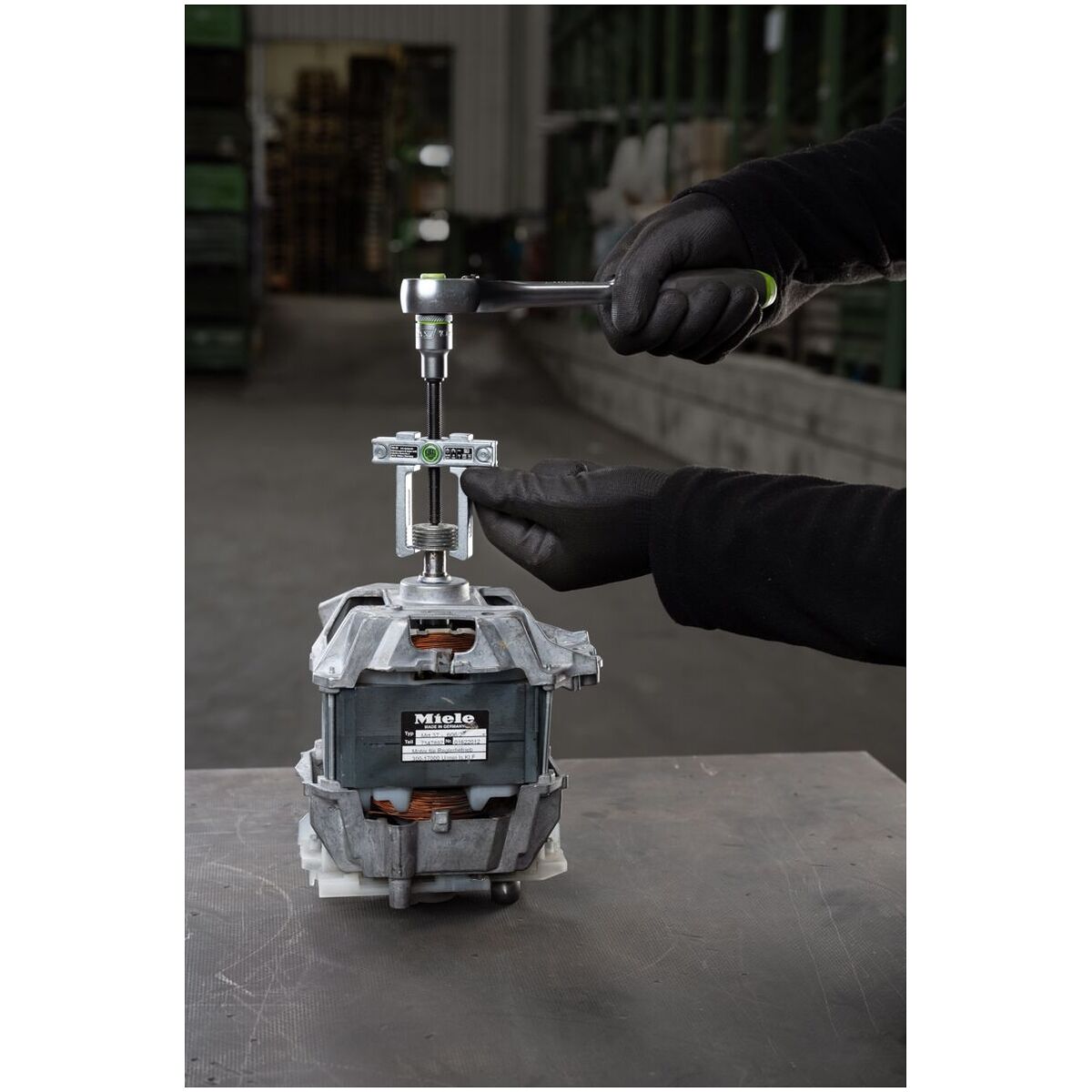

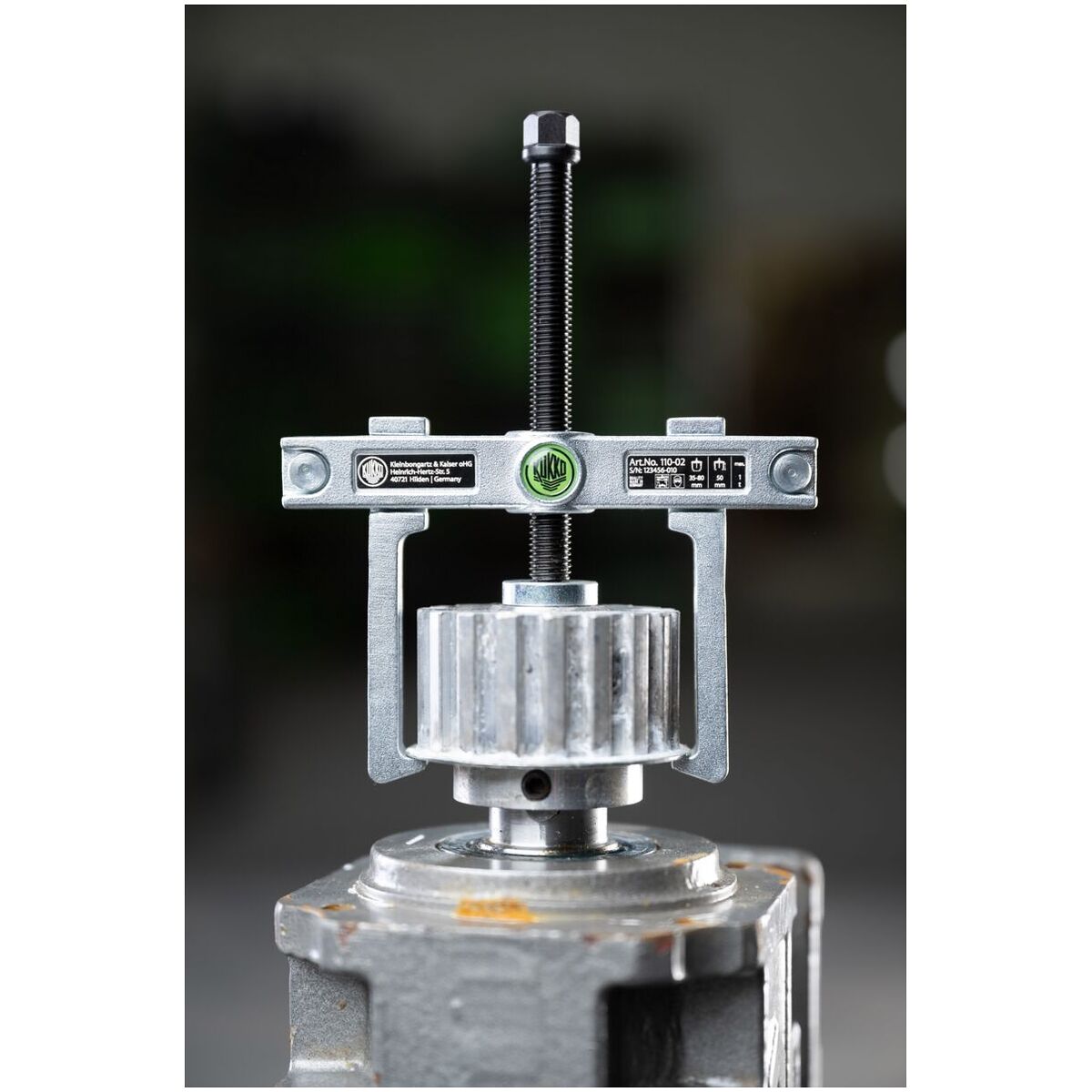

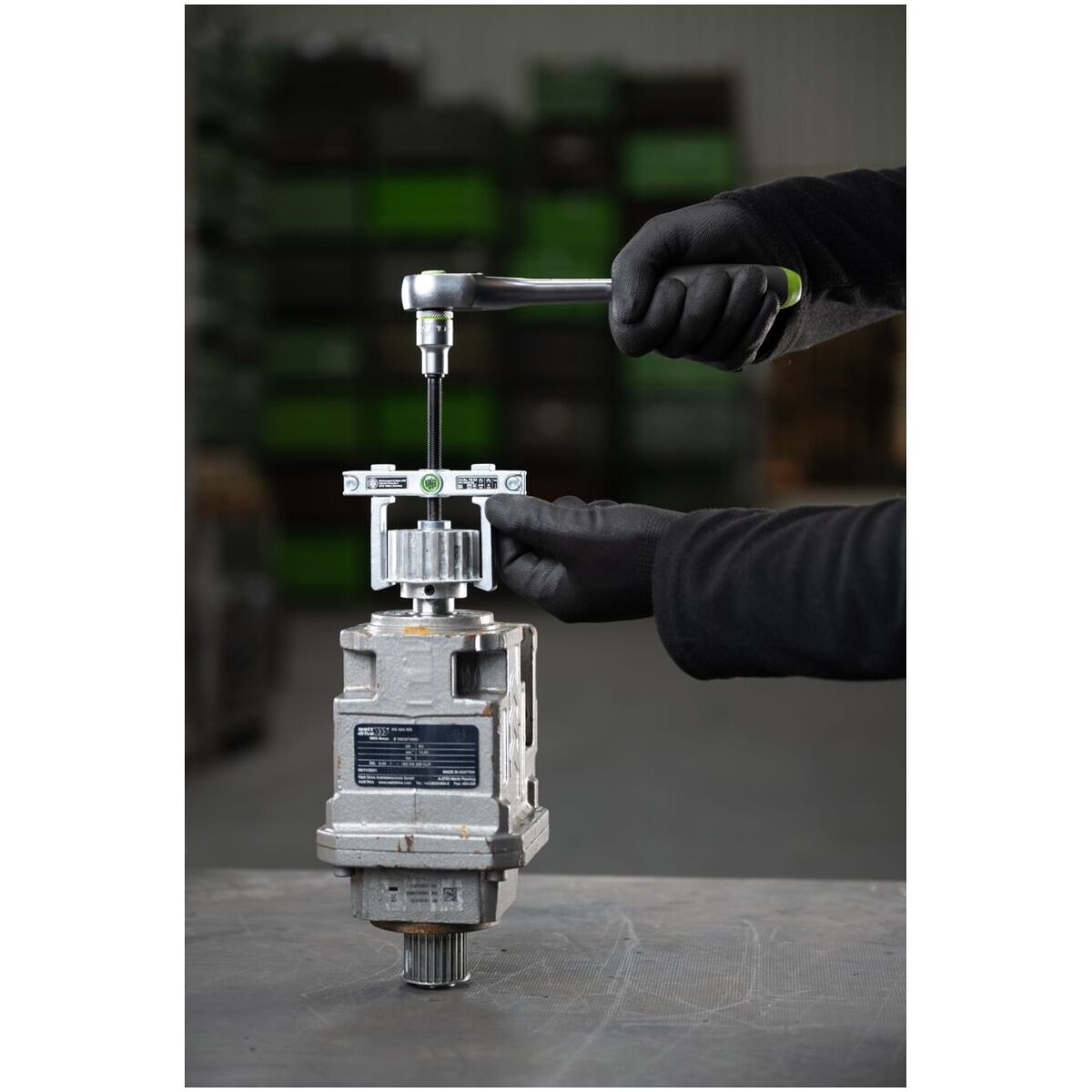

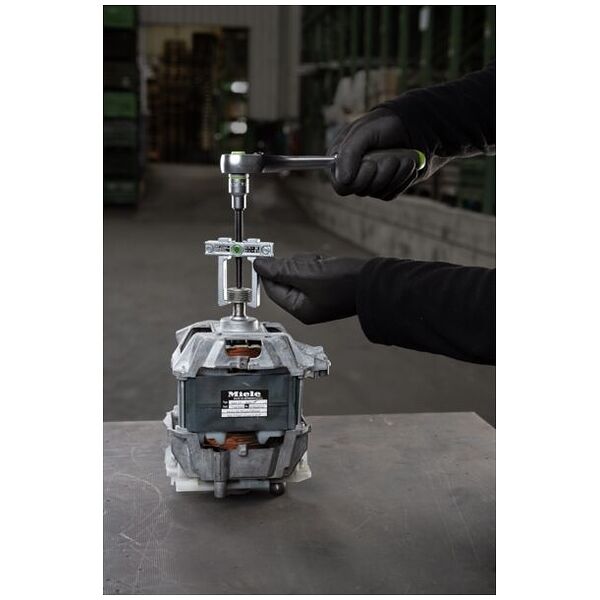

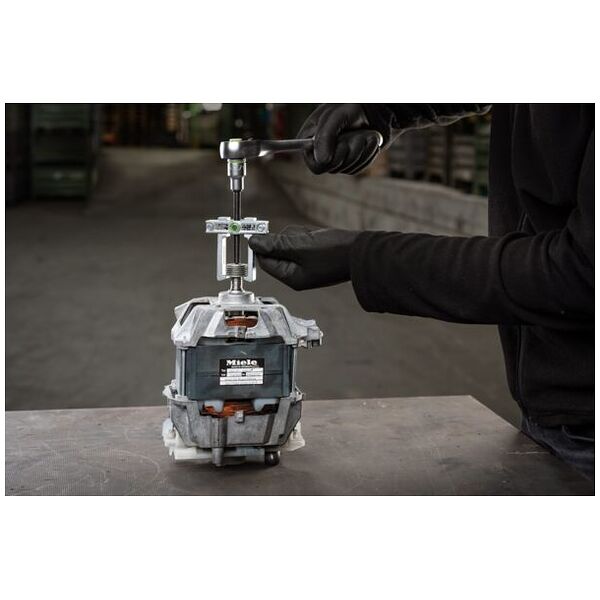

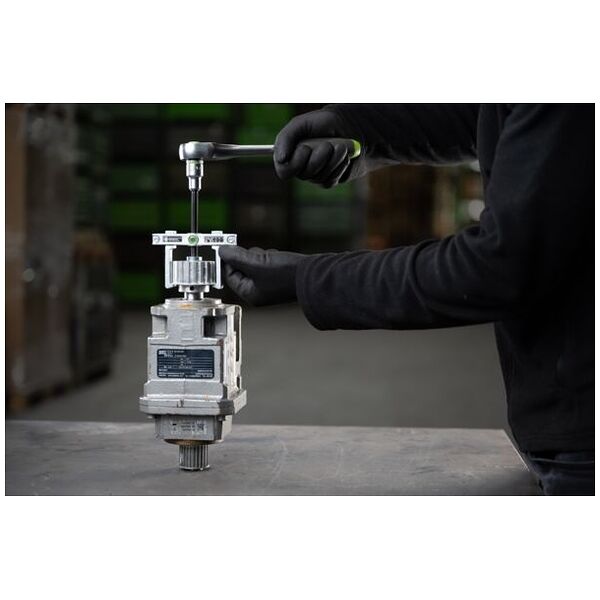

A quick adjustment extractor for gear wheels, bearings, discs, etc., which can be adjusted to the required span.
