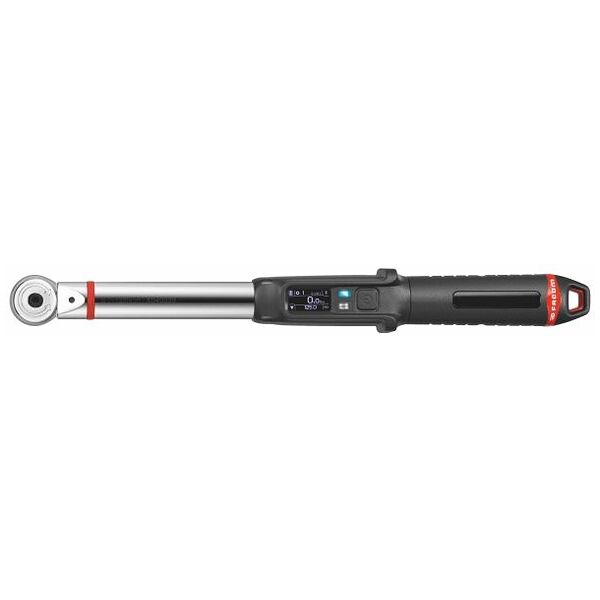

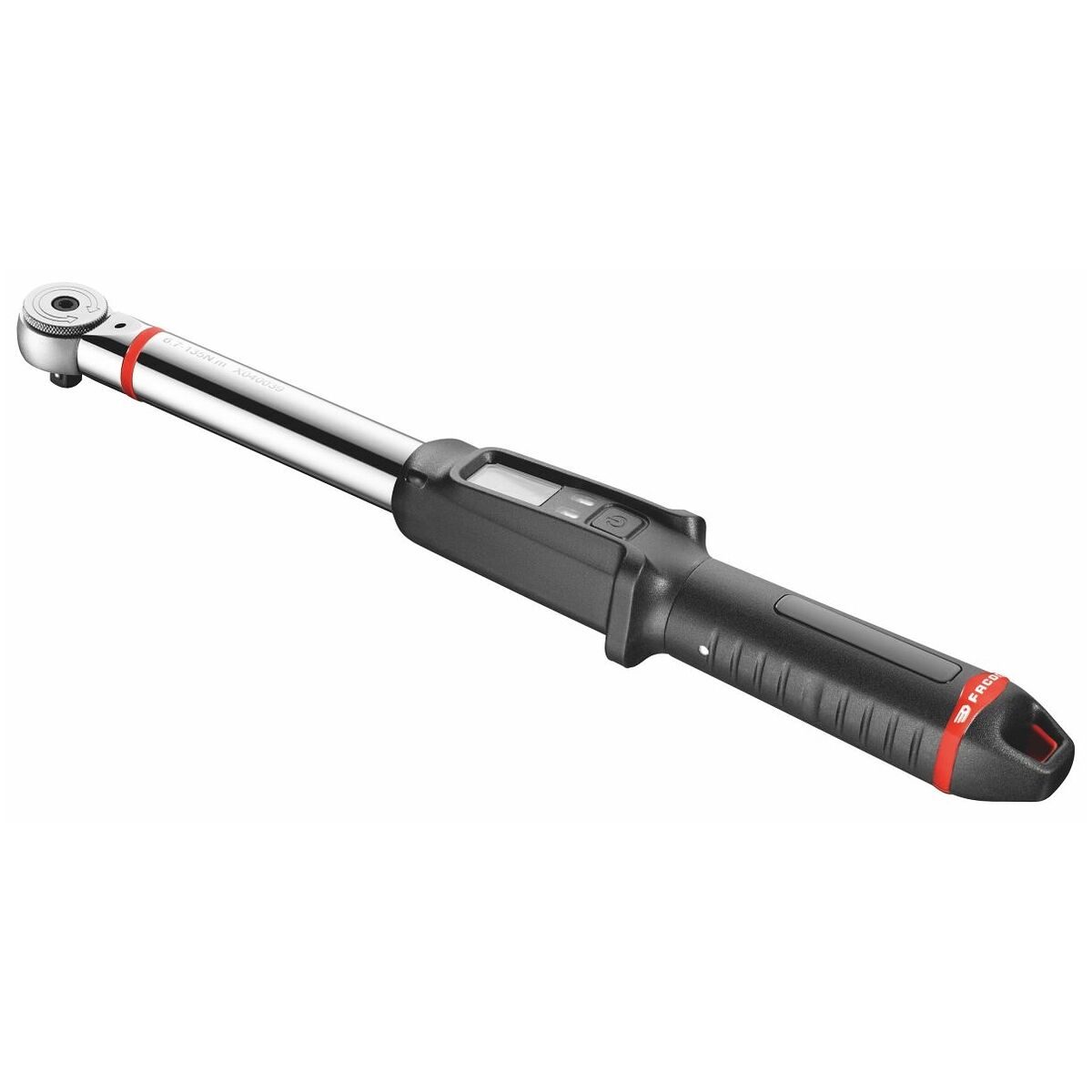

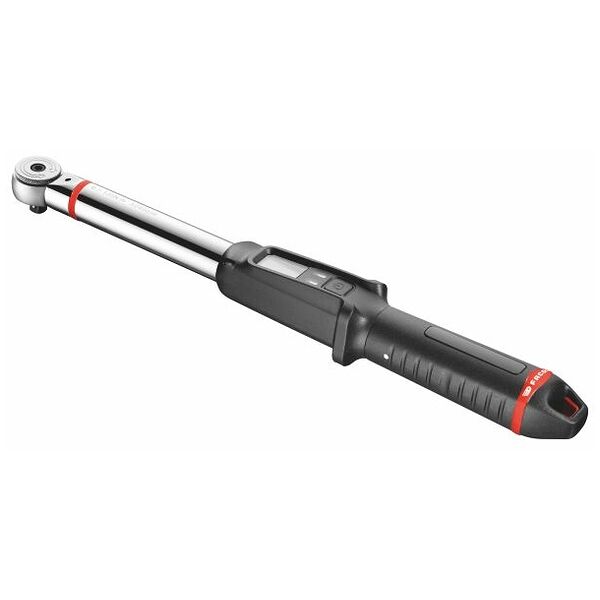

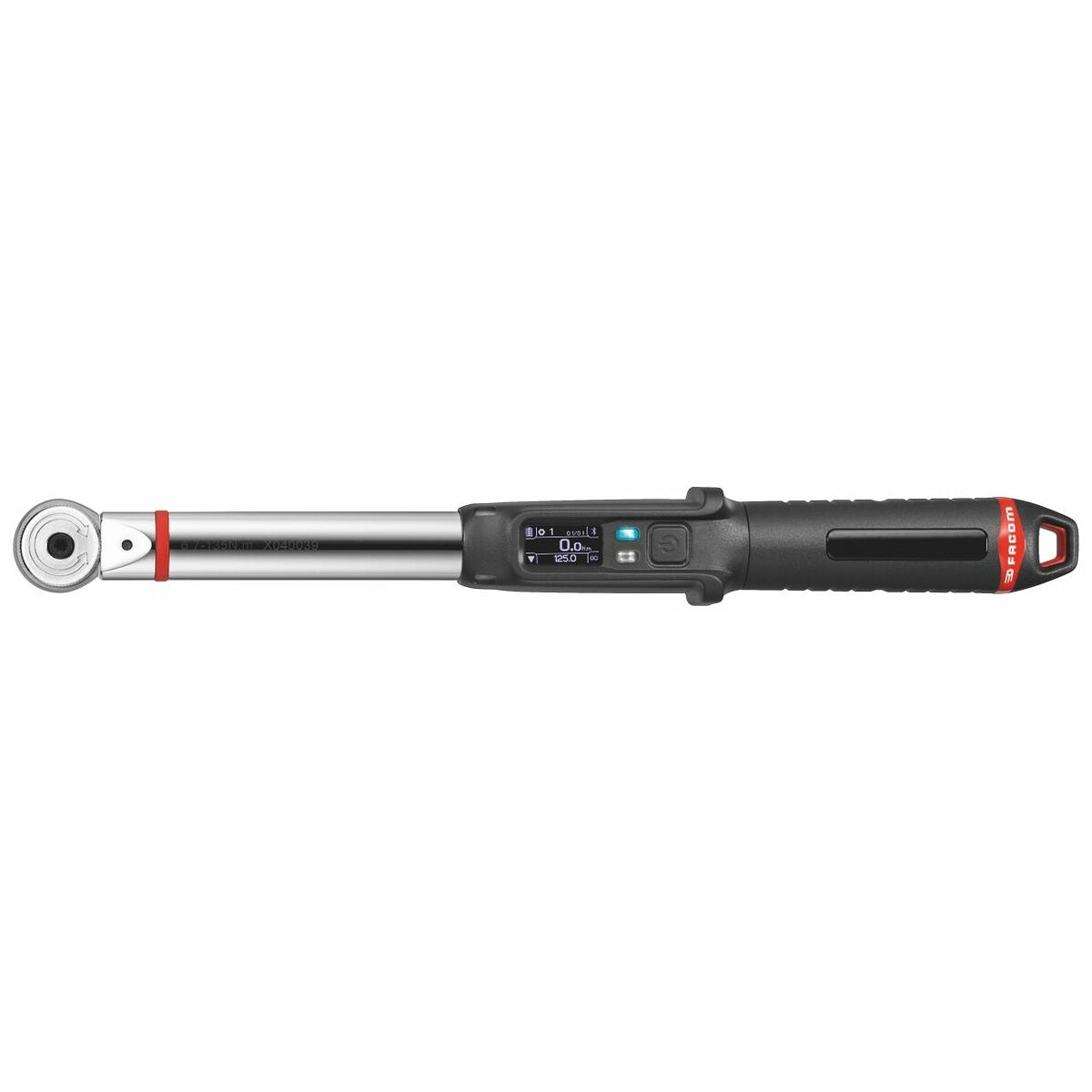

“SMART TORQUE WRENCH” electronic torque wrench / rotational angle wrench, maximum torque: 135N·m
Article no.: 655302 135
Copy
Article code:
Copy
- Direction of tightening: For right and left-hand tightening
- Torque measuring accuracy: ±2
- Measuring accuracy rotational angle: ±1
- Interface: Bluetooth® interface
- Test certificate: Manufacturer’s test certificate
Product details
Technical Data
| maximum torque | 135 Nm | |
| Direction of tightening | For right and left-hand tightening | |
| Torque measuring accuracy | ±2 % | |
| Measuring accuracy rotational angle | ±1 degrees | |
| Interface | Bluetooth® interface | |
| Test certificate | Manufacturer’s test certificate | |
| Overall length L | 440 mm | |
| Torque range | 13.5 Nm - 135 Nm | |
| Torque range | 9.957 lbfft - 99.6 lbfft | |
| Torque range | 119.485 lbfin - 1,195 lbfin | |
| Resolution | 0.01 Nm | |
| Weight | 1,200 g | |
| Square drive | 3/8 inch | |
| Display | digital | |
| Release signalling | acoustic; haptisk; haptisk | |
| Trigger principle | Vibration motor | |
| Power supply | Rechargeable battery-powered | |
| Number of rechargeable batteries contained | 1 | |
| Type of rechargeable battery | Lithium-ion | |
| Battery capacity | 2.6 Ah | |
| Nominal voltage | 3.7 V | |
| Connection format | Push-through square drive (ratchet) | |
| Measurement technology | electronic | |
| Quick release/ quick-change function | no | |
| Data can be recorded | yes | |
| Setting the trigger value | digital, adjustable | |
| Feedback | acoustic signal; udløsning; visning | |
| Reversible reading | Nm; lbfin; lbfft; kgf-cm | |
| Measurement process | Torque; Rotation angle | |
| Adjustable trigger value | adjustable | |
| Standard | DIN EN ISO 6789 | |
| Type of product | Torque Wrench |
Identification & Classification
| Article number |
655302 135
Copy |
|
| EAN / GTIN |
3662424156762
Copy |
|
| Manufacturer number |
E.516ST-135
Copy |
|
| Manufacturer/responsible person | Stanley Black & Decker Deutschland GmbH, Black-&-Decker-Straße 40, 65510 IDSTEIN, Germany, www.facom.de |
Description
Version:
- Connection via Bluetooth 4.0 to smartphone/tablet with a range more than 10 metres. App available on Android and iOS. Settings of the values and operation are performed exclusively via the app. Screw tightening procedures can be tacked live on the app, then past measured values can be called up. The associated report can be exported as a CSV file.
- Measurement of torque and angle of rotation.
- OLED display with high contrast for particularly good legibility. Protected with a rubber surround.
- 4 LEDs for 360° visibility. Gives feedback via a graduated traffic light system.

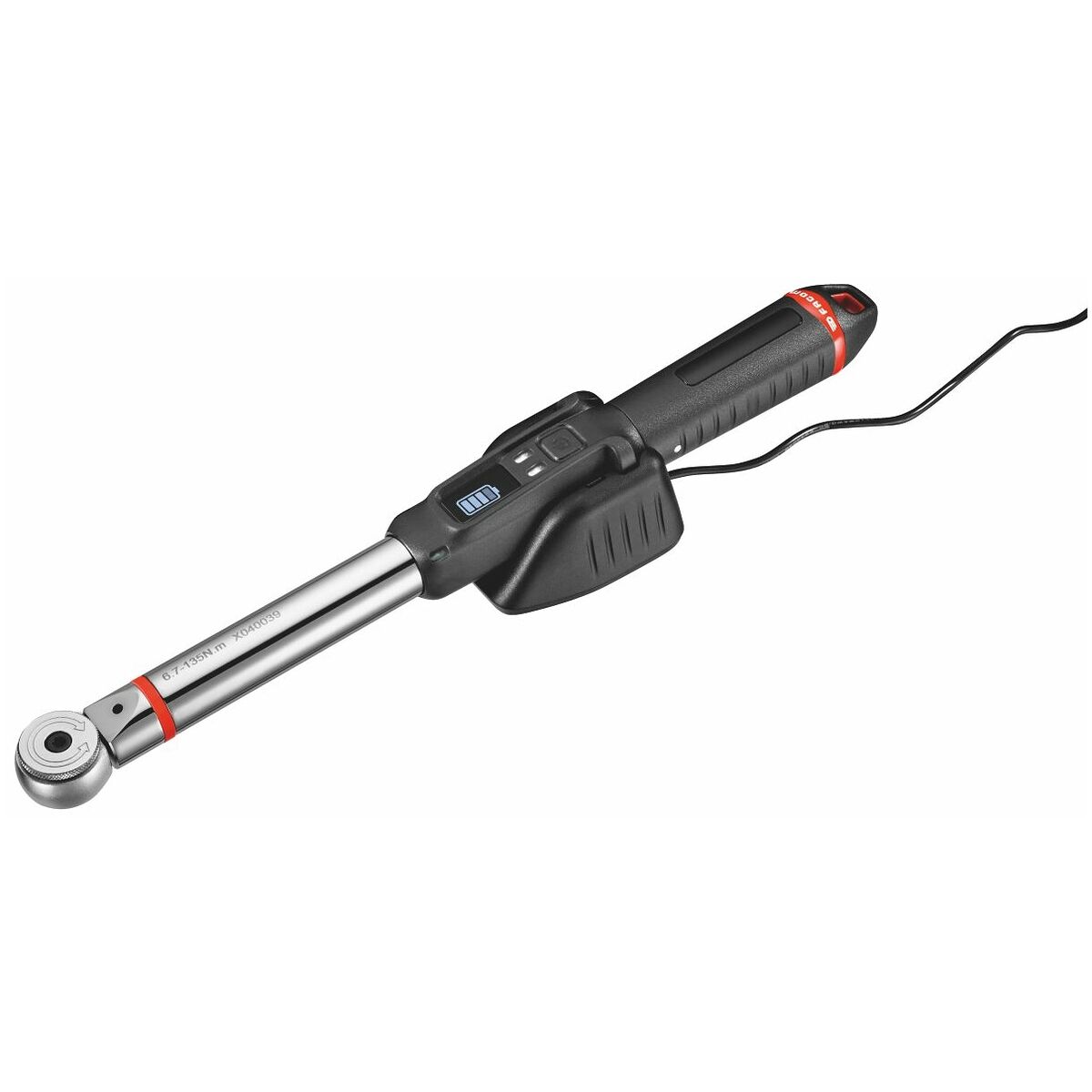

- Rechargeable via the Docking Station.
- Operating modes: Torque frequency (procedural flow chart), quick torque.
- Signal output haptic (vibration as the set value is approached, and click when it is reached), visual (LEDs and display) and acoustic (click).
- With calibration reminders. After a certain number of duty cycles and elapsed time.
Units of measure: Nm, lbfft, lbfin, kg·cm.
Standard:
Tested to DIN EN ISO 6789.
Supplied with:
Supplied with a Li-ion battery 3.7 V / 2.6 Ah type 18650, docking station with micro-USB cable, mains plug and sturdy plastic case.
