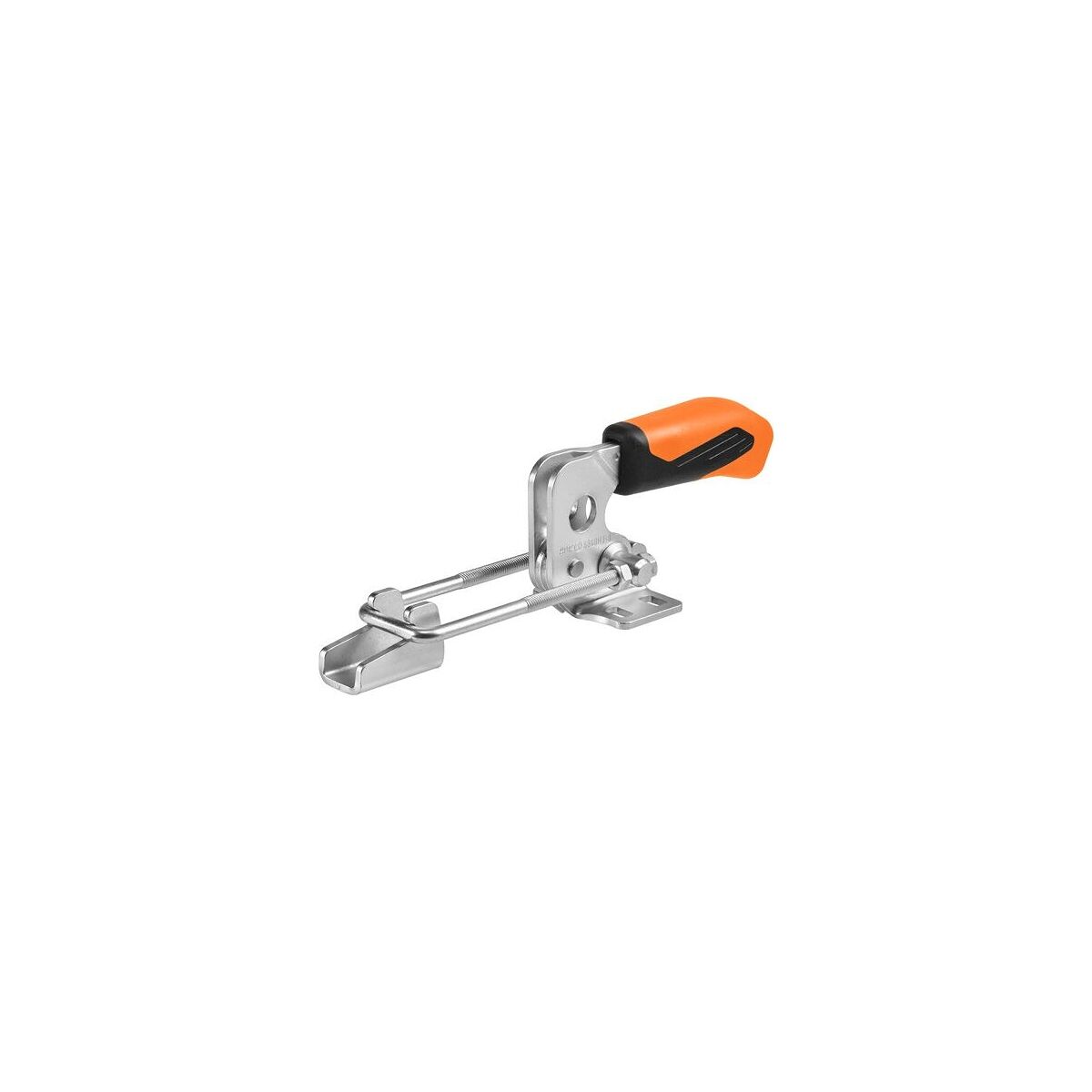

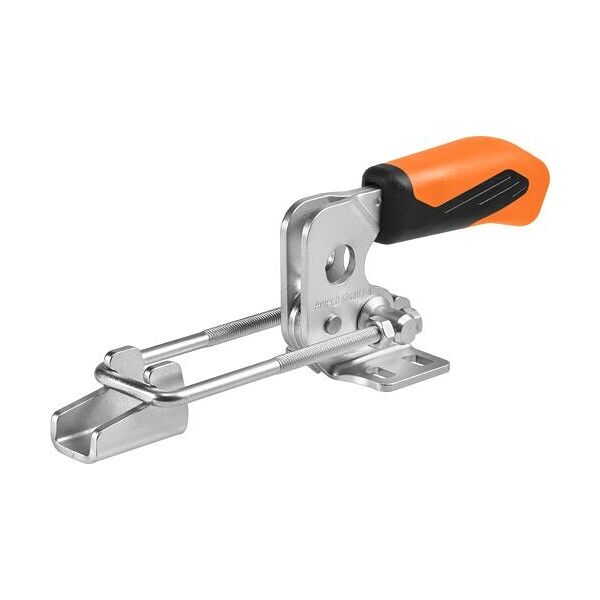

Hook toggle clamp horizontal, Type: 2
Article no.: 376800 2
Article code:
Product details

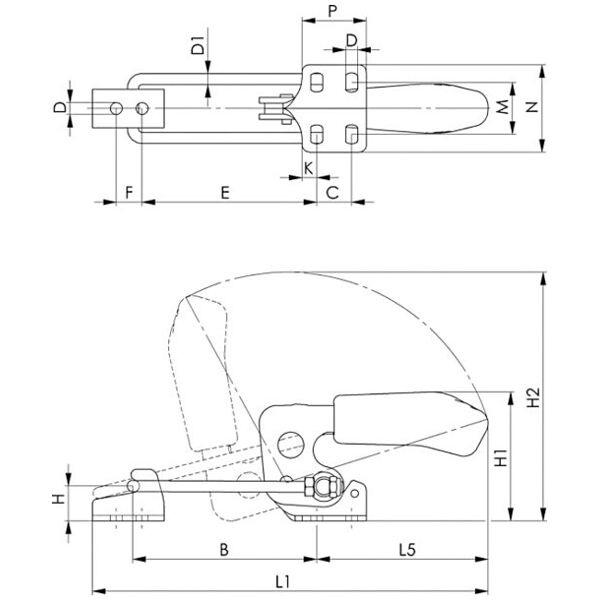

Technical Data
| Manufacturer’s designation | Verschlussspanner horizontal, Typ: 2 | |
| Min. adjustment travel of clamping hook c | 38 mm | |
| Holding force max. F | 1,600 N | |
| Max. adjustment travel of clamping hook c | 72 mm | |
| Diameter of hole | 5.2 mm | |
| Hole spacing min. k | 13 mm; 19.5 mm | |
| Hole spacing max. k | 13 mm; 23.5 mm | |
| Type of product | hook toggle clamp | |
| With bore | yes | |
| With screw / thread | yes | |
| Overall length L | 159 mm | |
| Overall height H | 47 mm | |
| Material | heat-treatable steel; plastic; stainless steel; steel | |
| Clamping height | 12 mm | |
| Content | single part |
Identification & Classification
| Article number | 376800 2 | |
| EAN / GTIN | 4020772017095 | |
| Manufacturer number | 557405 | |
| Manufacturer/responsible person | Andreas Maier GmbH & Co. KG, Waiblinger Straße 116, 70734 Fellbach, Germany, www.amf.de |
Description
Version:
Complete with catch.
- Quick-action clamp with toggle action.
- Self-locking mechanism prevents inadvertent opening.
- Rivet of stainless steel.
- Handle made of oil-resistant plastic.
- Galvanised clamps.
- Clamping hook adjustable using thread.
- Bearing bushes case-hardened.
- Bearings greased.
- Hardened hook.
Application:
For closing containers.
Note:
- More compact design due to new handle.
- Ergonomic 2-component handle, very comfortable to use due to enlarged hand rest.
