LED machine lamp Ring, Type: 160
Article no.: 081439 160
Article code:
Product details
Technical Data
| Cable length | 2 m | |
| Nominal voltage | 24 V | |
| IP index of protection | IP67 | |
| Max. luminous flux ϕ | 460 lm | |
| Light output | 7.5 W | |
| Max. beam dispersion angle | 160 degrees | |
| Power supply | mains-powered | |
| Colour | grey; transparent | |
| Index of protection / protection class | IP degree of protection | |
| Type of product | machine lamp | |
| Overall width B | 160 mm | |
| Overall height H | 42 mm | |
| Suitable for EX areas | no | |
| Material | aluminium | |
| Type of fastening | magnet | |
| Anti-glare | yes | |
| Flicker-free. | yes | |
| Adjustable illumination intensity | no | |
| Adjustable beam dispersion angle | no | |
| Lamp replaceable | no | |
| Illumination type | LED |
Identification & Classification
| Article number | 081439 160 | |
| EAN / GTIN | 4260131238895 | |
| Manufacturer number | 900/83 | |
| Manufacturer/responsible person | Bauer & Böcker GmbH & Co. KG, Lange Straße 19, 42857 Remscheid, Germany, www.bauer-boecker.de |
Description
Version:

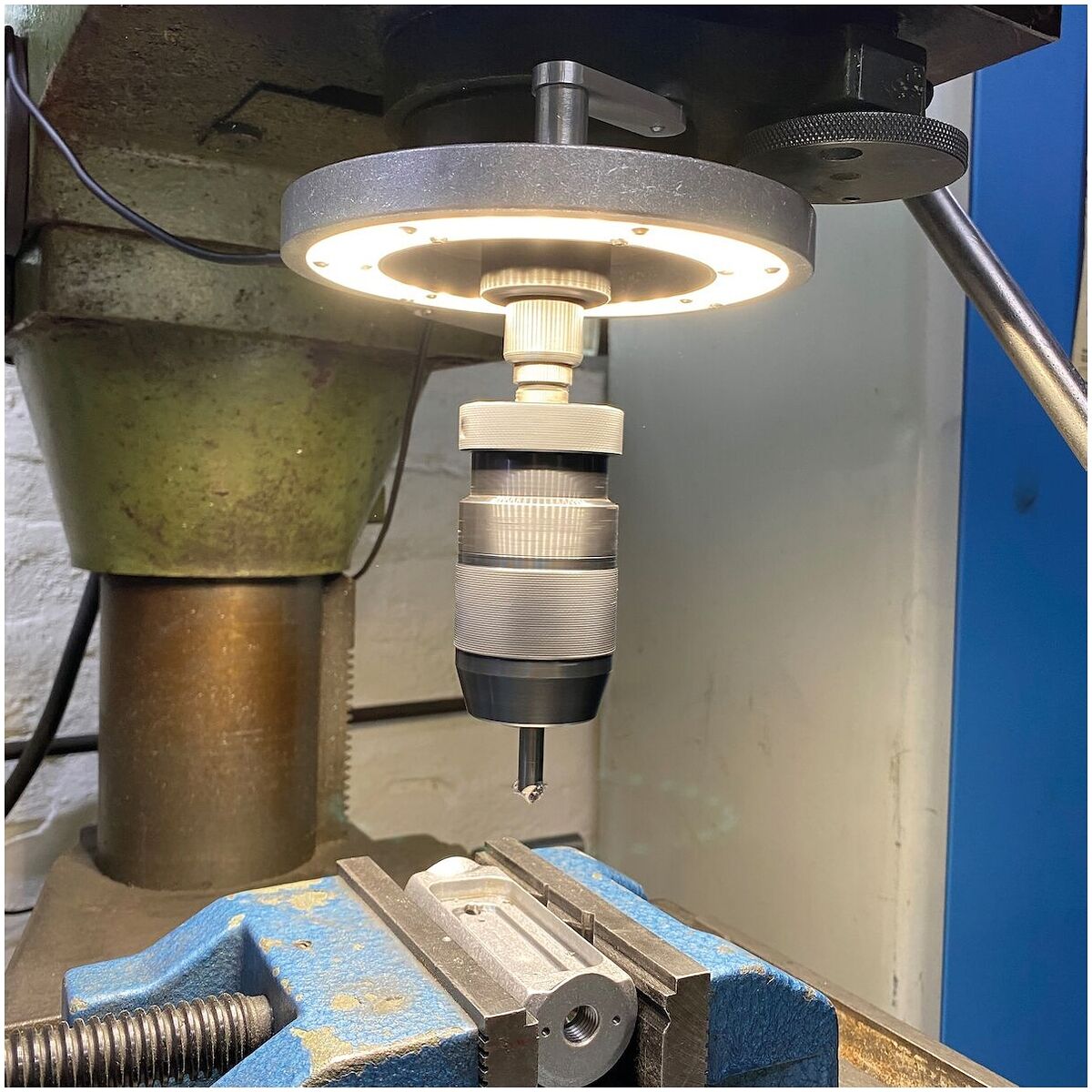

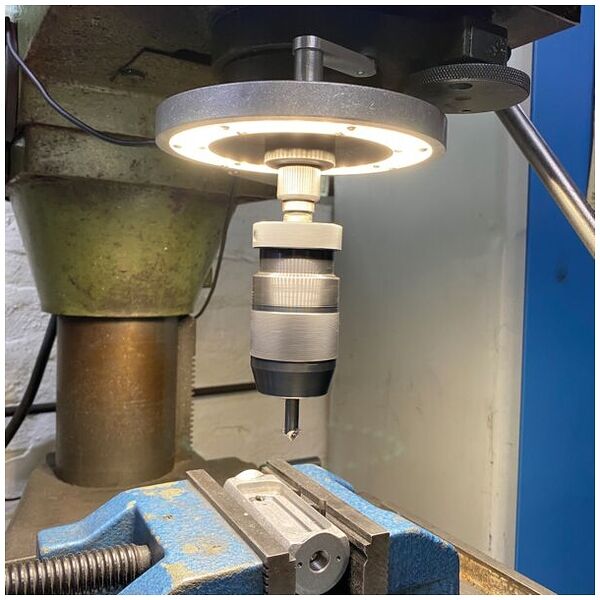

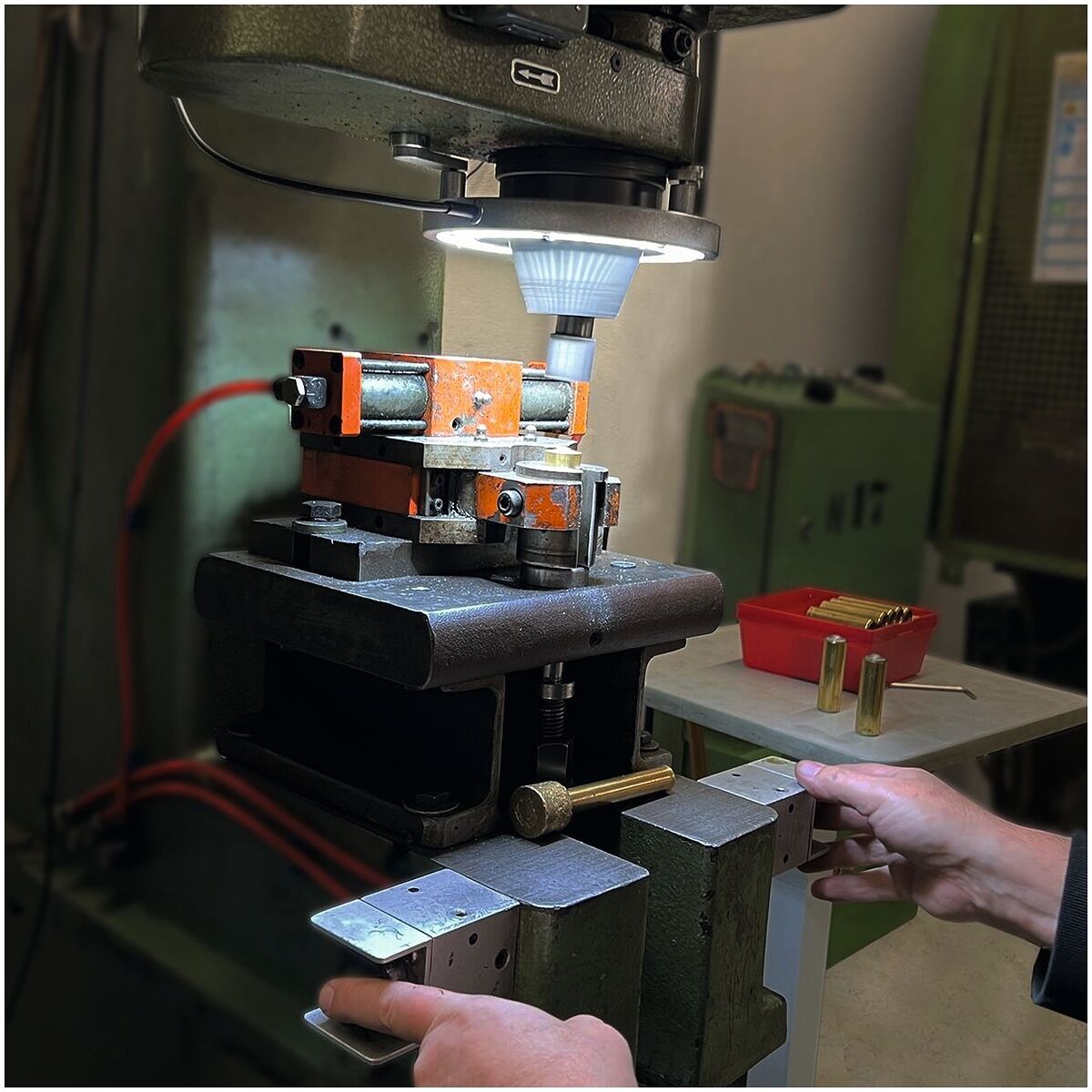

Ring illumination “circle light” for shadow-free 360° illumination around the spindle on milling machines and drilling machines. Flexible attachment to different types of machine using the adjustable magnetic holder.
Sturdy LED machine lamps in an aluminium casing, with a satinised acrylic lens for homogeneous 160-degree illumination.
Sturdy LED machine lamps in an aluminium casing, with a satinised acrylic lens for homogeneous 160-degree illumination.
- Low-reflection, non-dazzle and non-flicker.
- For connection to a 24 V mains adapter or 24 V machine control system.
Function:
IP67: Protected against intermittent immersion in water and protected against penetration by dust (dust-tight), also completely protected against touching.
Supplied with:
With rubber-clad magnets, mains adapter.
