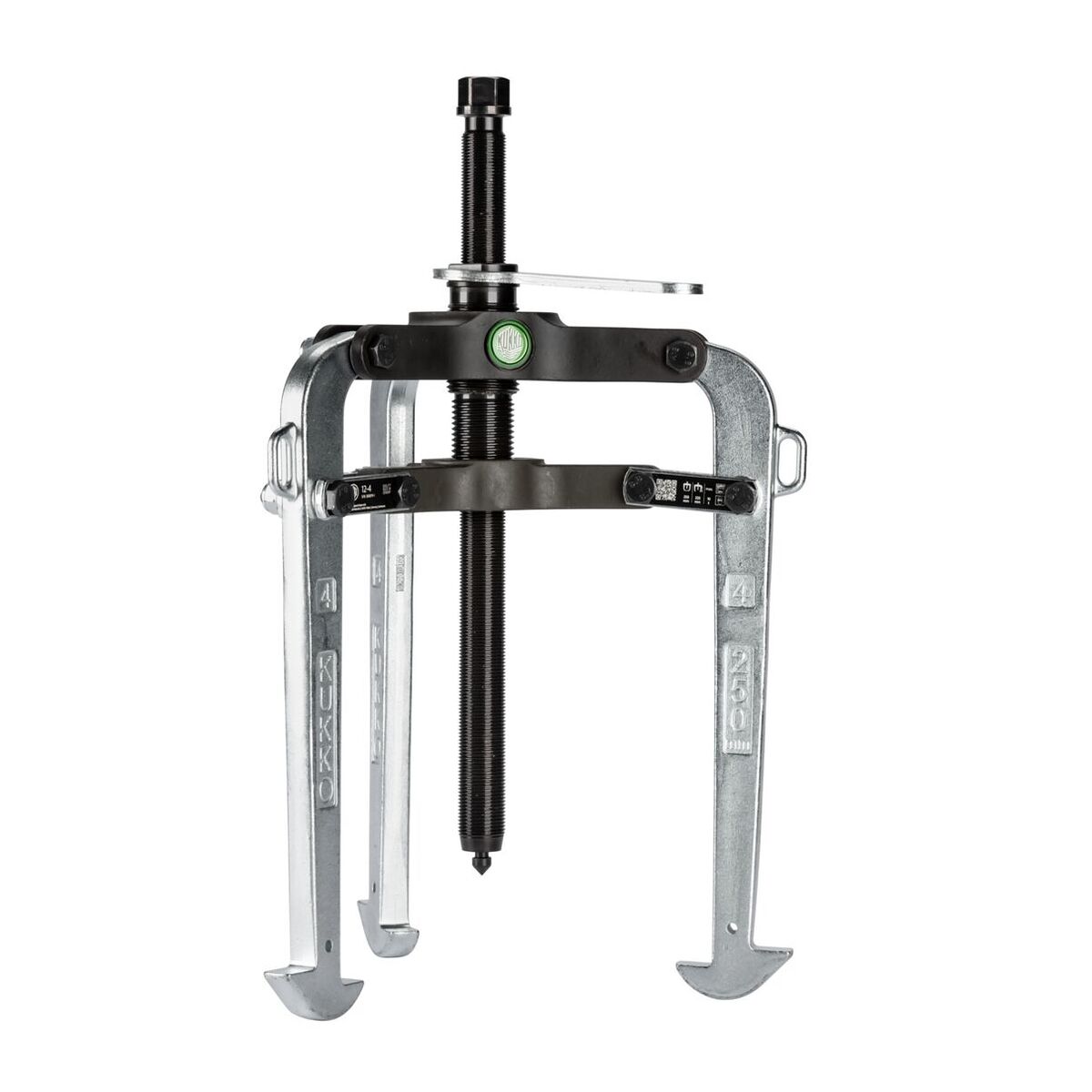

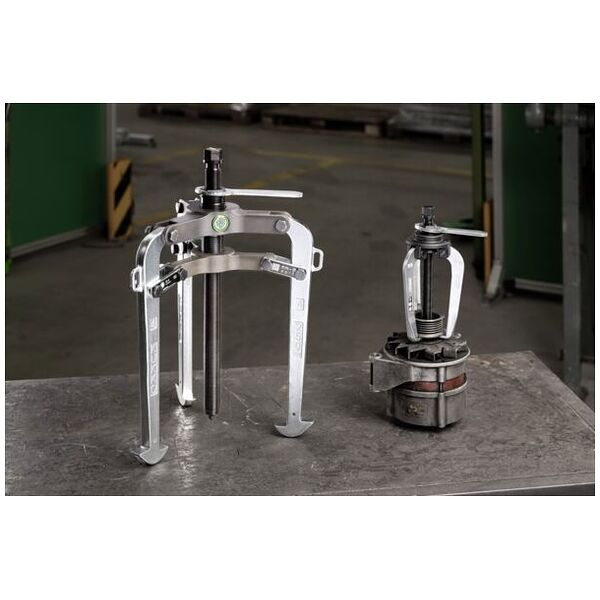

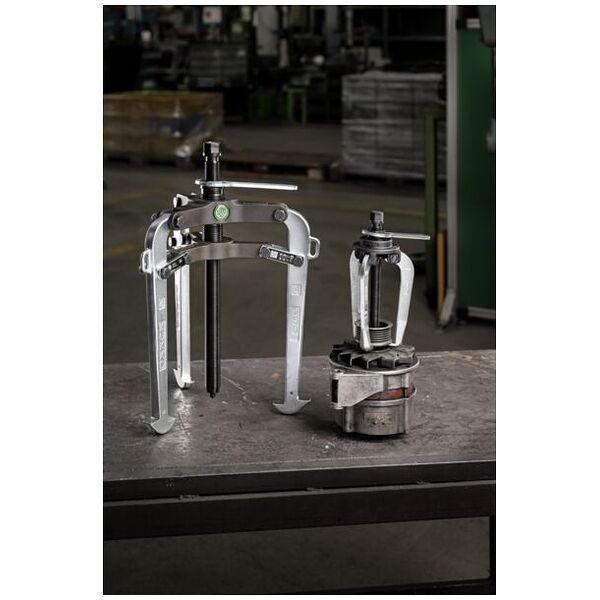

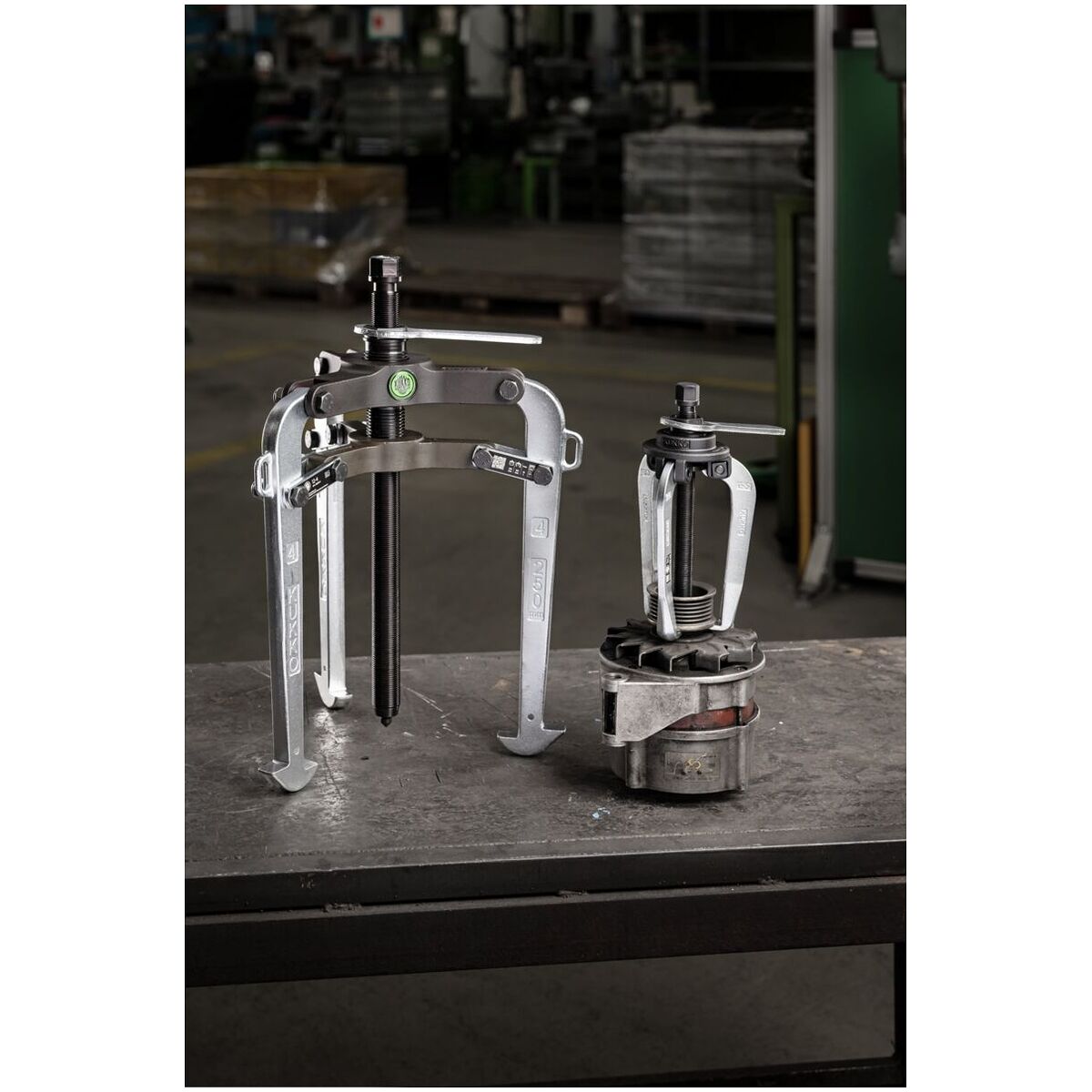

Three-leg extractor with pre-adjustable clamping range, Type: 4
Article no.: 880960 4
Article code:
Product details
Technical Data
| Manufacturer’s designation | 12 | |
| Internal clamping range min. | 225 mm | |
| Internal clamping range max. | 325 mm | |
| External clamping range min. | 20 mm | |
| External clamping range max. | 250 mm | |
| Min. clamping depth | 50 mm | |
| Max. clamping depth | 225 mm | |
| Max. torque | 300 Nm | |
| Number of hooks | 3 | |
| Performance | 10 t | |
| Connection thread | G3/4 | |
| Type of product | three-leg extractor | |
| External hexagon drive | 27 mm | |
| Material | steel | |
| Overall length | 430 mm | |
| Weight | 11.99 kg | |
| Content | single part |
Identification & Classification
| Article number | 880960 4 | |
| EAN / GTIN | 4021176850509 | |
| Manufacturer number | 12-4 | |
| Manufacturer/responsible person | Kleinbongartz & Kaiser oHG, Heinrich-Hertz-Straße 5, 40704 Hilden, Germany, www.kukko.com |
Description
Version:

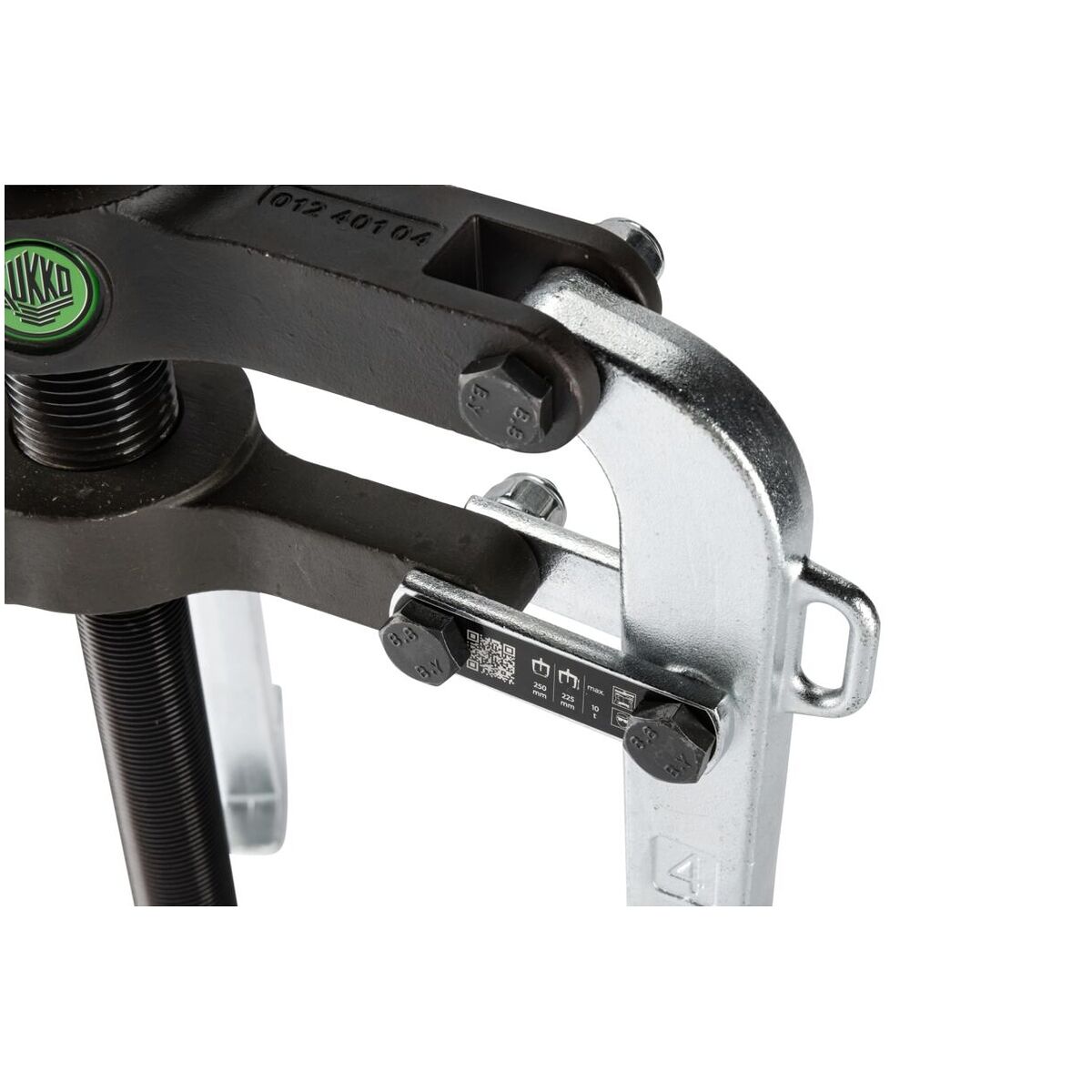

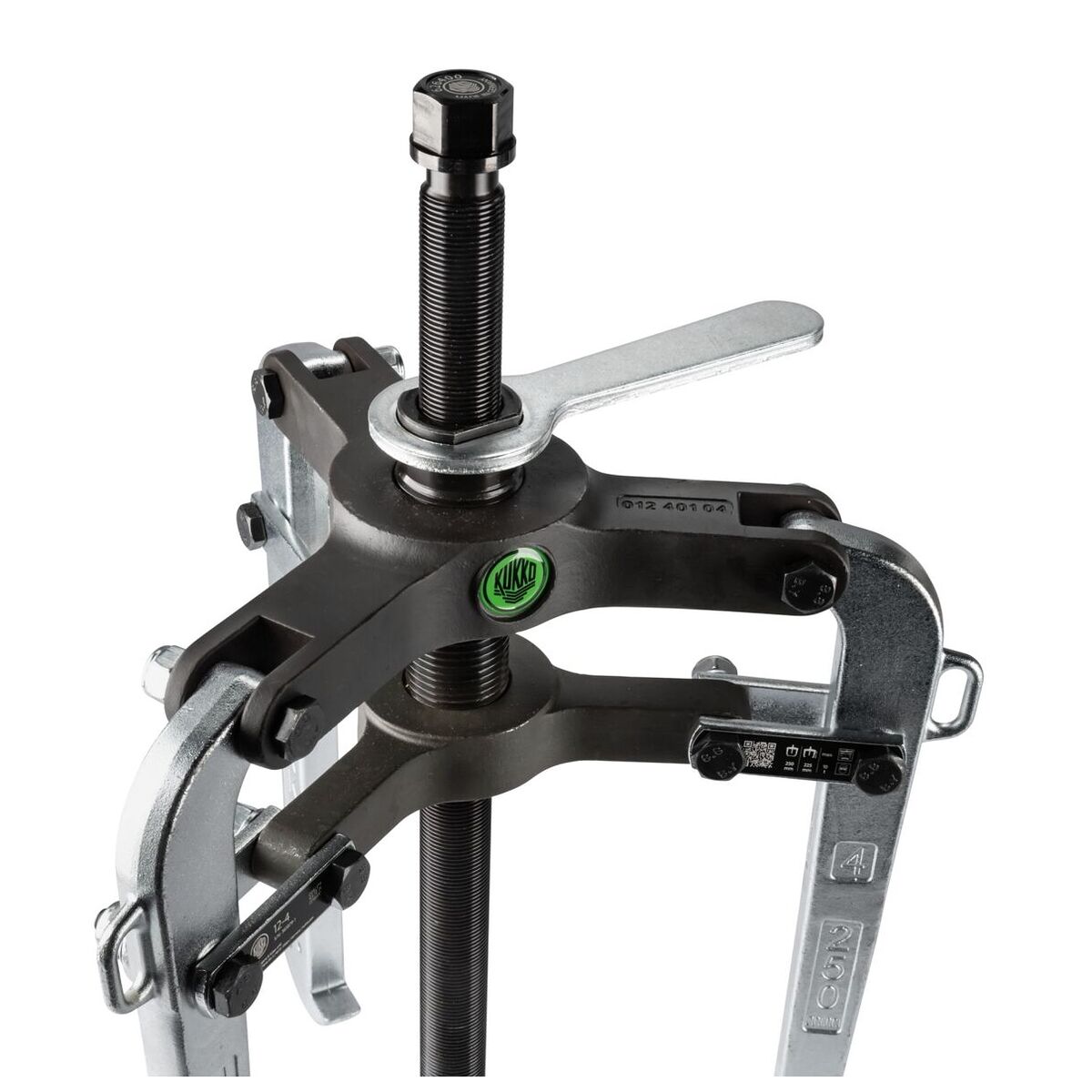

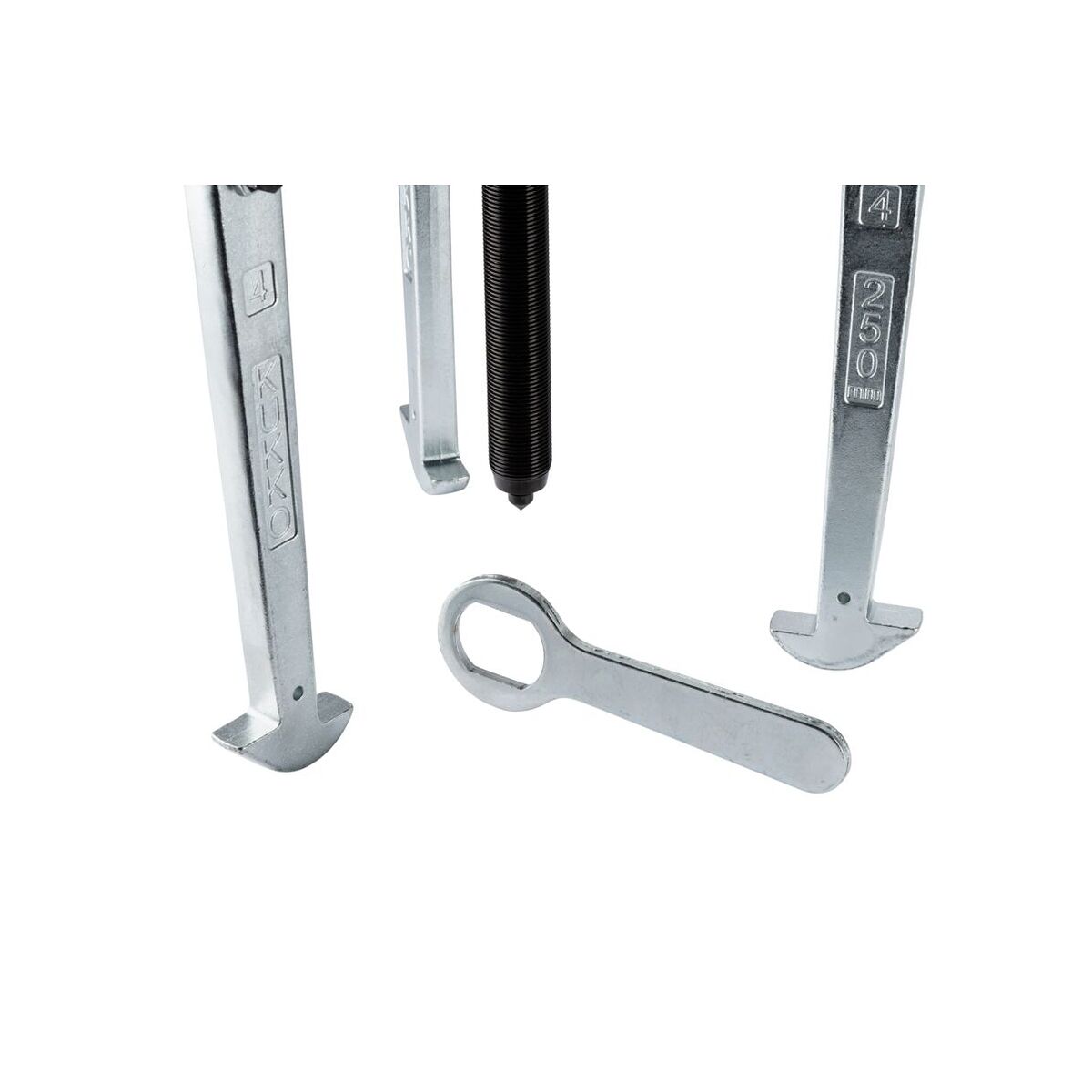

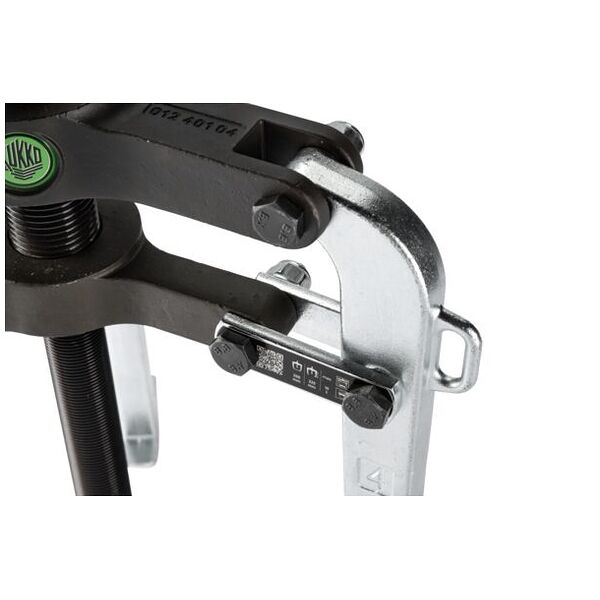

Powerful extractor with high clamping force and excellent clamping. Using the adjustment wrench, the symmetrical clamping legs are easily set to the necessary spread. The part to be extracted is positively gripped, the gripper jaws cannot jump or slip.
For external and internal extraction.
For external and internal extraction.
Application:

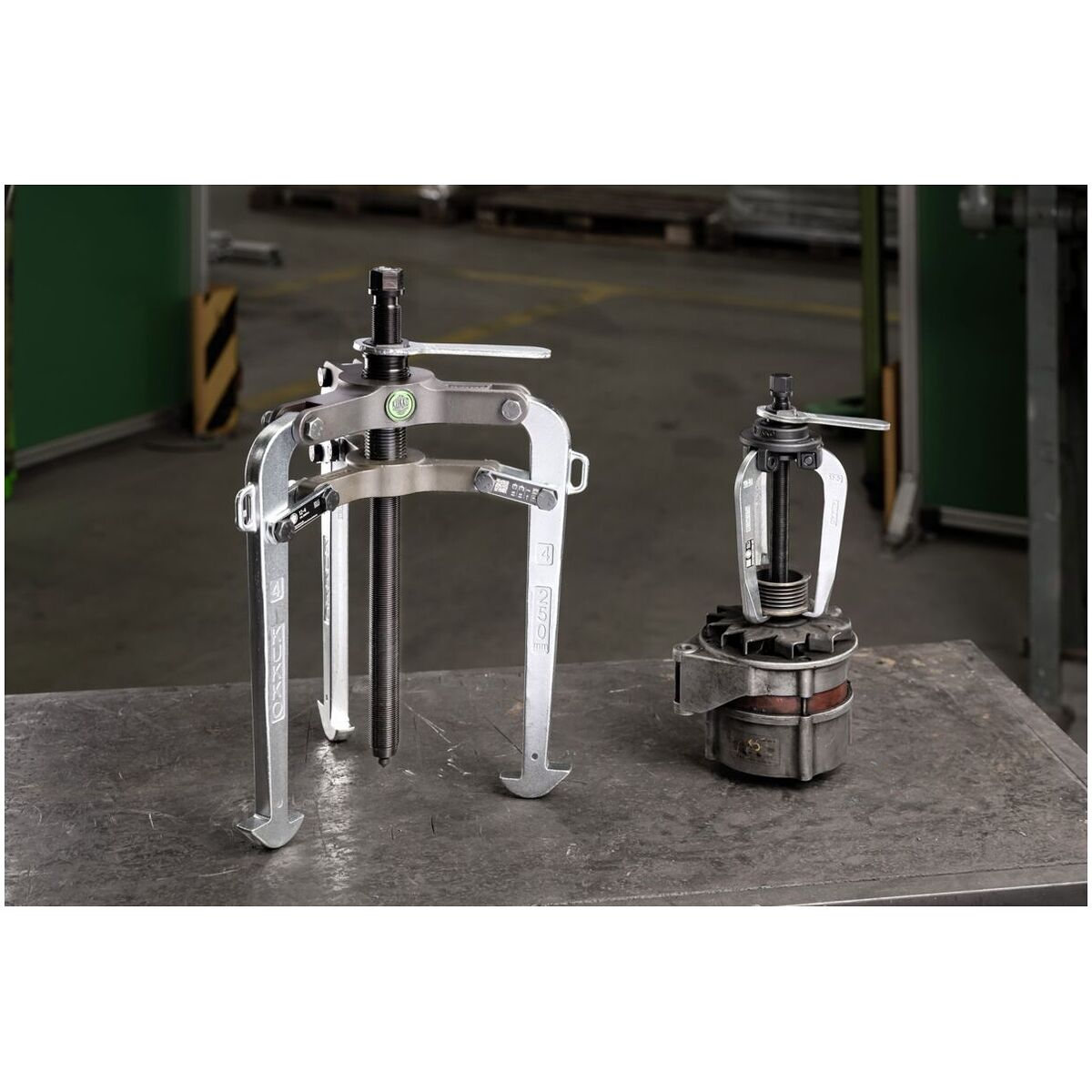

For extracting tightly seized ball bearings, gear wheels, pulleys and similar parts.
