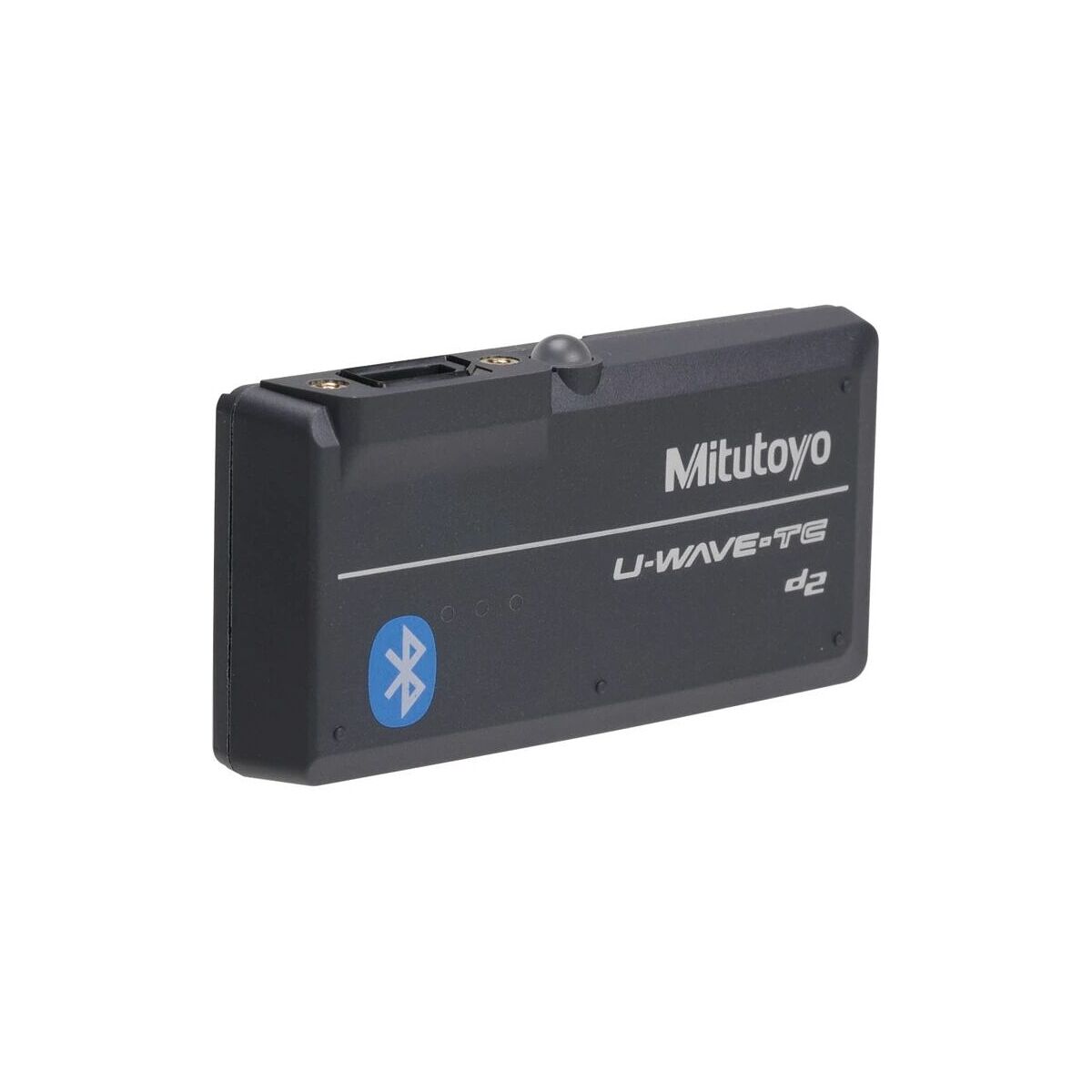

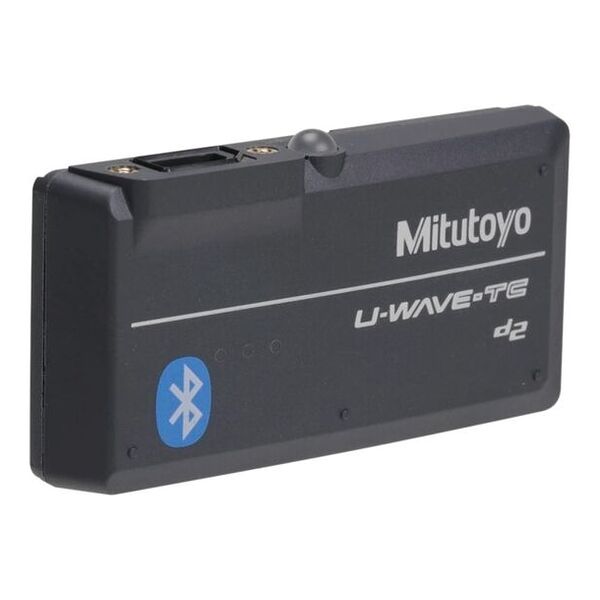

U-WAVE-TCB transmitter with Bluetooth® for calipers, Type: IP67
Article no.: 498893 IP67
Article code:
Product details
Technical Data
| Number of batteries contained | 1 pcs. | |
| Type of battery | lithium (Li) | |
| International size | button cell (CR2032) | |
| Rechargeable | no | |
| Series | HCT | |
| Manufacturer’s designation | U-WAVE-TCB IP67 | |
| Power supply | battery-powered | |
| Type of connection | input | |
| Range | 16 m | |
| Frequency | 2,400 MHz | |
| Wireless application | HCT Mobile App | |
| Type of product | transmitter | |
| Connection | Digimatic | |
| Type of transmission | radio | |
| Length | 56 mm | |
| Width | 30.4 mm | |
| Height | 11.5 mm |
Identification & Classification
| Article number | 498893 IP67 | |
| EAN / GTIN | 4946368796765 | |
| Manufacturer number | 264-624 | |
| Manufacturer/responsible person | Mitutoyo Deutschland GmbH, Borsigstraße 8-10, 41469 Neuss, Germany, www.mitutoyo.de |
Description
Version:

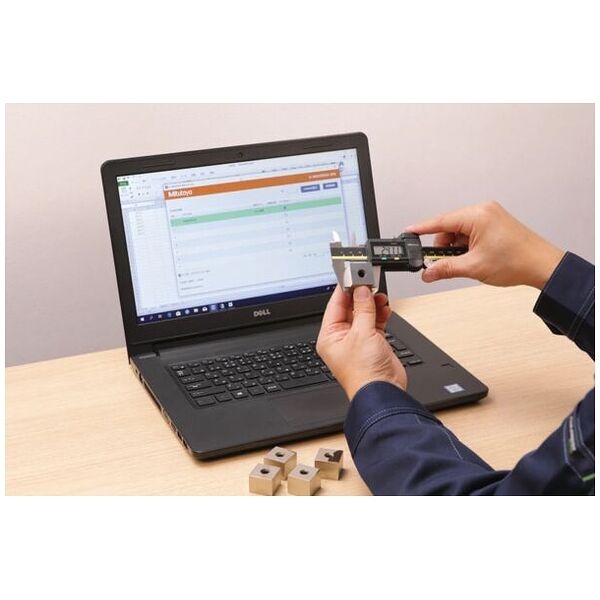

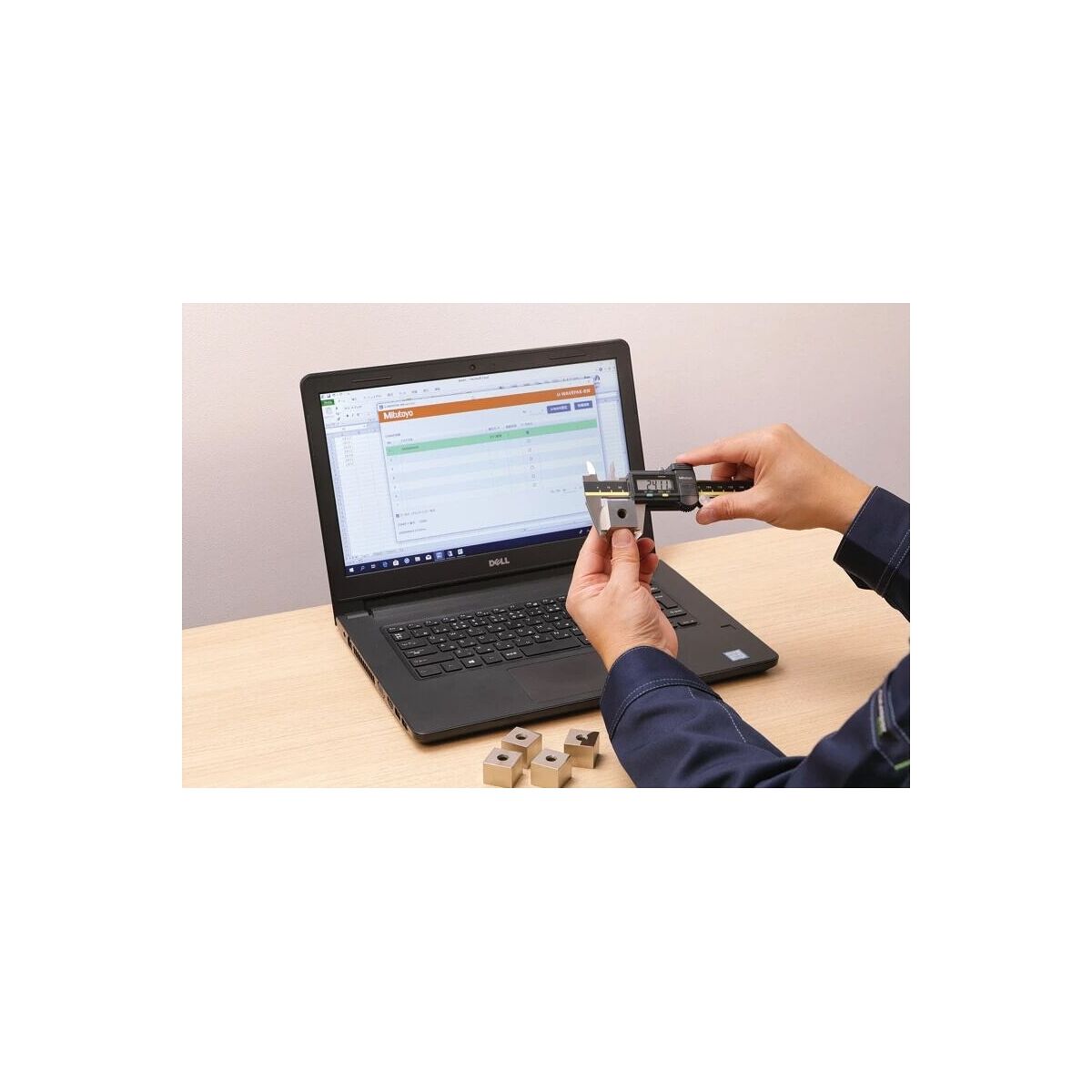

Wireless data transmission system U-WAVE fit.

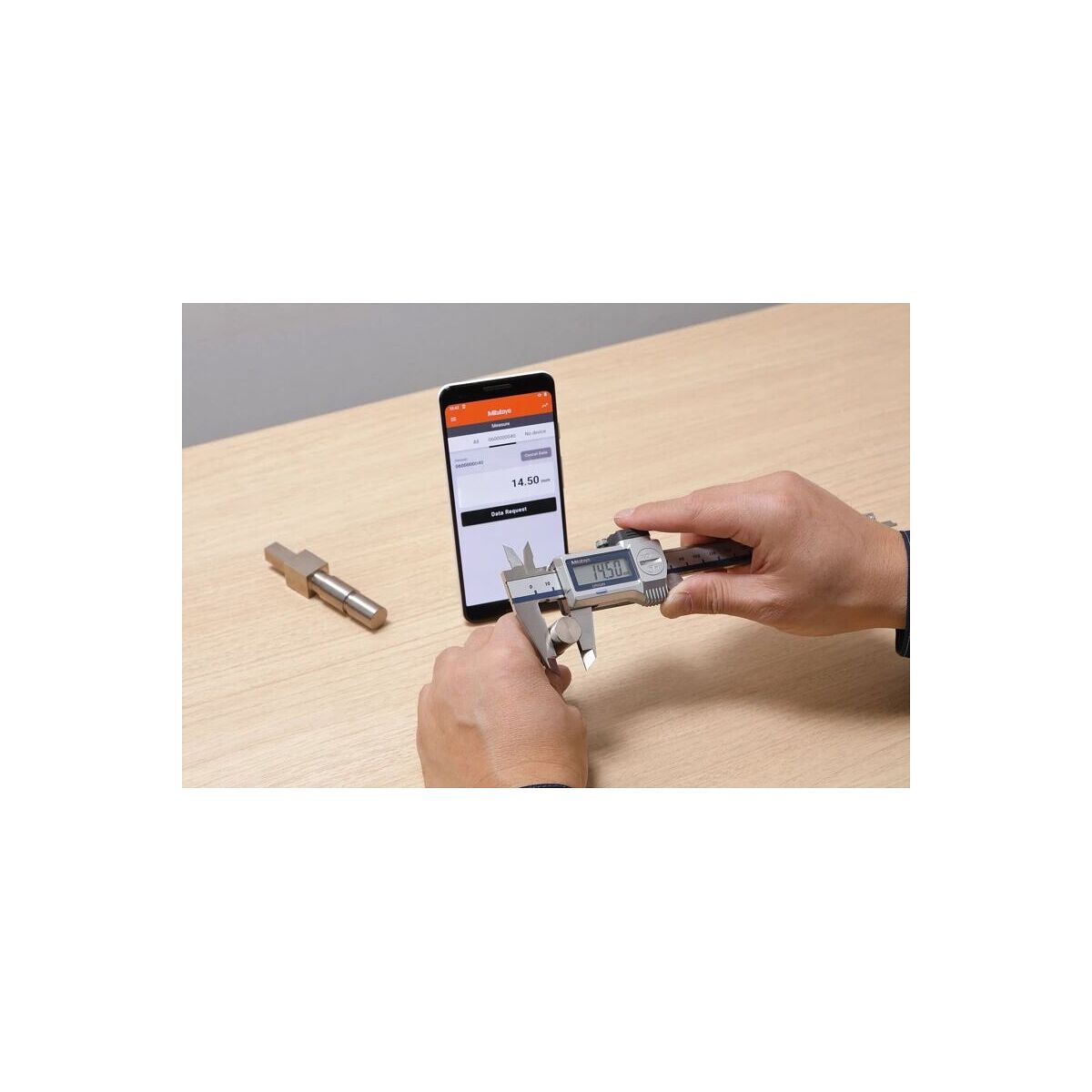

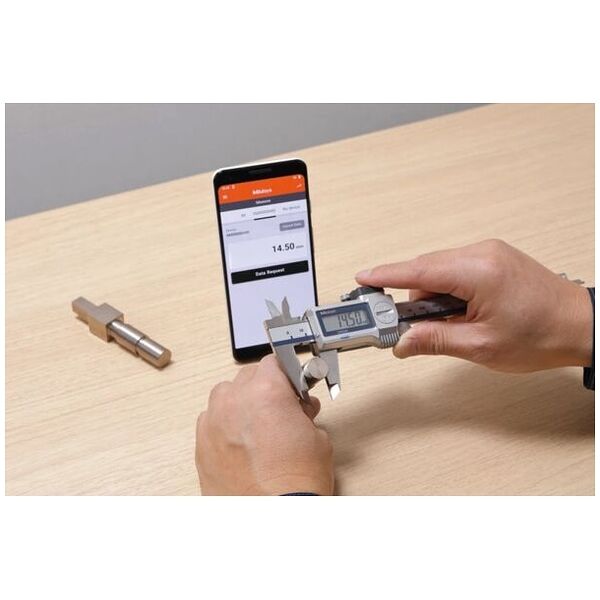

Compatible with the optional HCT (Hoffmann Group Connected Tools) app. Available free of charge for Android and iOS.

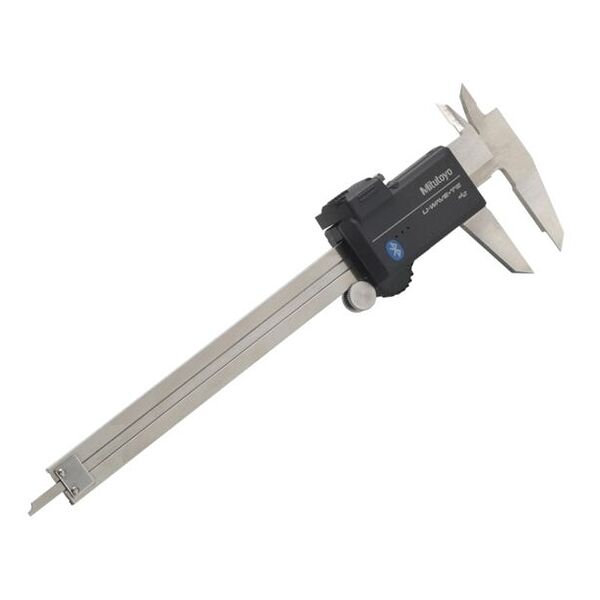

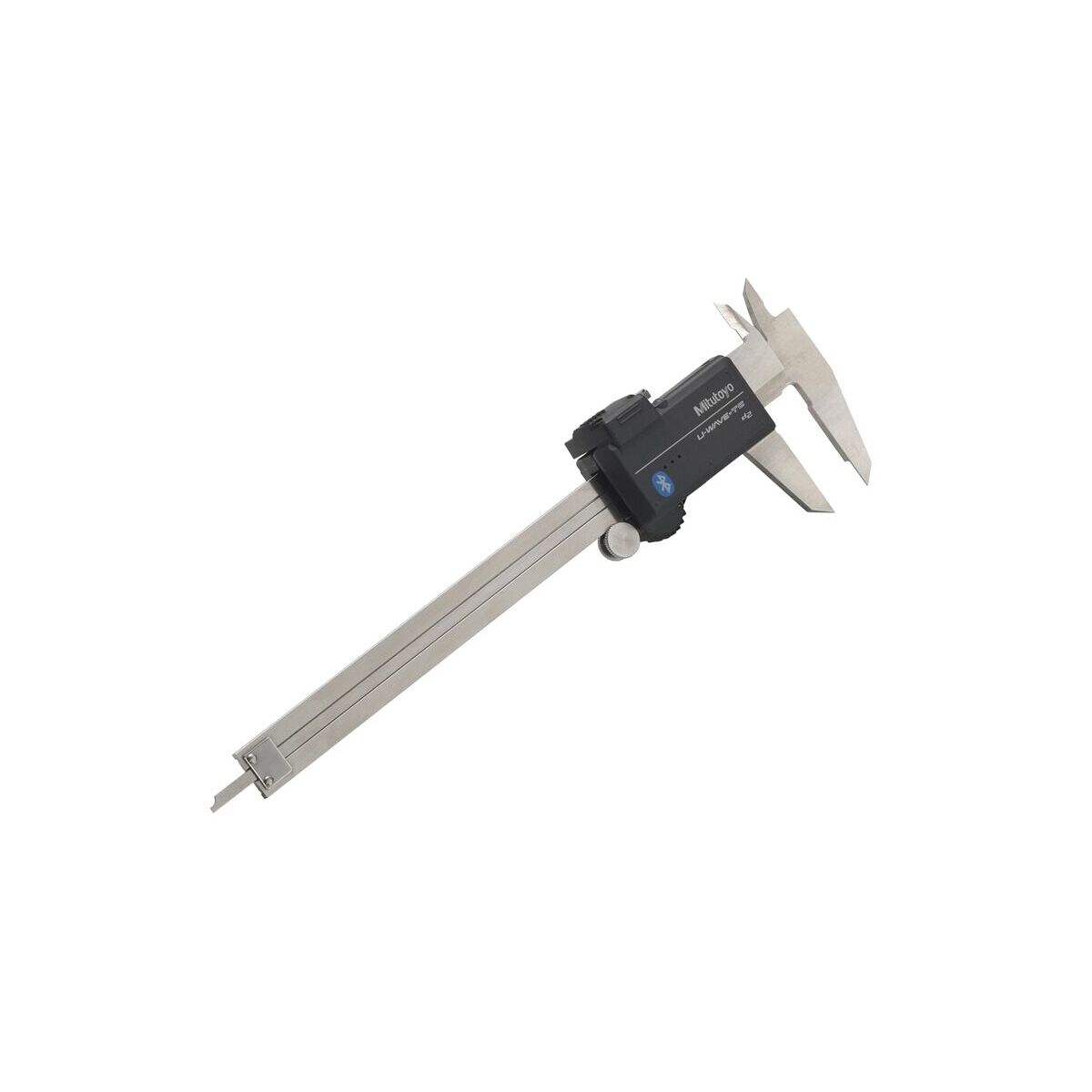

- Direct connection of the transmitter to the rear of the measuring instrument - no annoying cables.
- Reliable data transfer confirmation by signal beep or red/orange/green LED signal.
- Range approx. 20 metres (in a line of sight)
- Outstanding battery life: 400,000 data transmissions using just one battery.
Compatible with the optional HCT (Hoffmann Group Connected Tools) app. Available free of charge for Android and iOS.
Suitable for:
IP67 vernier caliper / standard vernier caliper 100, 150, 200, 300 mm
Note:
Please order the connection module and transmitter.
