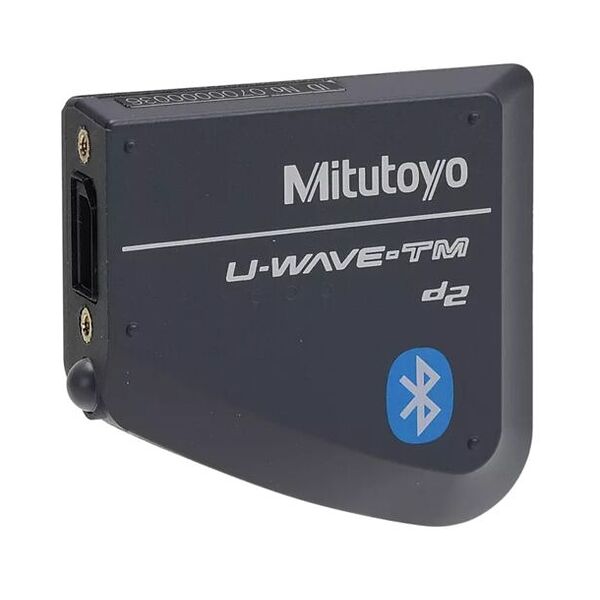

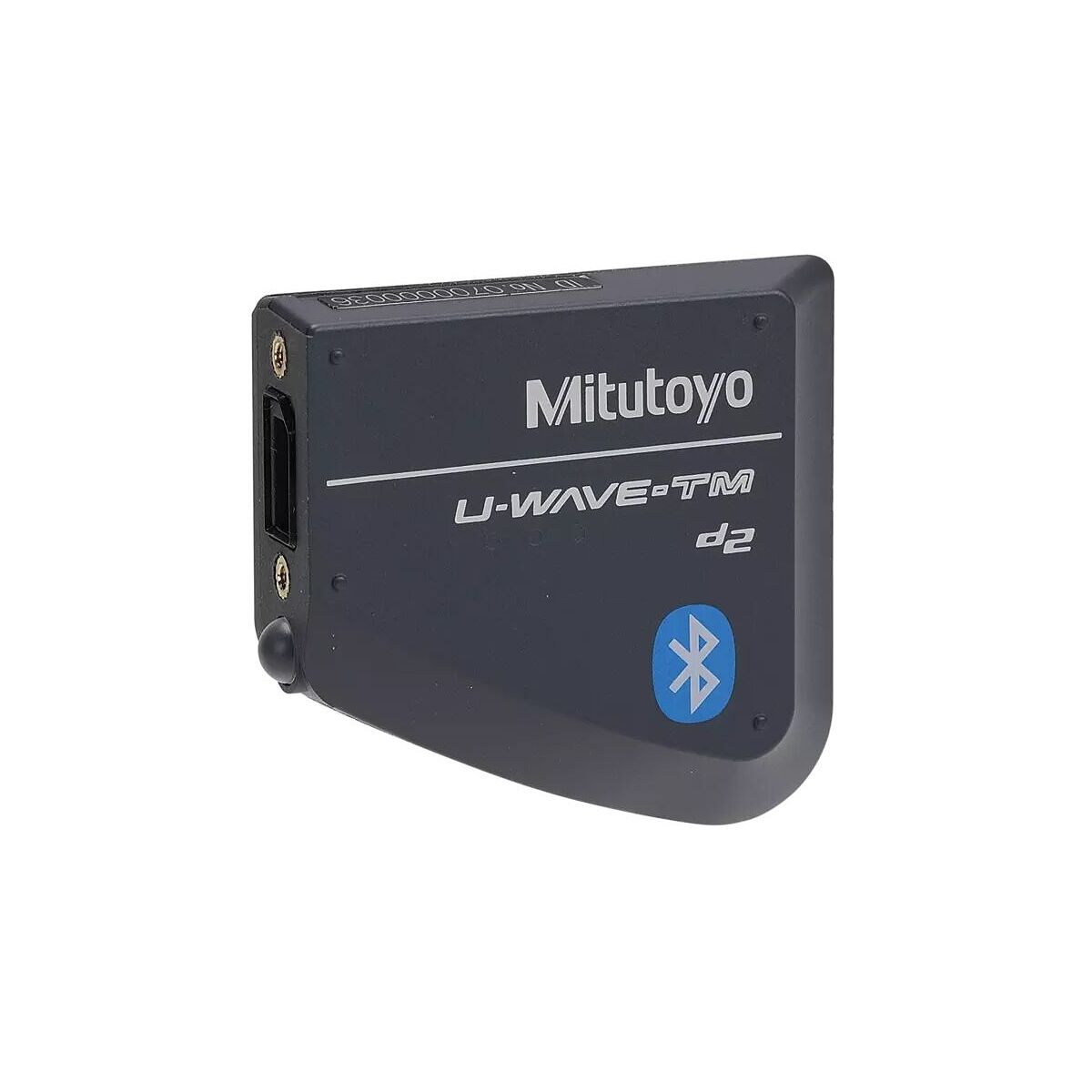

U-WAVE-TMB transmitter with Bluetooth® for external micrometers and dial indicators, Type: IP67
Article no.: 498894 IP67
Article code:
Product details
Technical Data
| Number of batteries contained | 1 pcs. | |
| Type of battery | lithium (Li) | |
| International size | button cell (CR2032) | |
| Rechargeable | no | |
| Series | HCT | |
| Manufacturer’s designation | U-WAVE-TMB; U-WAVE-TMB IP67 | |
| Power supply | battery-powered | |
| Type of connection | input | |
| Range | 16 m | |
| Frequency | 2,400 MHz | |
| Wireless application | HCT Mobile App | |
| Type of product | Transmitter | |
| Connection | Digimatic | |
| Type of transmission | radio | |
| Length | 38.8 mm | |
| Width | 41.9 mm | |
| Height | 12.9 mm |
Identification & Classification
| Article number | 498894 IP67 | |
| EAN / GTIN | 4946368796826 | |
| Manufacturer number | 264-626 | |
| Manufacturer/responsible person | Mitutoyo Deutschland GmbH, Borsigstraße 8-10, 41469 Neuss, Germany, www.mitutoyo.de |
Description
Version:
Wireless data transmission system U-WAVE fit.

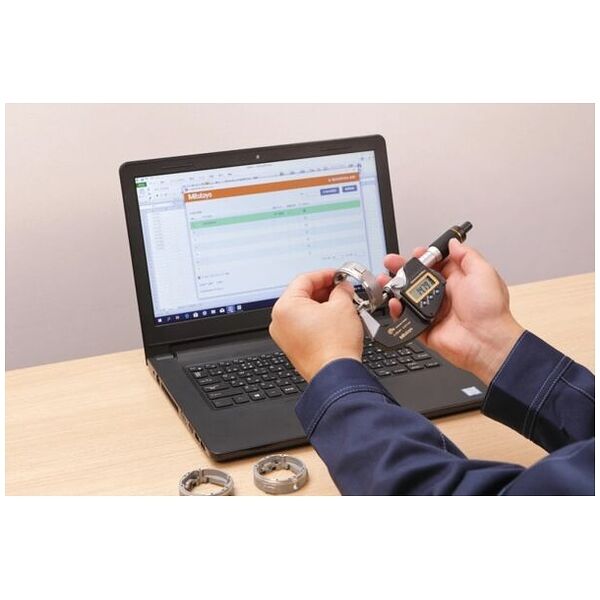

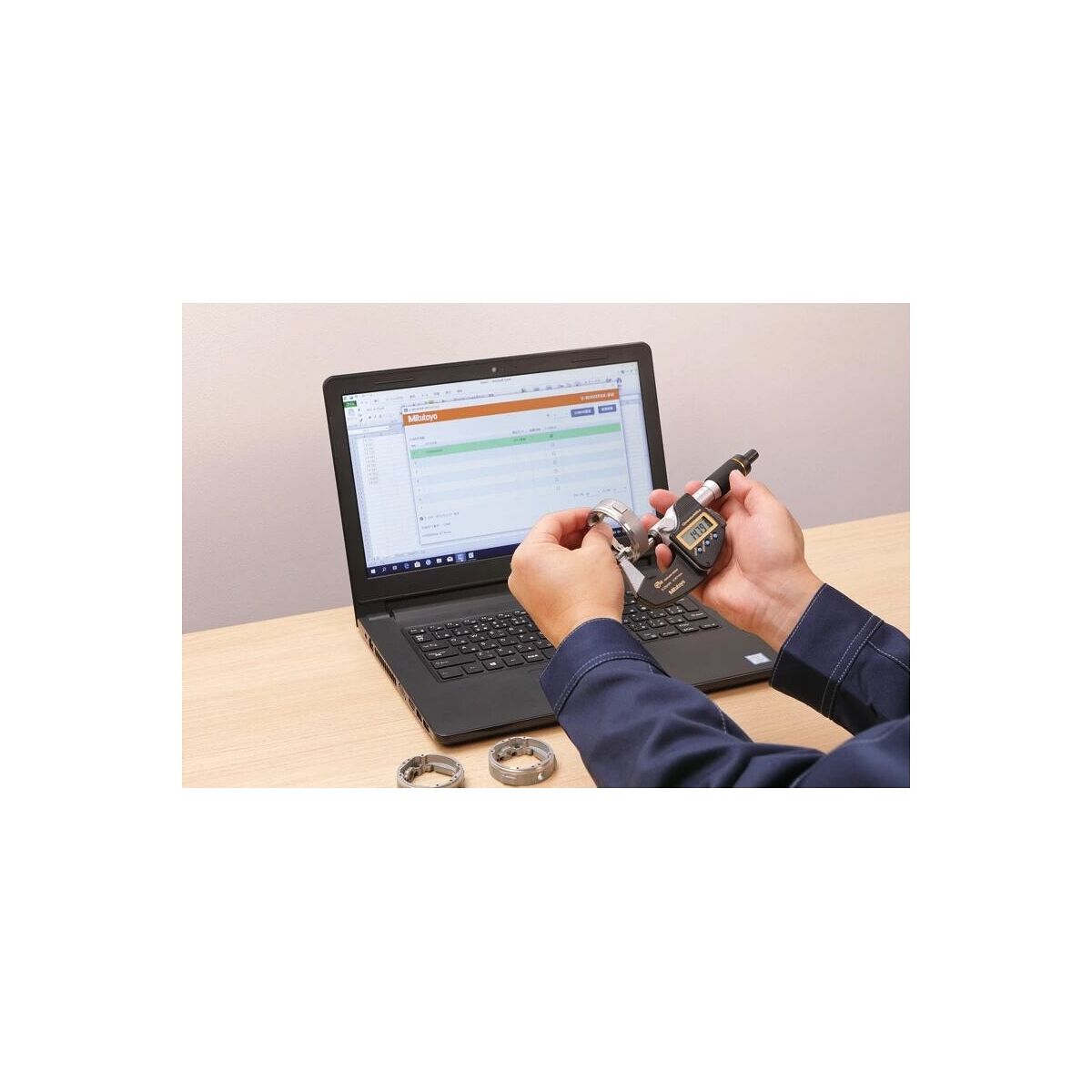

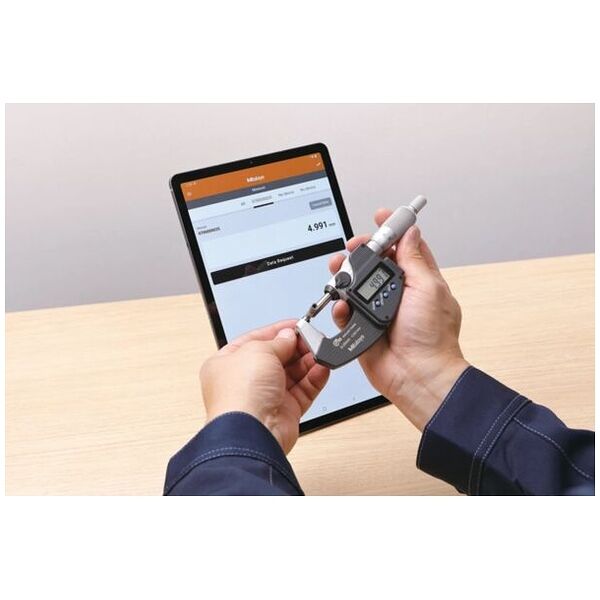

Compatible with the optional HCT (Hoffmann Group Connected Tools) app. Available free of charge for Android and iOS.

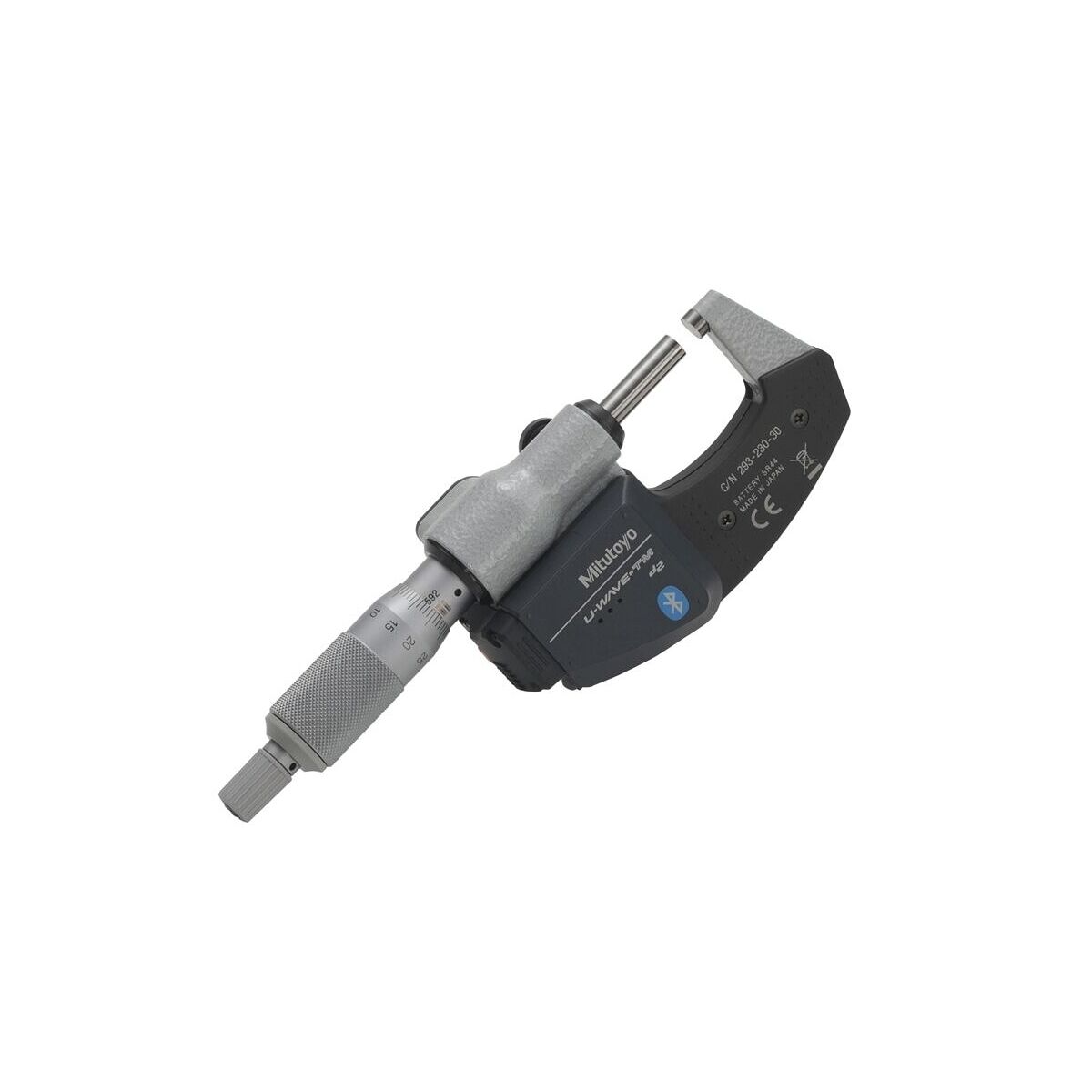

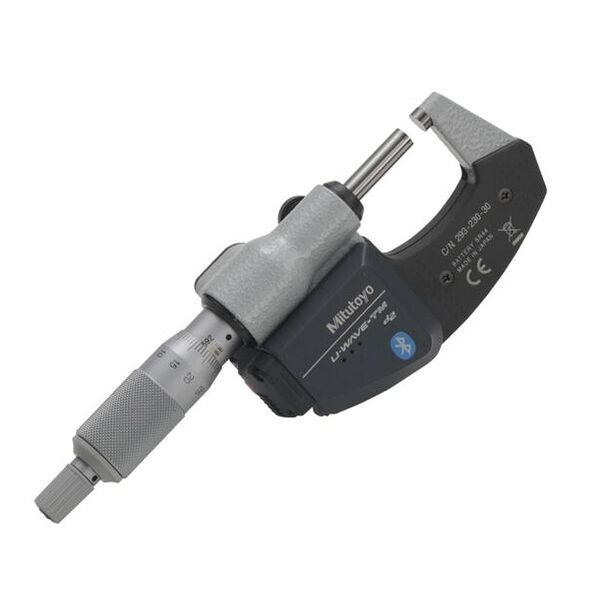

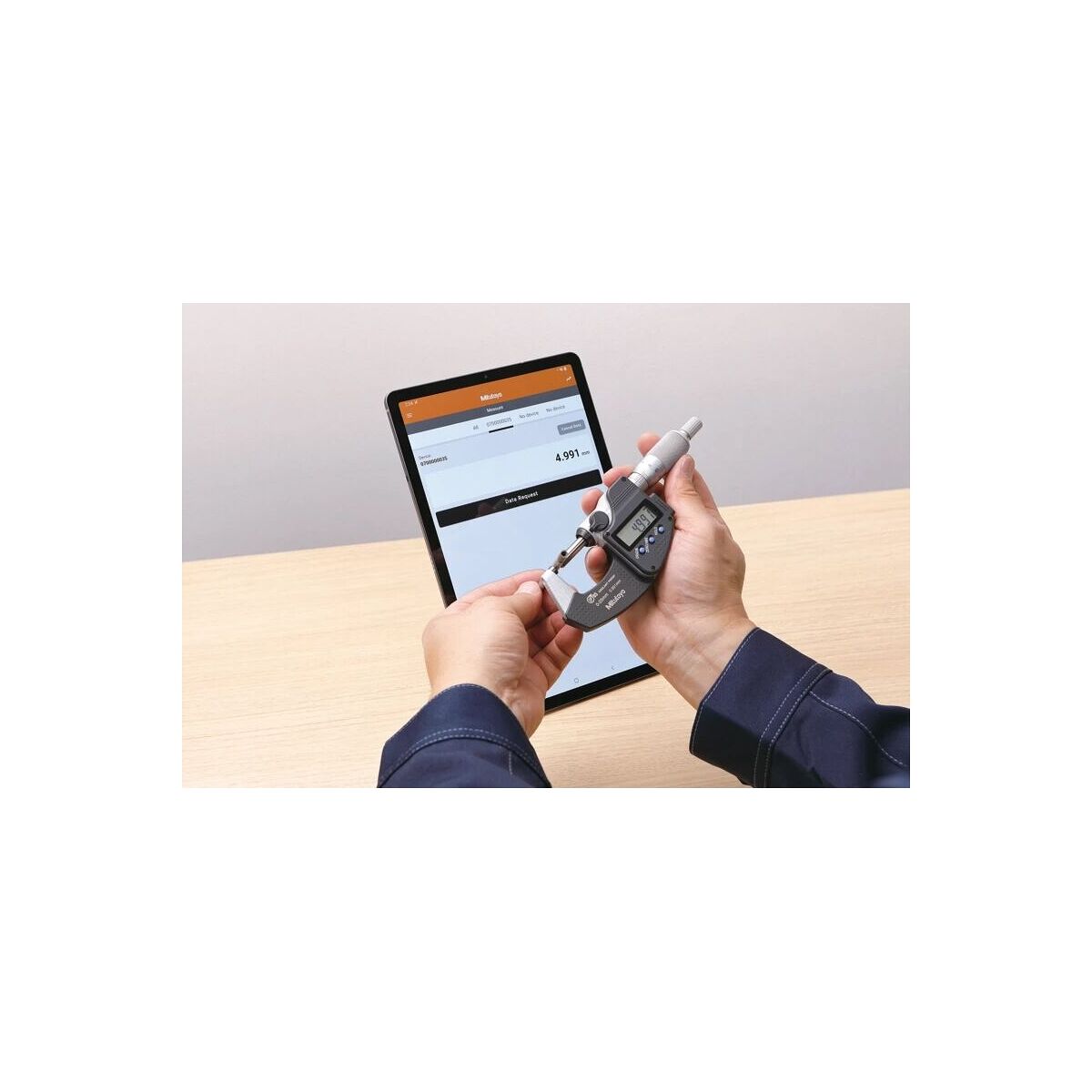

- Direct connection of the transmitter to the rear of the measuring instrument - no annoying cables.
- Reliable data transfer confirmation by signal beep or red/orange/green LED signal.
- Range approx. 20 metres (in a line of sight)
- Outstanding battery life: 400,000 data transmissions using just one battery.
Compatible with the optional HCT (Hoffmann Group Connected Tools) app. Available free of charge for Android and iOS.
Suitable for:

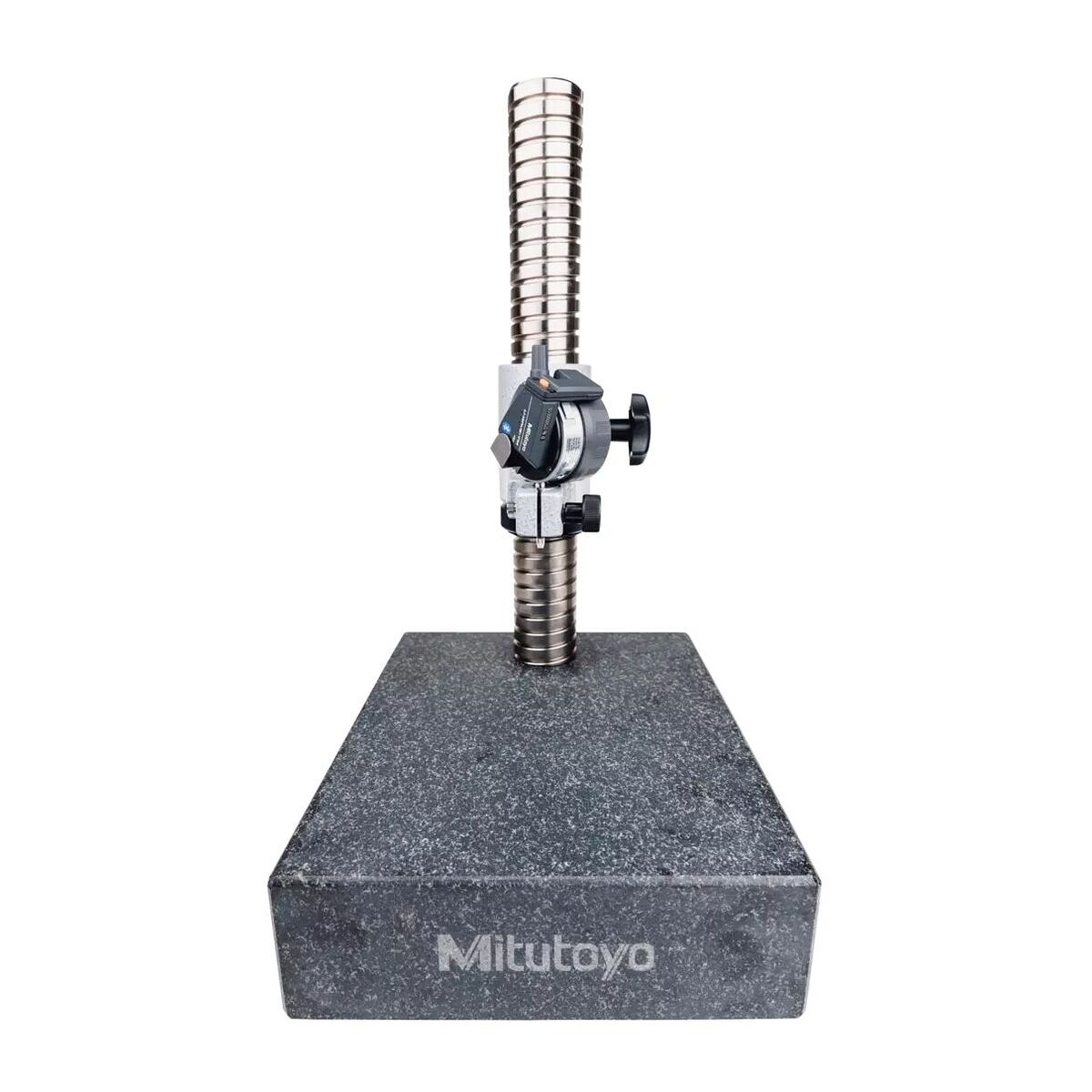

Coolant Proof IP65 outside micrometers / dial indicators No. 434065, 434461, 434622 depth gauge No. 425400
Note:
Please order the connection module and transmitter.
