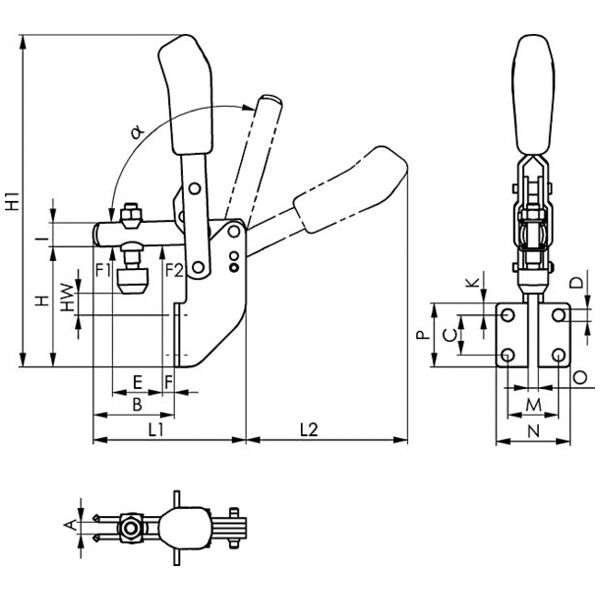

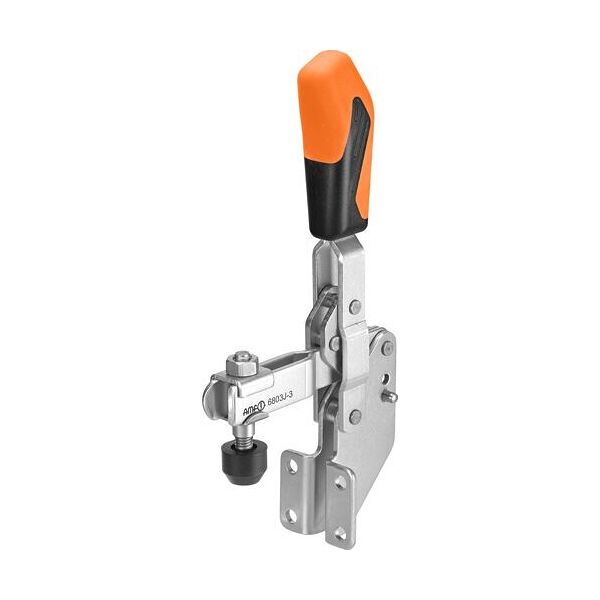

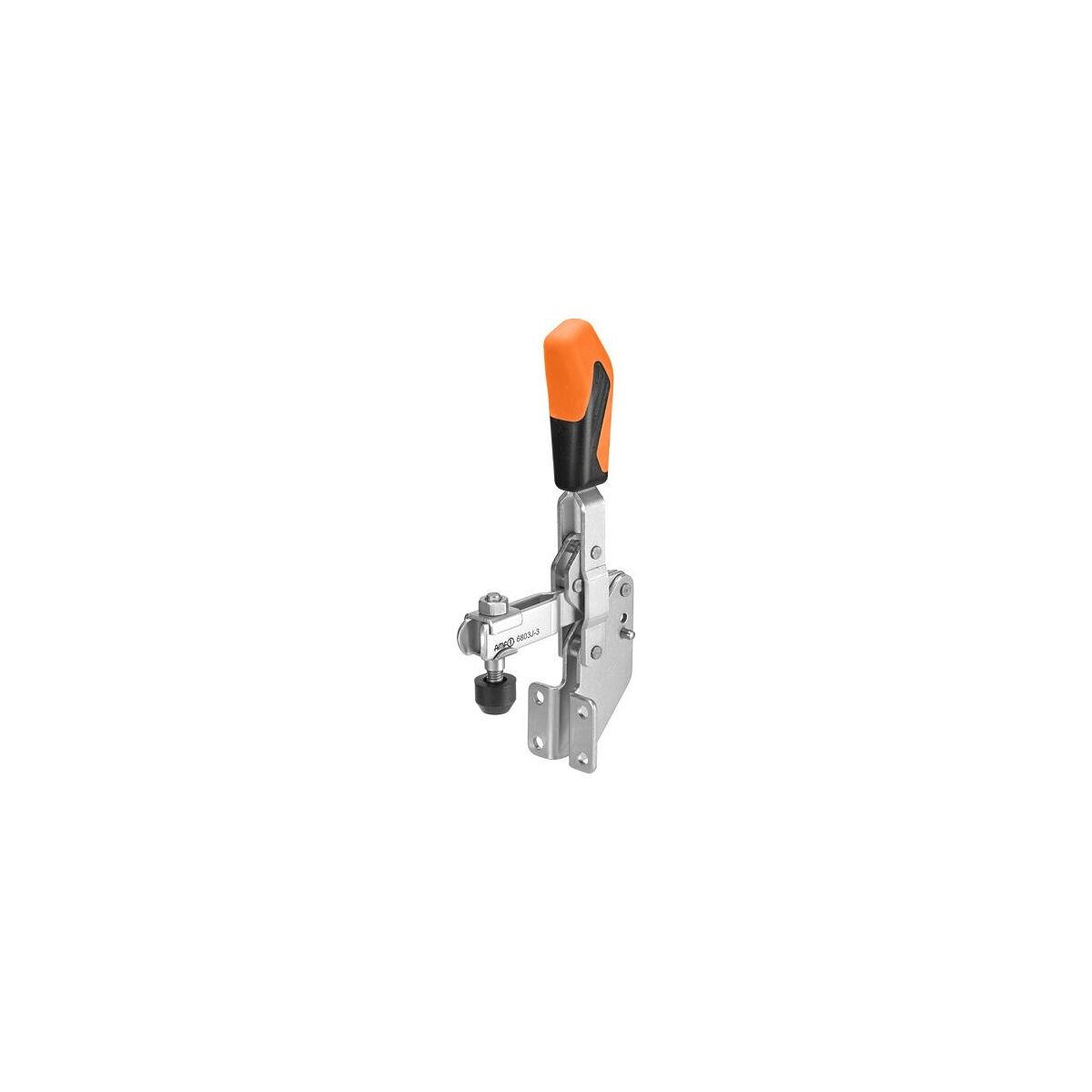

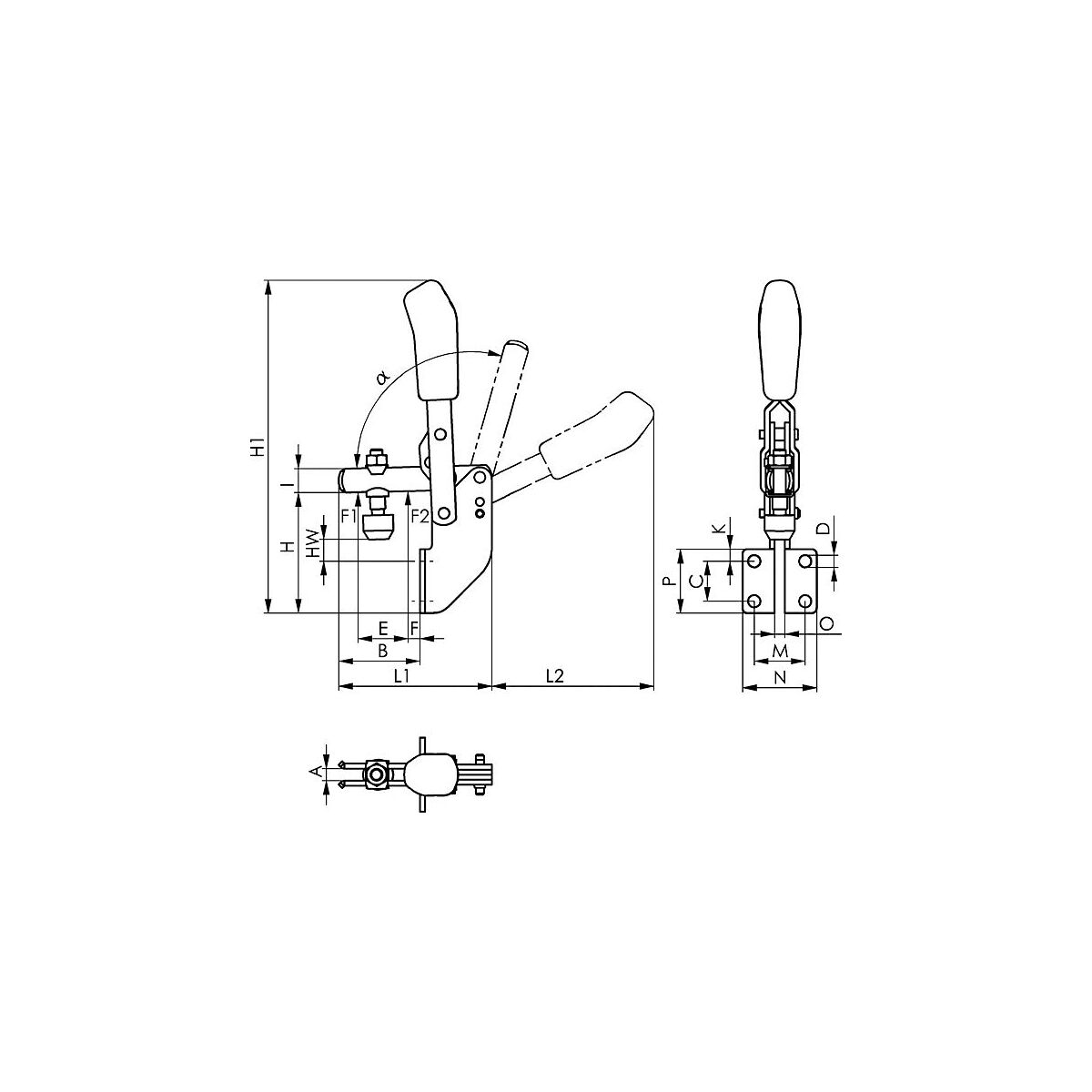

Vertical toggle clamp with angled base for side attachment, Type: 1
Article no.: 376520 1
Article code:
Product details
Technical Data
| Min. recommended clamping height H2 min | 2.5 mm | |
| Max. recommended clamping height H2 max | 9 mm | |
| Minimum holding force F | 800 N | |
| Holding force max. F | 1,100 N | |
| Diameter of hole | 4.5 mm | |
| Hole spacing min. k | 14 mm | |
| Hole spacing max. k | 20 mm | |
| Suitable for screw size | M5 | |
| Thread M | M5×30 | |
| Type of product | vertical toggle clamps | |
| With bore | yes | |
| With screw / thread | yes | |
| Overall length L | 61 mm | |
| Overall height H | 125 mm | |
| Weight | 0.125 kg | |
| Content | single part |
Identification & Classification
| Article number | 376520 1 | |
| EAN / GTIN | 4020772007881 | |
| Manufacturer number | 557318 | |
| Manufacturer/responsible person | Andreas Maier GmbH & Co. KG, Waiblinger Straße 116, 70734 Fellbach, Germany, www.amf.de |
Description
Version:
With angled base for side attachment.
- Compact design due to new handle.
- Ergonomic 2-component handle, very comfortable to use due to enlarged hand rest.
- Captive contact screw.
- Finger protection thanks to safety clamping mechanism no trap points.
Application:
For quick clamping and releasing of parts in series production or for installation as part of special clamping jigs. Suitable for clamping during drilling, reaming, grinding, bending, welding, fitting etc.
