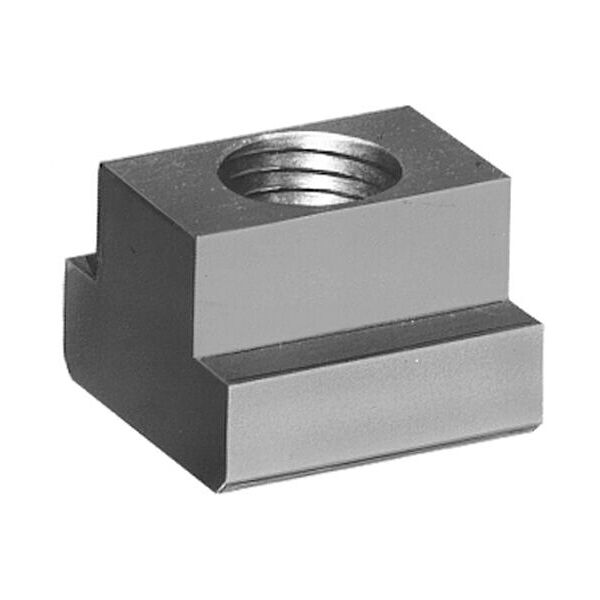

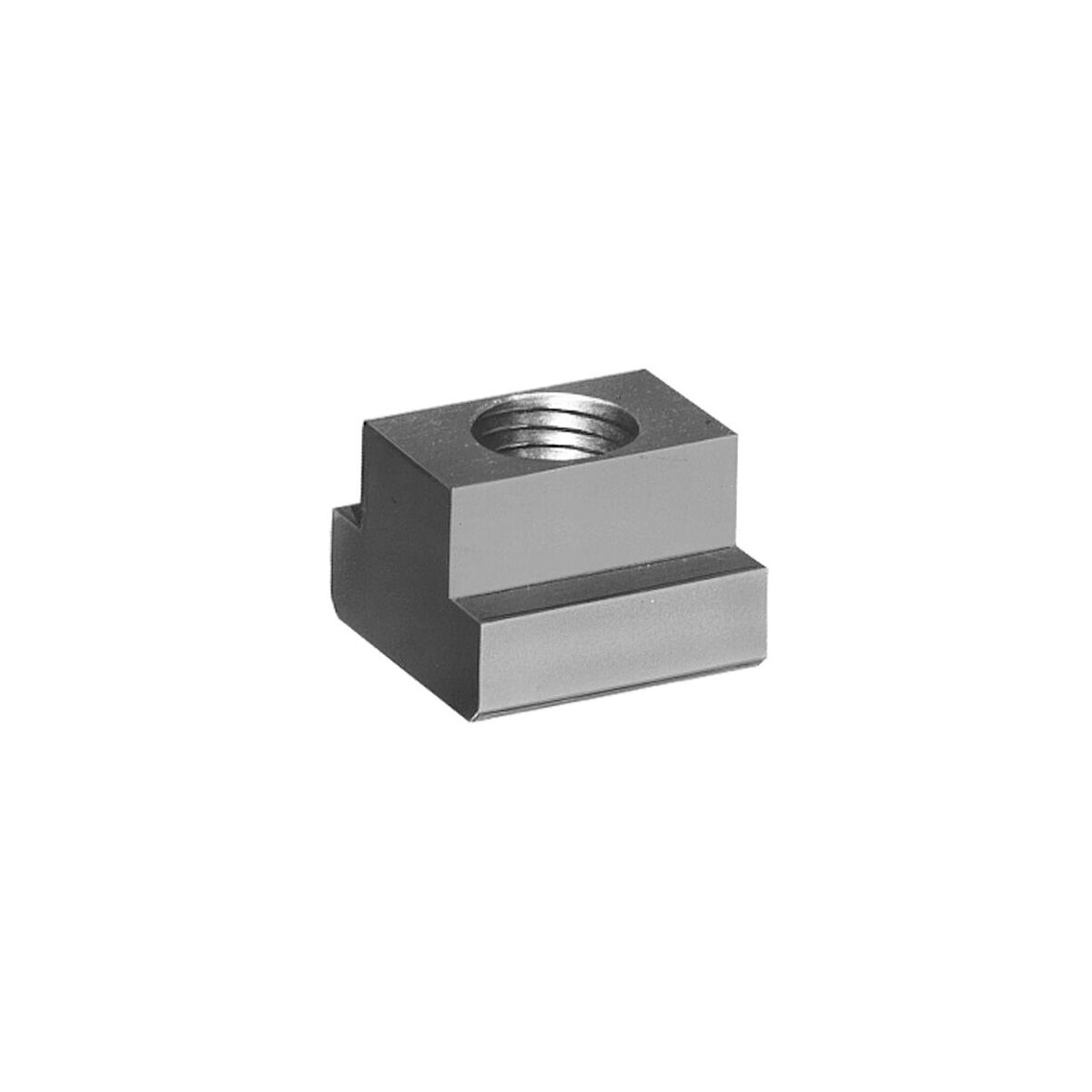

T-nut, M16, for T-slot nominal size: 18mm
Article no.: 370560 18
Article code:
Product details

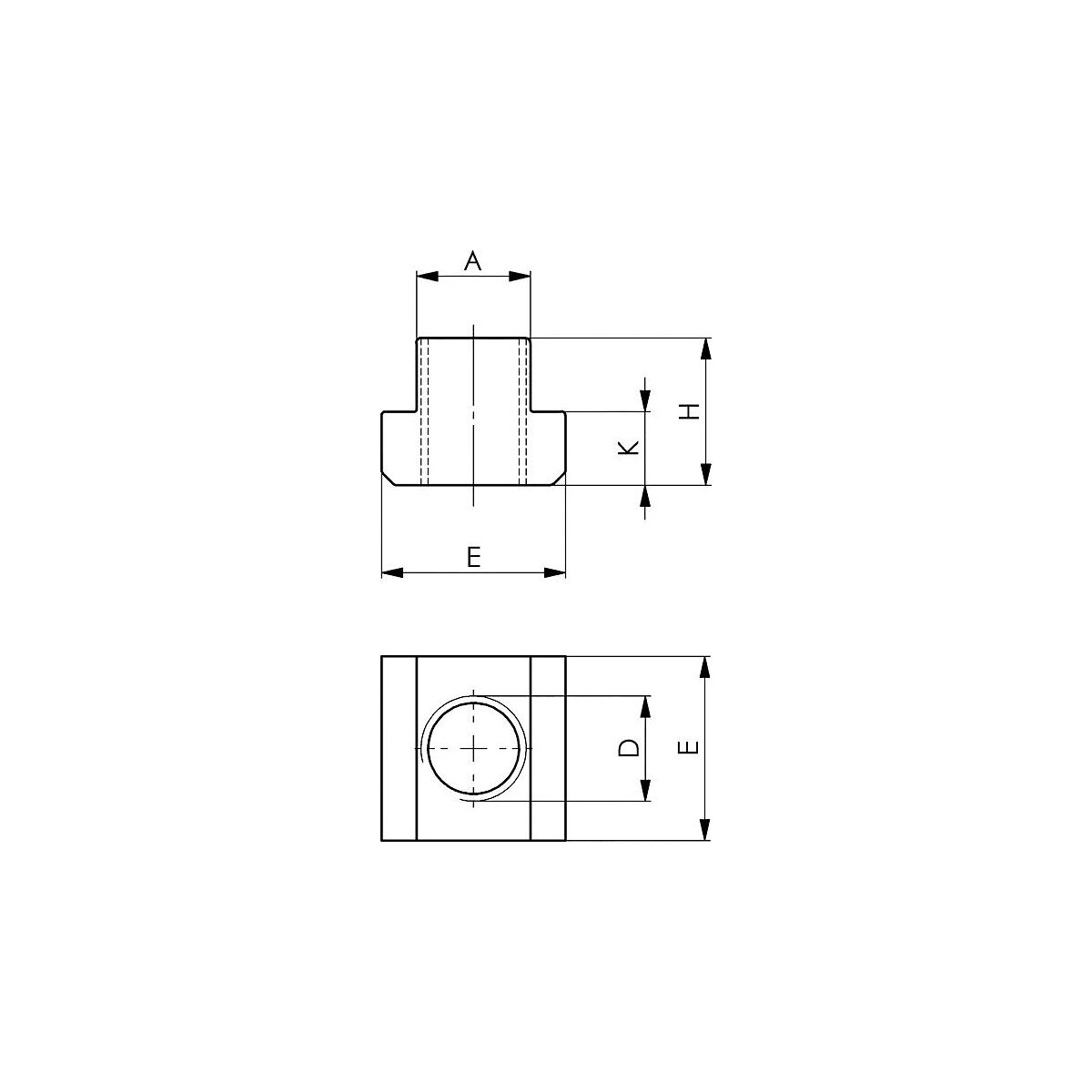

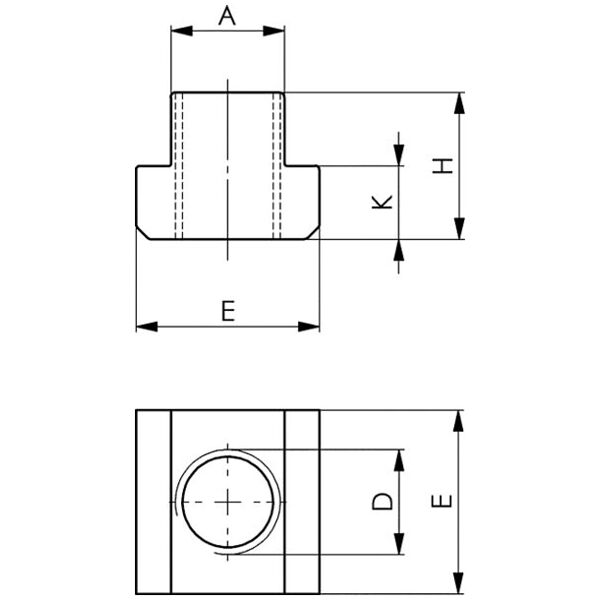

Technical Data
| High-precision nut | no | |
| Slot nominal size | 18 mm | |
| Overall length | 28 mm | |
| Overall width | 17.7 mm | |
| Overall height | 20 mm | |
| Thread size | M16 | |
| Type of fastening | thread | |
| Thread size | M16 | |
| Number of threads | 1 | |
| Incl. clamping screw | no | |
| With step | yes | |
| Height of step | 10 mm | |
| Narrow width | 17.7 mm | |
| Surface | annealed | |
| Type of product | t-nut | |
| Material | steel | |
| Standard | DIN 508 | |
| Strength class | 10 | |
| Weight | 70 g |
Identification & Classification
| Article number | 370560 18 | |
| EAN / GTIN | 4020772080068 | |
| Manufacturer number | 80069 | |
| Manufacturer/responsible person | Andreas Maier GmbH & Co. KG, Waiblinger Straße 116, 70734 Fellbach, Germany, www.amf.de |
Description
Application:
For combination with studs or bolts.
Standard:
DIN 508
Material:
Quenched and tempered steel, strength 10.
Note:
Full load-bearing capacity only when threaded for the entire nut length.
