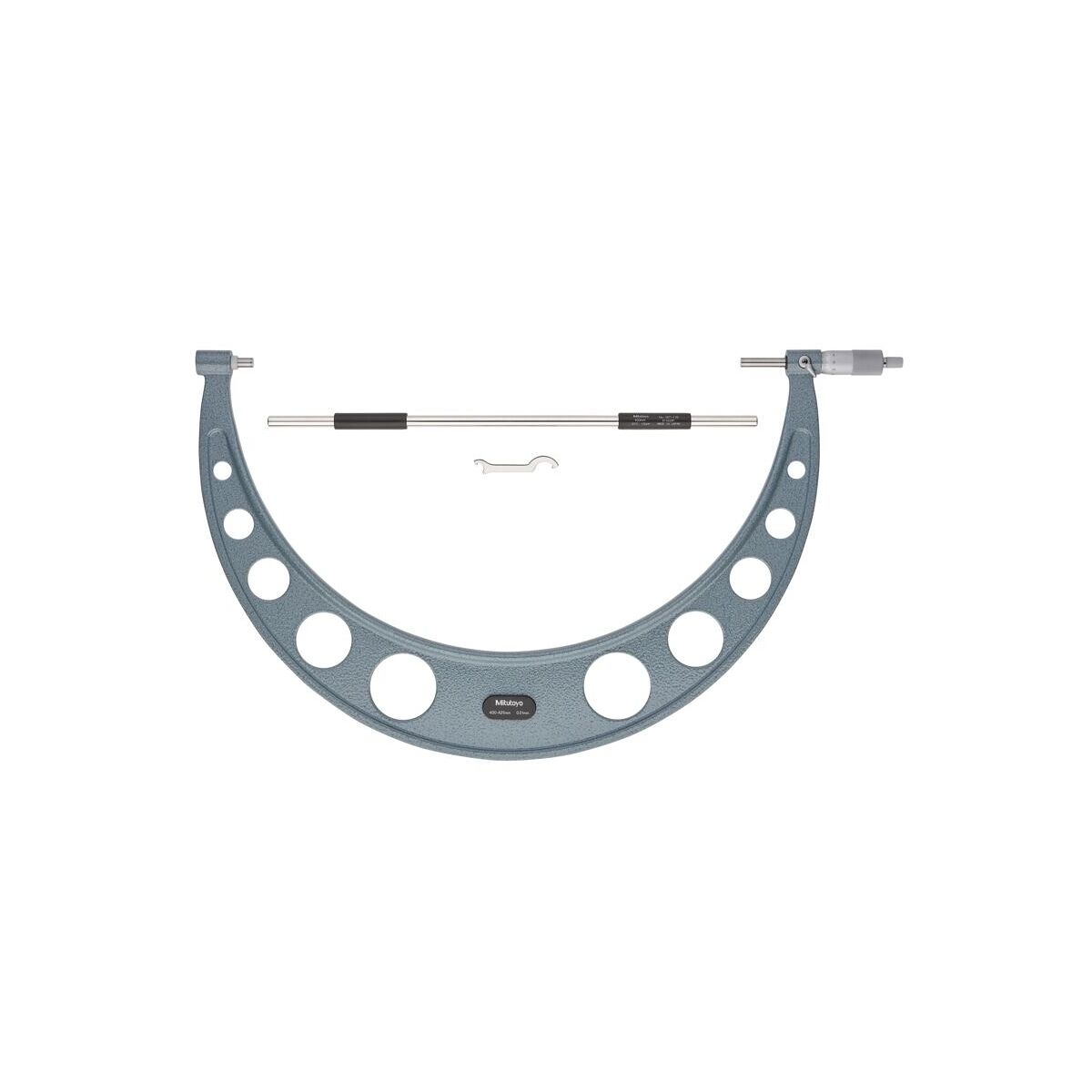

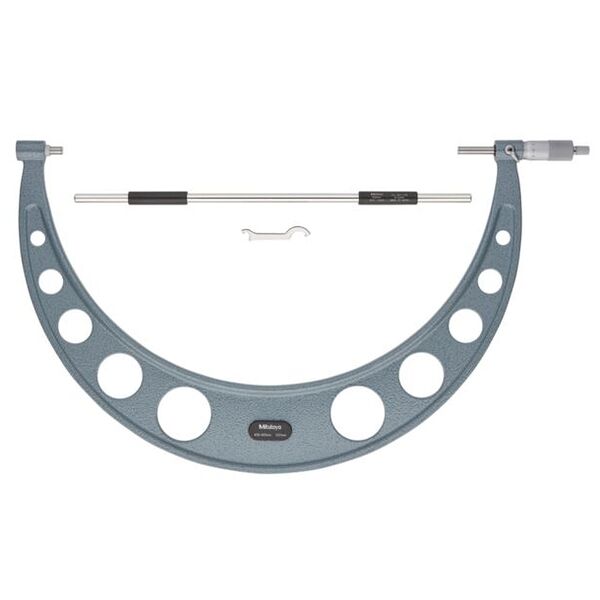

Mikrometerskrue, enkelt version, 400-425 mm
Art.-nr.: 103-153
Sagsnummer:
Bemærk venligst den forlængede leveringstid og den begrænsede rådgivning:
Vi bestiller denne vare til dig direkte fra producenten, da den ikke er en del af vores hovedsortiment og derfor ikke er på lager hos os.
InfoProduktdetaljer
Teknisk data
| Packaging | case | |
| Barrel diameter | 21 mm | |
| Measuring spindle diameter | 8 mm | |
| Parallelism of the measuring faces | 6 µm | |
| Flatness of measuring faces | 1 µm | |
| Reading, millimetre | 0.01 mm | |
| Type of product | outside micrometer | |
| Spindle pitch | 0.5 mm | |
| Ratchet | ja | |
| Locking / clamping lever | ja | |
| Unit for reading | millimetre | |
| Measurement technology | analogue | |
| Graduation of barrel | 1/100 mm | |
| Measuring face surface | carbide tipped; hardened | |
| Accuracy ± | 7 µm | |
| Measurement deviation E MPE | ±7 µm | |
| Min. measuring force | 10 N | |
| Max. measuring force | 15 N | |
| Number of micrometers | 1 pcs. | |
| Overall length | 688 mm | |
| Overall width | 420 mm | |
| Overall height | 56 mm | |
| Min. measuring range | 400 mm | |
| Measuring range max | 425 mm | |
| Standard | DIN 863 | |
| Test certificate | ja |
Identifikation og klassificering
| Artikelnummer | 103-153 | |
| EAN/GTIN | 4946368004082 | |
| Producentnummer | 103-153 | |
| L-nummer | L40010 60 | |
| Producent/ansvarlig person | Mitutoyo Deutschland GmbH, Borsigstraße 8-10, 41469 Neuss, Germany, www.mitutoyo.de |
Betegnelse
Description:
Lightweight workshop design with baked-enamel-finished frame. Equipped with Ratchet Stop for constant measuring force.
Feature:
- Digital/Analog: Analog
- Flatness: 1 µm
- Graduation: 0,01 mm
- Inch-Metric: Metric
- Max., Permissible Error J MPE: +/-7 µm
- Measuring face: Carbide-tipped, micro-lap finish
- Measuring force: 10-15
- Measuring spindle: With spindle lock, ø6,35 mm (≤300 mm) ø 8 mm (>300 mm), spindle pitch 0,5 mm
- Model: OM-425
- Parallelism: 6 µm
- Range: 400-425
- Scale: Thimble and sleeve satin chrome finish, ø21 mm
- Size/Dimension: 0,688 X 0,42 X 0,056 M
Supplied with:

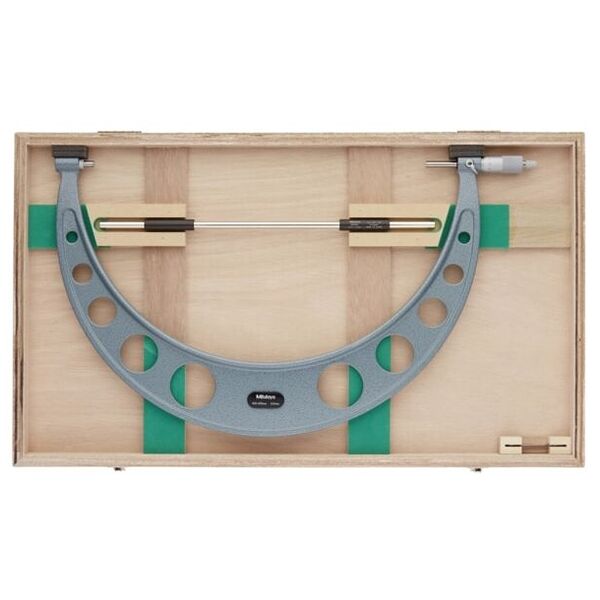

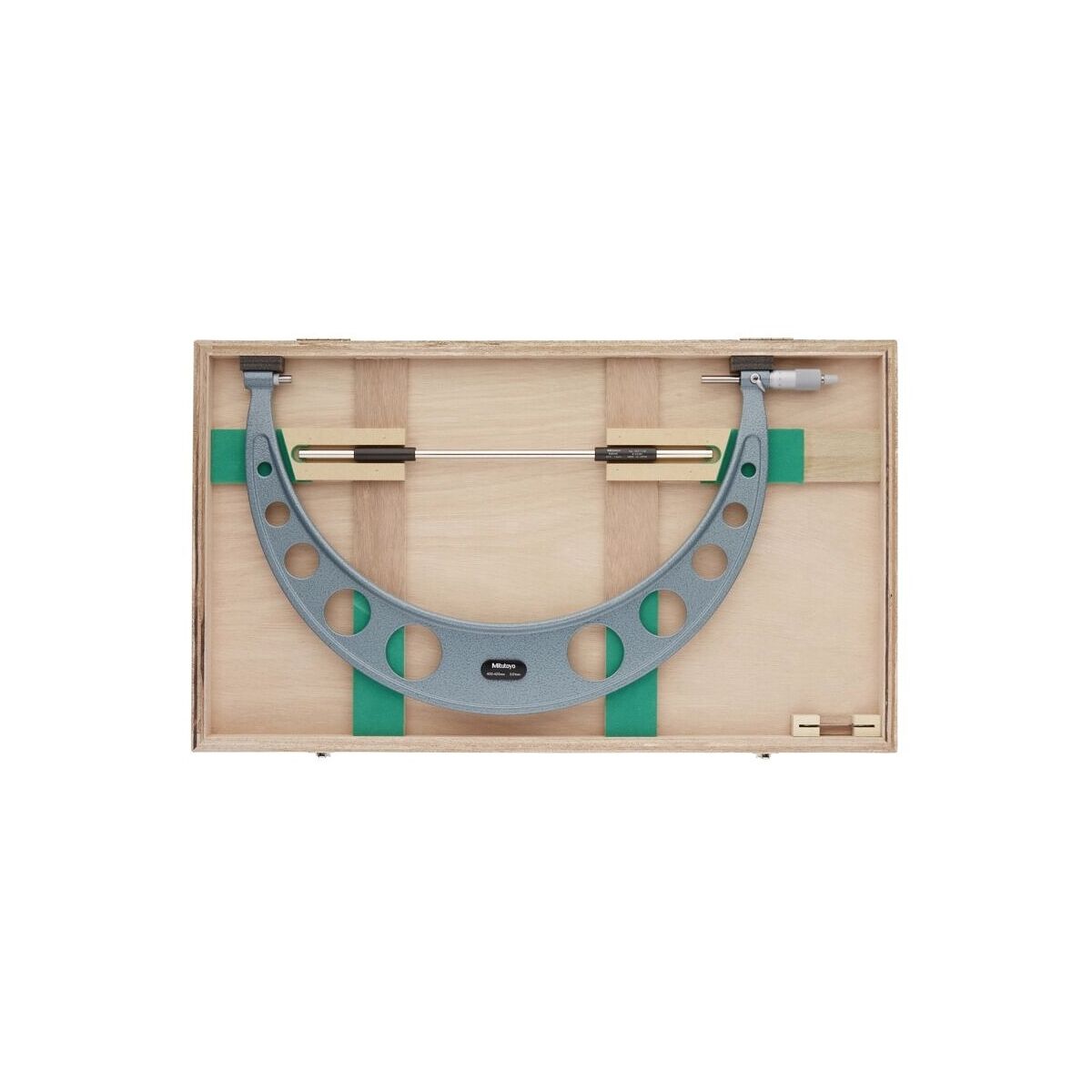

Including box, key, setting standard
