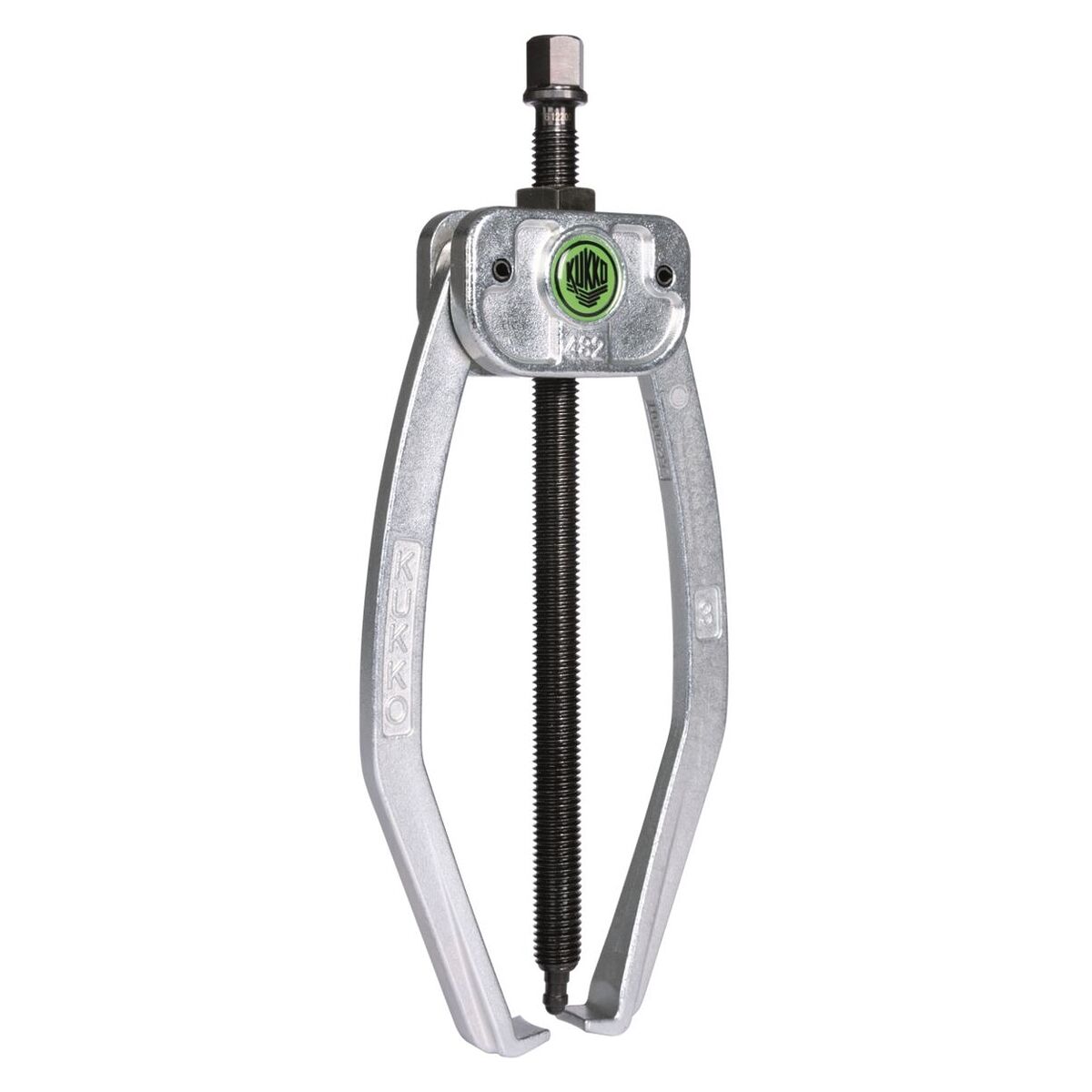

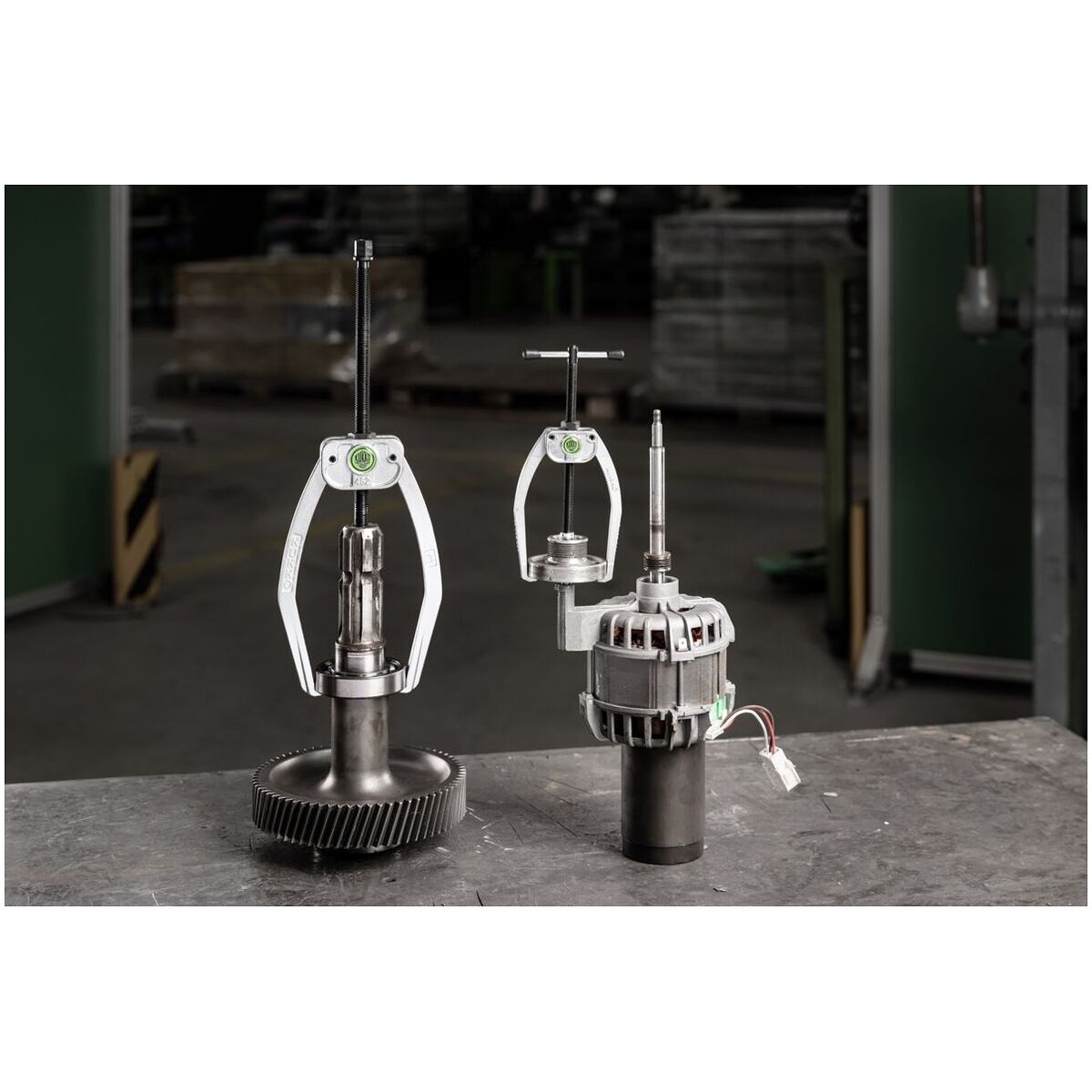

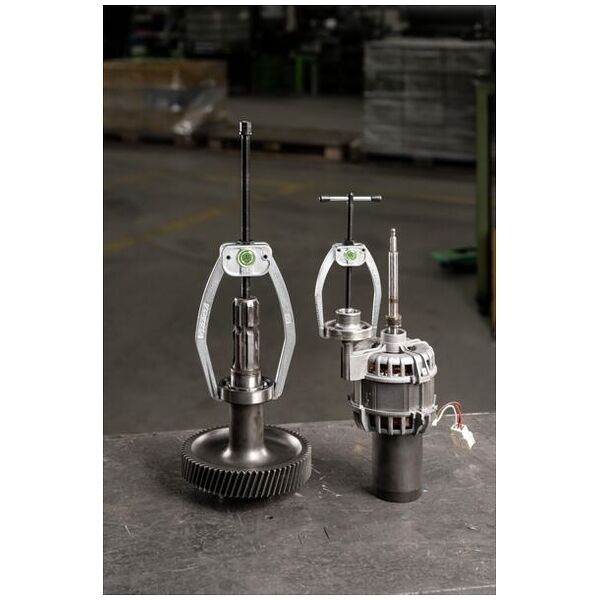

Two-leg universal extractor
Article no.: 880020
Article code:
Click to enlarge image
Click to enlarge image

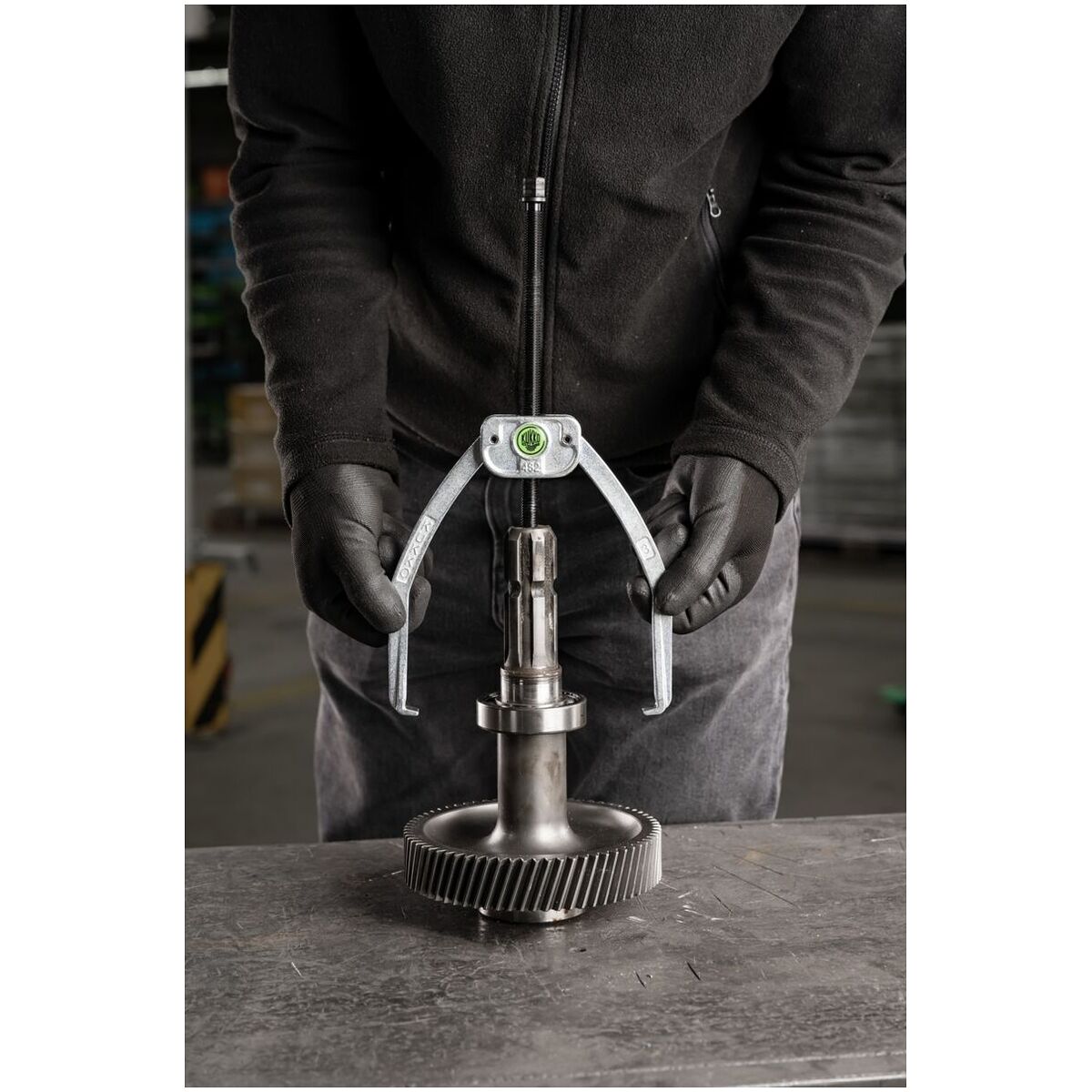

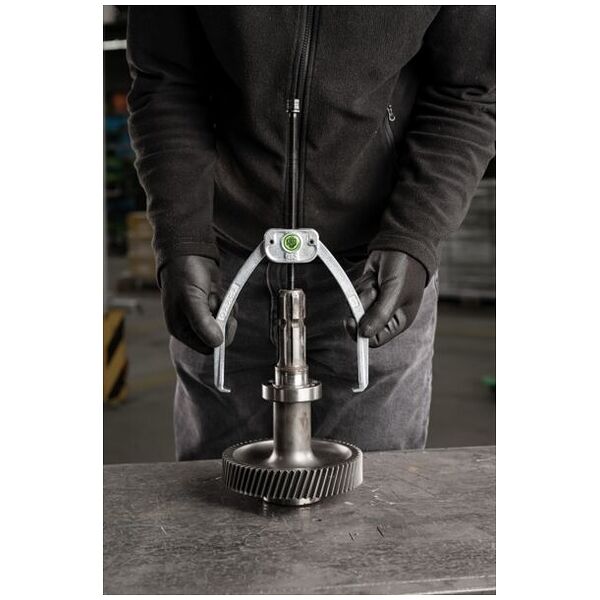

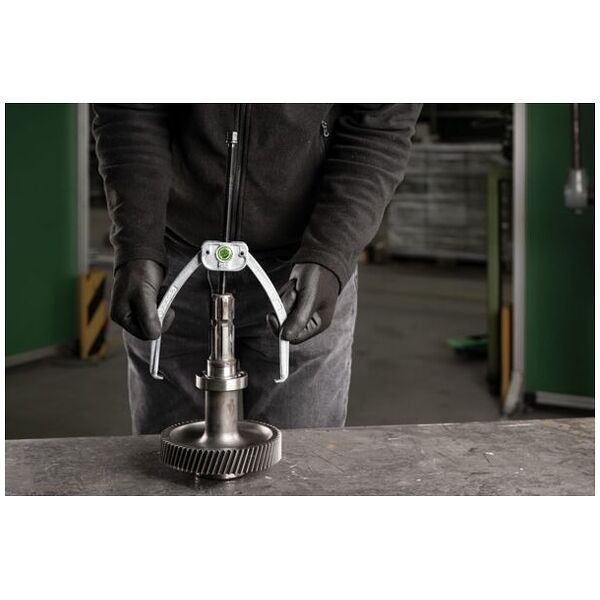

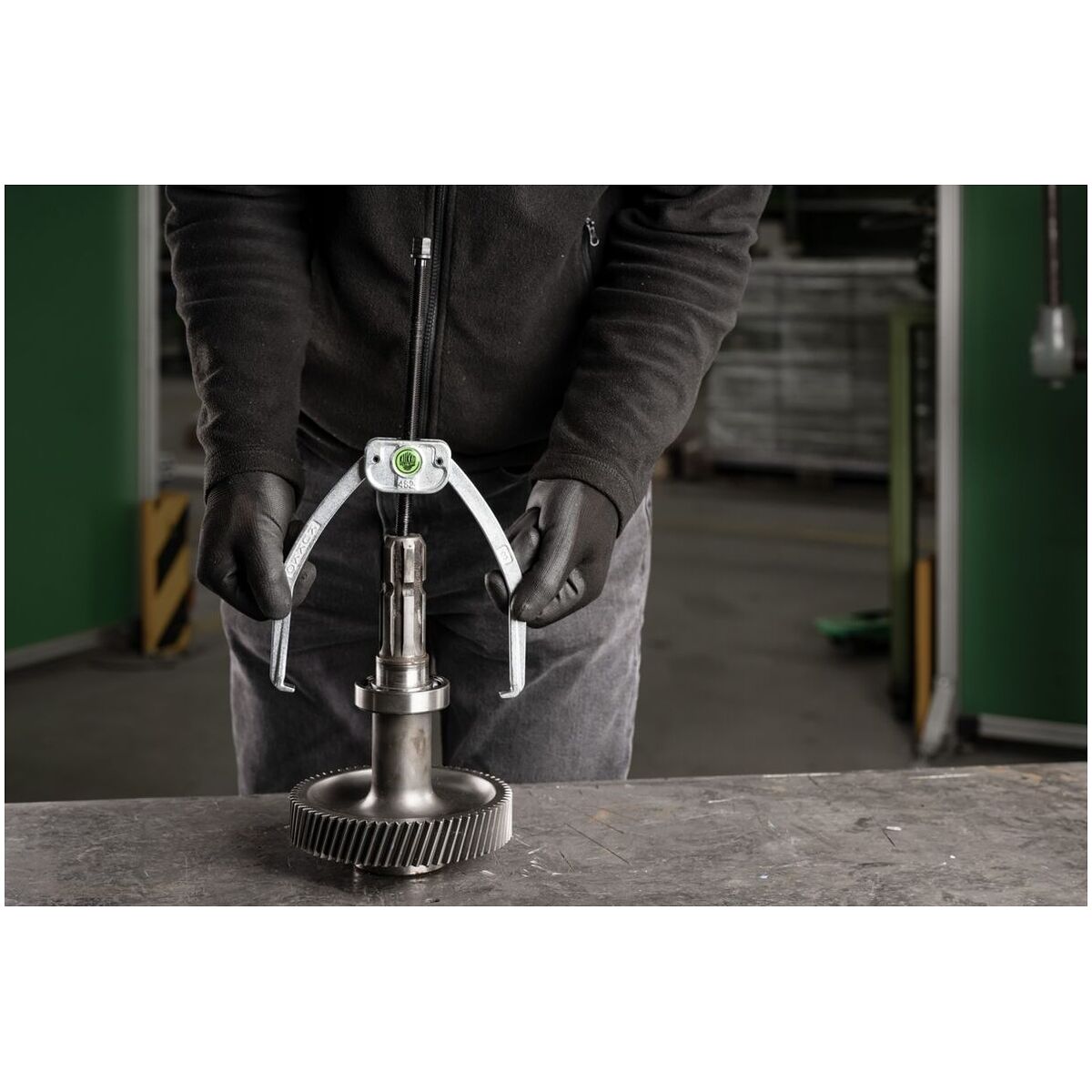

Self−clamping (spring−mounted)
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Optimum matching of the spindle to the shaft thanks to the 2-ended spindle tips.
Click to enlarge image
Product details
Technical Data
| Manufacturer’s designation | 482 | |
| External clamping range min. | 20 mm | |
| External clamping range max. | 150 mm | |
| Max. clamping depth | 150 mm | |
| Max. torque | 35 Nm | |
| Number of hooks | 2 | |
| Performance | 2.5 t | |
| Type of product | two-leg extractor | |

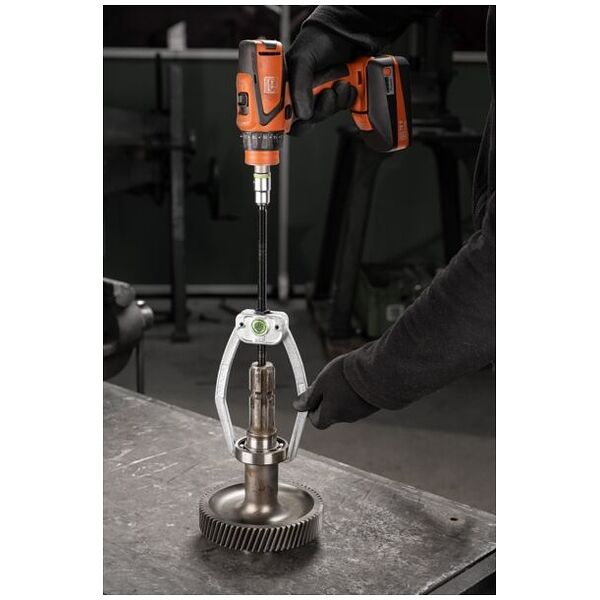

| External hexagon drive | 10 mm | |
| Material | steel | |
| Self-centring | yes | |
| Weight | 0.875 kg | |
| Content | single part |
Identification & Classification
| Article number | 880020 | |
| EAN / GTIN | 4021176479939 | |
| Manufacturer number | 482-3 | |
| Manufacturer/responsible person | Kleinbongartz & Kaiser oHG, Heinrich-Hertz-Straße 5, 40704 Hilden, Germany, www.kukko.com |
Description
Version:
The clamping force increases proportionally to the extraction force due to the self-clamping extractor legs.
Application:

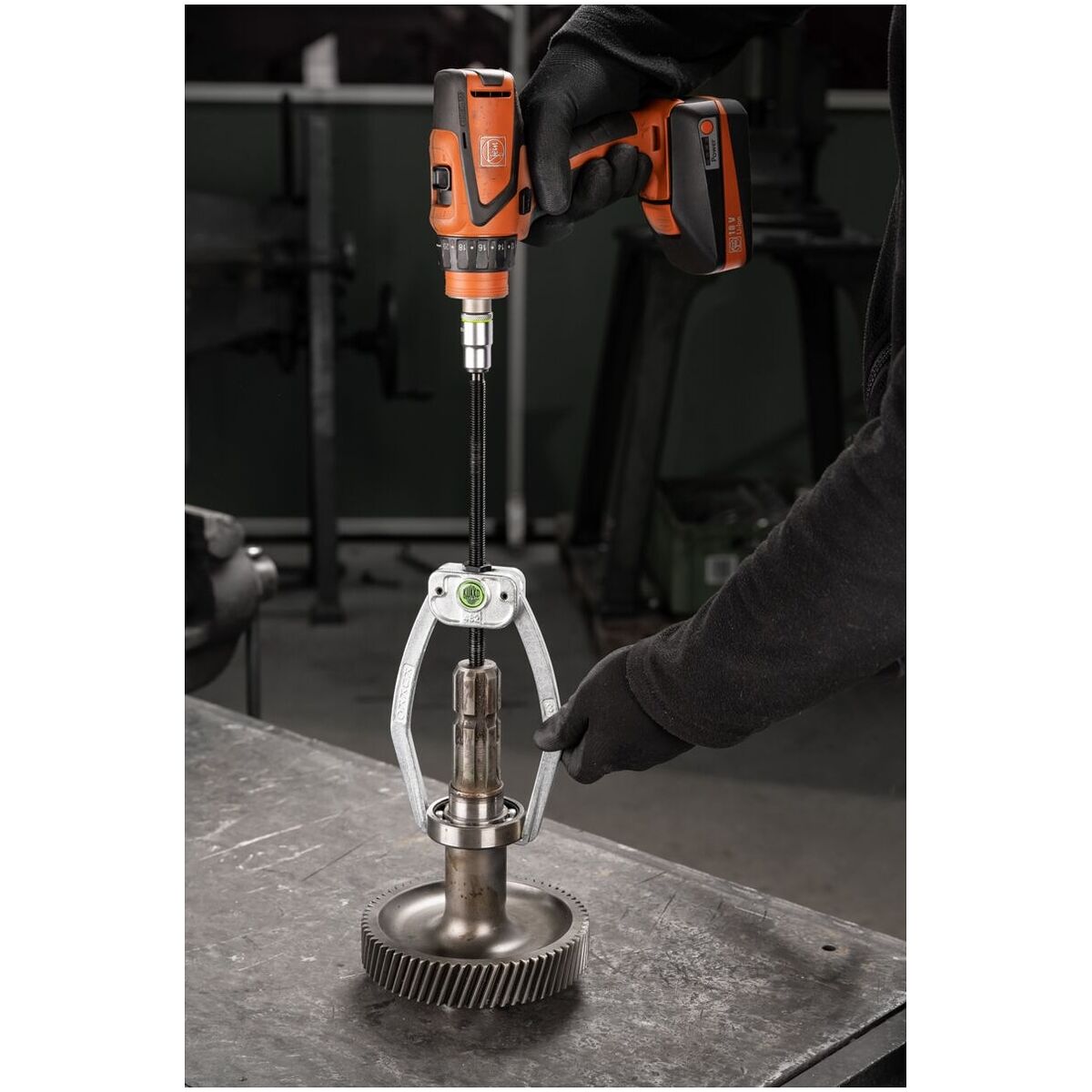

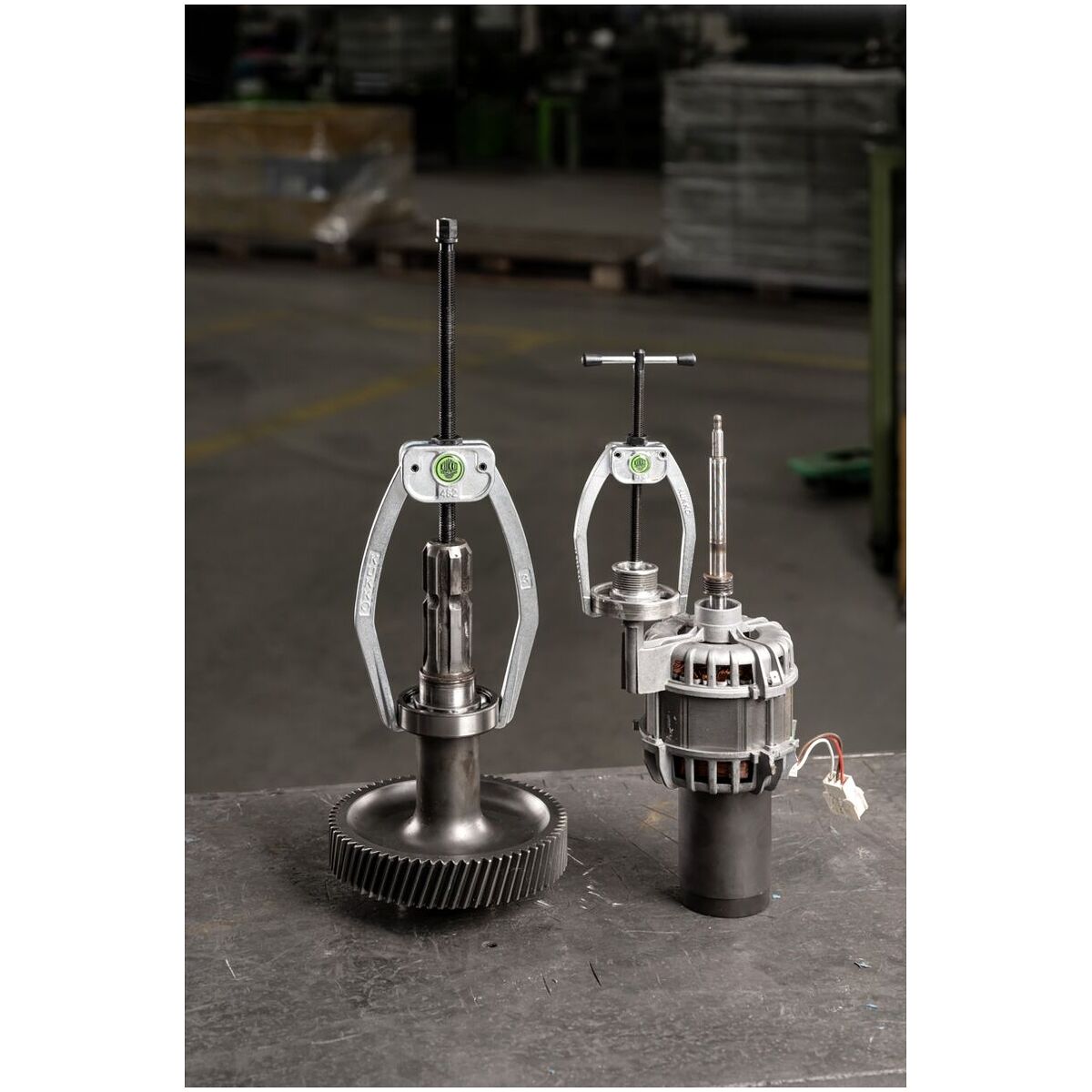

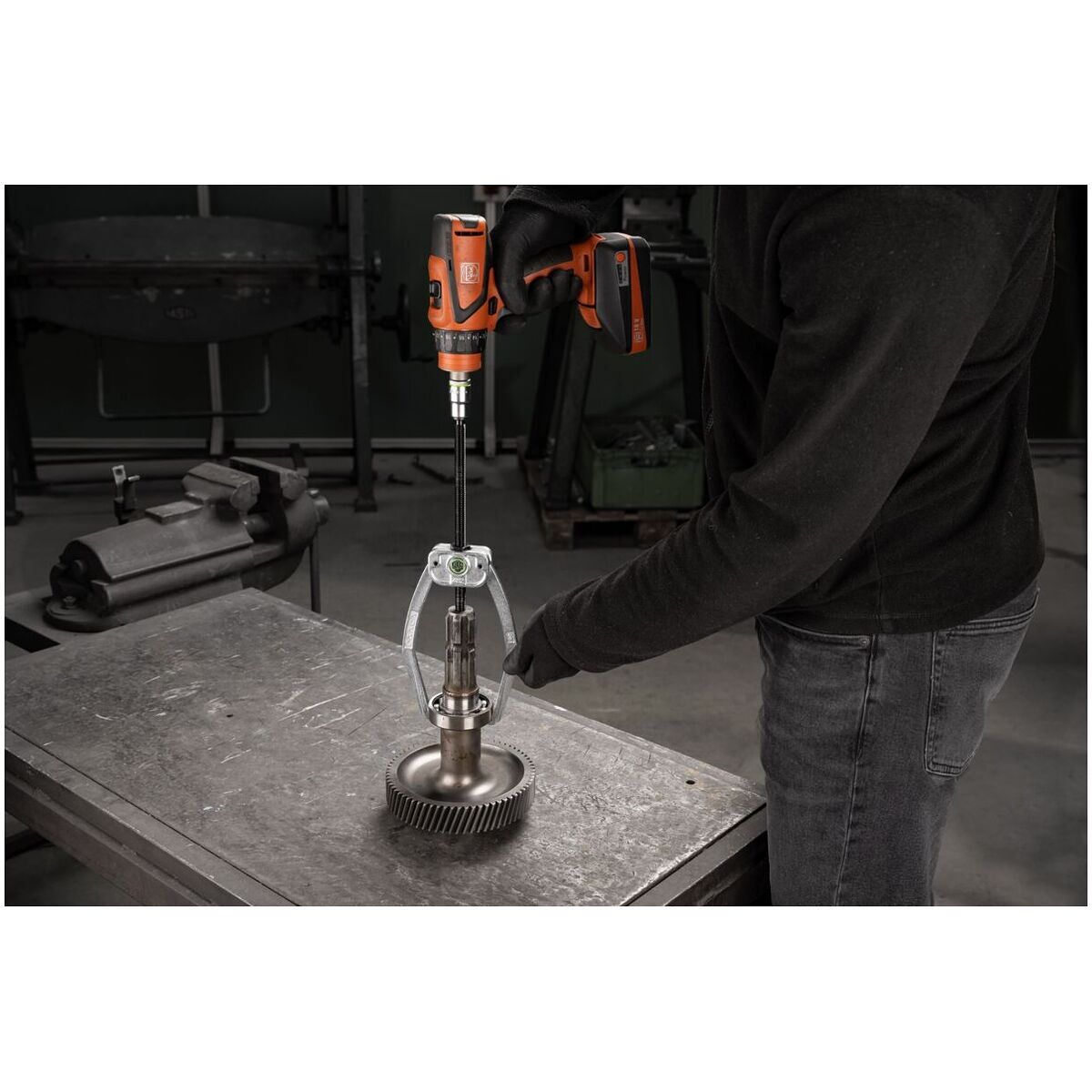

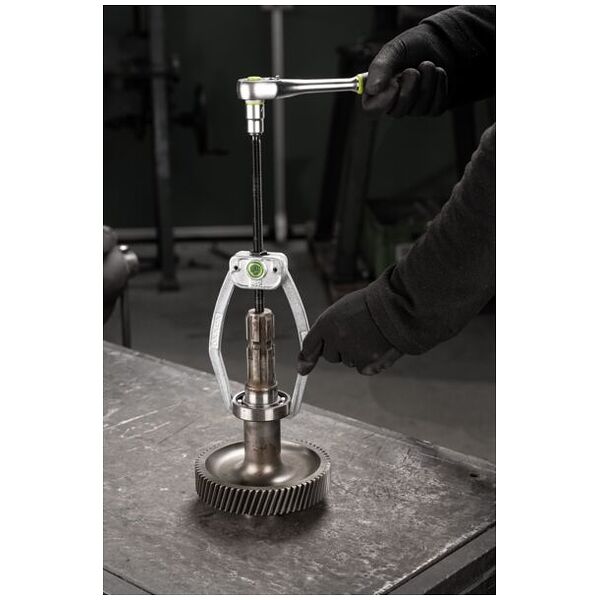

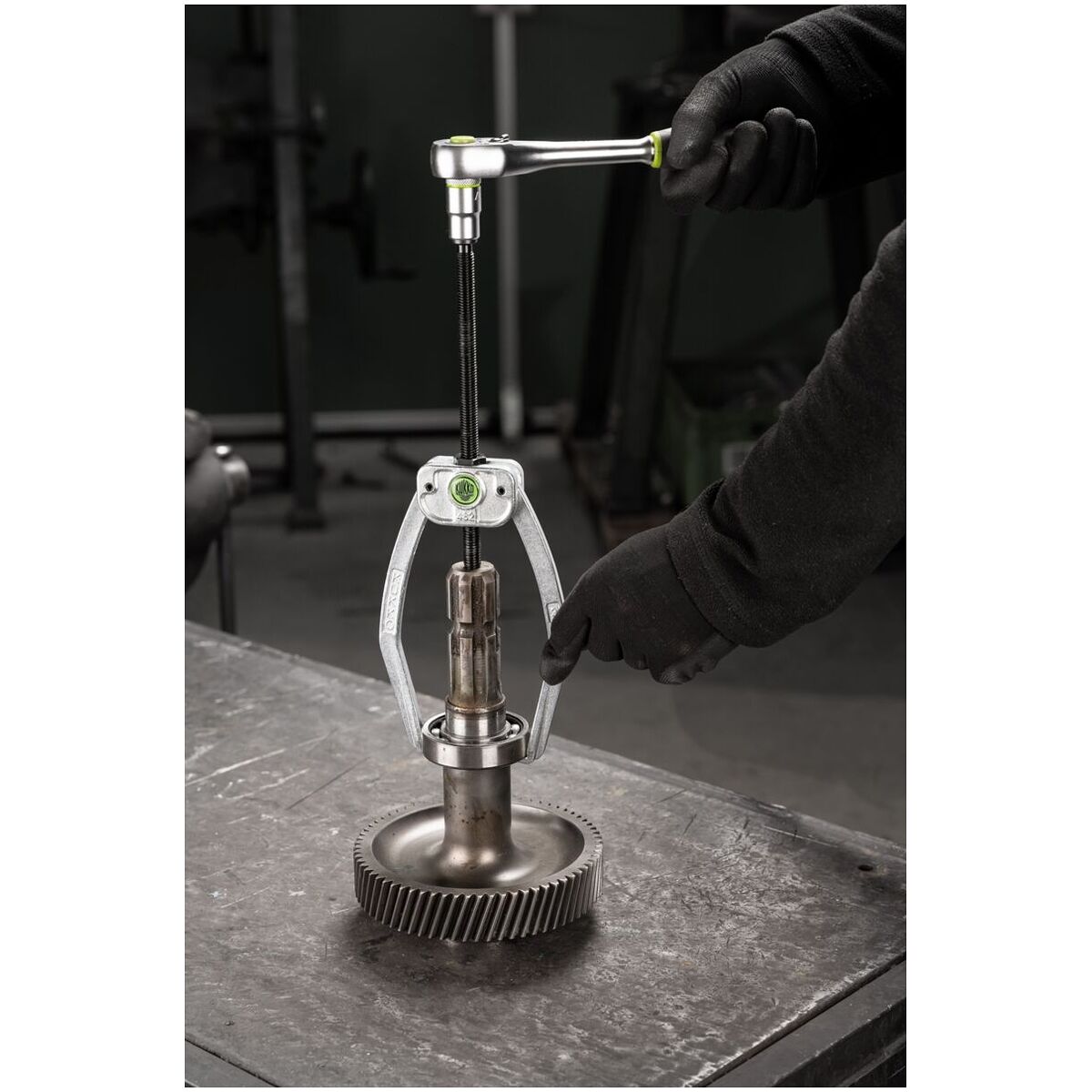

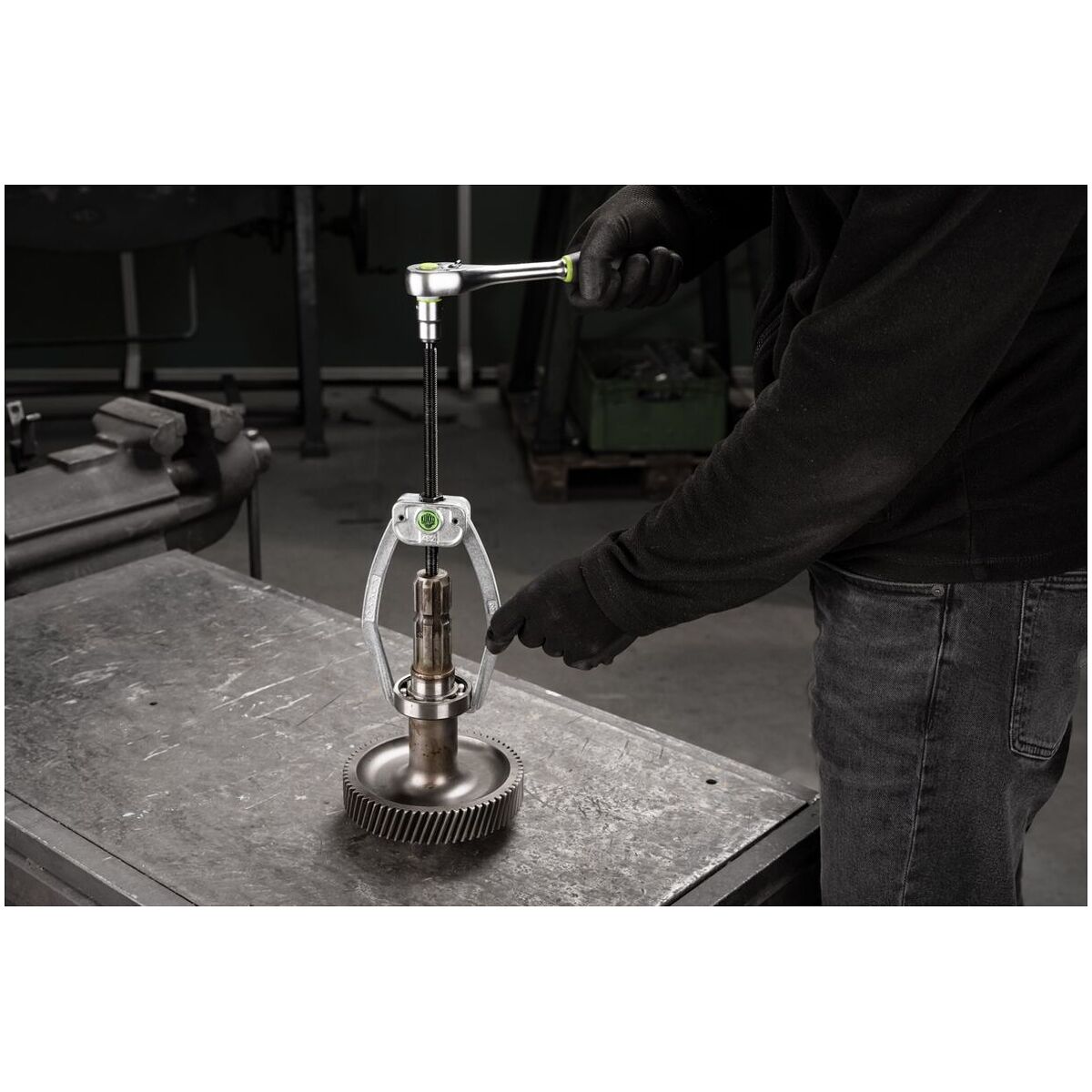

The spring effect and the slim design permit extractions even where access is difficult.
