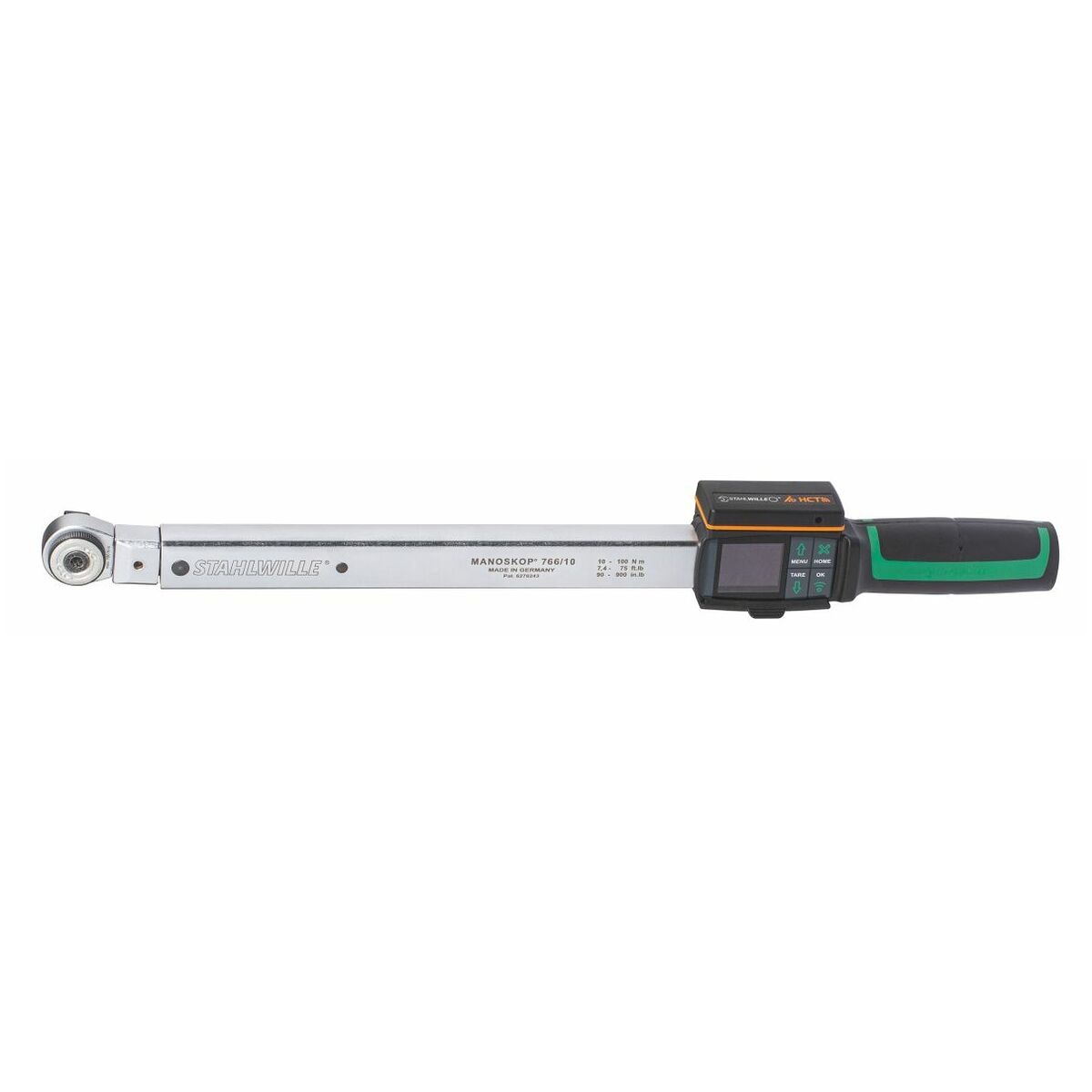

Electronic torque wrench / rotational angle wrench with plug-in ratchet, HCT, maximum torque: 10N·m
Article no.: 655015 10
Article code:
New product
- Direction of tightening: For right and left-hand tightening
- Torque measuring accuracy: ±2
- Measuring accuracy rotational angle: ±1
- Exchangeable tool: Plug-in head
- Interface: USB interface; Bluetooth® interface
Product details
Technical Data
| maximum torque | 10 Nm | |
| Direction of tightening | For right and left-hand tightening | |
| Torque measuring accuracy | ±2 % | |
| Measuring accuracy rotational angle | ±1 % | |
| Exchangeable tool | Plug-in head | |
| Interface | USB interface; Bluetooth® interface | |
| App link | HCT (Hoffmann Group Connected Tools) | |
| Test certificate | Manufacturer’s test certificate | |
| Series | MANOSKOP® 766; DAPTIQ®; HCT | |
| Torque range | 1 Nm - 10 Nm | |
| Resolution | 0.01 Nm | |
| Adjusted reference dimension on the torque wrench [l2] | 17.5 mm | |
| Square drive | 1/4 inch | |
| Socket for plug-in head | 9×12 mm | |
| Display | digital | |
| Release signalling | acoustic; haptic | |
| Trigger principle | mechanical short travel release | |
| Power supply | Battery-powered | |
| Number of batteries contained | 4 | |
| Battery type | LR3 | |
| Connection format | for plug-in heads (rectangular socket) | |
| Wireless application | HID (Human Interface Device); HCT mobile app; HCT Windows app | |
| Packaging | sturdy plastic case | |
| Measurement technology | electronic | |
| Data can be recorded | yes | |
| Setting the trigger value | digital, adjustable | |
| Feedback | triggering | |
| Reversible reading | Nm; lbfft; lbfin | |
| Measurement process | Torque; Angle of rotation | |
| Adjustable trigger value | adjustable | |
| Standard | DIN EN ISO 6789 | |
| Lever length without plug-in head [l1] | 170.5 mm | |
| Lever length including factory calibration reference dimension [l3] | 188 mm | |
| Type of product | Torque wrenches |
Identification & Classification
| Article number | 655015 10 |
Description
Version:
Highly precise electronic torque / rotational angle wrench for screw tightening and checking of screw fastenings. Clear OLED display with colour screen and extremely simple menu navigation. Sturdy wrench with “Direct mode” for quick general-purpose use. 4 measurement modes: Torque and angle of rotation. Process reliability results achieved by torque with angular monitoring or rotational angle with torque monitoring. Can be programmed by a PC; password protection for security against tampering. Rotary angle measurement can be programmed easily, no reference arm required. Peak and Track function modes.
The wrench can be used in trigger mode. When the set torque or rotational angle is reached the wrench triggers with acoustic and tactile signals like a conventional mechanical torque wrench.
Units of measure: Nm, lbfft, lbfin.
Highlights:
The wrench can be used in trigger mode. When the set torque or rotational angle is reached the wrench triggers with acoustic and tactile signals like a conventional mechanical torque wrench.
Units of measure: Nm, lbfft, lbfin.
Highlights:
- Torque wrench is simple to integrate into the HCT worker guidance system.
- Bluetooth® update for the HCT adapter is performed over the air.
- Availability of an open protocol interface via the HCT Windows app.
- Can be used in combination with our GARANT torque tester HCT; supplementary HCT functions can be used (1st peak mode with simultaneous display of measurement from the MANOSKOP® 766 DAPTIQ® HCT and the GARANT torque tester HCT on the display of the tester).
- Electromechanical torque/rotational angle wrench with true mechanical actuation.
Advantage:
HCT – Hoffmann Group Connected Tools
Advantages of wireless transmission with Bluetooth:
Advantages of wireless transmission with Bluetooth:
- Simple data transmission: At the push of a button the measuring result is transmitted directly to your PC application (such as Excel or Word) or to your mobile phone - no dongle necessary.
- Freedom of movement: No messy data transmission cables.
- Independence of location: Measurements can be performed directly to the machine and transmitted by radio to your application.
- Reliable data transmission: No read errors and transmission errors - multiple measuring devices can be linked together.
Standard:
Tested to DIN EN ISO 6789.
Cutting data:
Legend for drawing and formula:
l1 = Lever length without plug-in head
l2 = Adjusted reference dimension on the torque wrench
l3 = Lever length including factory calibration reference dimension
l4 = Reference dimension of the plug-in head
L = Total length of the tool
T1 = Torque to be set
T2 = Specified torque
l1 = Lever length without plug-in head
l2 = Adjusted reference dimension on the torque wrench
l3 = Lever length including factory calibration reference dimension
l4 = Reference dimension of the plug-in head
L = Total length of the tool
T1 = Torque to be set
T2 = Specified torque
Supplied with:
Includes sturdy plastic box (size 400 to size 1000 in a sheet metal box) and 4 batteries (1.5 V Micro / AAA / LR3), USB data cable.
Note:
- Matching rechargeable battery available under Stahlwille number 54101195.
- Matching charging dock available under Stahlwille number 54100060.
