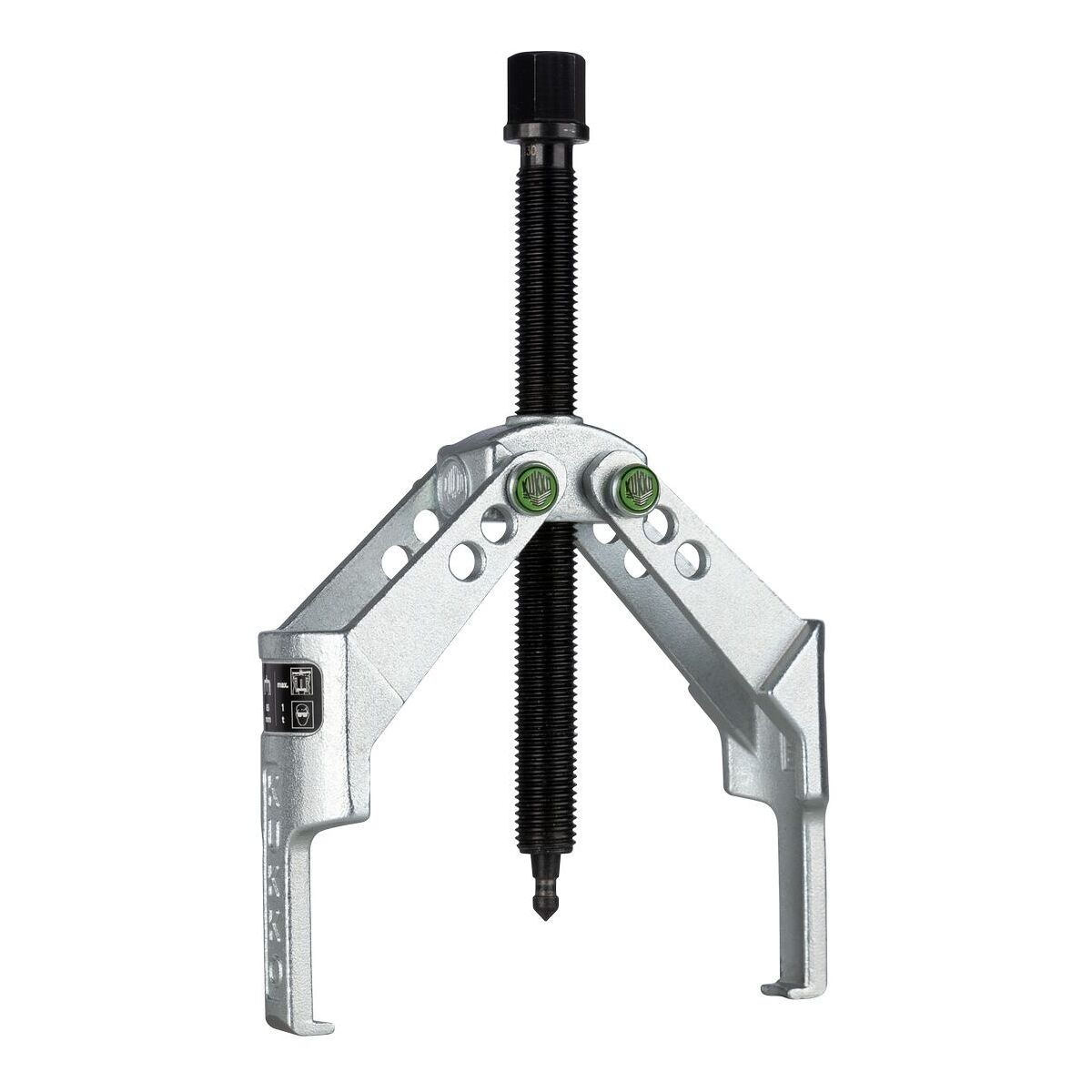

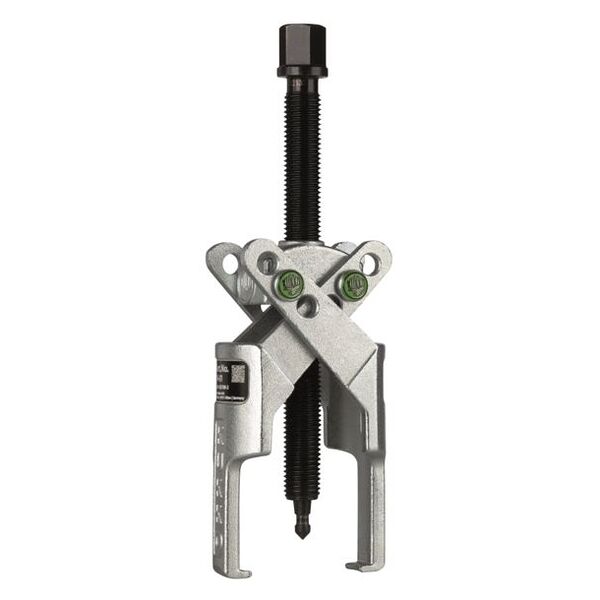

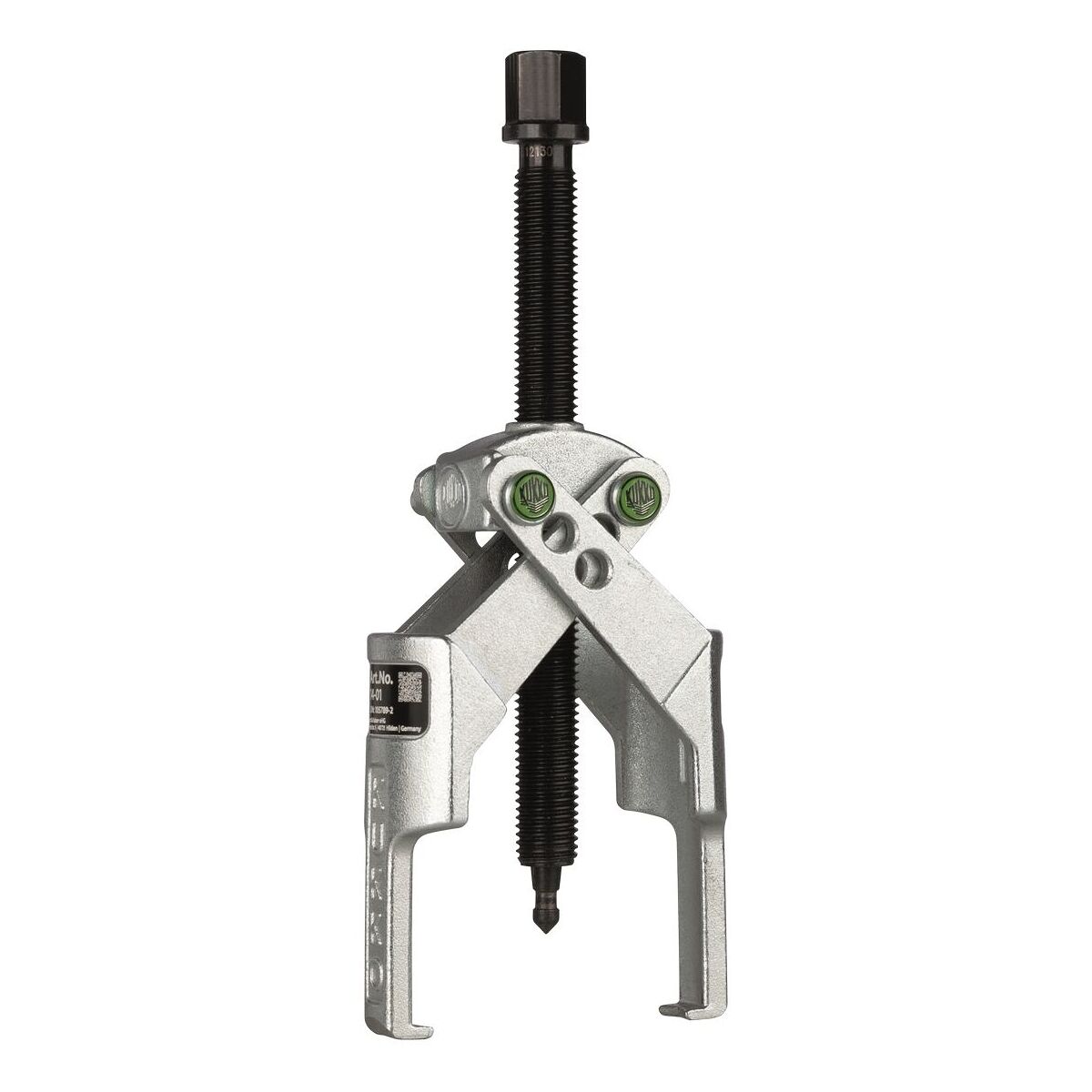

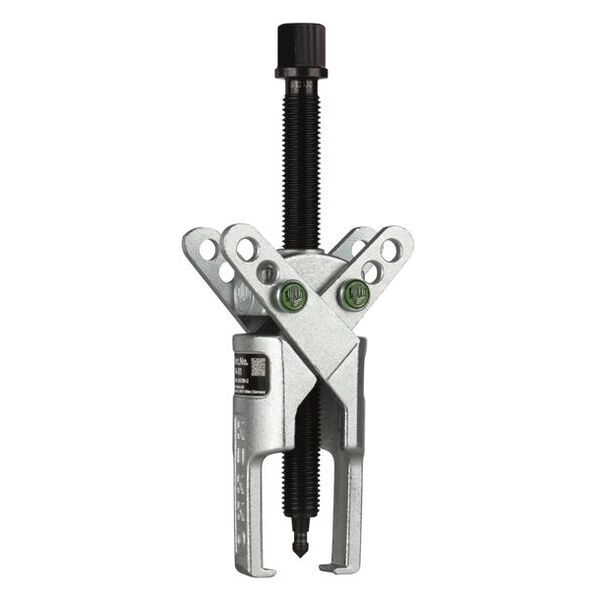

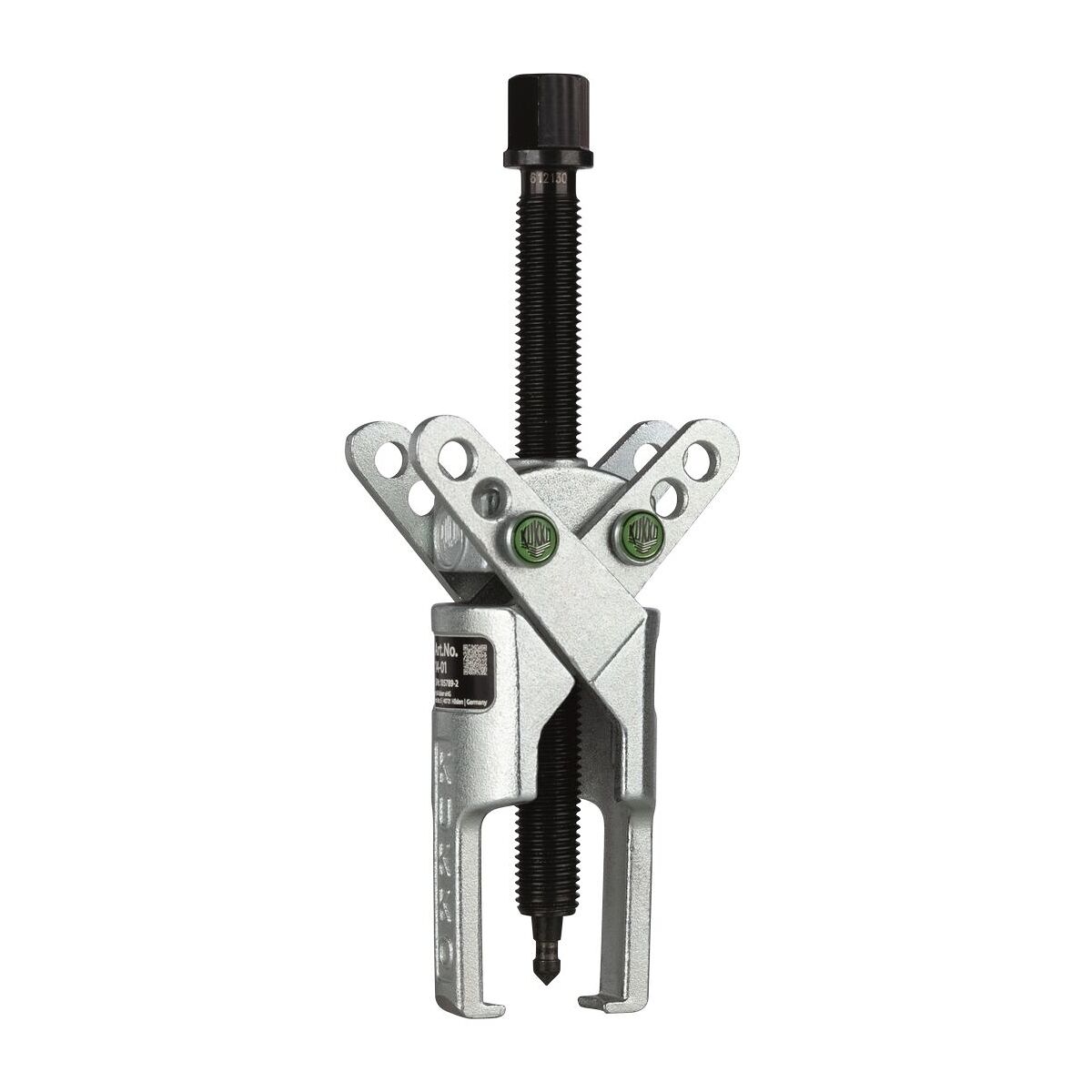

Adjustable extractor
Article no.: 881100
Article code:
Product details
Technical Data
| External clamping range min. | 6 mm | |
| External clamping range max. | 100 mm | |
| Max. clamping depth | 85 mm | |
| Max. torque | 30 Nm | |
| Number of hooks | 2 | |
| Performance | 1 t | |
| Connection thread | M12×1,5 | |
| Type of product | two-leg extractor | |
| External hexagon drive | 13 mm | |
| Material | steel | |
| Self-centring | yes | |
| Weight | 0.45 kg | |
| Content | single part |
Identification & Classification
| Article number | 881100 | |
| EAN / GTIN | 4021176459559 | |
| Manufacturer number | 14-01 | |
| Manufacturer/responsible person | Kleinbongartz & Kaiser oHG, Heinrich-Hertz-Straße 5, 40704 Hilden, Germany, www.kukko.com |
Description
Version:

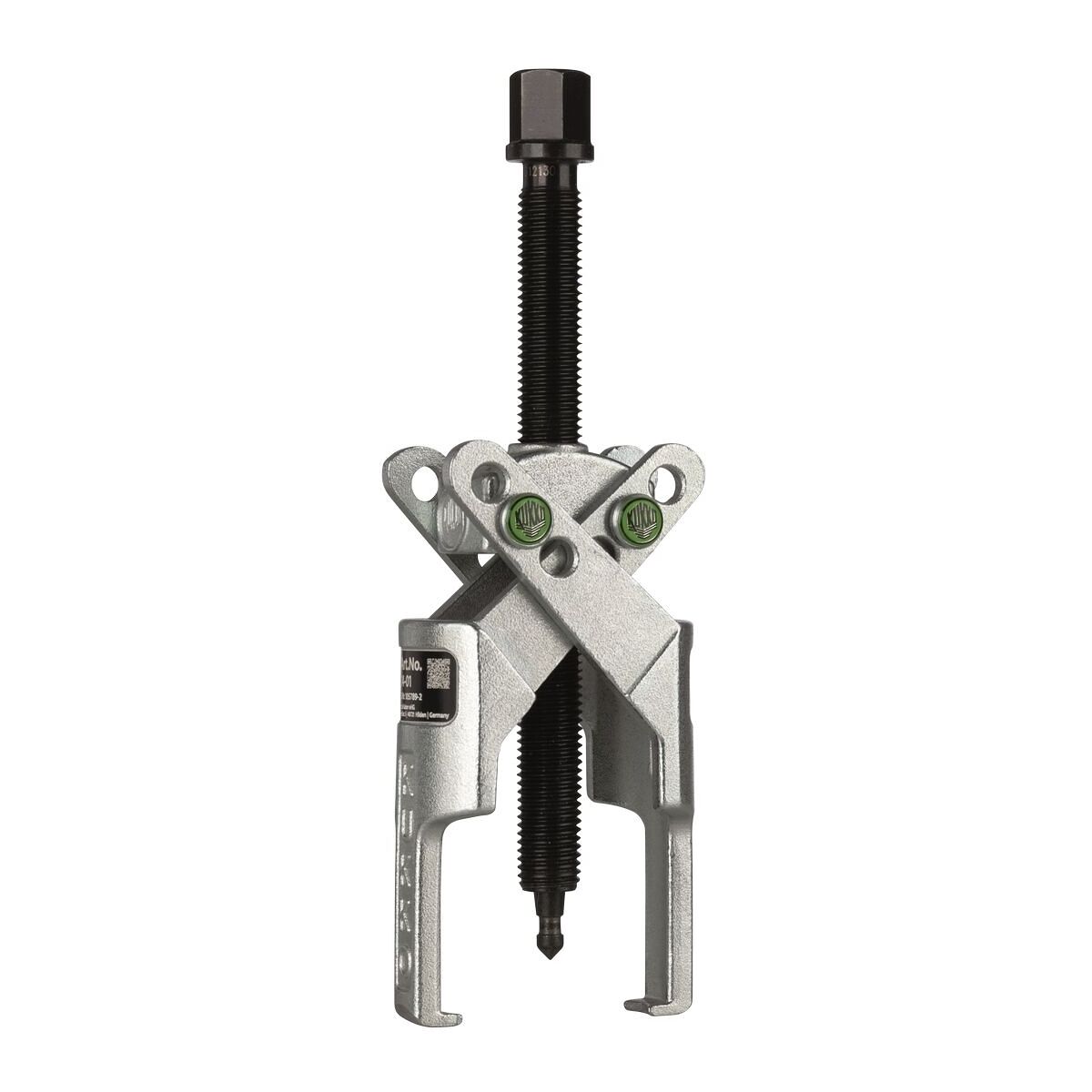

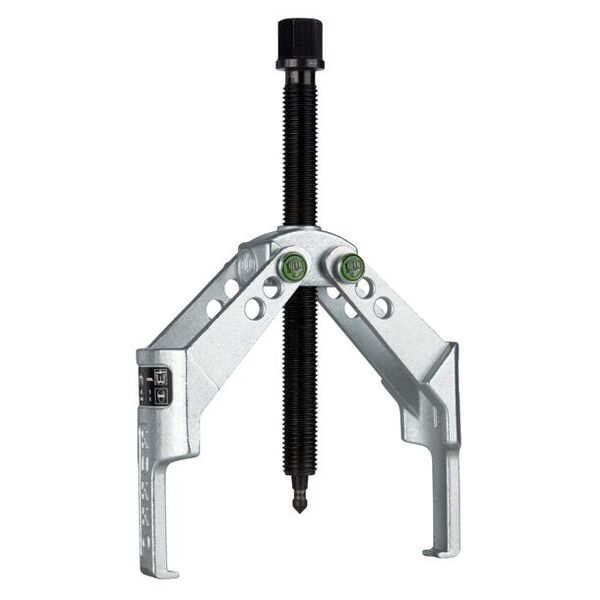

The self-locking pins allow individual selection of the clamping range and depth of reach. The extractor is self-clamping and simple to use due to the special design. Extremely large span range due to variable configuration of extractor legs (see diagram).
