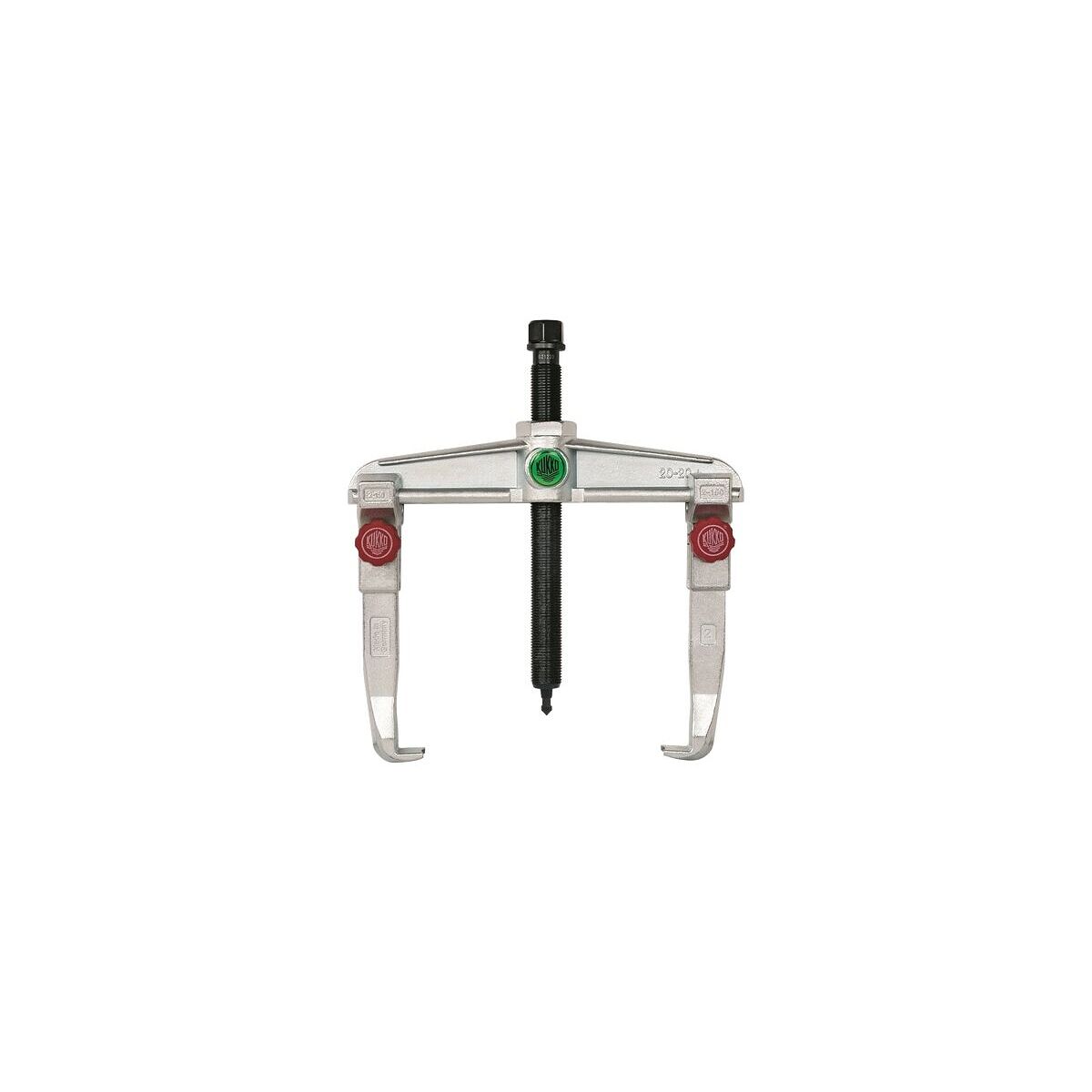

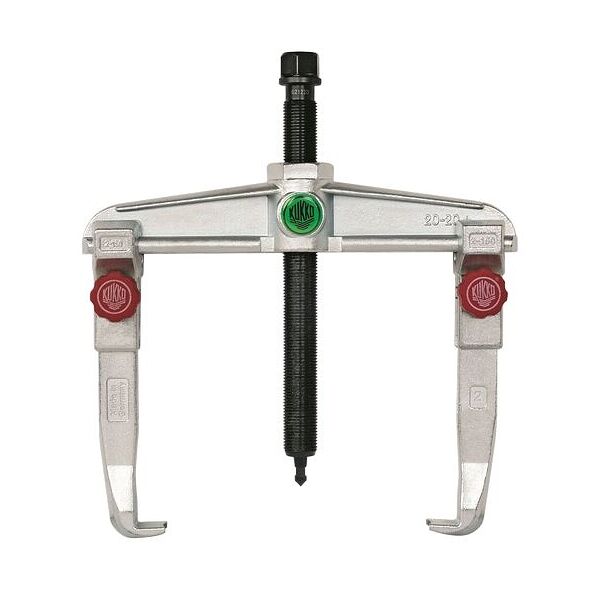

Two-leg extractor with quick adjustment, Type: 20
Article no.: 880400 20
Article code:
Click to enlarge image
Spindle nose with collar = protection against slippage.Traverse with hexagon for restraint.Quick adjustment without tools.
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Optimum matching of the spindle to the shaft thanks to the 2-ended spindle tips.
Click to enlarge image
Product details
Technical Data
| Manufacturer’s designation | 20+ | |
| Internal clamping range min. | 100 mm | |
| Internal clamping range max. | 260 mm | |
| External clamping range min. | 40 mm | |
| External clamping range max. | 200 mm | |
| Max. clamping depth | 150 mm | |
| Max. torque | 150 Nm | |
| Number of hooks | 2 | |
| Performance | 6 t | |
| Connection thread | G1/2 | |
| Type of product | two-leg extractor | |
| External hexagon drive | 22 mm | |
| Material | steel | |
| Self-centring | no | |
| Overall length | 254 mm | |
| Weight | 3.315 kg | |
| Content | single part |
Identification & Classification
| Article number | 880400 20 | |
| EAN / GTIN | 4021176645013 | |
| Manufacturer number | 20-20+ | |
| Manufacturer/responsible person | Kleinbongartz & Kaiser oHG, Heinrich-Hertz-Straße 5, 40704 Hilden, Germany, www.kukko.com |
Description
Version:
With knurled grip for quick loosening and moving of the extractor legs without additional tools.
Application:
Universally capable of extracting bearings, gear wheels etc. Can be used as external and internal extractor.
