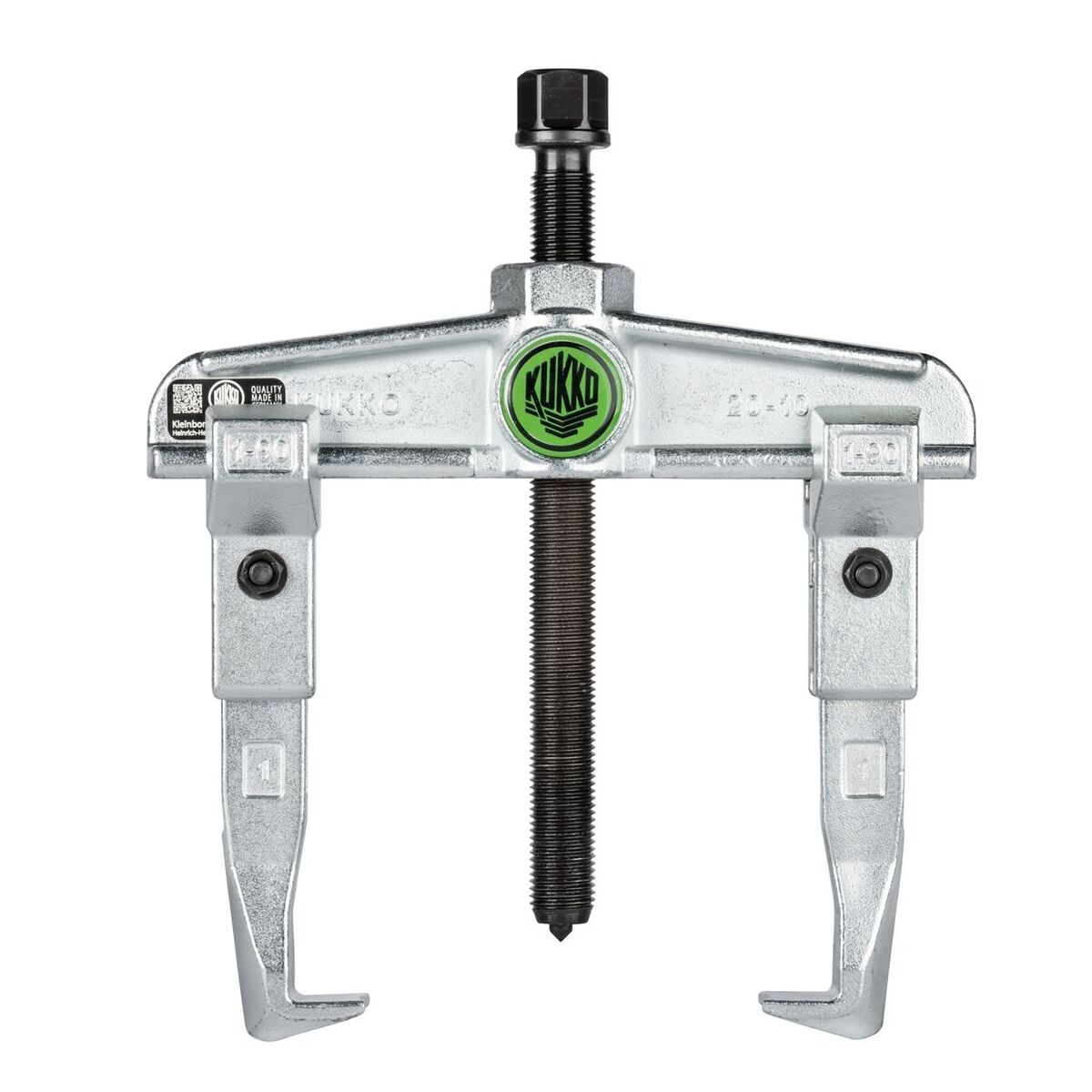

Two-leg extractor, Type: 10
Article no.: 880100 10
Article code:
Product details
Technical Data
| Manufacturer’s designation | 20 | |
| Internal clamping range min. | 95 mm | |
| Internal clamping range max. | 160 mm | |
| External clamping range min. | 30 mm | |
| External clamping range max. | 130 mm | |
| Max. clamping depth | 100 mm | |
| Max. torque | 80 Nm | |
| Number of hooks | 2 | |
| Performance | 4.5 t | |
| Type of product | two-leg extractor | |
| External hexagon drive | 17 mm | |
| Material | steel | |
| Weight | 1.42 kg | |
| Content | single part |
Identification & Classification
| Article number | 880100 10 | |
| EAN / GTIN | 4021176009921 | |
| Manufacturer number | 20-10 | |
| Manufacturer/responsible person | Kleinbongartz & Kaiser oHG, Heinrich-Hertz-Straße 5, 40704 Hilden, Germany, www.kukko.com |
Description
Version:

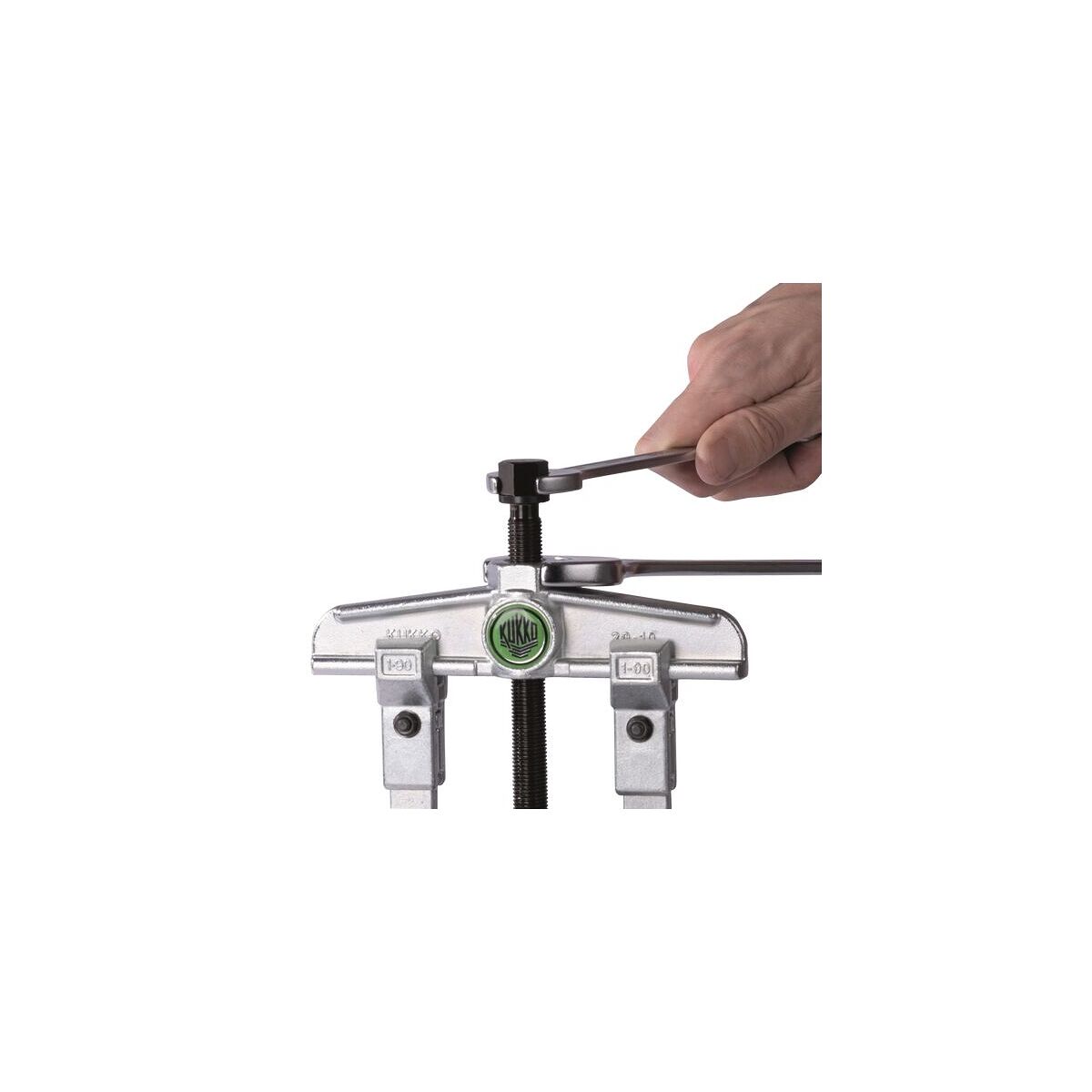

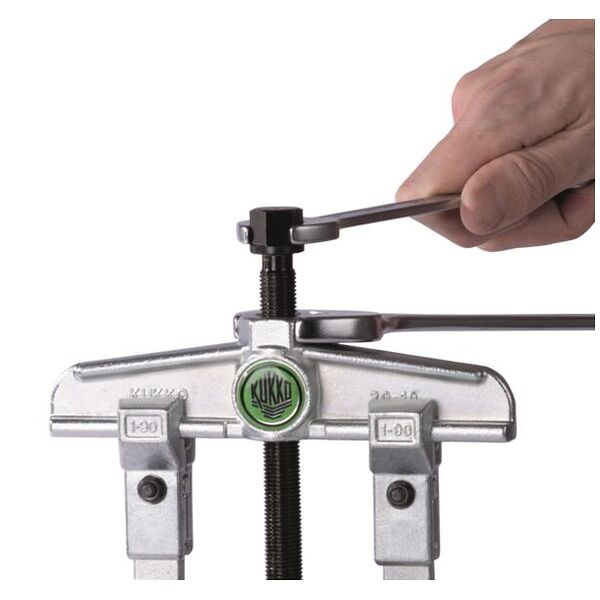

With reversible extraction legs (for external and internal extraction). Extraction legs adjustable on cross beam for different workpiece ⌀. Extraction legs and cross beam of high-quality tool steel; sturdy double-ended spindle (ball end and point end).
Application:

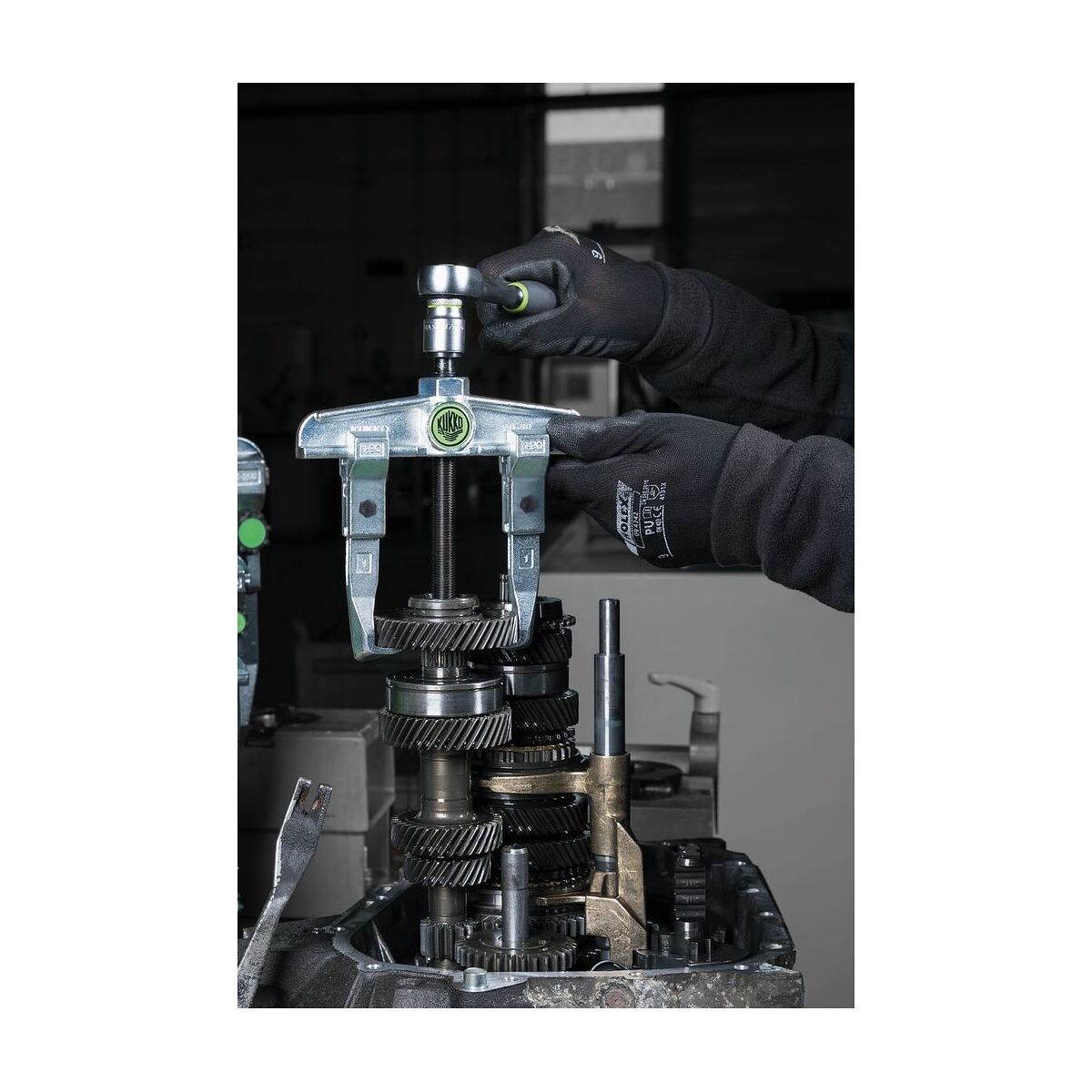

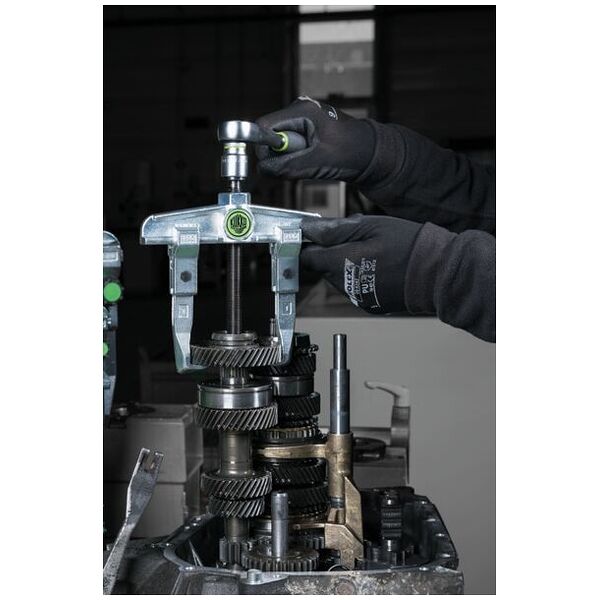

Universally applicable for extracting bearings, discs, gear wheels etc. On model 880100 size 5 the depth of reach can be extended from 400 mm (normal) up to 700 mm by adjusting the legs.
