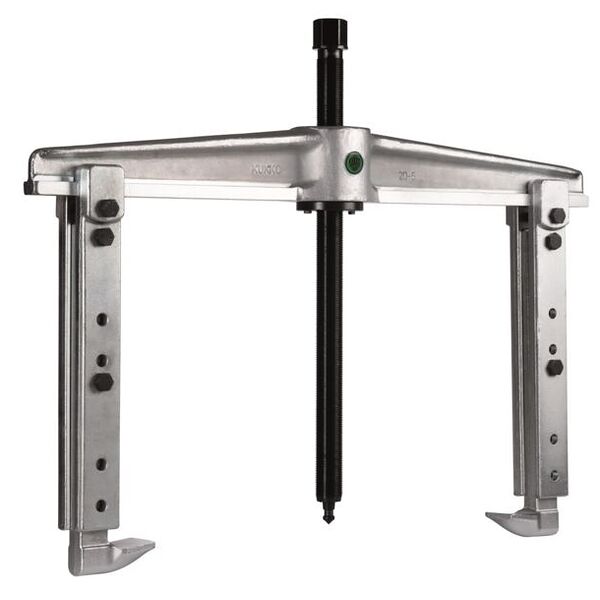

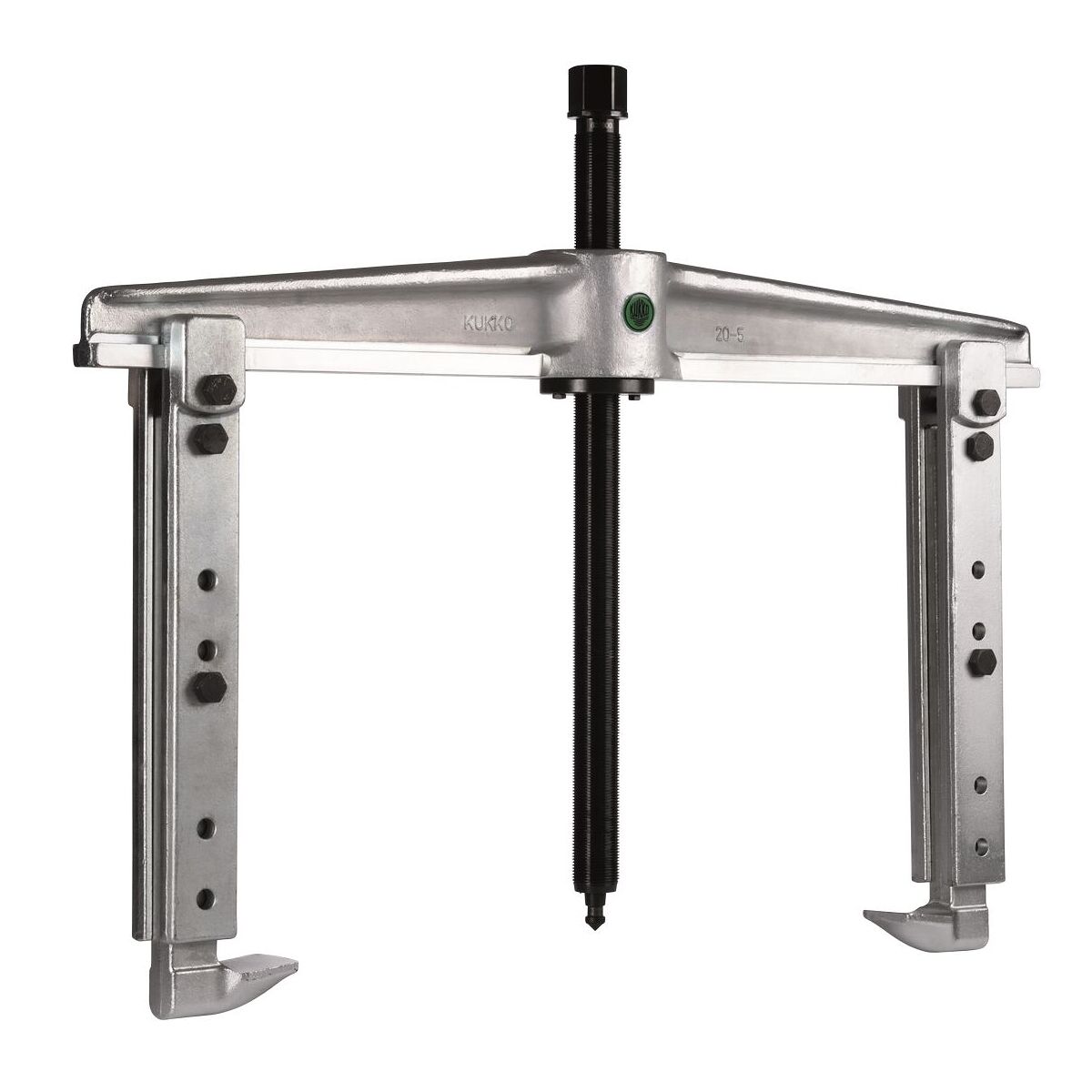

Two-leg extractor, Type: 5
Article no.: 880100 5
Article code:
Product details
Technical Data
| Manufacturer’s designation | 20 | |
| Internal clamping range min. | 340 mm | |
| Internal clamping range max. | 1,000 mm | |
| External clamping range min. | 105 mm | |
| External clamping range max. | 750 mm | |
| Max. clamping depth | 700 mm | |
| Max. torque | 650 Nm | |
| Number of hooks | 2 | |
| Performance | 15 t | |
| Type of product | two-leg extractor | |
| External hexagon drive | 41 mm | |
| Material | steel | |
| Weight | 47 kg | |
| Content | single part |
Identification & Classification
| Article number | 880100 5 | |
| EAN / GTIN | 4021176009846 | |
| Manufacturer number | 20-5 | |
| Manufacturer/responsible person | Kleinbongartz & Kaiser oHG, Heinrich-Hertz-Straße 5, 40704 Hilden, Germany, www.kukko.com |
Description
Version:
With reversible extraction legs (for external and internal extraction). Extraction legs adjustable on cross beam for different workpiece ⌀. Extraction legs and cross beam of high-quality tool steel; sturdy double-ended spindle (ball end and point end).
Application:
Universally applicable for extracting bearings, discs, gear wheels etc. On model 880100 size 5 the depth of reach can be extended from 400 mm (normal) up to 700 mm by adjusting the legs.
