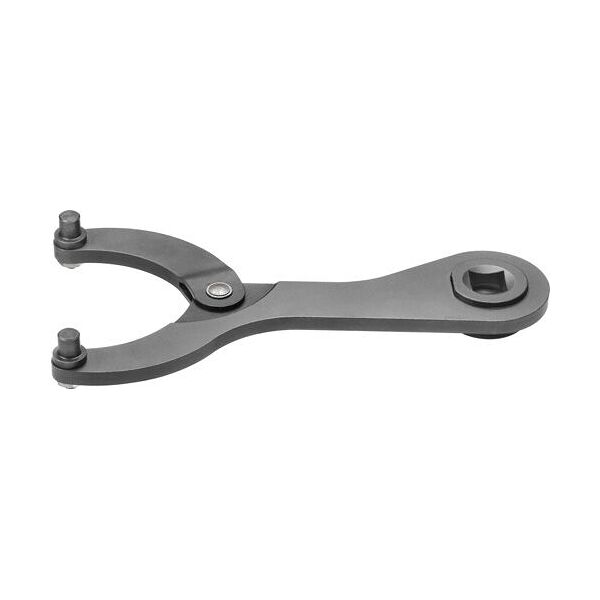

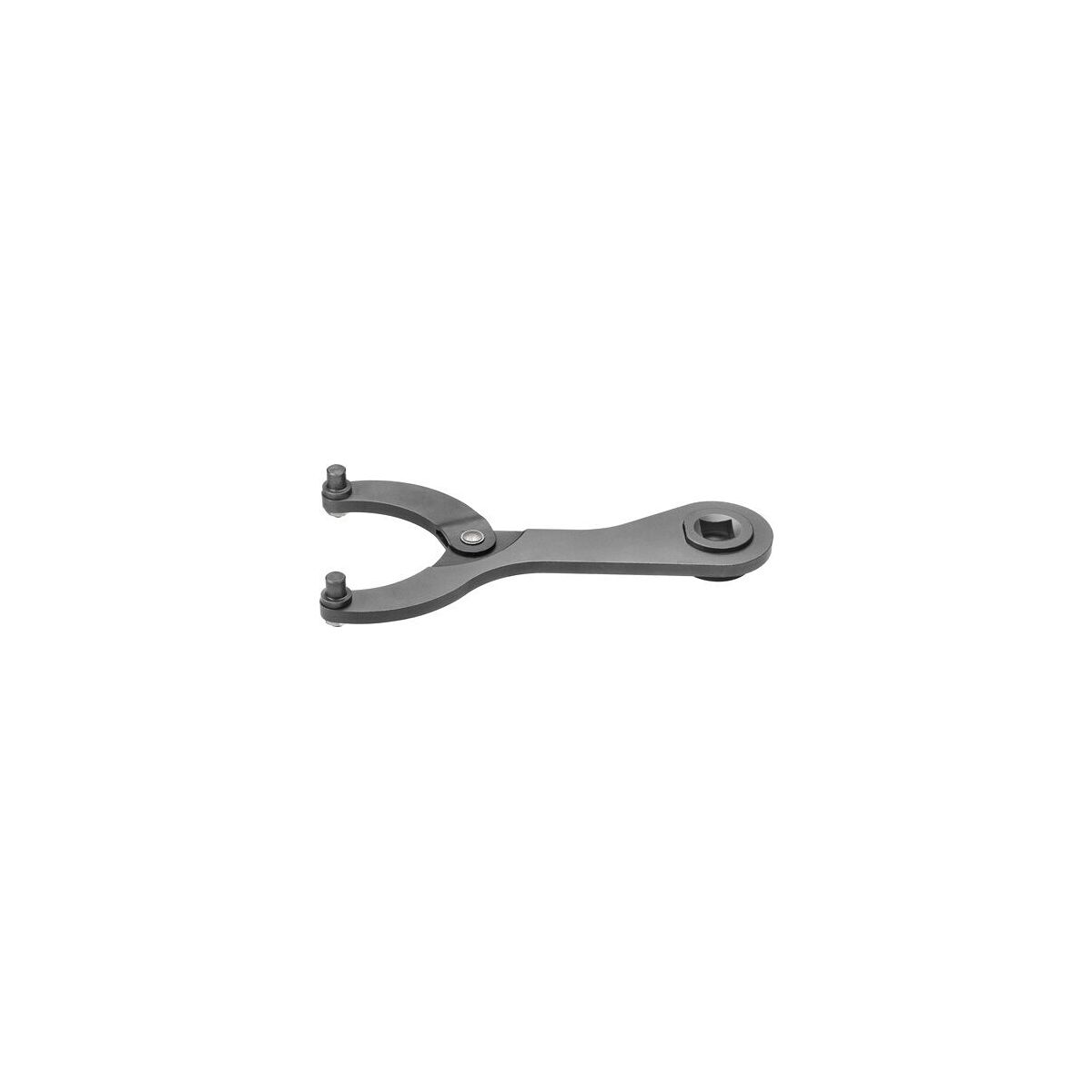

Hinged pin wrench for torque wrenches, largest ⌀ / pin nominal ⌀: 40/4mm
Article no.: 628820 40/4
Copy
Article code:
Copy
Product details
Technical Data
| Type | 764C | |
| Manufacturer's designation | 764Md | |
| largest ⌀ | 40 mm | |
| Pin nominal ⌀ | 4 mm | |
| overall length | 120 mm | |
| Pin spacing adjustable a | 18 mm - 40 mm | |
| Square drive | 1/2 inch | |
| Pin thread | M4 | |
| Type of product | Pin spanner |
Identification & Classification
| Article number |
628820 40/4
Copy |
|
| EAN / GTIN |
4020772050146
Copy |
|
| Manufacturer number |
50146
Copy |
|
| Manufacturer/responsible person | Andreas Maier GmbH & Co. KG, Waiblinger Straße 116, 70734 FELLBACH, Germany, www.amf.de |
Description
Version:
Special steel, drive head ground, annealed and burnished.
With square drive for use with a torque wrench. With interchangeable pins.
With square drive for use with a torque wrench. With interchangeable pins.
Application:
For twin hole nuts.
Note:
Pin ⌀ = pin nominal ⌀ - 0.1 mm; tolerance field h12.
