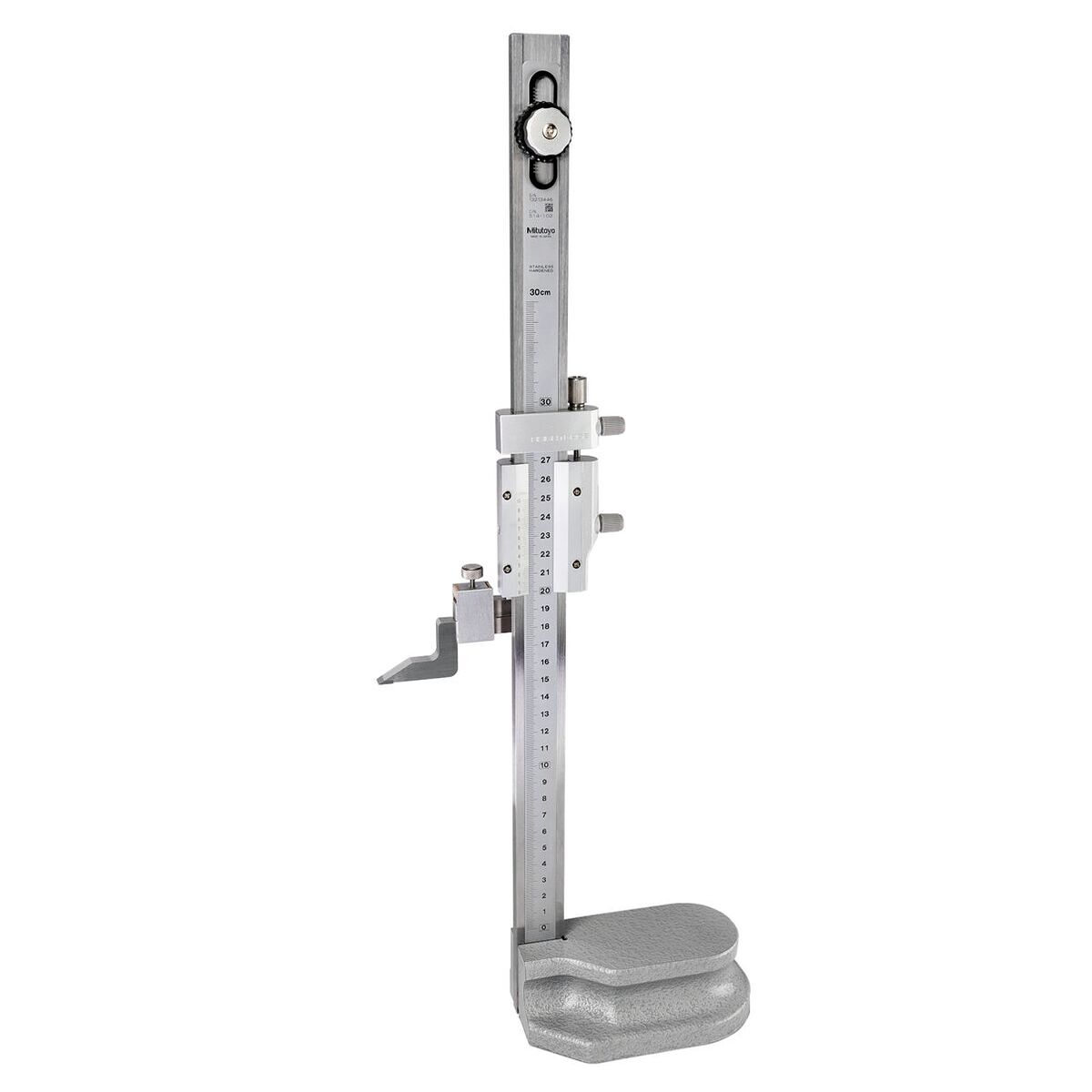

Precision vernier height gauge, Marking height: 300mm
Article no.: 443500 300
Article code:
Product details
Technical Data
| Application range min. | 0 mm | |
| Application range max. | 300 mm | |
| Can be calibrated | yes | |
| Can be recalibrated | yes | |
| Type of product | vernier height gauge | |
| Min. measuring range | 0 mm | |
| Max. measuring range | 300 mm | |
| Unit for reading | millimetre | |
| Measurement technology | analogue | |
| Error limit | 0.04 mm | |
| Measurement slide movement | manual | |
| Material of measuring tip | tungsten carbide | |

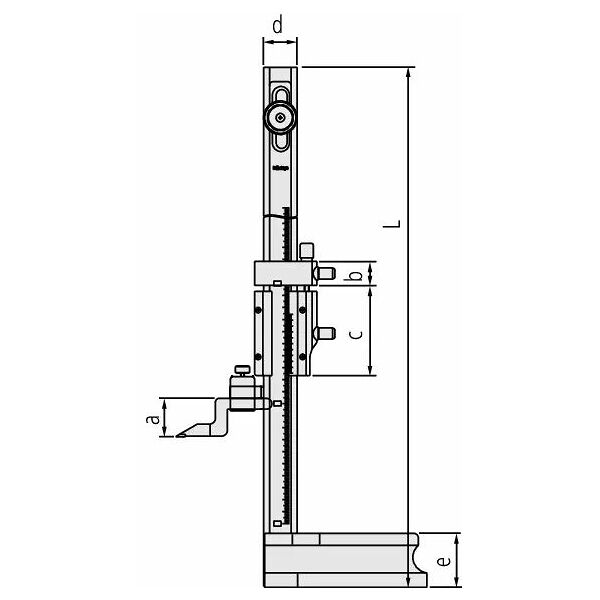

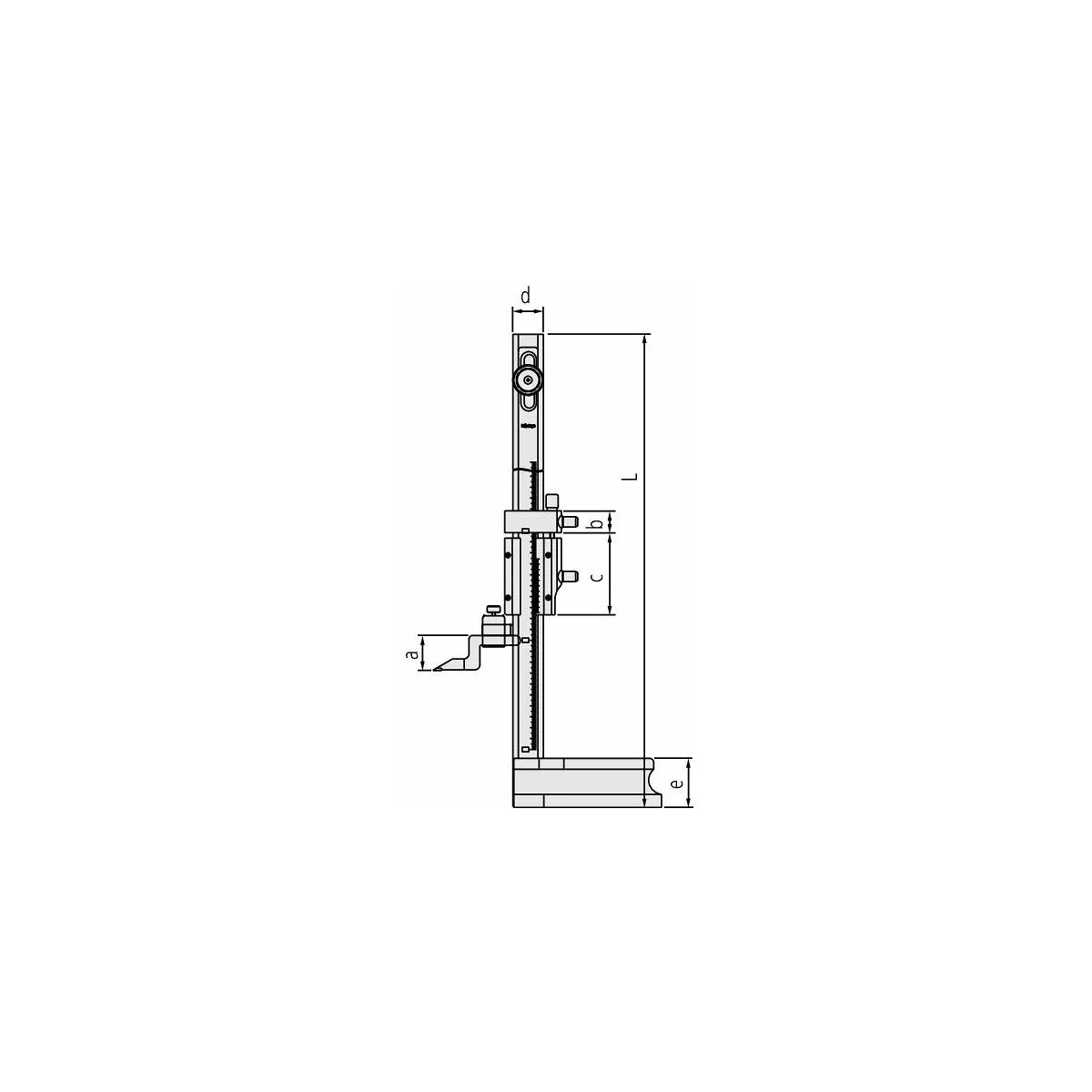

| Width of measuring column | 28 mm | |
| Depth of measuring column | 9 mm | |
| Length of stand | 135 mm | |
| Width of stand | 91 mm | |
| Characteristics | with fine adjustment | |
| Standard | works standard |
Identification & Classification
| Article number | 443500 300 | |
| EAN / GTIN | 4946368096223 | |
| Manufacturer number | 514-102 | |
| Manufacturer/responsible person | Mitutoyo Deutschland GmbH, Borsigstraße 8-10, 41469 Neuss, Germany, www.mitutoyo.de |
Description
Version:
Sturdy base with ground base, scale hardened and ground.
All reading parts are anti-glare satin chrome-plated. Sharp jet black scales. With fine adjustment. Slightly raised edges to the scale prevent the slide from damaging it. Reading zero and marking scriber are adjusted with reference to the bottom of the base (marking out from ”0”). Drawing dimensions can therefore be transferred directly without the risk of calculation errors.
The scriber is carbide tipped.
All reading parts are anti-glare satin chrome-plated. Sharp jet black scales. With fine adjustment. Slightly raised edges to the scale prevent the slide from damaging it. Reading zero and marking scriber are adjusted with reference to the bottom of the base (marking out from ”0”). Drawing dimensions can therefore be transferred directly without the risk of calculation errors.
The scriber is carbide tipped.
With adjustable measuring beam.
