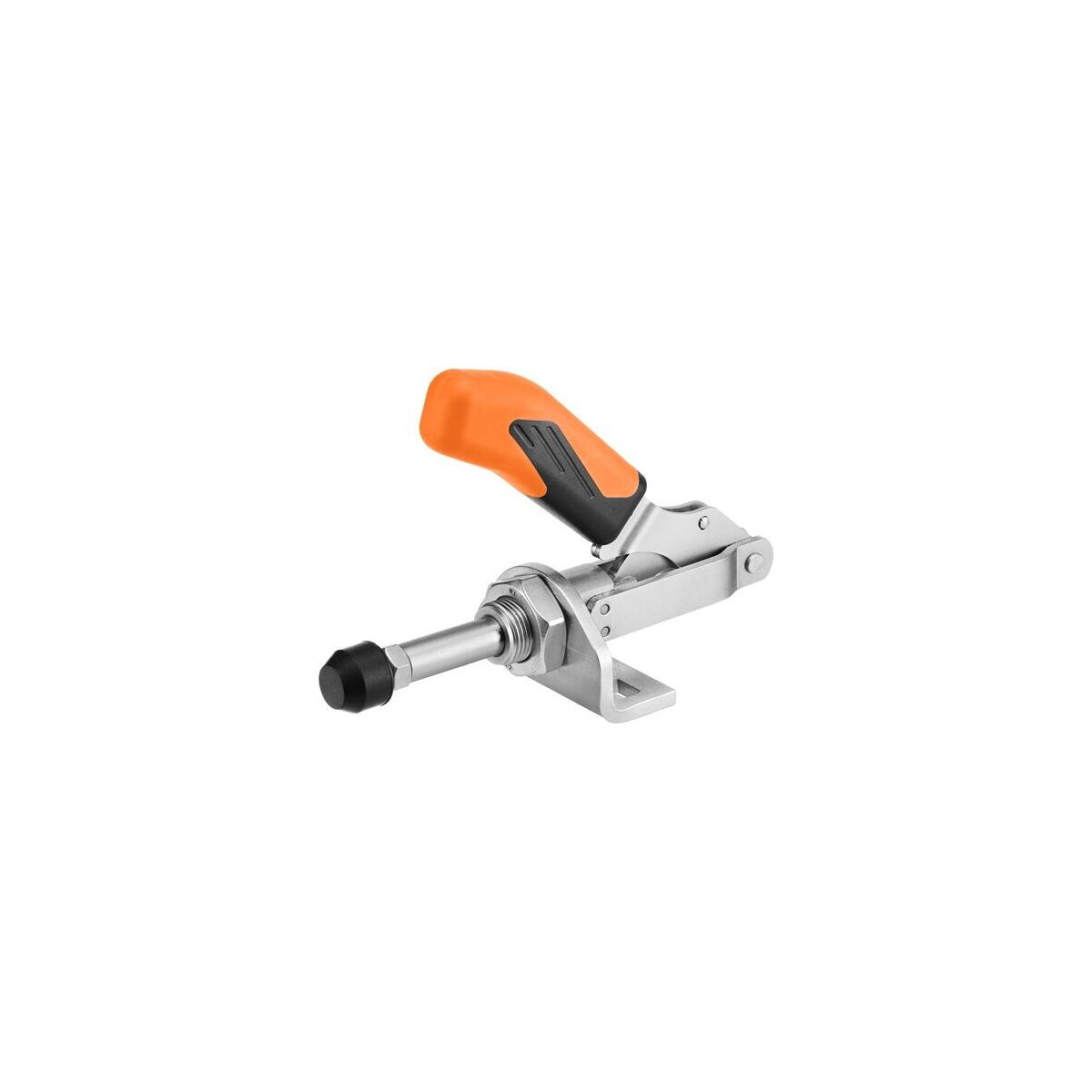

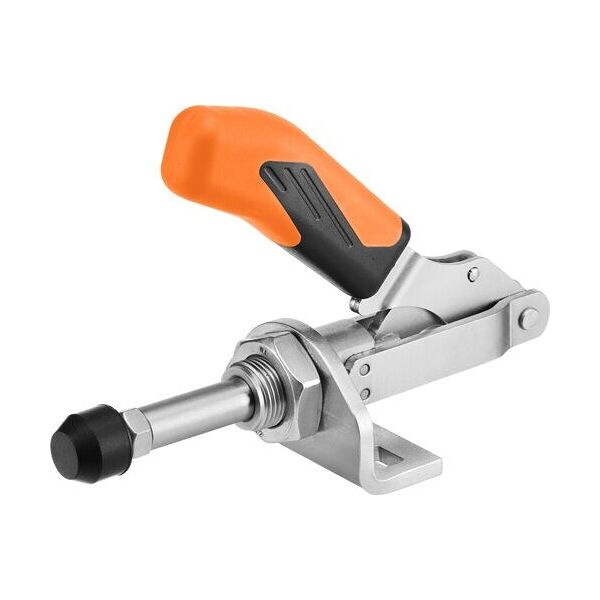

Push-pull toggle clamp with angled base, Type: 0
Article no.: 376710 0
Article code:
Product details
Technical Data
| Minimum holding force | 800 N | |
| Clamping travel | 16 mm | |
| Diameter of hole | 4.5 mm | |
| Number of holes | 1 | |
| Suitable for screw size | M4 | |
| Thread | M10×1,5 | |
| Type of product | push-pull toggle clamp | |
| Min. clamping range | 17 mm | |
| Max. clamping range | 33 mm | |
| Min. height above upper table edge | 12 mm | |
| Max. height above upper table edge | 20 mm | |
| With bore | yes | |
| With screw / thread | yes | |
| Overall length | 140.5 mm | |
| Overall height | 49.3 mm | |
| Material | heat-treatable steel | |
| Weight | 0.065 kg | |
| Content | single part |
Identification & Classification
| Article number | 376710 0 | |
| EAN / GTIN | 4020772008376 | |
| Manufacturer number | 557373 | |
| Manufacturer/responsible person | Andreas Maier GmbH & Co. KG, Waiblinger Straße 116, 70734 Fellbach, Germany, www.amf.de |
Description
Version:
With compound action. Opening prevented by self-locking mechanism.
- Rivet made of stainless steel, bearings greased.
- With long push-pull guide.
- Handle can be moved to any angle.
- With hardened and galvanised contact screw.
- Detachable angled base, permitting fixing to sheet metal walls.
Application:
For use in special clamping fixtures for drilling, reaming, grinding, bending, welding, fitting etc.
Optional extras:
Angled base No. 376730.
Note:
- Size 0 and 3 also available in stainless steel!
