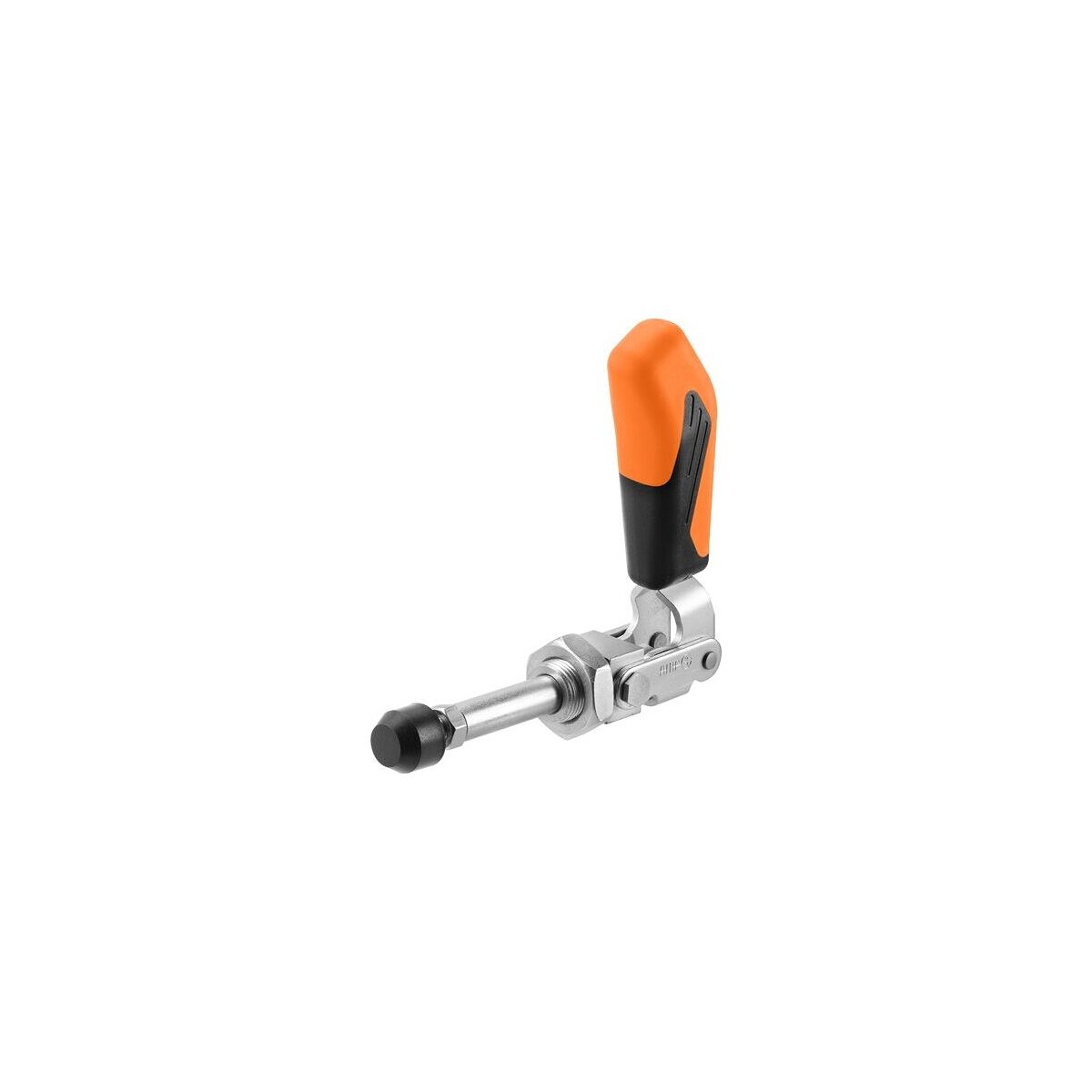

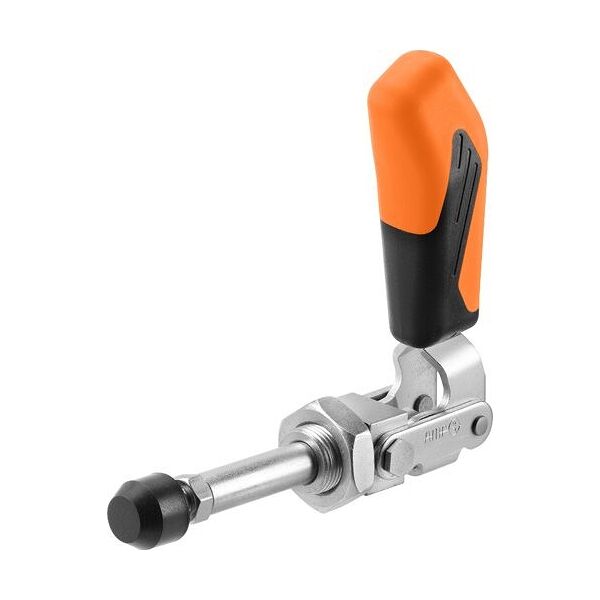

Push-pull toggle clamp short body, Type: 2
Article no.: 376700 2
Article code:
Product details

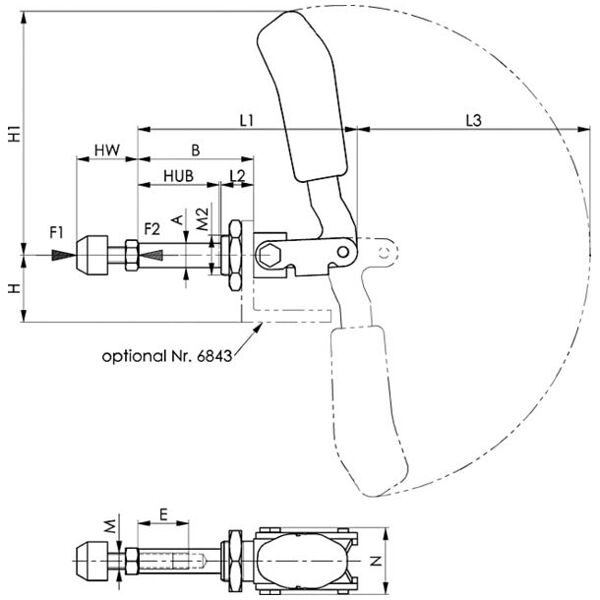

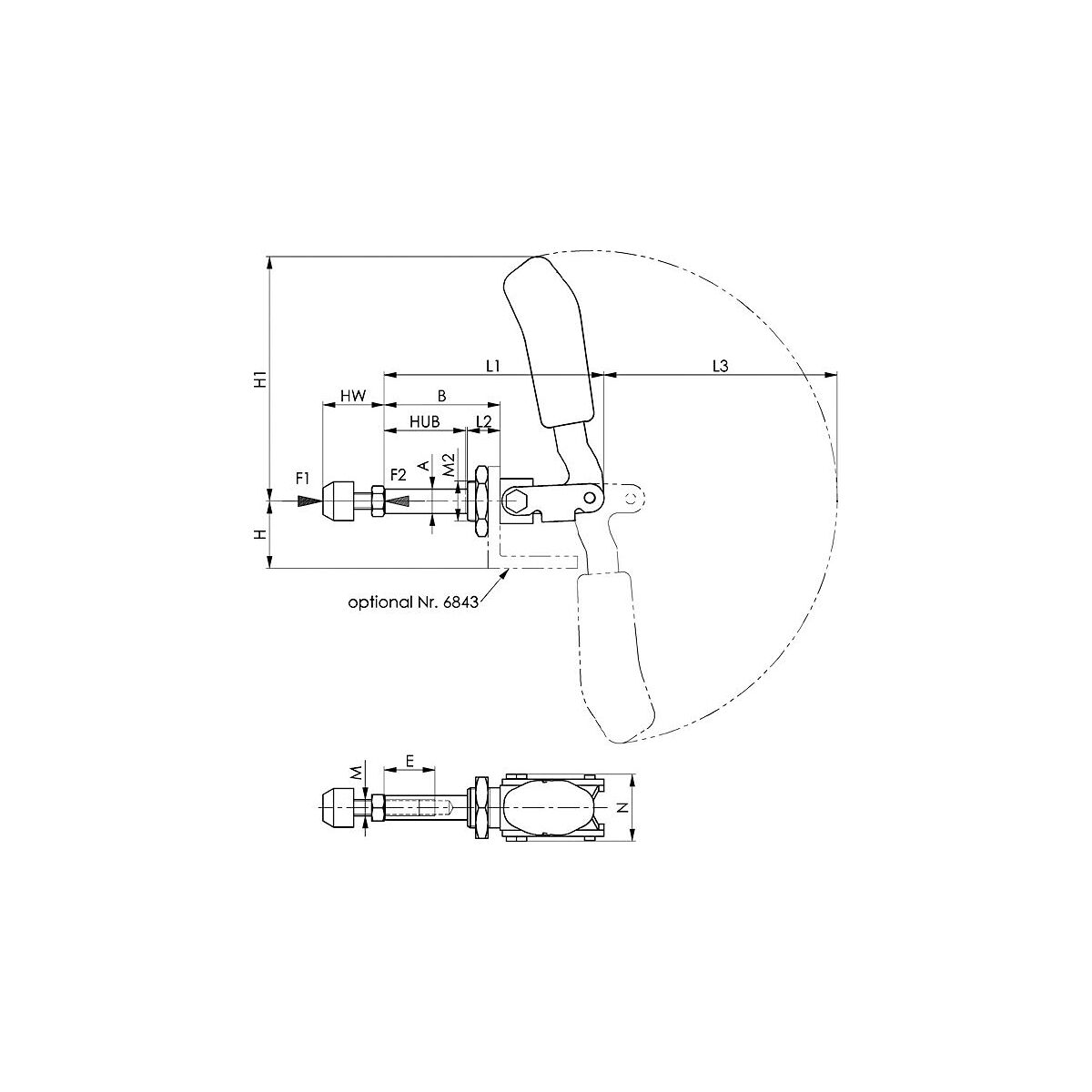

Technical Data
| Minimum holding force | 1,000 N | |
| Clamping travel | 21.5 mm | |
| Thread | M16×1,5; M6 | |
| Thread length | 25 mm | |
| Type of product | push-pull toggle clamp | |
| With screw / thread | yes | |
| Overall length | 161.5 mm | |
| Overall height | 73 mm | |
| Material | steel | |
| Weight | 0.13 kg | |
| Content | single part |
Identification & Classification
| Article number | 376700 2 | |
| EAN / GTIN | 4020772008543 | |
| Manufacturer number | 557397 | |
| Manufacturer/responsible person | Andreas Maier GmbH & Co. KG, Waiblinger Straße 116, 70734 Fellbach, Germany, www.amf.de |
Description
Version:
Hardened shoulder screws.
- Compact design due to new handle.
- Ergonomic 2-component handle, very comfortable to use due to enlarged hand rest.
Application:
- Direct fixing to sheet metal fixing points.
- Connected to jig body with threaded end of arm.
Optional extras:
Angled base No. 376730.
Note:
- Available in stainless steel on request.
