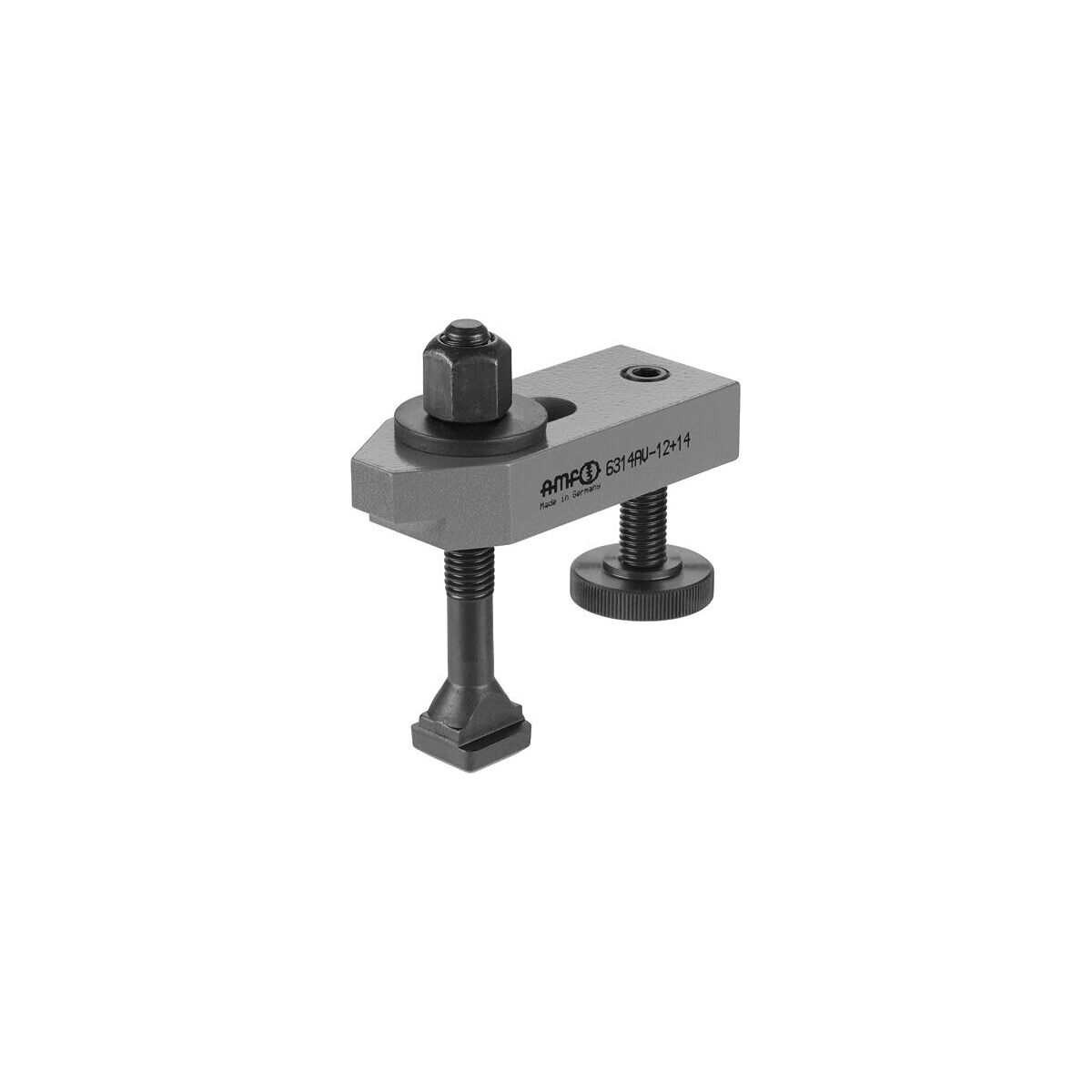

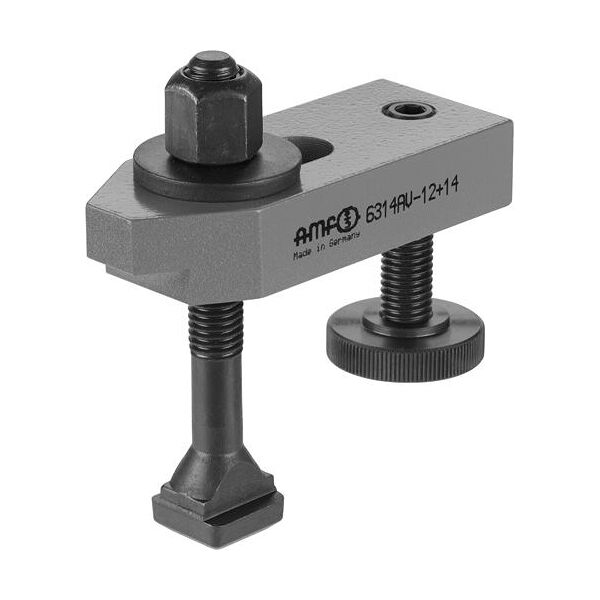

Tapered clamp with adjusting support screw offset, Slot width a: 12mm
Article no.: 370685 12
Article code:
Product details

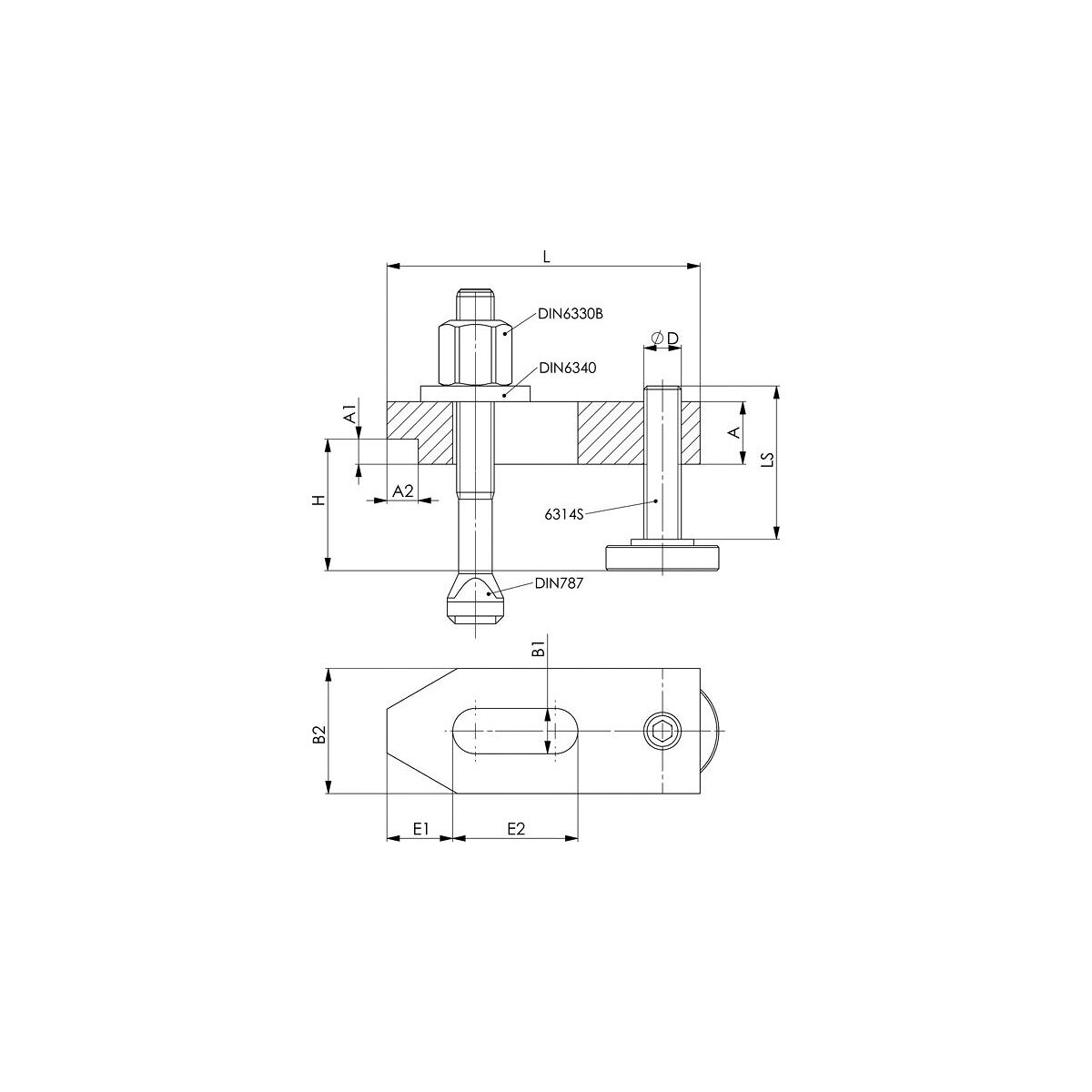

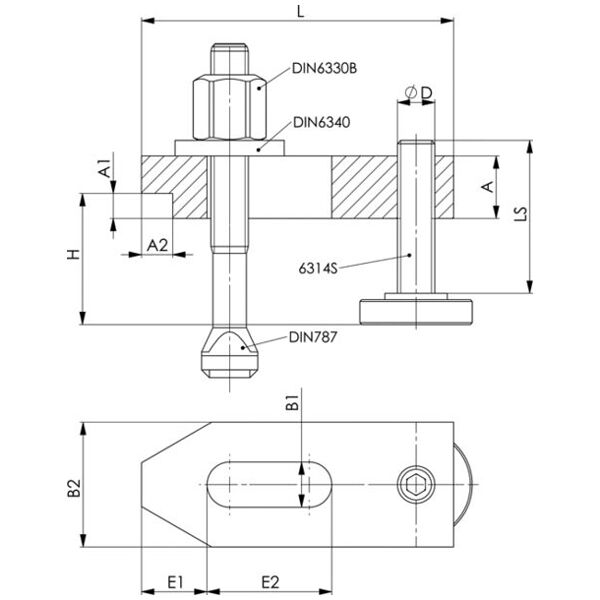

Technical Data
| Length L | 100 mm | |
| Width B | 40 mm | |
| Height H | 20 mm | |
| Shoulder height H1 | 8 mm | |
| Shoulder depth A2 | 10 mm | |
| Clamping height min. | 10 mm | |
| Clamping height max. h | 48 mm | |
| Length of slot f | 40 mm | |
| Width of slot a | 12 mm | |
| Distance from tip to slot e | 21 mm | |
| Clamping screw length | 100 mm | |
| Standard | DIN 6314 | |
| Thread | M12 | |
| Clamping screws | M12 | |
| Type of product | Plain clamp | |
| Content | single part |
Identification & Classification
| Article number | 370685 12 | |
| EAN / GTIN | 4020772074593 | |
| Manufacturer number | 74591 | |
| Manufacturer/responsible person | Andreas Maier GmbH & Co. KG, Waiblinger Straße 116, 70734 Fellbach, Germany, www.amf.de |
Description
Version:
Quenched and tempered steel, painted, screw strength 8.8.
Application:
To achieve the lowest clamping height, turn the clamp around.
Supplied with:
Adjusting screw and T-bolt DIN 787 (No. 375300).
