Digital current clamp, Type: 770-1
Article no.: 473315 770-1
Copy
Article code:
Copy
Product details
Technical Data
| Information displayed | 4,000 | |
| Basic accuracy | 0.8 % | |
| Continuity testing | yes | |
| Diode testing | yes | |
| Measurement process | TRUE RMS | |
| AC voltage | 1 mV − 600 V | |
| DC voltage | 1 mV − 600 V | |
| AC current | 0.1 A - 400 A | |
| DC current | 0.1 A - 400 A | |
| Resistance | 0.1 - 40 MΩ | |
| Capacitance | 0.001 µF - 100 µF | |
| Frequency | 0.001 Hz - 10 kHz | |
| Overvoltage category | CAT III 1000 V; CAT IV 600 V | |
| Power supply | Battery-powered | |
| Number of batteries contained | 3 | |
| Article no of the battery / rechargeable battery fitted | 081561 LR3 | |
| Power supply | 3× No. 081561 size LR3 | |
| Type of product | Current clamp |
Identification & Classification
| Article number |
473315 770-1
Copy |
|
| EAN / GTIN |
4029547013973
Copy |
|
| Manufacturer number |
0590 7701
Copy |
|
| Manufacturer/responsible person | Testo SE & Co. KGaA, Celciusstraße 2, 79822 TITISEE-NEUSTADT, Germany, www.testo.de |
Description
Version:

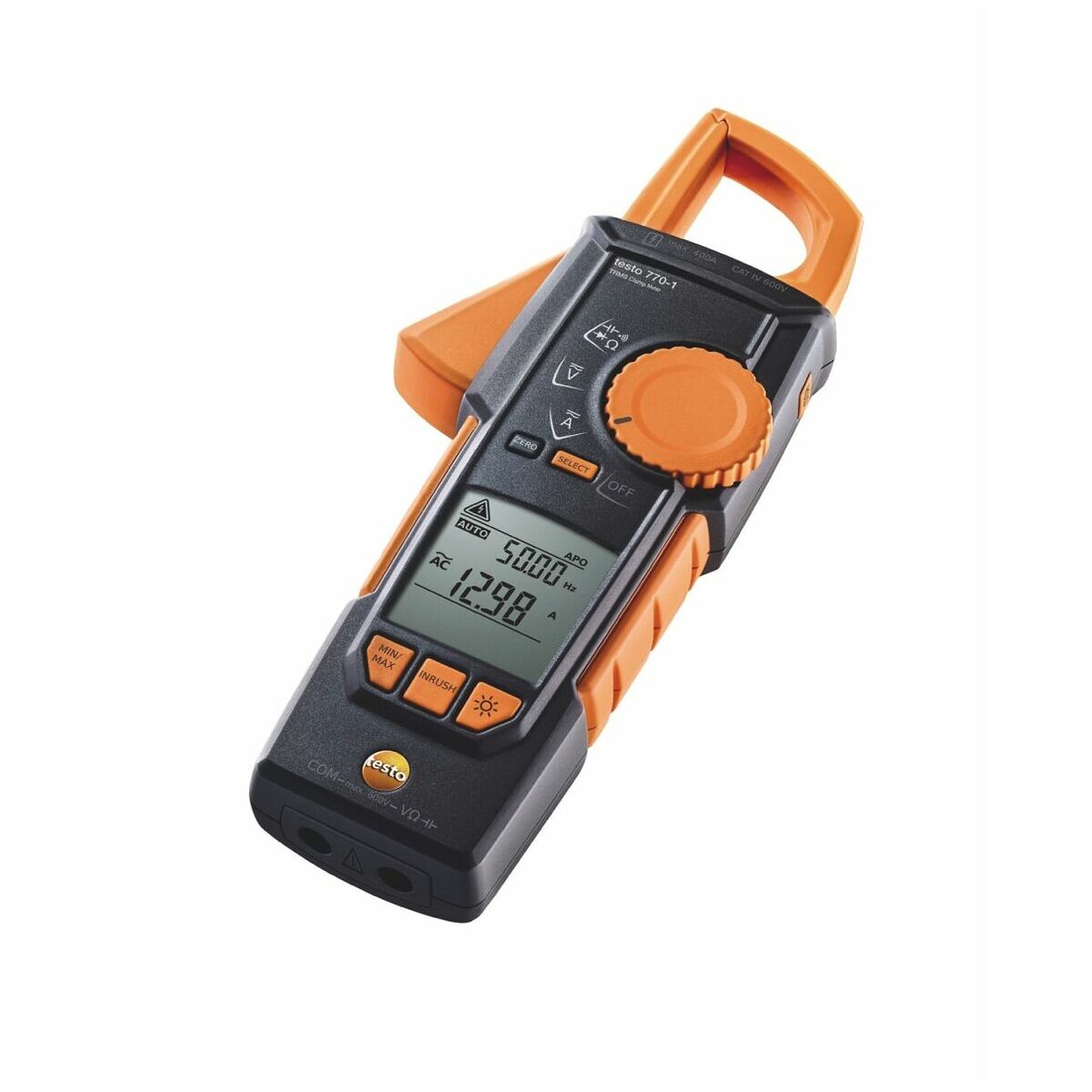

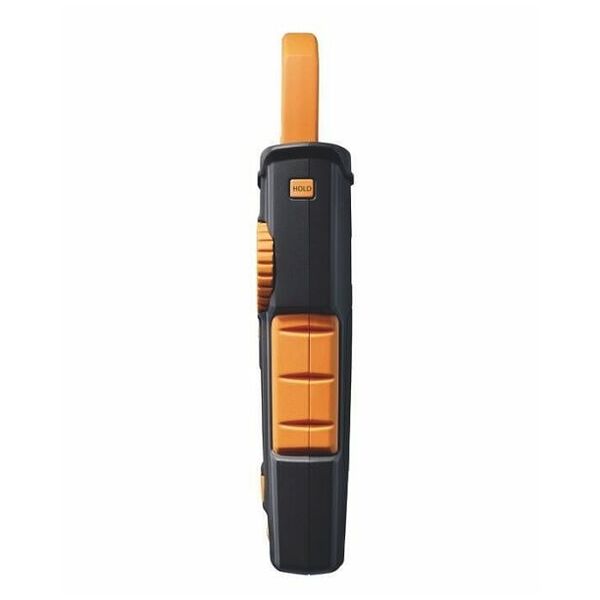

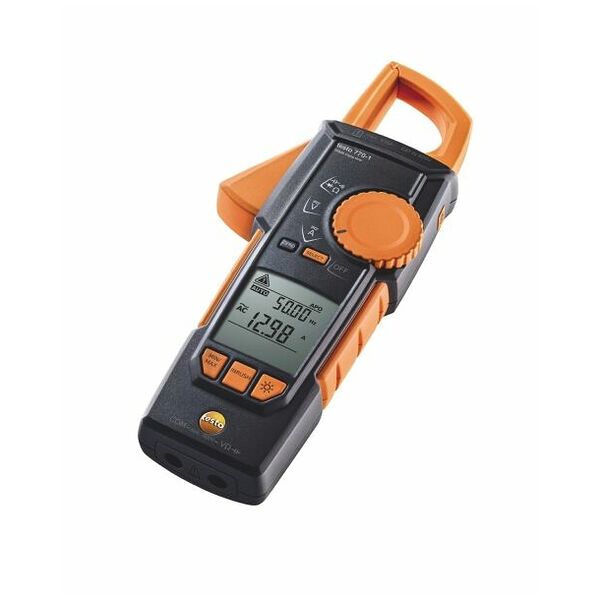

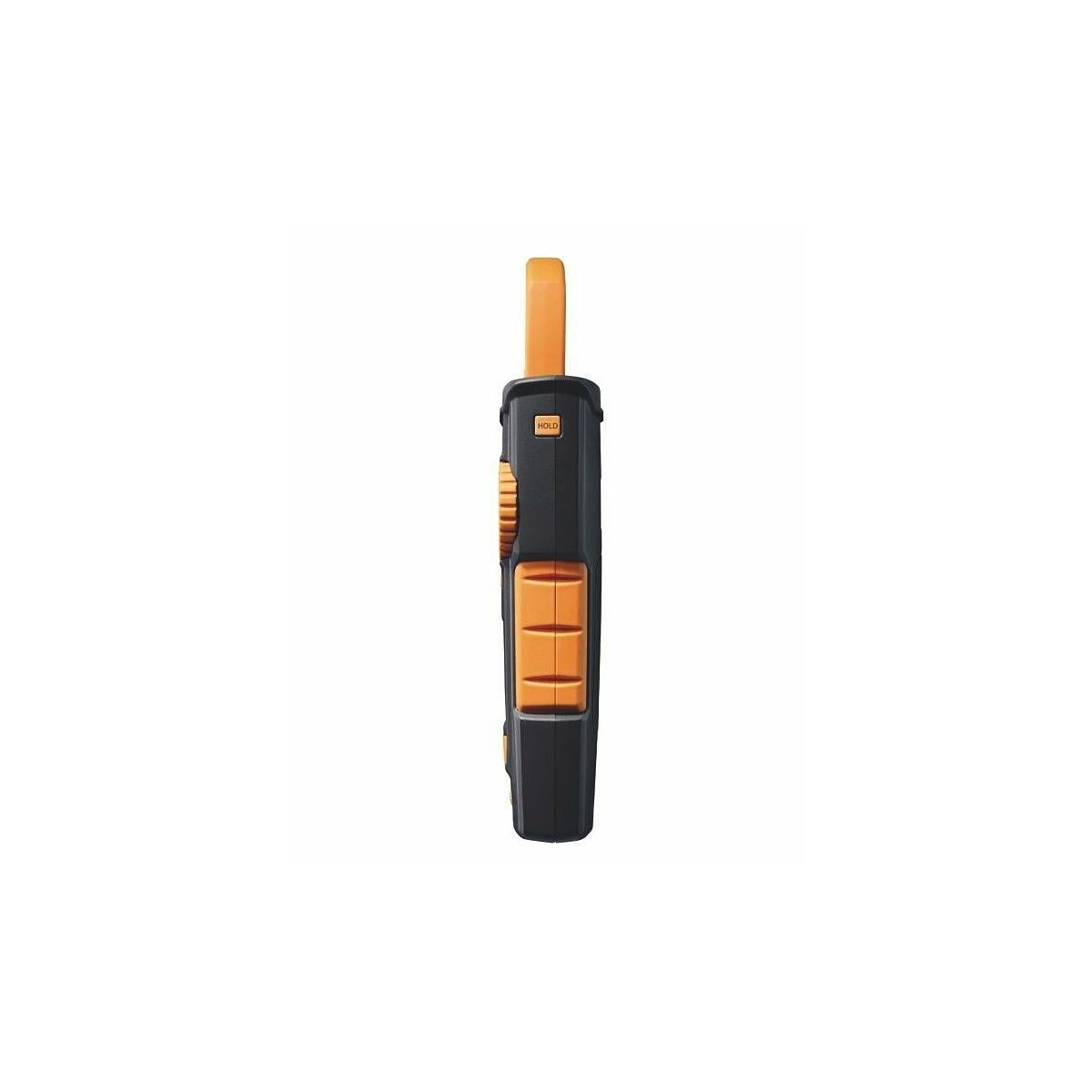

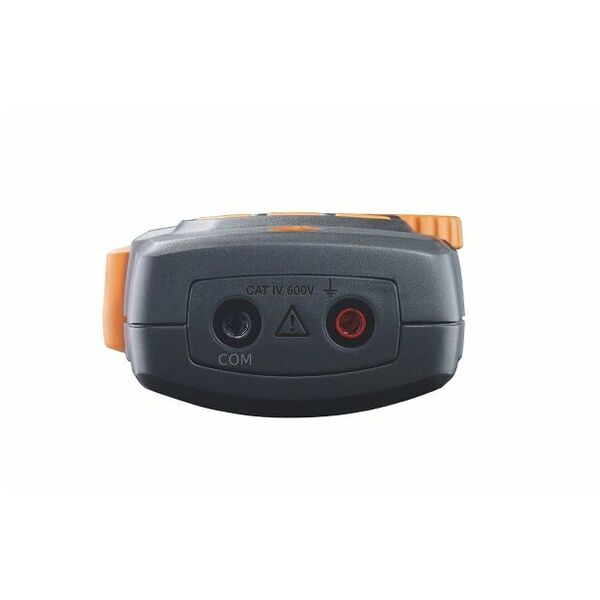

Sturdy plastic casing with large illuminated LCD display and rubberised gripping area. Unique gripping mechanism facilitates work in restricted spaces. Automatic setting of the measurement range and type of measurement (AC/DC). With µA measurement range for measuring ionisation currents (with measurement leads).
Application:

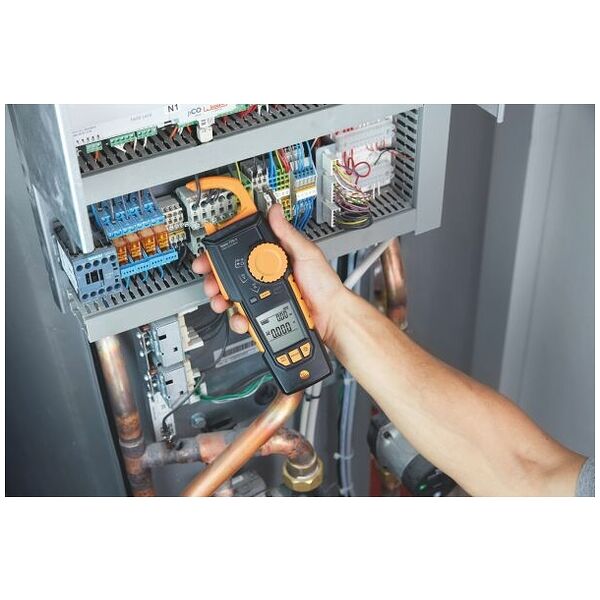

Suitable for a wide range of field of application in electrical technology, industrial systems, maintenance, servicing (troubleshooting),
Standard:
EN 61326-1, EN 61140.
Supplied with:
3 batteries No. 081561 LR3 and test leads.
