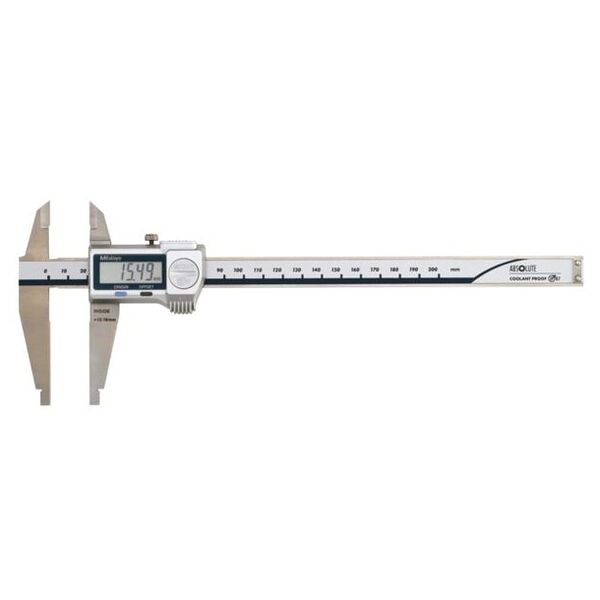

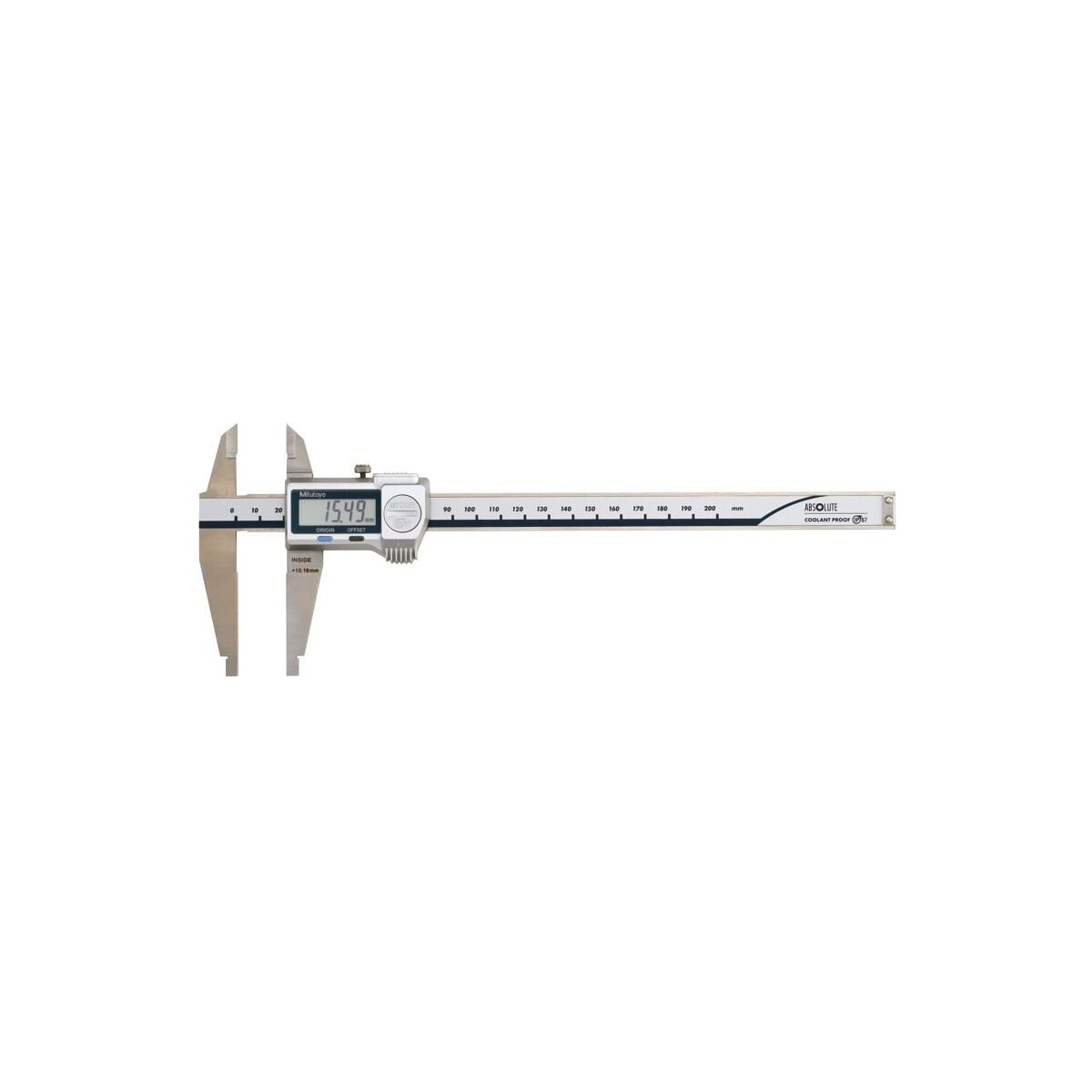

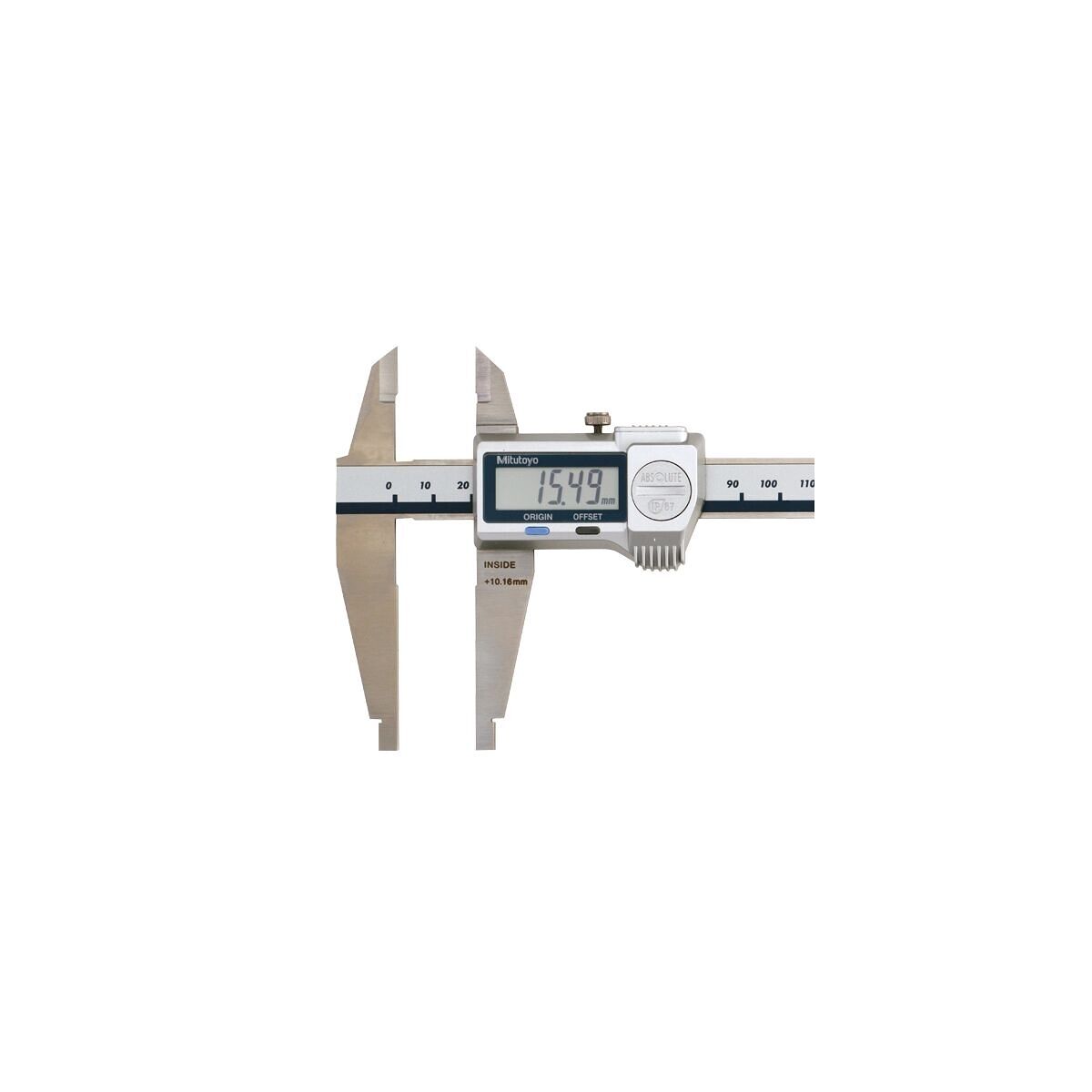

Digital ABS workshop caliper IP67 with nib-style/standard jaws, Measuring range: 200mm
Article no.: 415355 200
Article code:
Product details
Technical Data
| Number of batteries contained | 1 pcs. | |
| Type of battery | silver oxide-zinc (AgO) | |
| Operating time | 43,800 h | |
| International size | button cell (357 / SR44) | |
| IP index of protection | IP67 | |
| Packaging | box | |
| Power supply | battery-powered | |
| Material | stainless steel (INOX) | |
| Hardened | yes | |
| Measuring face | rounded | |
| Error limit | 0.03 mm | |
| Measurement deviation E MPE | 0.03 mm | |
| Reading | 0.01 mm | |
| Min. measuring range | 0 mm | |
| Max. measuring range | 200 mm | |
| Internal jaw diameter | 10 mm | |
| Jaw length | 60 mm | |
| Depth gauge available | no | |
| Depth gauge shape | flat | |
| Measurement technology | digital | |
| Measurement method of the measuring instrument | electro-magnetic inductive procedure | |
| Measured value saving | once-off setting of the zero position | |
| Preset function | no | |
| Automatic stand-by circuit. | no | |
| Auto switch-off | yes | |
| Reversible reading | yes | |
| Digit height LCD display | 9 mm | |
| Interface | USB interface; USB interface | |
| Operating time | 43,800 h | |
| Reading for round dial | 0.01 mm | |
| Standard | ISO 13385 | |
| Index of protection / protection class | IP degree of protection | |
| Type of product | workshop caliper | |
| Can be calibrated | yes | |
| Content | single part |
Identification & Classification
| Article number | 415355 200 | |
| EAN / GTIN | 4946368727103 | |
| Manufacturer number | 551-301-20 | |
| Manufacturer/responsible person | Mitutoyo Deutschland GmbH, Borsigstraße 8-10, 41469 Neuss, Germany, www.mitutoyo.de |
Description
Version:
Measured result is displayed in easy-to-read digits. Jaw thickness 3.5 mm.
Function:
IP67: Protected against intermittent immersion in water and protected against penetration by dust (dust-tight), also completely protected against touching.
Supplied with:
1 battery No. 081560 size 357.
Optional extras:
Data cable No. 497085.
