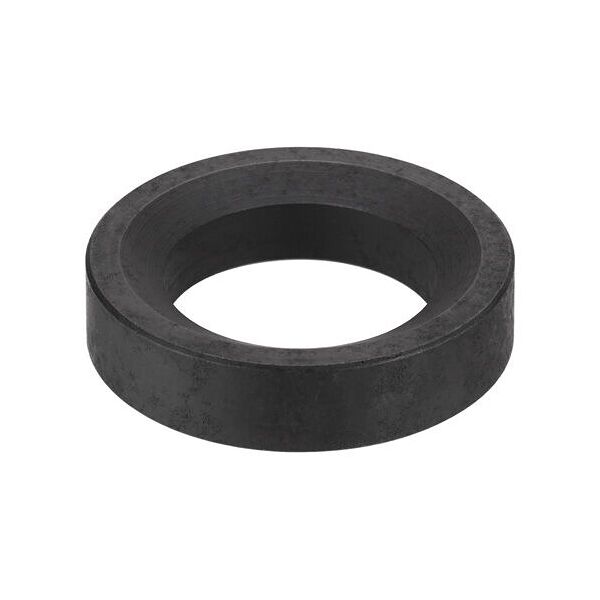

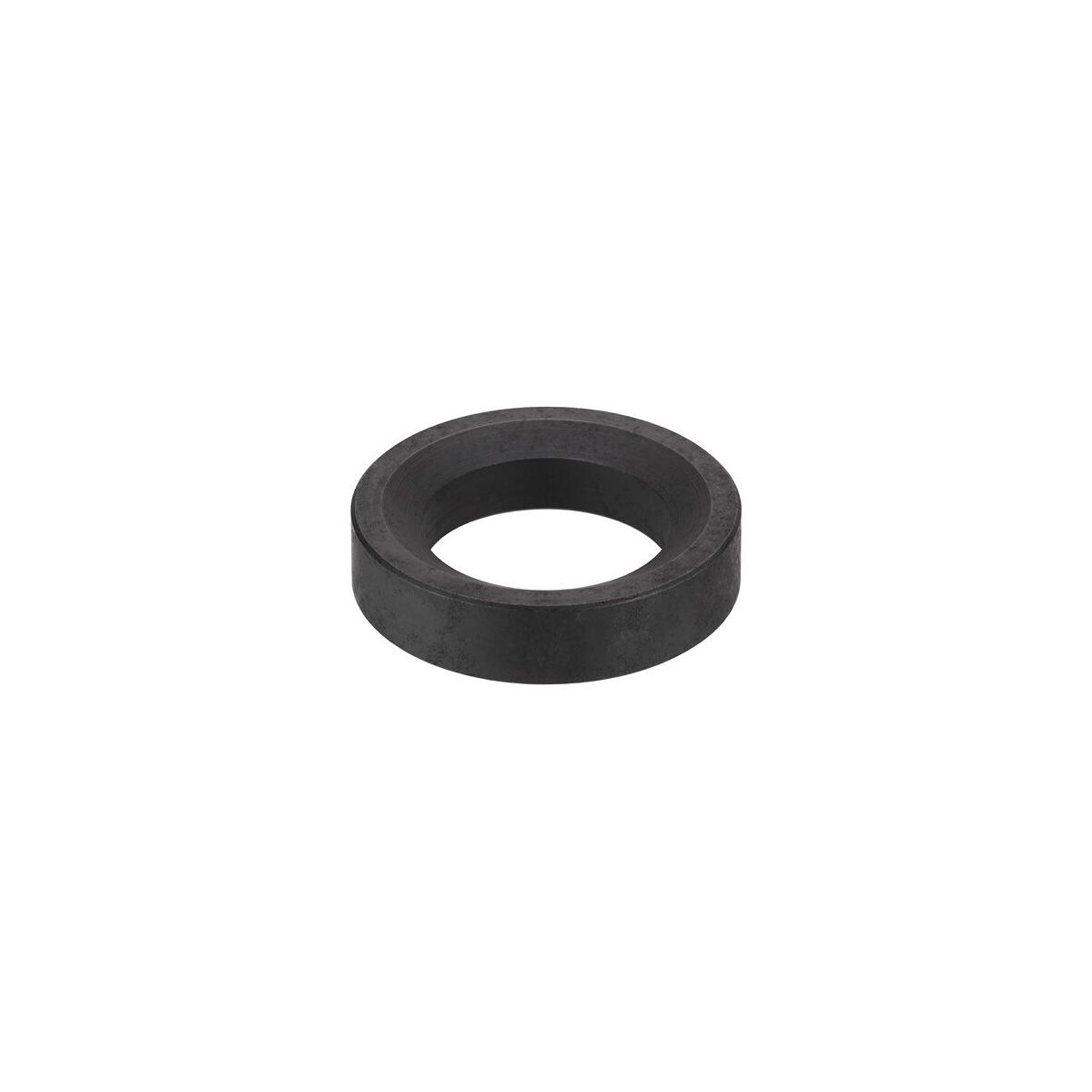

Collared washer Form D, for threads: M8
Article no.: 375355 M8
Article code:
Product details

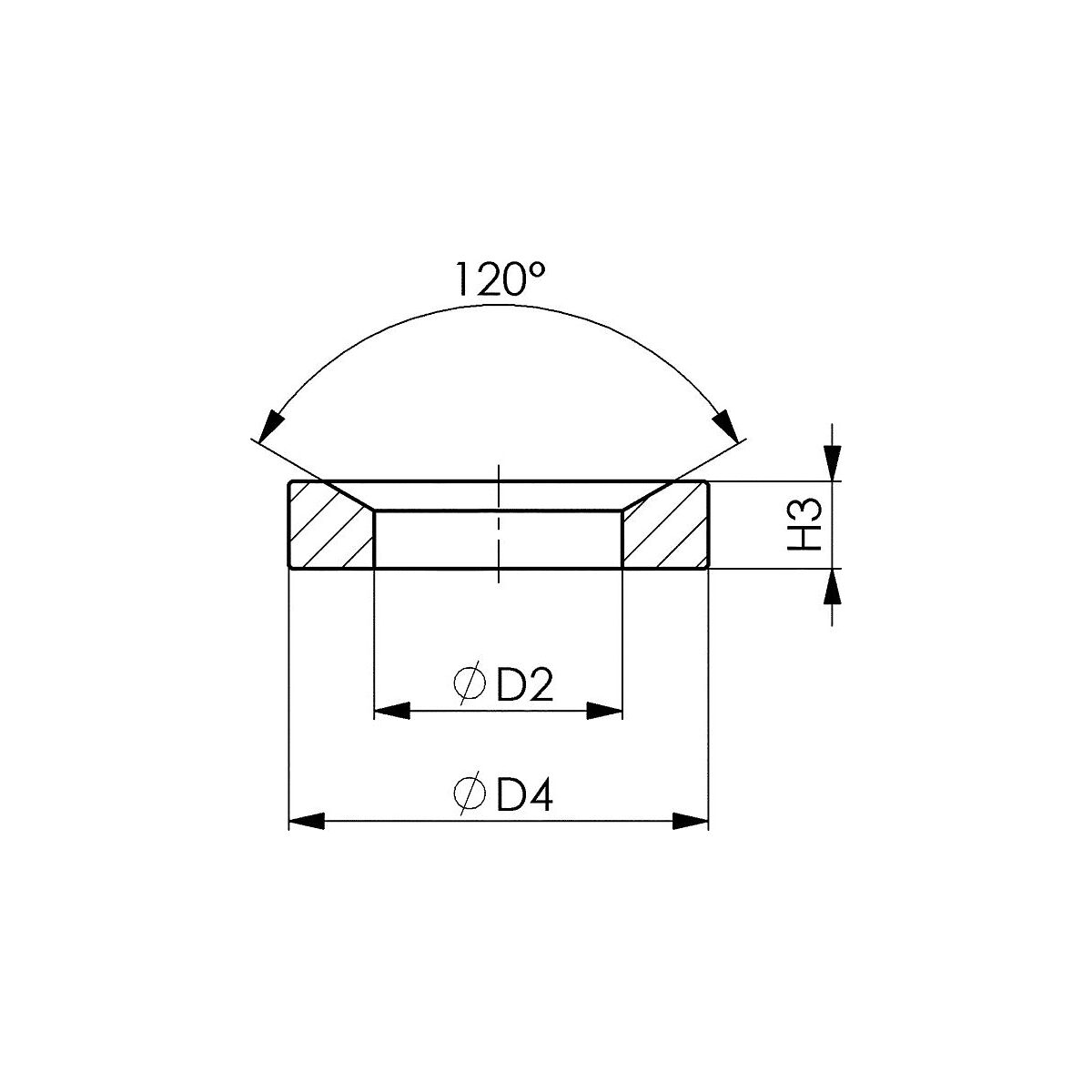

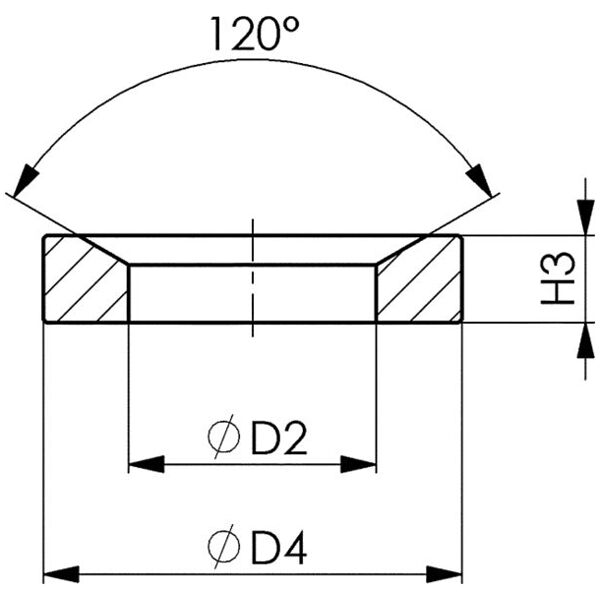

Technical Data
| Size of screws | M8 | |
| Drilling diameter | 9.6 mm | |
| Surface | hardened | |
| Type of product | non-specific washer | |
| External diameter | 17 mm | |
| Thickness | 3.5 mm | |
| Standard | DIN 6319 D | |
| Material | steel | |
| Weight | 4 g |
Identification & Classification
| Article number | 375355 M8 | |
| EAN / GTIN | 4020772081867 | |
| Manufacturer number | 81869 | |
| Manufacturer/responsible person | Andreas Maier GmbH & Co. KG, Waiblinger Straße 116, 70734 Fellbach, Germany, www.amf.de |
Description
Version:
Form C and D case-hardened, form G quenched and tempered.
Application:

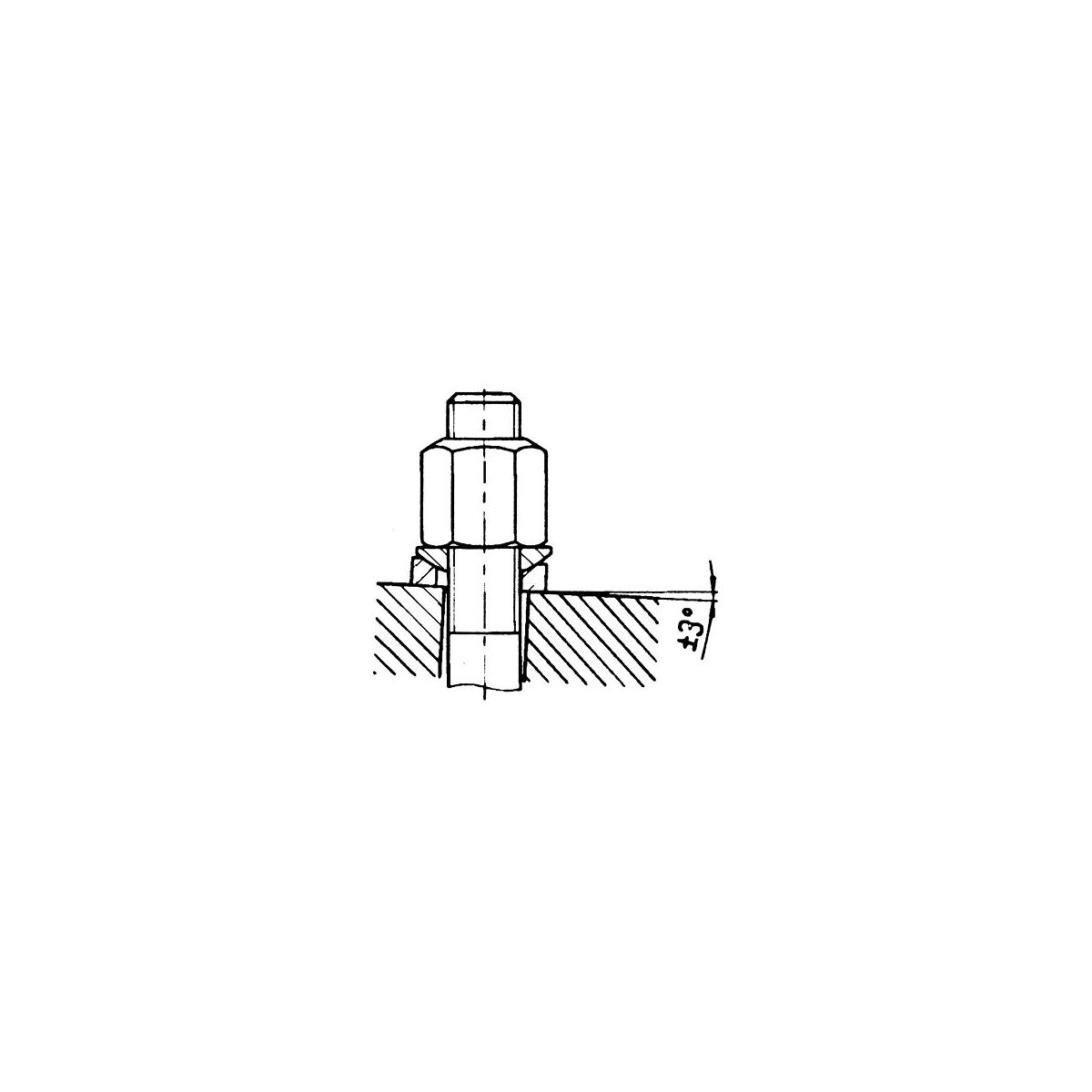

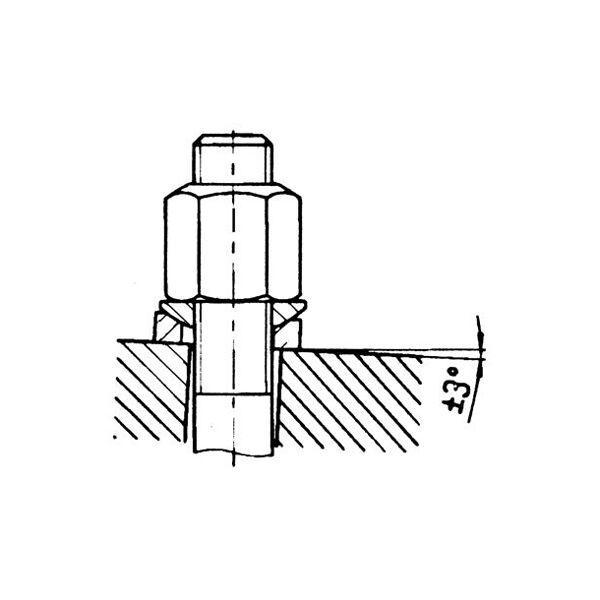

Angular compensation up to 3° when used in sets.
Form D may only be used over holes, so that the washer is in full contact.
Form D may only be used over holes, so that the washer is in full contact.
Standard:
DIN 6319 (form G similar to DIN 6319).
