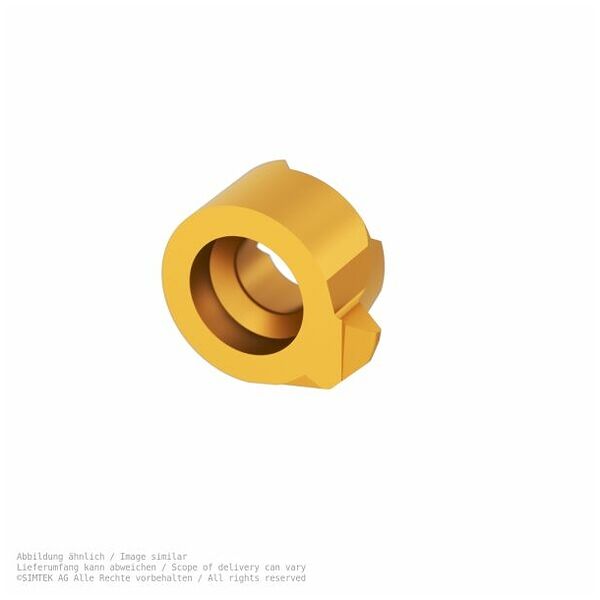

simturn DX cutting insert, copying and profile turning, Dmin=13.7 mm, R=0.4 mm
Article no.: D14.4787.04 YR X800
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number | D14.4787.04 YR X800 | |
| EAN / GTIN | 4069769143980 | |
| Manufacturer number | A233X800 | |
| L-Number | L23830 929 | |
| Manufacturer/responsible person | SIMTEK Präzisionswerkzeuge GmbH, Christophstraße 18, 72116 MÖSSINGEN, Germany, www.simtek.com |
Description
Description:
SIMTEK simturn DX cutting insert
Copy and rotate profile
Dmin = 13.7 mm, R = 0.4 mm
Technical parameters:
- S = 5.3 mm
- ØDmin (min. bore) = 13.7 mm
- Ød = 9.0 mm
- a = 13.20 mm
- R = 0.40 mm
- f = 8.70 mm
- κ2 = 3°
- κ = 47°
- tmax = 4.0 mm
