Air blow gun ∙ 100 mm ∙ Length: 247 mm
Article no.: 9040P-1
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Technical Data
| Raccord fileté | BSP | |
| Pression de service maximale | 16 bar | |
| Maksimalus oro poreikis | 290 l/min | |
| Darbinis triukšmas | 84 dB | |
| Alimentation électrique | fonctionnement à l’air comprimé | |
| Longueur gicleur | 100 mm | |
| Diamètre buse | 8 mm | |
| Matériau gicleur | métal | |
| Matériau boîtier | plastique | |
| Temperatūra min. | -10 °C | |
| Temperatūra maks. | 80 °C | |
| Réf. | 1/4 in | |
| Matériau raccord | métal | |
| Type de produit | soufflette | |
| Darbinis slėgis maks. | 16 bar | |
| Longueur totale | 247 mm | |
| Type de raccordement | Raccord rapide | |
| Triukšmas išpučiant | 84 |
Identification & Classification
| Article number | 9040P-1 | |
| EAN / GTIN | 4000896209545 | |
| Manufacturer number | 9040P-1 | |
| L-Number | L60140 4169 | |
| Manufacturer/responsible person | HAZET-WERK Hermann Zerver GmbH & Co. KG, Güldenwerther Bahnhofsstraße 25-29, 42857 Remscheid, Germany, www.hazet.com |
Description
Description:
Application:

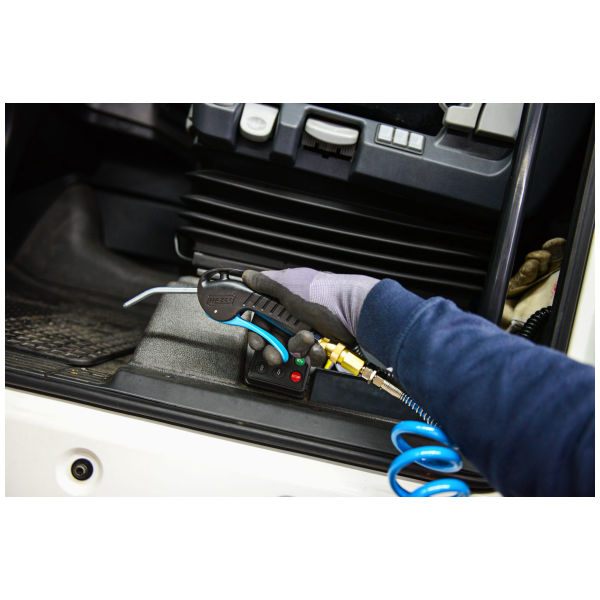

Fast removal of shavings or other foreign objects, especially in areas that are difficult to access
Fast removal of shavings or other foreign objects, especially in areas that are difficult to access
- Standard nozzle

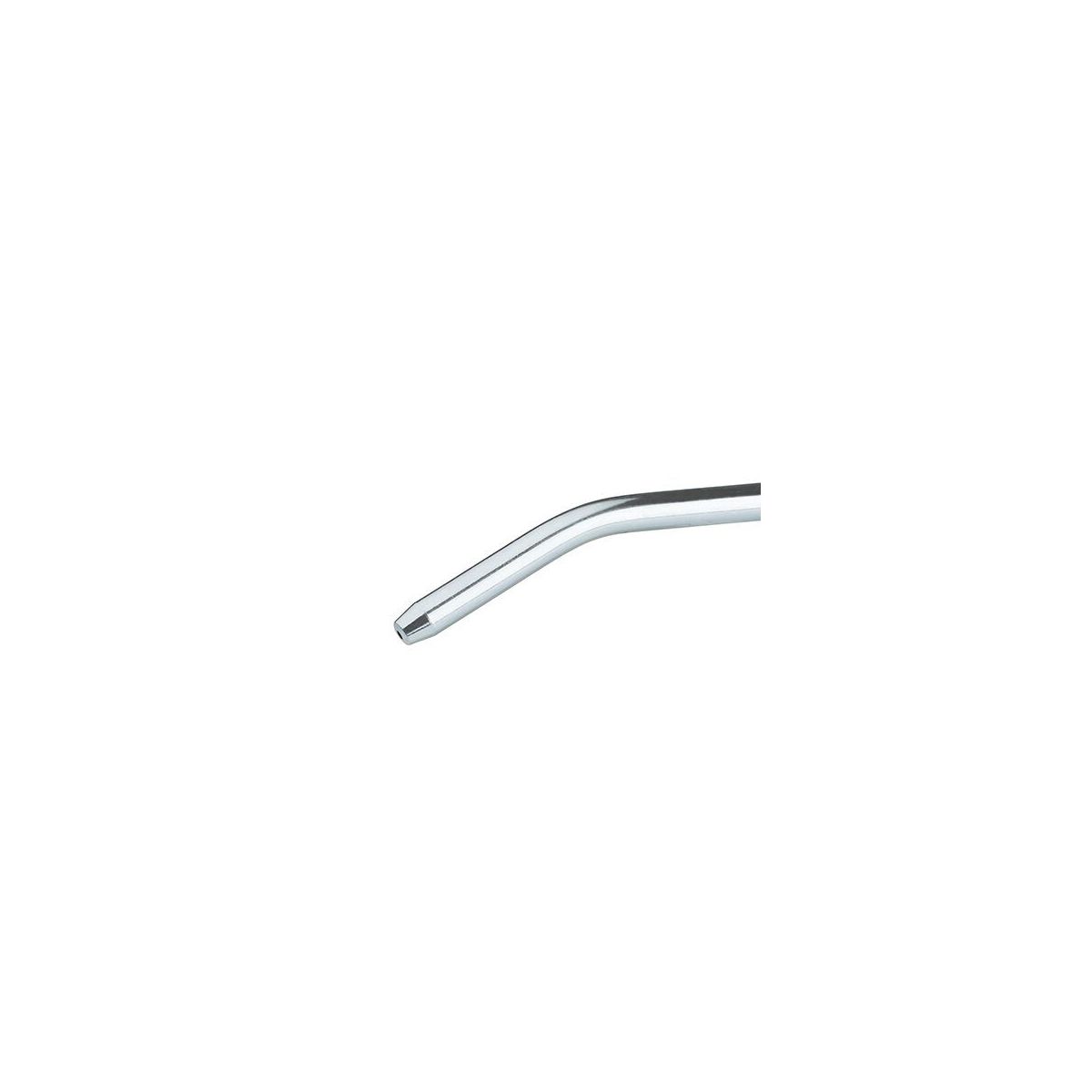

- Curved tube
- Pipe ∅: 8 mm
- Blast pipe and shaft made of steel
- 2003/10/CE Max 85 dB
- OSHA 1910.95 (b) Max 90 dB 8 hr
- To be used on machinery, in workshops, for wood work, hobby workshops
- Handle, trigger and valve made of acetal plastic
- Seals and O-rings made of nitrile
- Spring made of hardened spring steel
- Air connection inlet: Inside thread 12.91 mm (1/4″)
- Coupler plug: Nominal size 7.2 (included)
- Working pressure (bar): 6
- Max. working pressure [bar]: 16 bar
- Dimensions / length: 247 mm
- Net weight: 0.1 kg
- Temperature range: -10°C – 80°C
- Sound pressure level: 84 dB(A) Lp A
- Air requirement: 290 l/min (4.8 l/sec)
