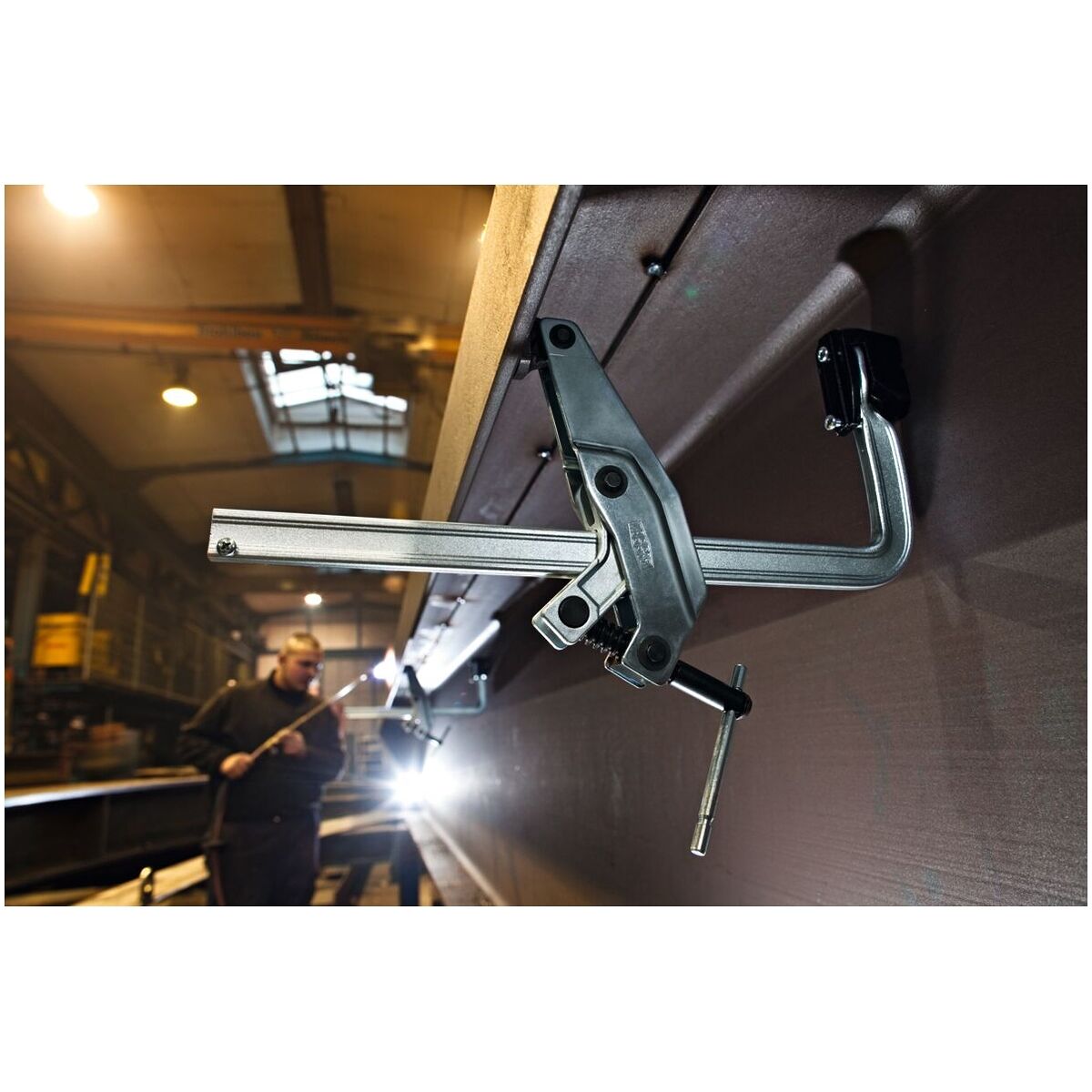

Claw beam clamp “GRA”, Jaw capacity: 300mm
Article no.: 861600 300
Article code:
Click to enlarge image
Click to enlarge image
Spreading components
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Spreading components
Product details
Technical Data
| Manufacturer’s designation | GRA | |
| Version | smooth | |
| Pivot angle | 30 degrees | |
| Type of product | clamps | |
| Type of clamp | Claw beam clamp | |
| Max. reach | 120 mm | |
| Max. clamping force | 7,500 N | |
| Capacity max. | 300 mm | |
| Material of clamping arms | steel | |
| Thickness of slide rail | 11 mm | |
| Width of slide rails | 28 mm | |
| Material of slide rail | steel | |
| Spindle thread | trapezoidal thread | |
| With pressure pad | yes | |
| Shape of frame | standard | |
| Total weight | 2,400 g | |
| Content | single part |
Identification & Classification
| Article number | 861600 300 | |
| EAN / GTIN | 4008158035819 | |
| Manufacturer number | GRA30-12 | |
| Manufacturer/responsible person | BESSEY Tool GmbH & Co. KG, Muehlenwieserstraße 40, 74321 Bietigheim-Bissingen, Germany, www.bessey.de |
Description
Version:
Fixed beam of bright drawn steel (special profile), electro-galvanised. Sliding jaw of steel with trapezoidal thread spindle and jaw anvil that can tilt up to 30°. The clamp can be used for spreading tasks (exerting outwards pressure) by reversing the sliding jaw.
Application:
Maximum clamping pressure up to approx. 7500 N.
