2-Point Inside Measuring Instrument Bore Gauge, 0,24-0,4″, 0,0001″
Article no.: U42226 0.24-0.4
Article code:
Product details
Identification & Classification
| Article number | U42226 0.24-0.4 |
Description
Description:
These are bore gauges that automatically self-centre via a centring bridge. They offer you the following benefits: A long plunger stroke gives you amazing accuracy. Interchangeable washers 0.5mm thick are supplied as standard accessories, so you can enable setting in small steps. Contact points are carbide (>18 mm range), giving you high durability and wear resistance. A large grip reduces heat transfer from the operator by 50%.
Feature:
Graduation: 0,0001″
Inch-Metric: Inch
Accuracy: 5 µm

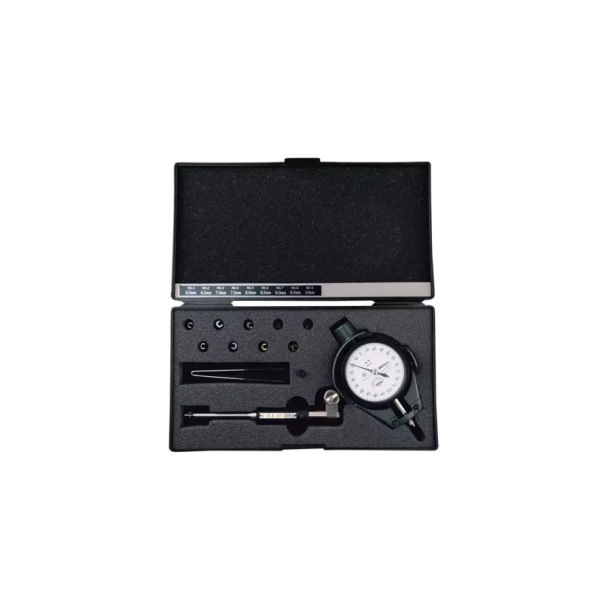

Delivered: Including box, dial indicator, plastic cover for indicator
Inch-Metric: Inch
Accuracy: 5 µm
Delivered: Including box, dial indicator, plastic cover for indicator
