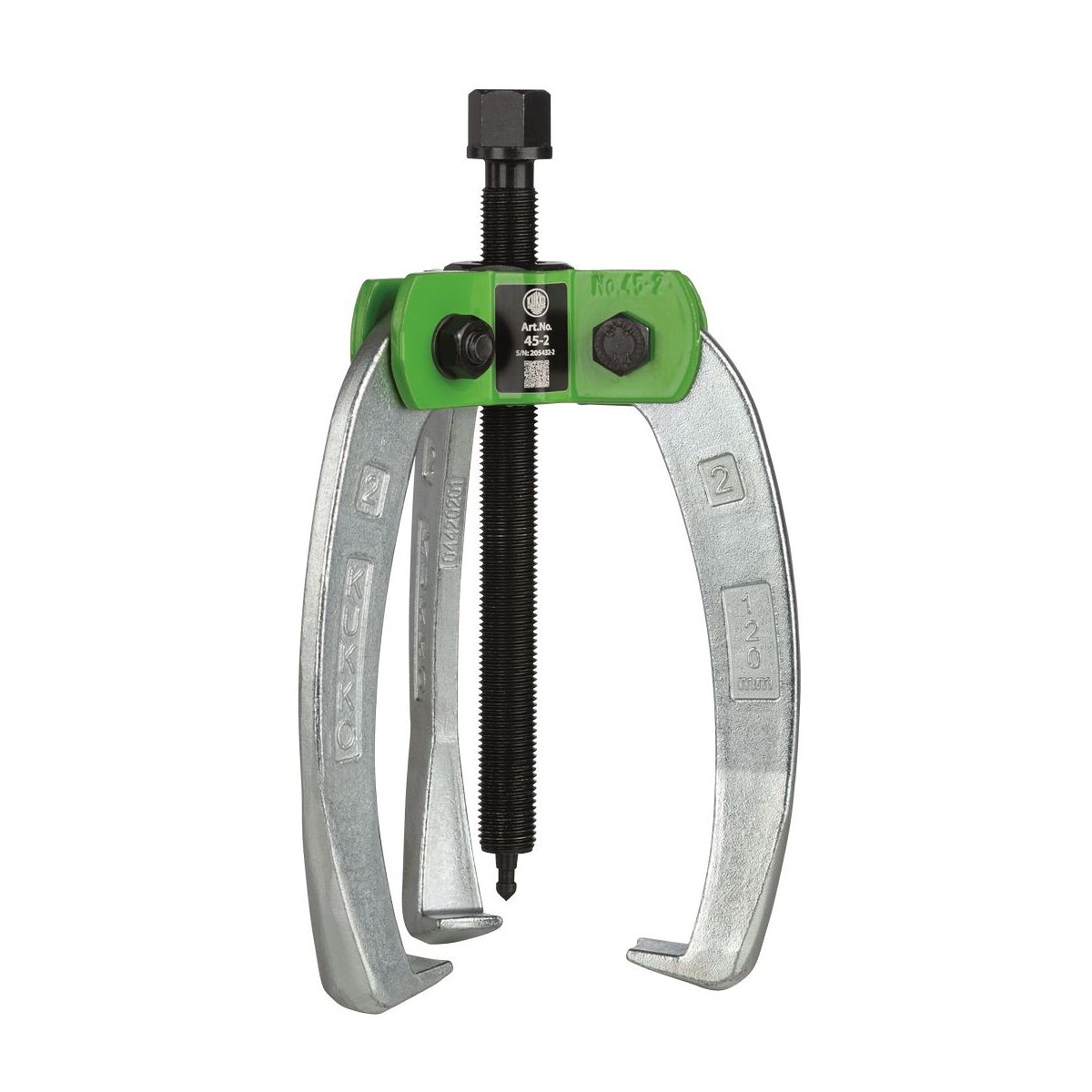

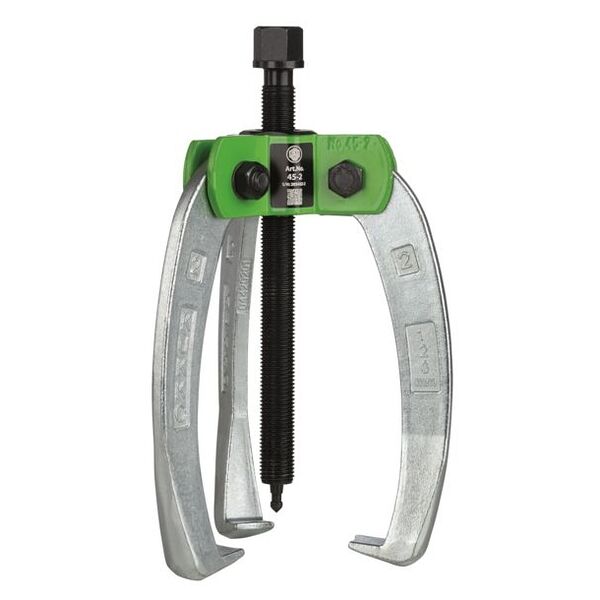

Self-centring three-leg extractor, Type: 2
Article no.: 881010 2
Article code:
Product details
Technical Data
| Manufacturer’s designation | 45 | |
| External clamping range min. | 18 mm | |
| External clamping range max. | 120 mm | |
| Max. clamping depth | 120 mm | |
| Max. torque | 120 Nm | |
| Number of hooks | 3 | |
| Performance | 6 t | |
| Type of product | three-leg extractor | |
| External hexagon drive | 17 mm | |
| Material | steel | |
| Self-centring | yes | |
| Weight | 1.124 kg | |
| Content | single part |
Identification & Classification
| Article number | 881010 2 | |
| EAN / GTIN | 4021176016516 | |
| Manufacturer number | 45-2 | |
| Manufacturer/responsible person | Kleinbongartz & Kaiser oHG, Heinrich-Hertz-Straße 5, 40704 Hilden, Germany, www.kukko.com |
Description
Version:
Very handy design with jointed spread adjustment. The extractor legs automatically grip the part to be extracted with a force that increases as the spindle pressure is applied. Extractor legs made from high-quality tool steel.
