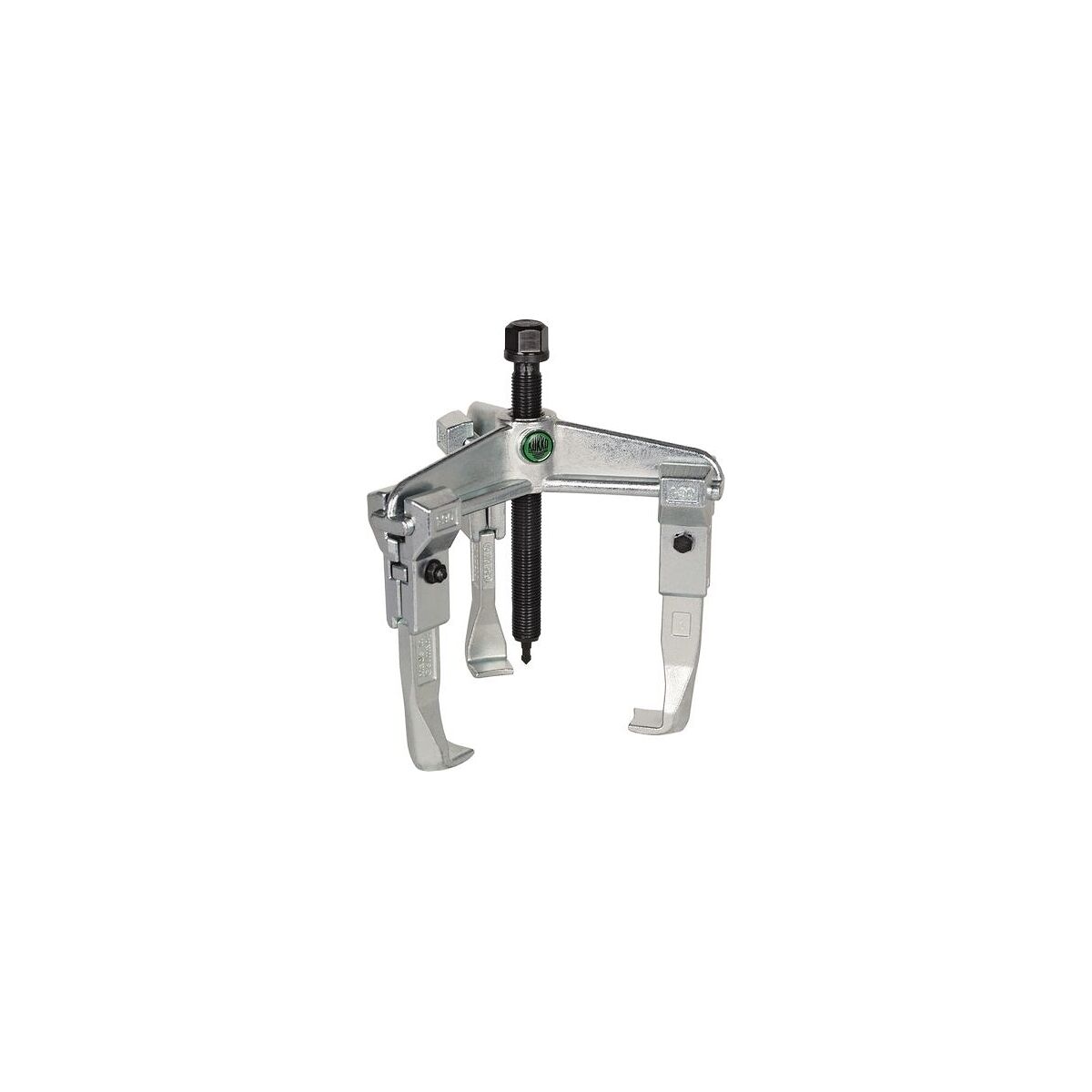

Three-leg extractor 1

Article no.: 880130 1
plus VAT at the current rate Prices plus delivery costs
Do you want to order more than one article? To quick entry
on request
In stock
10 pieces in stock

Select article variation and quantity

Type Unit price incl. VAT

Add to shopping list

    Share this product

    or copy this link

    Product details

    Technical Data

    External clamping range 27 mm - 90 mm
    Internal capacity 70 mm - 140 mm
    Depth of reach up to 100 mm
    maximum torque 80 Nm
    Power 6 t
    Number of hooks 3
    External hexagon drive 17 mm
    Weight 1.53 kg
    Type of product Three-leg extractor

    Identification numbers & Classifications

    Article number 880130 1
    EAN / GTIN 4021176013393
    Manufacturer number 30-1

    Description

    Version:

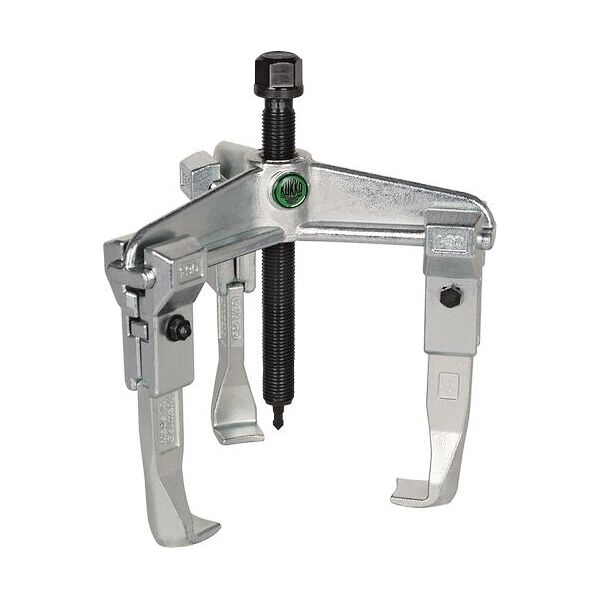

    With reversible extraction legs (for external and internal extraction). Extraction legs adjustable on cross beam for different workpiece ⌀. Extraction legs and cross beam of high-quality tool steel; sturdy double-ended spindle (ball end and point end).

    Application:

    Universally applicable for extracting bearings, discs, gear wheels etc. On model 880100 size 5 the depth of reach can be extended from 400 mm (normal) up to 700 mm by adjusting the legs.
