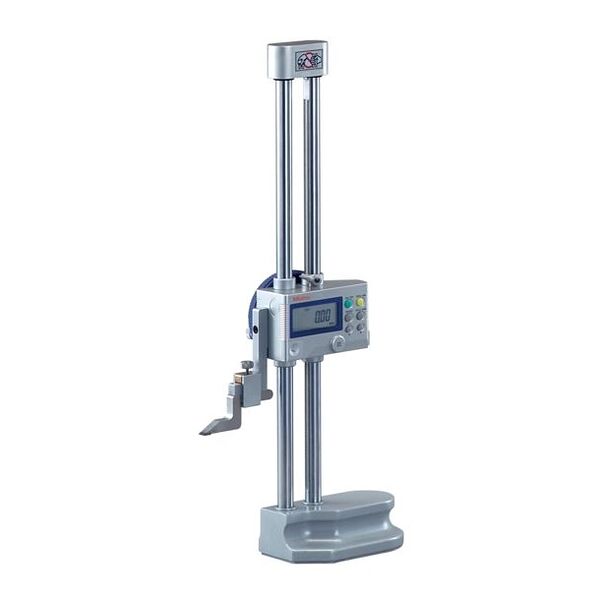

Digital height gauge and marking-out system, Marking height: 300mm
Article no.: 445152 300
Article code:
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
With protractor No. 45 3500 and holder No. 45 3520 (not included).
Product details
Technical Data
| Application range min. | 0 mm | |
| Number of batteries contained | 1 pcs. | |
| Type of battery | silver oxide-zinc (AgO) | |
| International size | button cell (357 / SR44) | |
| Application range max. | 300 mm | |
| Power supply | battery-powered | |
| Reading | 0.005 mm | |
| Height of digits | 11 mm | |
| Interface | USB interface; złącze USB | |
| Graduations | 0.005 mm; 0.01 mm | |
| Can be calibrated | yes | |
| Type of product | vernier height gauge | |
| Min. measuring range | 0 mm | |
| Max. measuring range | 300 mm | |
| Unit for reading | millimetre | |
| Measurement technology | digital | |
| Error limit | 0.02 mm | |
| Measurement slide movement | manual | |
| Material of measuring tip | tungsten carbide | |
| Length of stand | 135 mm | |
| Width of stand | 91 mm | |
| Test certificate | no | |
| Characteristics | ABS function; HOLD function; preset function | |
| Standard | works standard | |
| Overall height | 610 mm | |
| Overall width | 180 mm | |
| Overall depth | 280 mm |
Identification & Classification
| Article number | 445152 300 | |
| EAN / GTIN | 4946368583327 | |
| Manufacturer number | 192-613-10 | |
| Manufacturer/responsible person | Mitutoyo Deutschland GmbH, Borsigstraße 8-10, 41469 Neuss, Germany, www.mitutoyo.de |
Description
Version:
Direct reading from clear digital display. Battery operation with very low current consumption.
Data storage button − The measurement result can be stored by pressing a button. All critical parts are hardened. Great stability by two parallel hardened columns with rack teeth on the inner faces (size 1000 has 3 columns).
2 preset values permit reference values to be saved (e. g. granite table and workpiece).
Carbide tipped scriber. Sturdy base with hardened and lapped surface. Crank on the back of the display housing for quick adjustment and a hand wheel for fine adjustment.
Data storage button − The measurement result can be stored by pressing a button. All critical parts are hardened. Great stability by two parallel hardened columns with rack teeth on the inner faces (size 1000 has 3 columns).
2 preset values permit reference values to be saved (e. g. granite table and workpiece).
Carbide tipped scriber. Sturdy base with hardened and lapped surface. Crank on the back of the display housing for quick adjustment and a hand wheel for fine adjustment.
