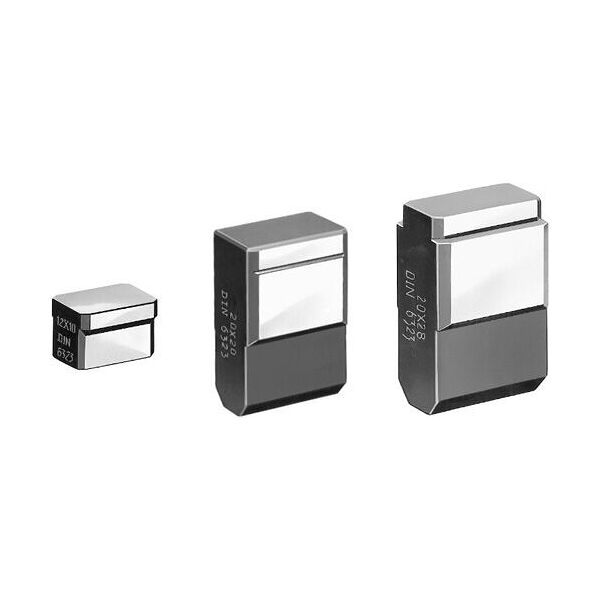

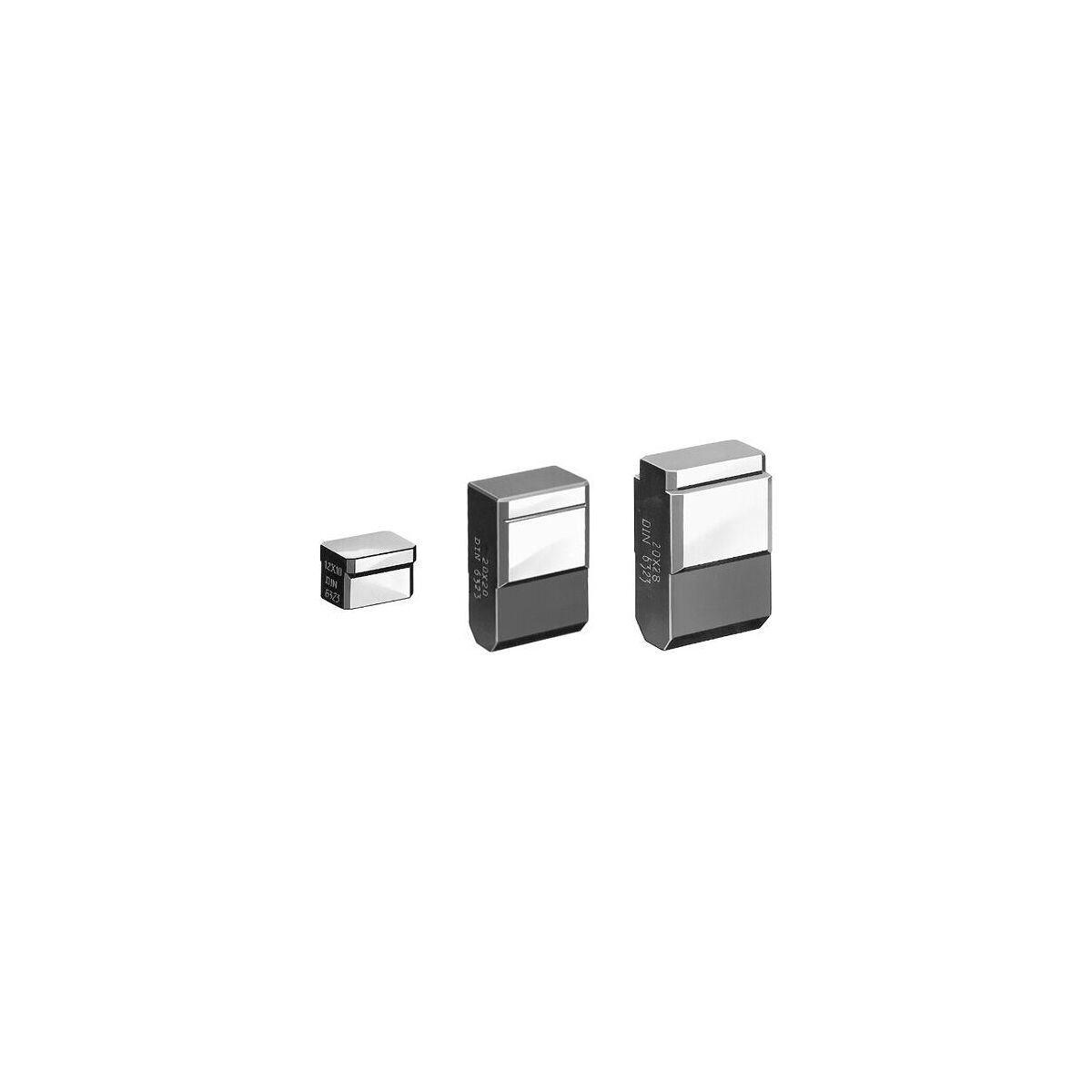

Loose tenon ground for adjustment, Slot size b1 of the machine: 16mm
Article no.: 375375 16
Copy
Article code:
Copy
Product details
Technical Data

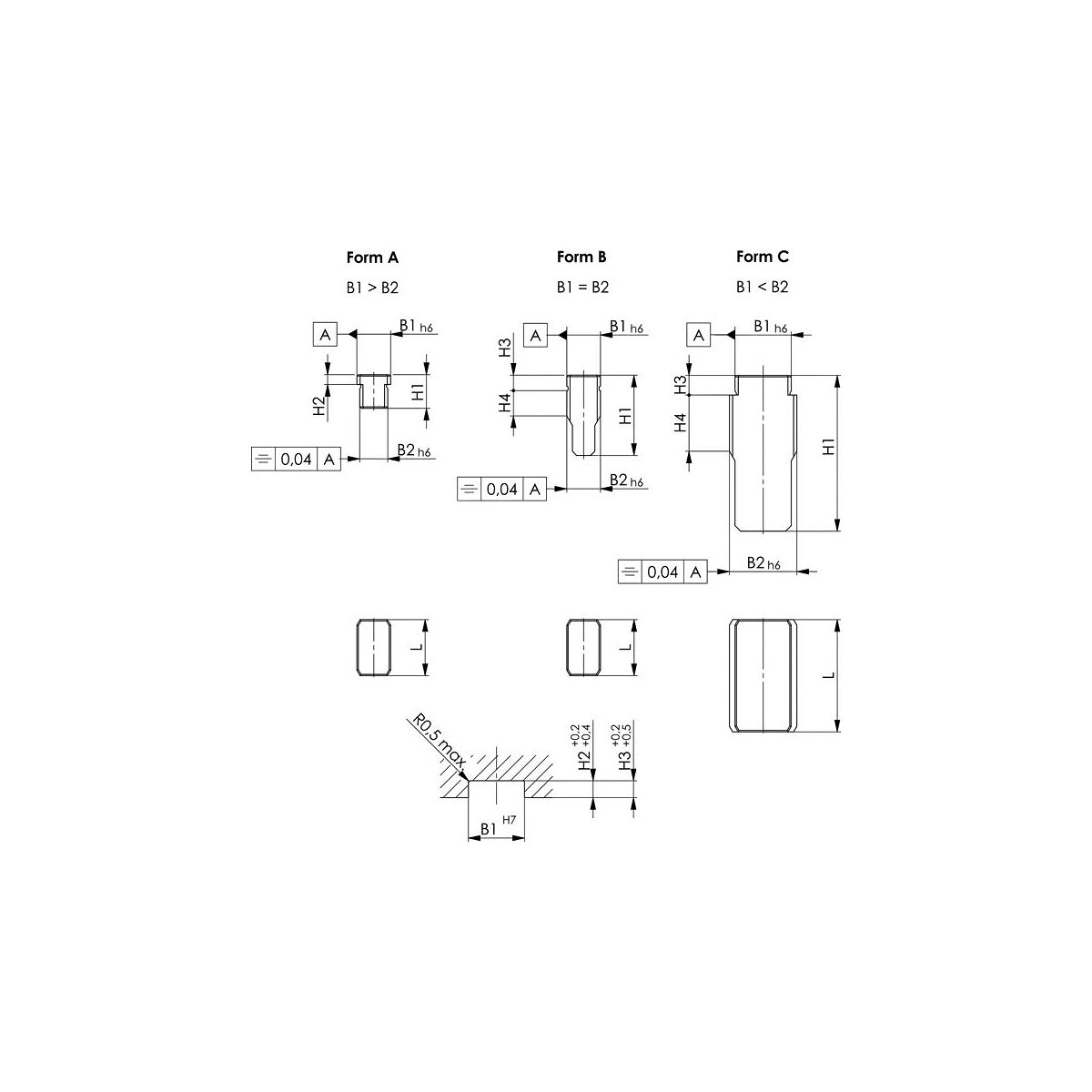

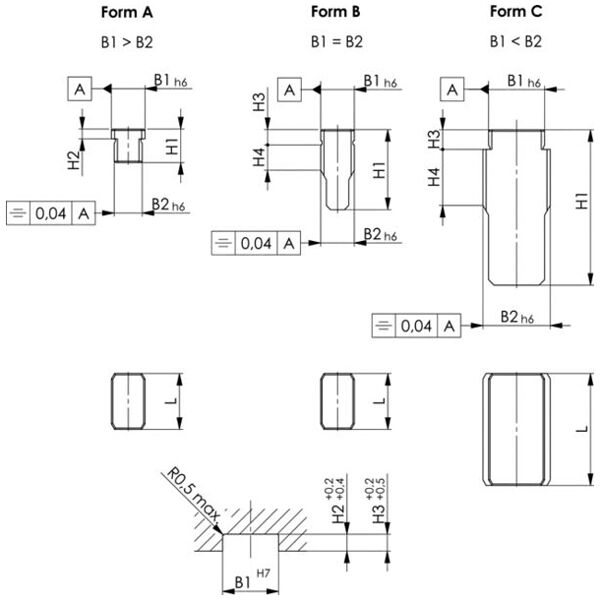

| Type | 6323 | |
| Slot size b1 of the machine | 16 mm | |
| Slot size b2 of the jig | 20 mm | |
| Height H | 14 mm | |
| Height H1 | 5.5 mm | |
| Length | 32 mm | |
| Type of product | Tee-nut |
Identification & Classification
| Article number |
375375 16
Copy |
|
| EAN / GTIN |
4020772071851
Copy |
|
| Manufacturer number |
71852
Copy |
|
| Manufacturer/responsible person | Andreas Maier GmbH & Co. KG, Waiblinger Straße 116, 70734 FELLBACH, Germany, www.amf.de |
Description
Version:
Precision ground all round, resulting in quick alignment times for appliances, vices etc., which are to be aligned parallel to the table slots of machine tools. A dial indicator is thus no longer required.
Application:

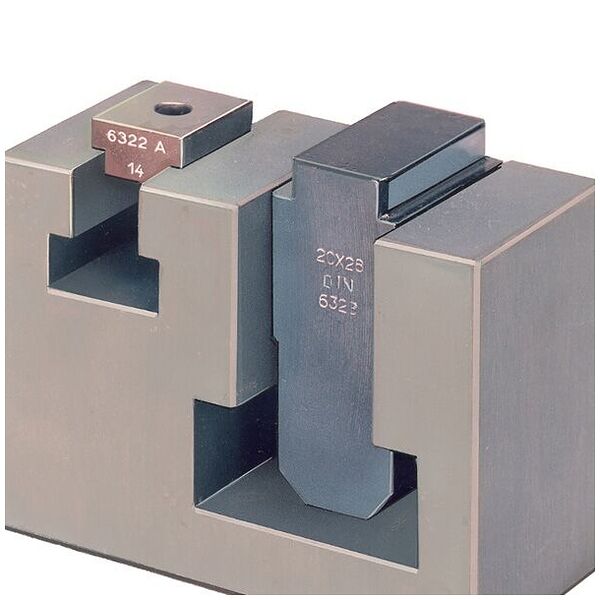

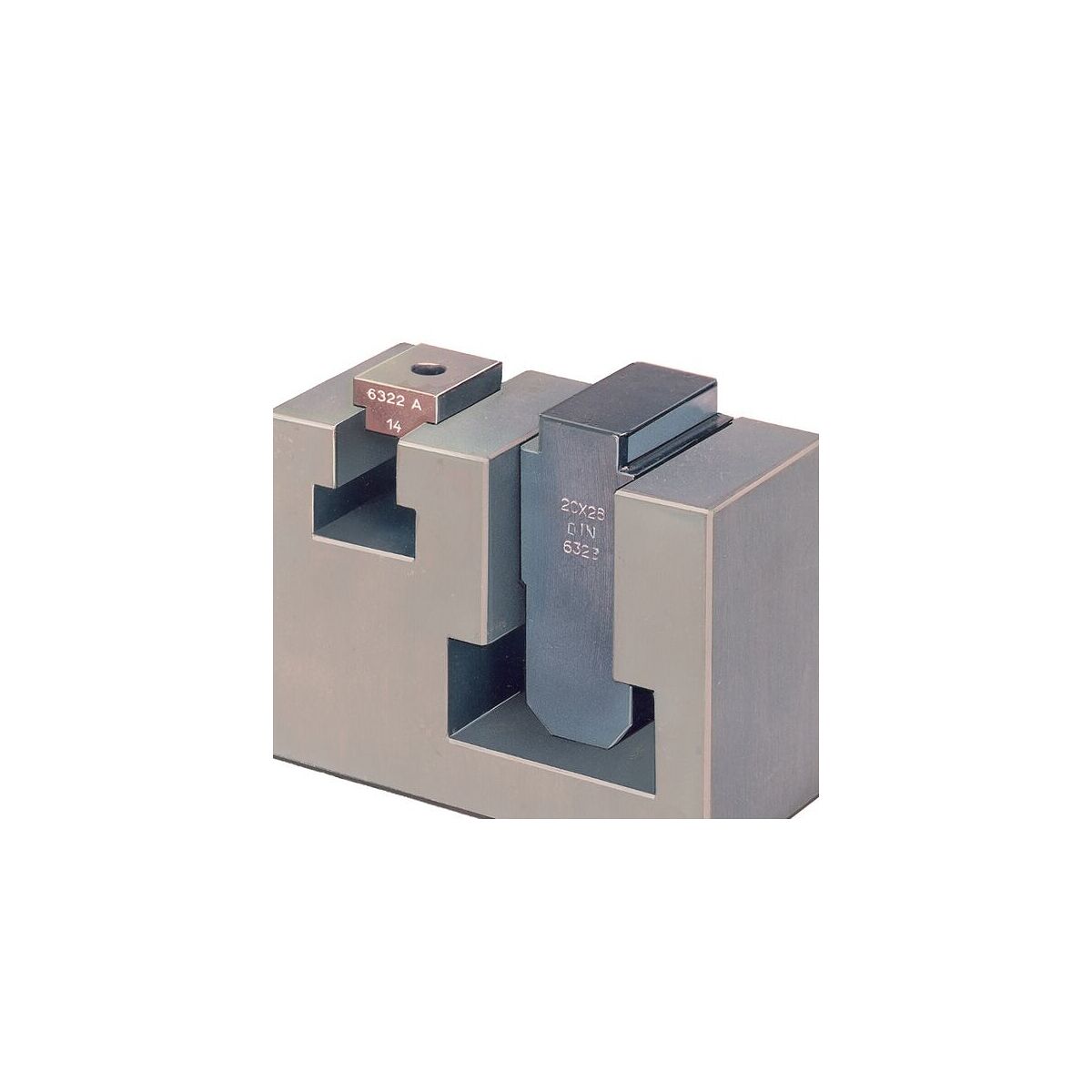

These loose tenons are inserted sideways into the slots after rough alignment of the fixture. When transporting the fixture, there are then no tenons protruding underneath and the table cannot be damaged. 2 pieces are sufficient per machine, or 4 pieces for a double set-up.
Standard:
DIN 6323
Material:
Steel C 15, case-hardened.
