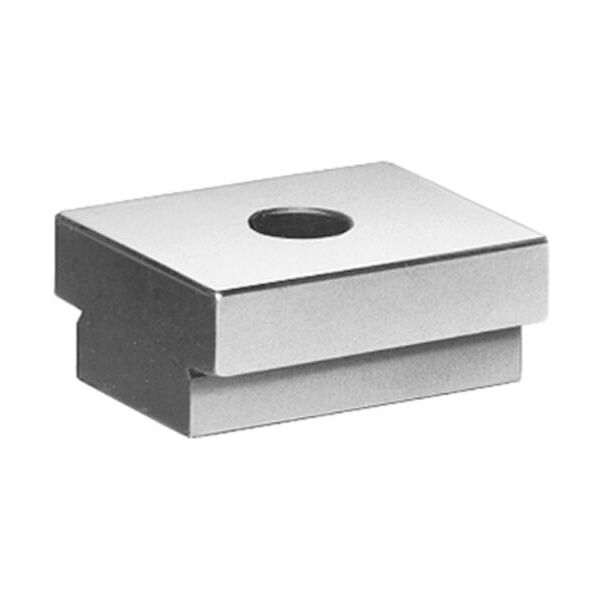

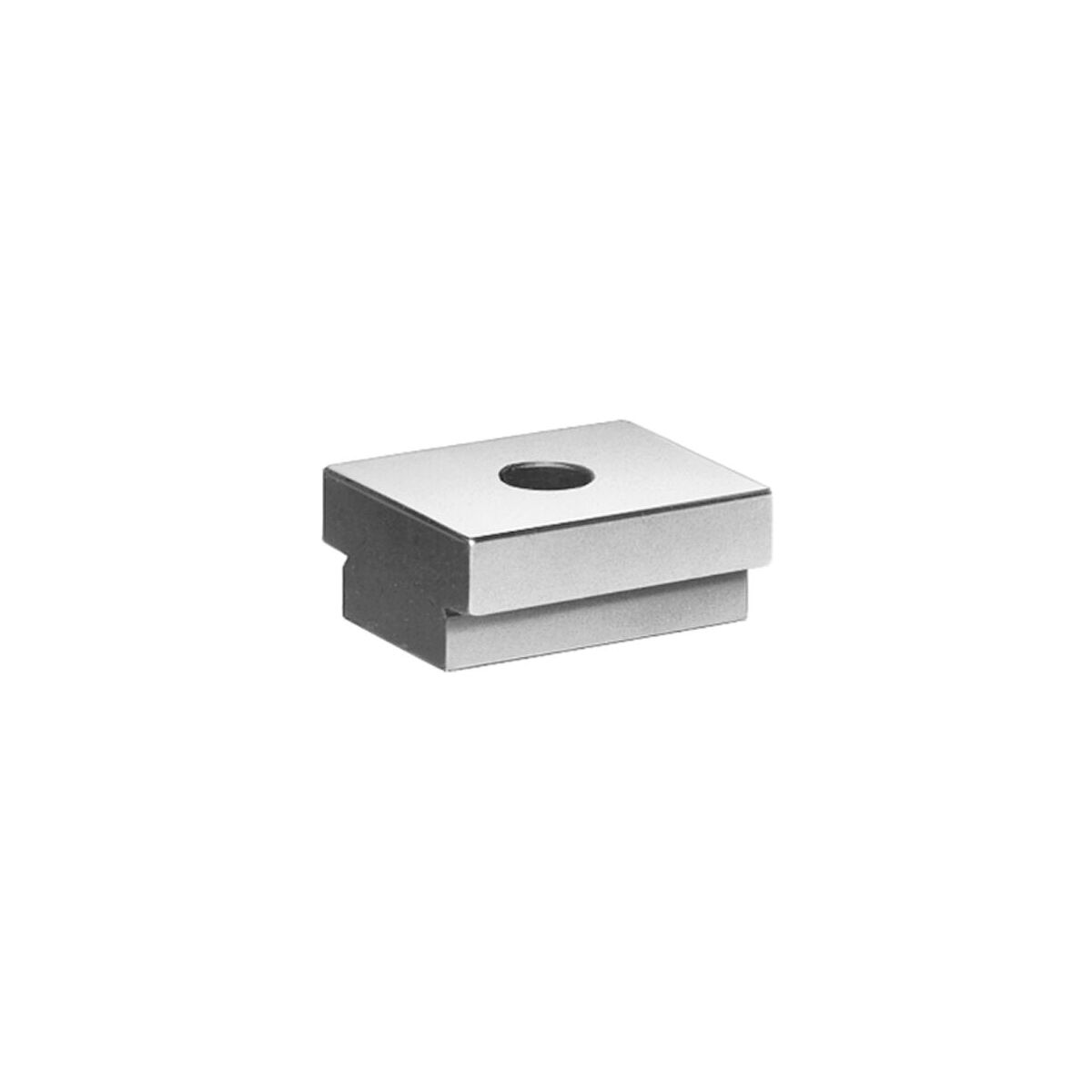

Stepped tenon ground, Slot size b1 of the machine: 16mm

Article no.: 375365 16
Copy
Price per 1 Piece
plus VAT at the current rate Prices plus delivery costs
Individual prices for business customers after login.
Do you want to order more than one article? To quick entry
In stock Available in 3-4 working days

Select article variation and quantity

Slot size b1 of the machine (mm) Unit price incl. VAT

Availability

Add to wishlist

Share this product

or copy this link

Product details

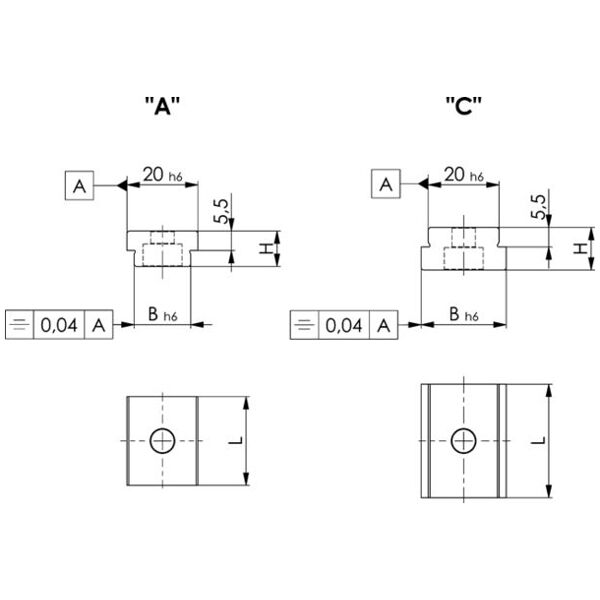

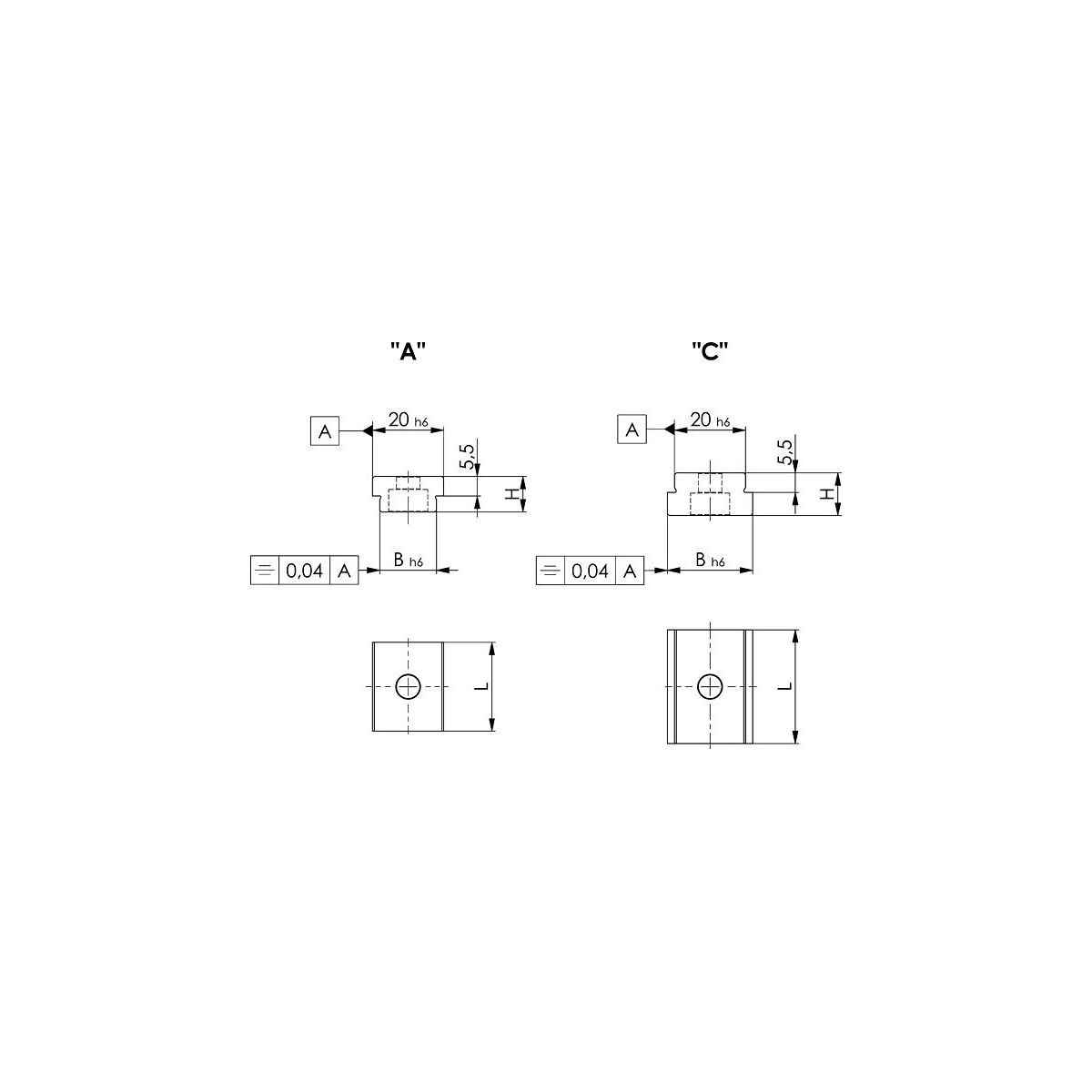

Technical Data

Type 6322A
Slot size b1 of the machine 16 mm
Slot size b2 of the jig 20 mm
for screws DIN 84, DIN 912 M6×16
Length 25 mm
Height H 10 mm
Type of product Tee-nut

Identification & Classification

Article number 375365 16
Copy
EAN / GTIN 4020772071585
Copy
Manufacturer number 71589
Copy
Manufacturer/responsible person Andreas Maier GmbH & Co. KG, Waiblinger Straße 116, 70734 FELLBACH, Germany, www.amf.de

Description

Version:

Precision ground all round, resulting in quick alignment times for appliances, vices etc., which are to be aligned parallel to the table slots of machine tools. A dial indicator is thus no longer required.

Application:

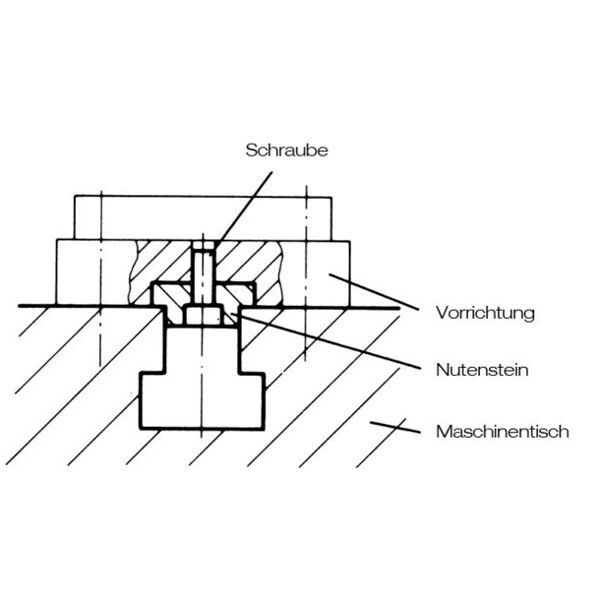

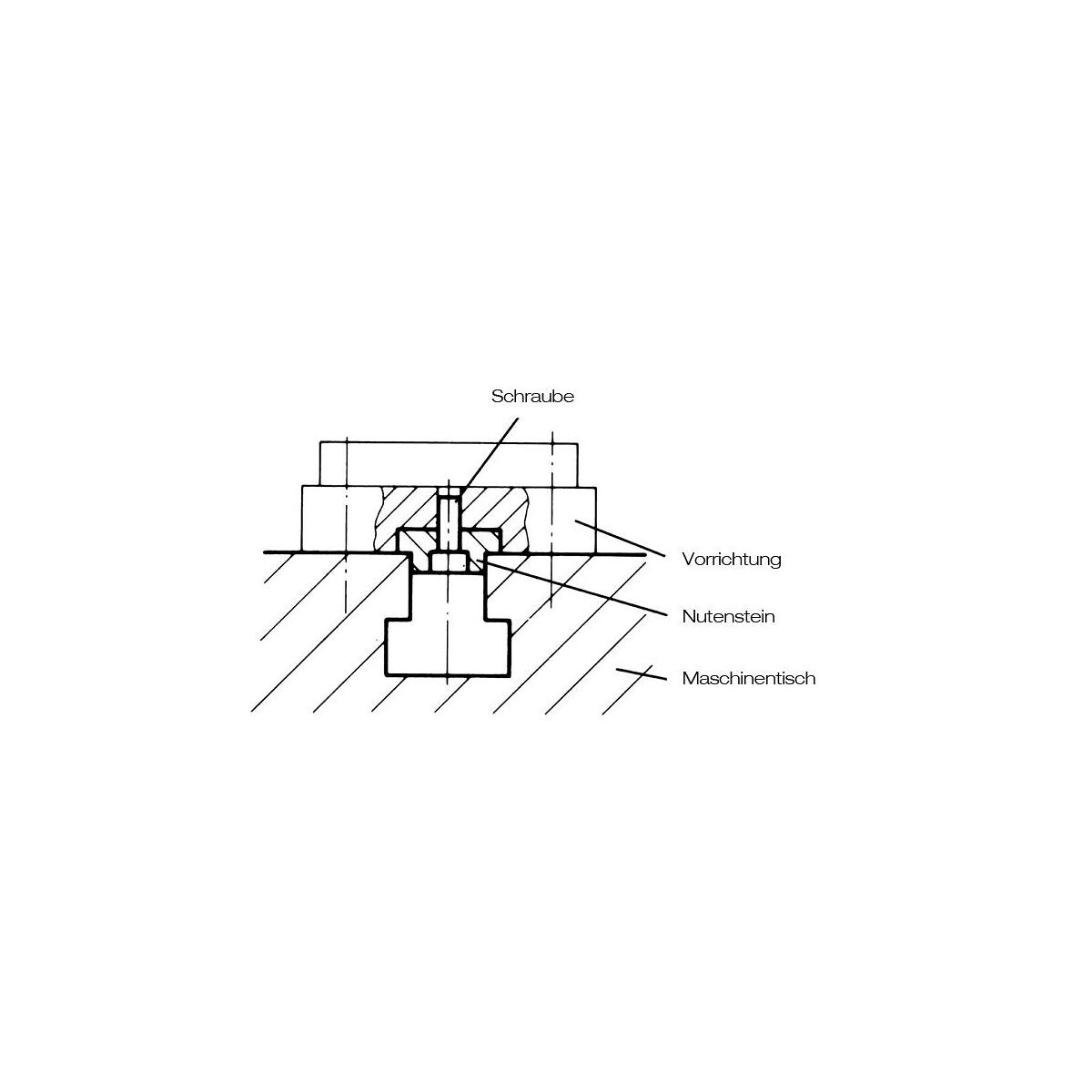

These T-nuts are screwed in pairs into the standard 20 mm-wide tenon slots of jigs. By changing the T-nuts it is possible to work on several machines with different slot widths with one jig each.

Material:

Steel C 15, case-hardened.

Accuracy:

Dimension b = fit h6.

Note:

Size 20 see No. 375370
