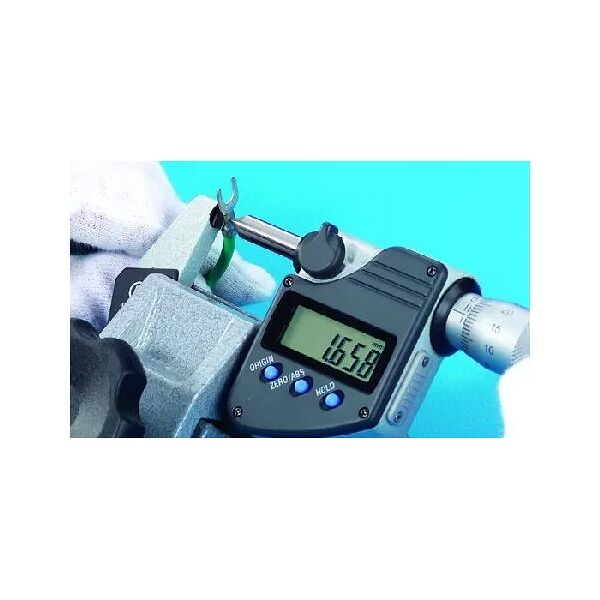

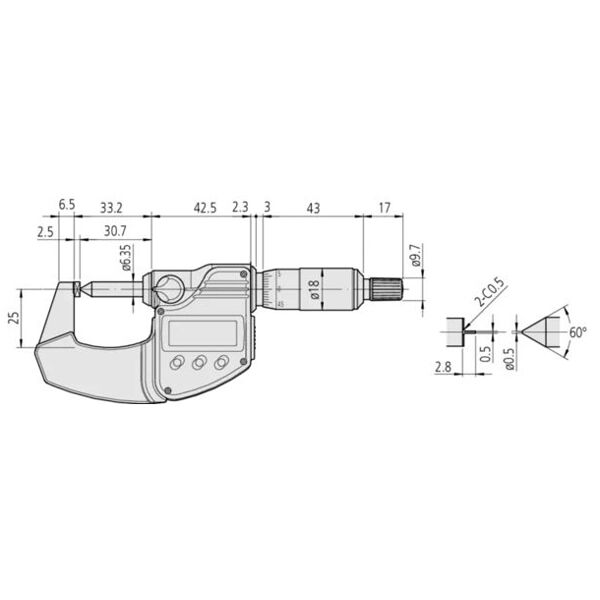

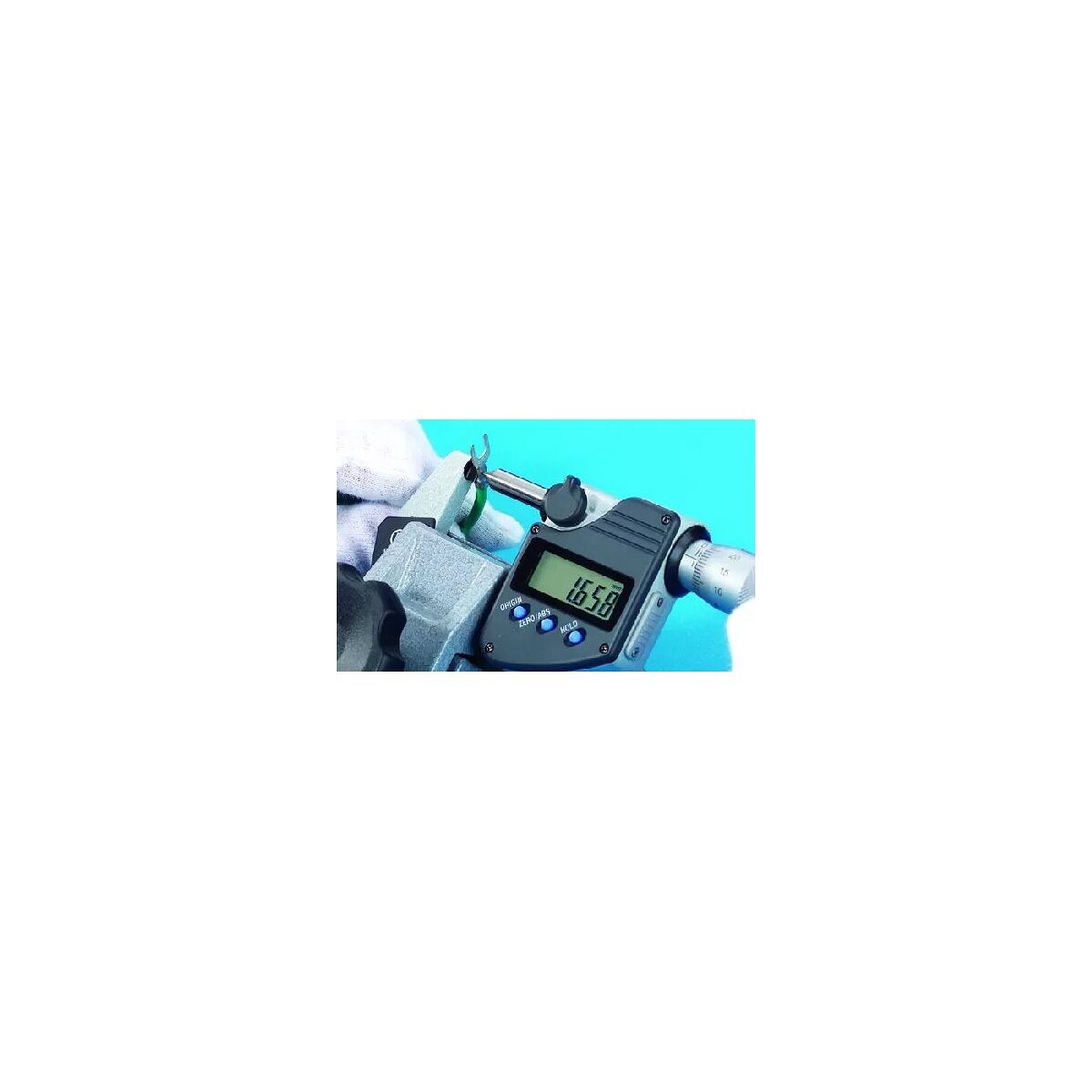

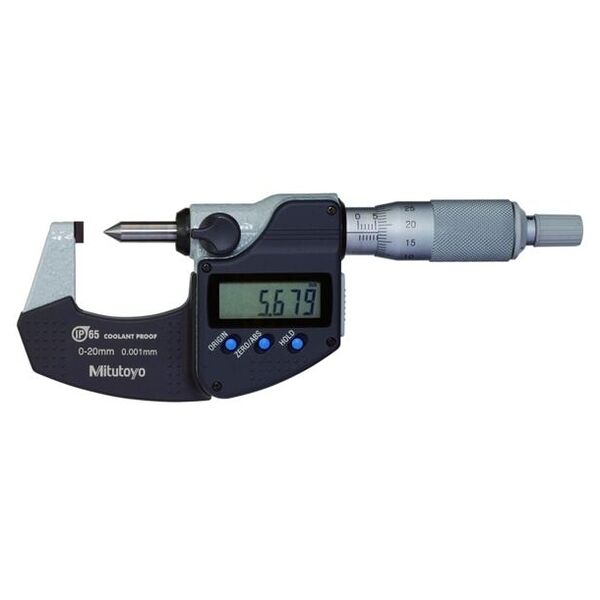

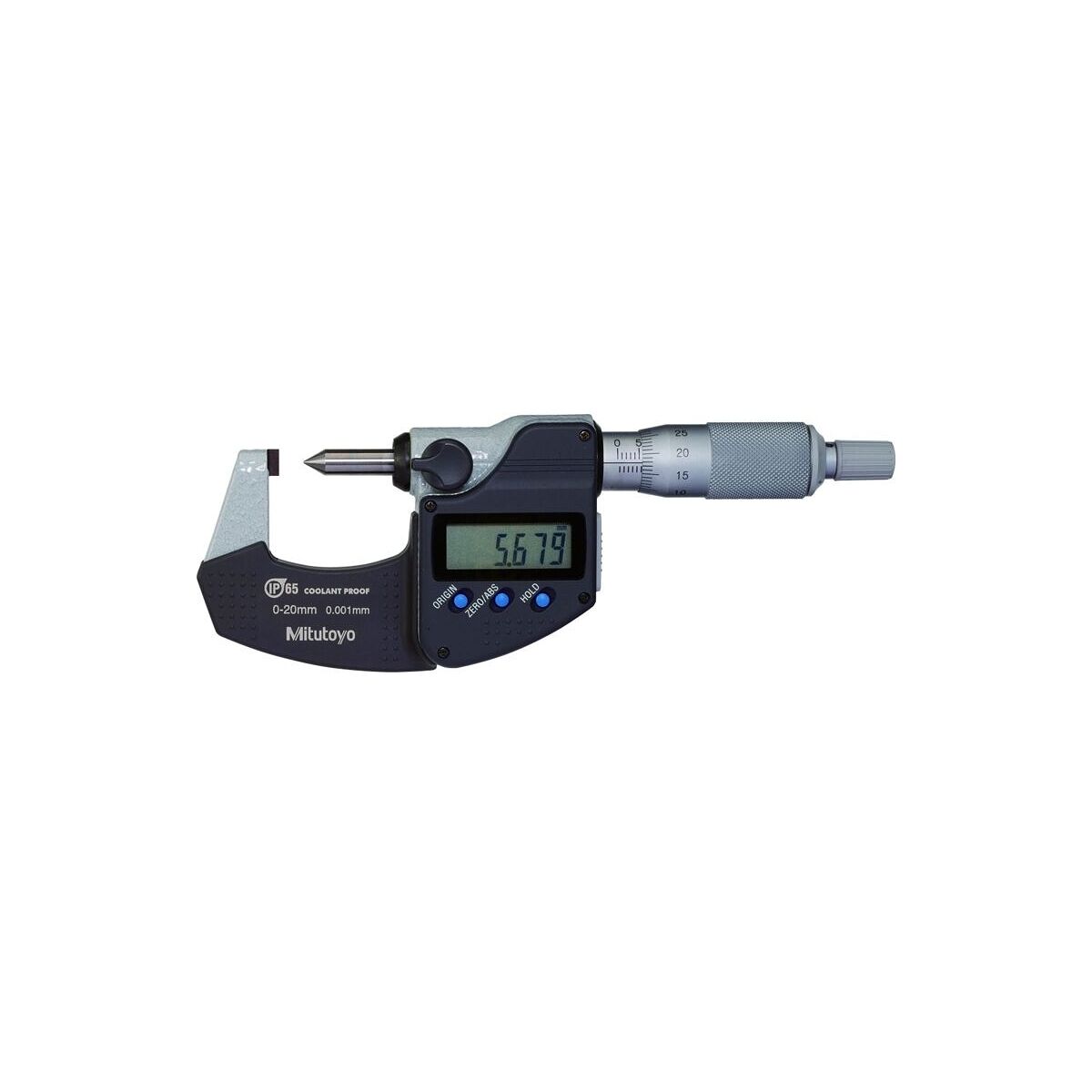

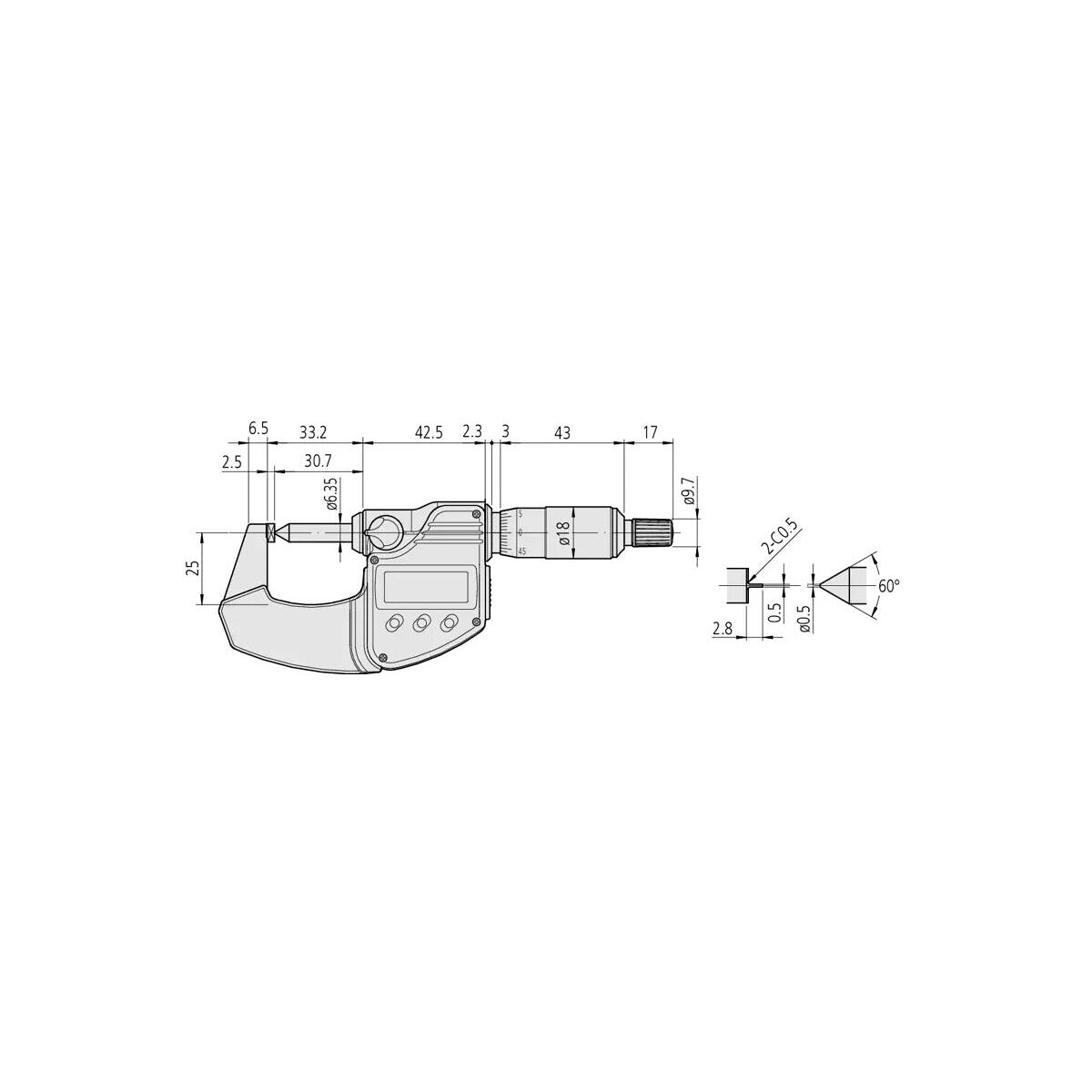

Digital external micrometer with measuring tip, Measuring range: 0-20mm
Article no.: 421675 0-20
Article code:
- Standard: ISO 3611
- Interface: USB interface; Digimatic interface
- IP Index of Protection: IP 65
- Packaging: sturdy box
Product details
Technical Data
| Standard | ISO 3611 | |
| Measuring range | 0 mm - 20 mm | |
| Measurement deviation E MPE | ±3 µm | |
| Interface | USB interface; Digimatic interface | |
| IP Index of Protection | IP 65 | |
| Measurement technology | digital | |
| Packaging | sturdy box | |
| Power supply | Battery-powered | |
| Number of batteries contained | 1 | |
| Article no of the battery / rechargeable battery fitted | 081560 357 | |
| Type of product | External micrometer |
Identification & Classification
| Article number | 421675 0-20 | |
| EAN / GTIN | 4946368689166 | |
| Manufacturer number | 342-271-30 | |
| Manufacturer/responsible person | Mitutoyo Deutschland GmbH, Borsigstraße 8-10, 41469 NEUSS, Germany, www.mitutoyo.de |
Description
Version:

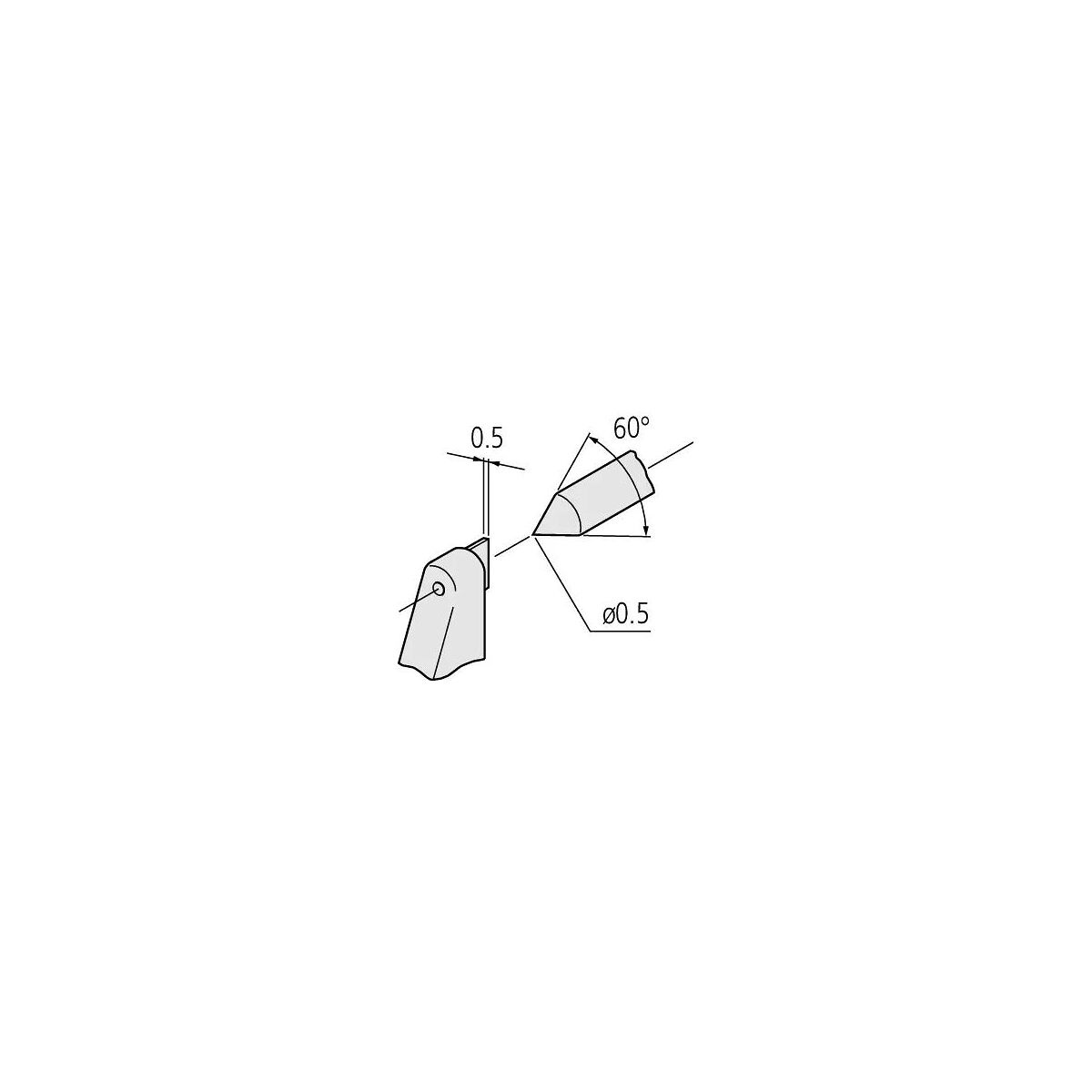

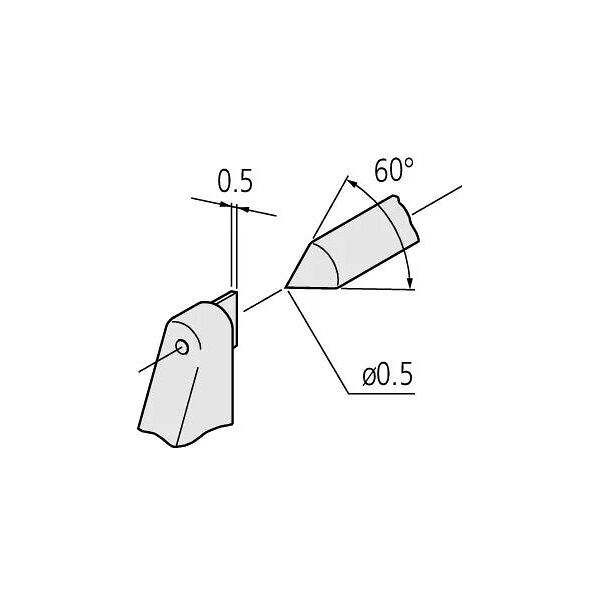

Clear (7.5 mm high), digital measured value display provides quick readings. Addition reading by vernier. Sintered, precision lapped, carbide tipped anvils, measuring spindle hardened and ground. Locking by clamping screw. Measuring force at the ratchet 5 - 10 N.
Function:
IP65: Protected against jets of water from all directions and protected against penetration by dust (dust-tight), also completely protected against touching.
Supplied with:
From size 25-50 including 1 setting standard. 1 battery No. 081560 size 357.
Optional extras:
Data cable No. 497445.
