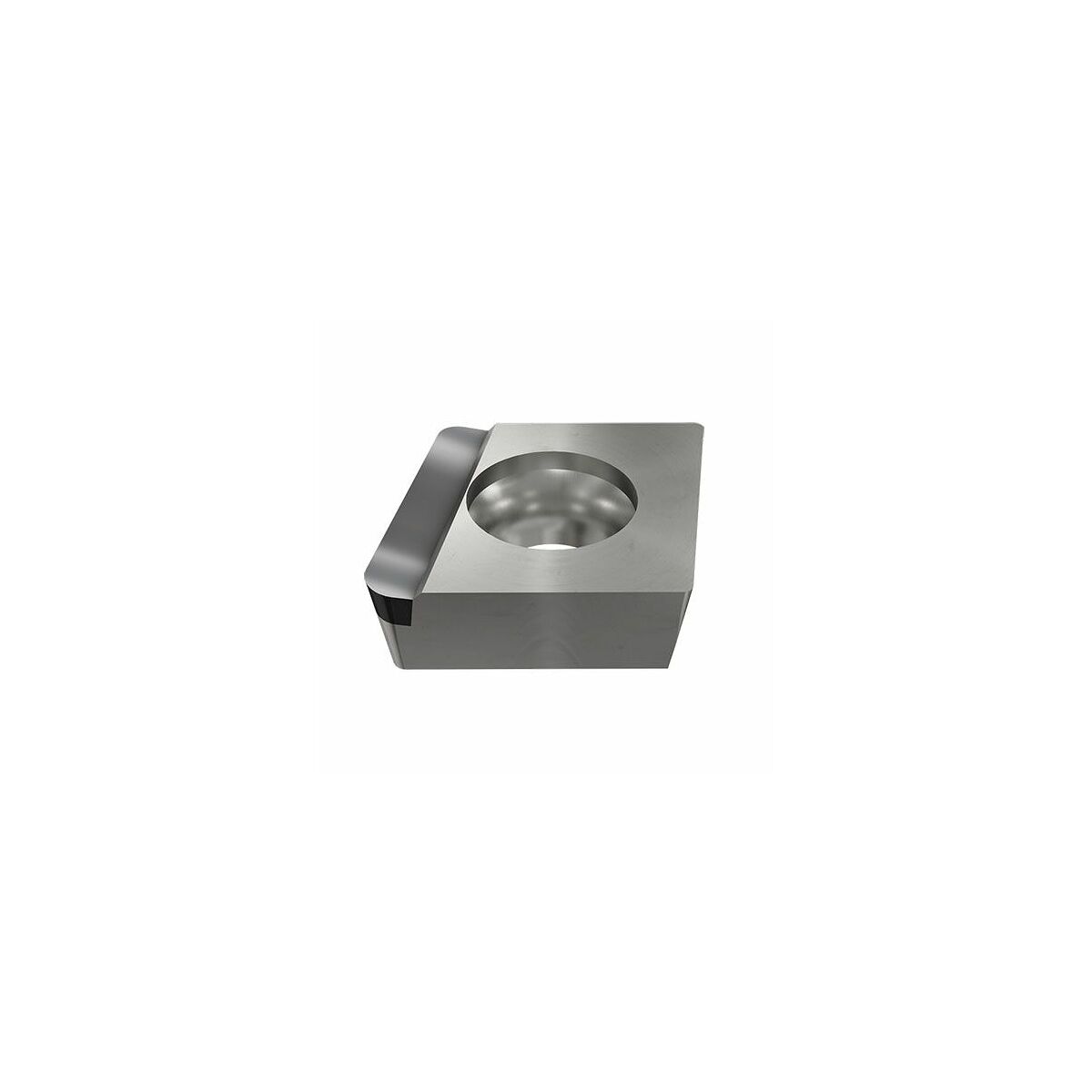

CCGT 060202F R-L ID8 Positive 80° Rhombic Inserts with Full-Edge PCD Tips (Right or Left Hand) for Finishing Non-Ferrous Materials
Article no.: 3433467
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number | 3433467 | |
| EAN / GTIN | 7291075501568 | |
| Manufacturer number | 3433467 |
Description
Description:
Turning Indexable Inserts, Corner Radius (RE) 0.2 mm, Cutting Edge Length (L) 6.4 mm, Inscribed Circle Diameter (IC) 6.35 mm, Insert Thickness (S) 2.38 mm
Feature:
- Corner Radius (RE): 0.2 mm
- Cutting Edge Length (L): 6.4 mm
- Depth of Cut Maximum (APMX): 6.3 mm
- Fixing Hole Diameter (D1): 2.8 mm
- Inscribed Circle Diameter (IC): 6.35 mm
- Insert Size 21.50.
- Insert Thickness (S): 2.38 mm
- Max. Turning Feed (ft(max)): 0.6 mm/rev
- Min D.O.C. 0.05 mm
- Min. Turning Feed (ft(min)): 0.03 mm/rev
