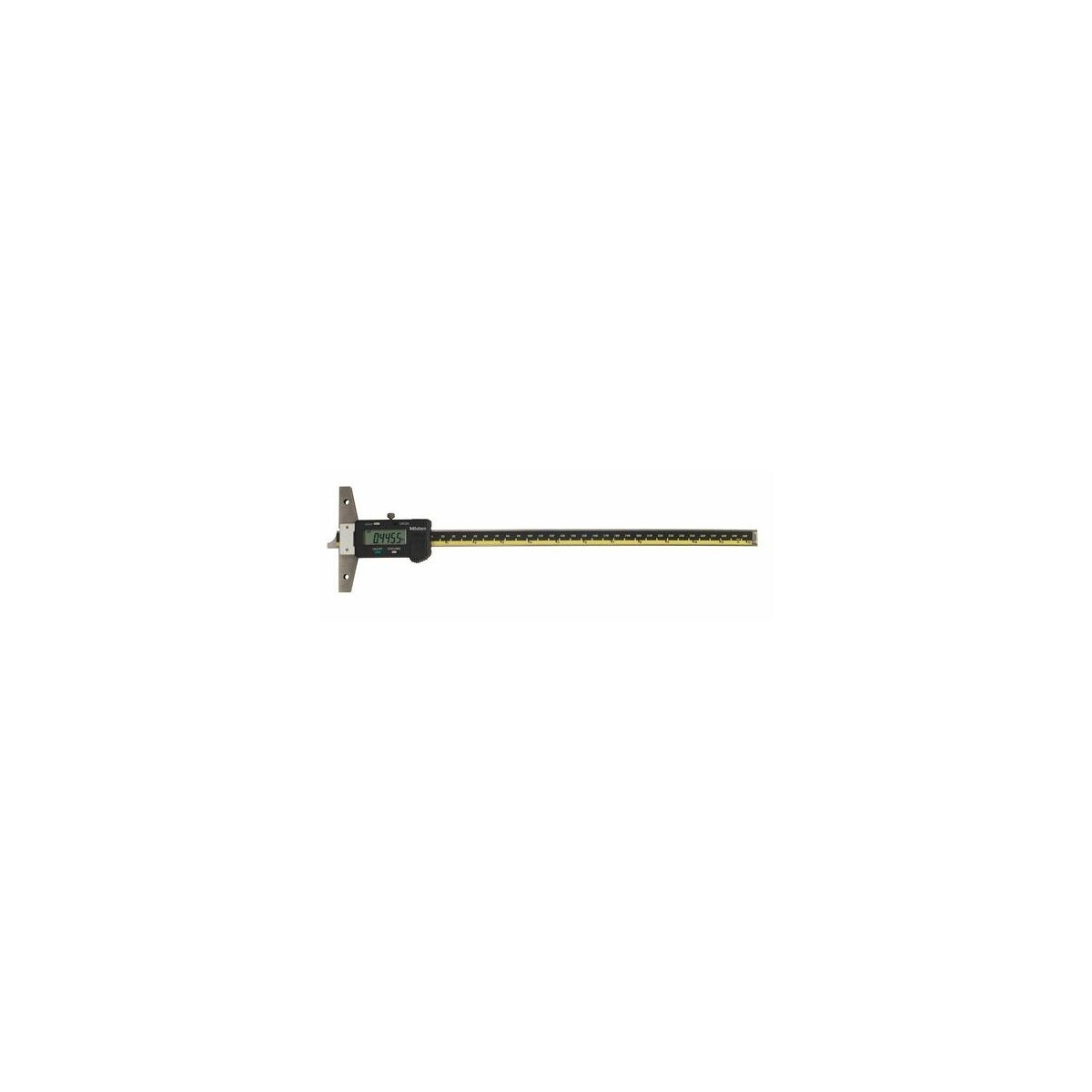

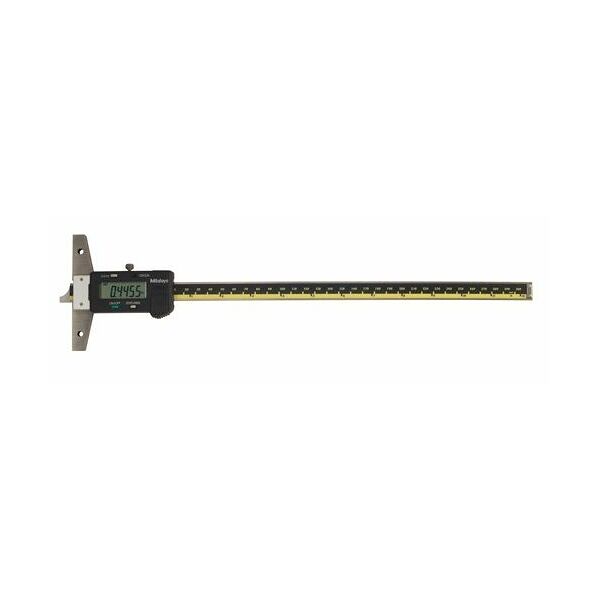

Digital ABS Depth Gauge, Inch/Metric 0-8"/0-200mm
Article no.: 571-212-30
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Technical Data
| Measuring range | 0 mm - 200 mm | |
| Measurement technology | digital | |
| Power supply | Battery-powered | |
| Type of product | Depth gauge |
Identification & Classification
| Article number | 571-212-30 | |
| EAN / GTIN | 4946368688534 | |
| Manufacturer number | 571-212-30 | |
| L-Number | L40010 12064 | |
| Manufacturer/responsible person | Mitutoyo Deutschland GmbH, Borsigstraße 8-10, 41469 NEUSS, Germany, www.mitutoyo.de |
Description
Description:
This is a standard model Digital Depth Gauge. It offers you the following benefits: ABSOLUTE System gives you reliable measurements. Its base and measuring faces are hardened and micro-lapped for robustness. Large character height makes measurements easy to read.
Feature:
- ABS / INC (INC ZERO): Yes
- Base (W x T): 3.93″ x 0.23″
- Battery life: Approx. 5 years
- Data output: Yes
- Digital step: 0,005″/0,01 mm
- Digital/Analog: Digital
- Display: LCD, character height 9 mm (150/200/300 mm), 10 mm (>300 mm)
- Features:
- The ABSOLUTE Digimatic Depth Gauge keeps track of the origin point (once set) for the entire life of the battery.
- Base and measuring faces are harderned and micro-lapped.
- Optional wider extension bases are available.
Conventional Digital Measurement
ABSOLUTE Digimatic Measurement
Absolutely safe, absolutely ingenious: The ABSOLUTE system. All Mitutoyo measuring instruments with this logo incorporate the ingenious ABSOLUTE measurement system. An ABSOLUTE scale only needs to have the origin position set once, which then holds for all future measurements, no matter how often the instrument is switched off. Incremental measurements can be made at any time without losing the origin setting.
- Inch-Metric: Inch/Metric
- Low voltage alarm: Yes
- Max. response speed: Unlimited
- Model: VDS-8″AX
- ON/OFF: Yes
- ORIGIN (ABS-Zero): Yes
- Power supply: 1 battery SR-44
- Range: 0 - 8
- Size/Dimension: 0,321 X 0,133 X 0,035 M
