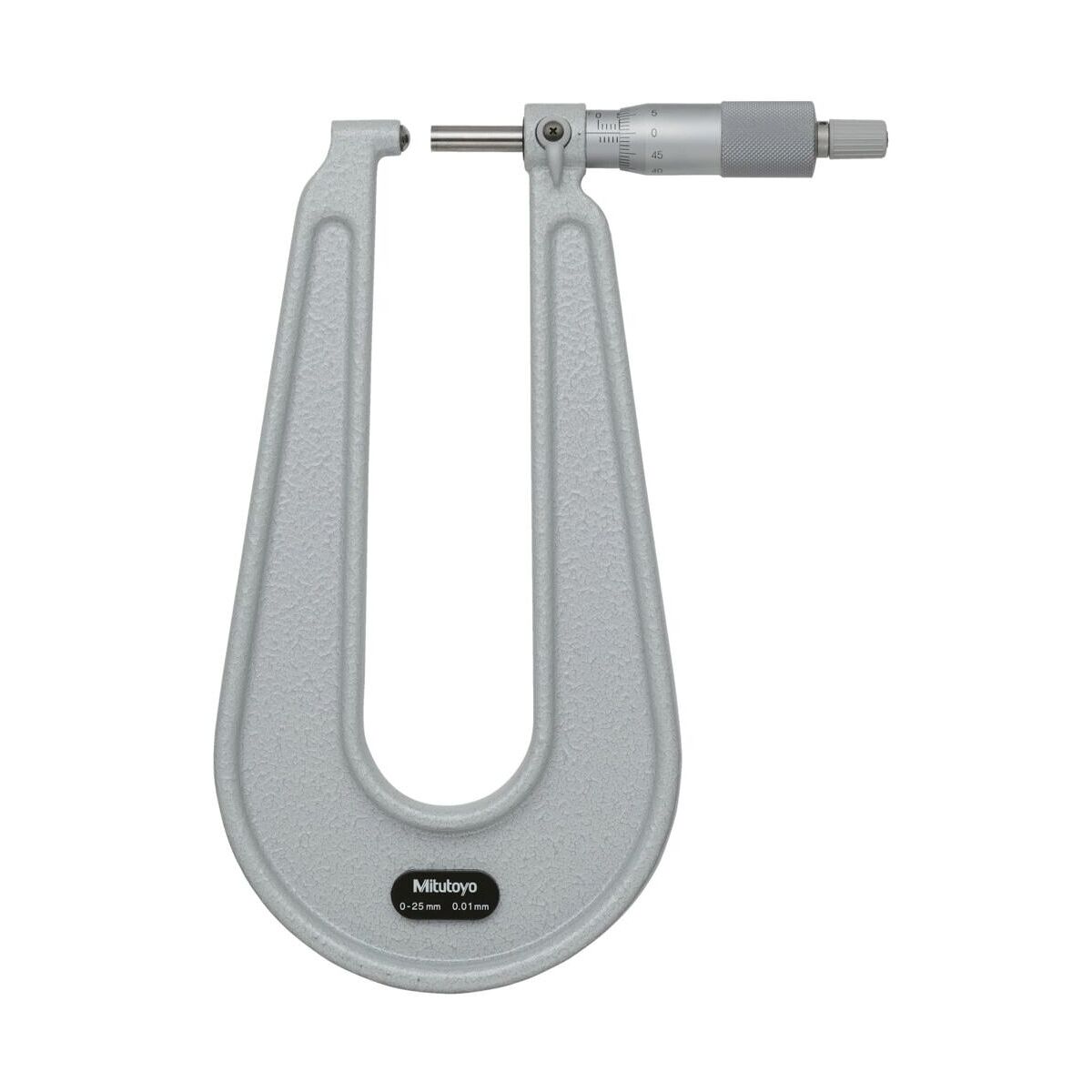

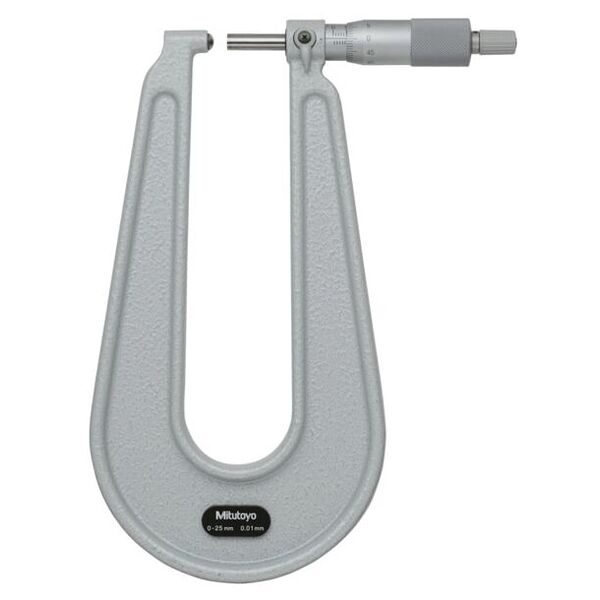

Sheet Metal Micrometer 0-25mm, Spherical Anvil, 150mm Throat
Article no.: 118-114
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Technical Data
| Measurement technology | analog | |
| Type of product | External tube micrometer |
Identification & Classification
| Article number | 118-114 | |
| EAN / GTIN | 4946368011905 | |
| Manufacturer number | 118-114 | |
| L-Number | L40010 8925 | |
| Manufacturer/responsible person | Mitutoyo Deutschland GmbH, Borsigstraße 8-10, 41469 NEUSS, Germany, www.mitutoyo.de |
Description
Description:
This Sheet Metal Micrometer is designed with a deep frame for measuring the thickness of sheet material.
Feature:
- Anvil / Spindle: Type B, spherical/flat
- Digital/Analog: Analog
- Flatness: 0,6 µm
- Graduation: 0,01 mm
- Inch-Metric: Metric
- Max., Permissible Error J MPE: +/-4 µm
- Measuring face: Carbide-tipped, micro-lap finish
- Measuring force: 3-8
- Measuring spindle: With spindle lock, throat depth ≤ 150 mm: ø6,35 mm
throat depth =300 mm: ø8 mm, spindle pitch 0,5 mm - Model: PMUS150-25
- Parallelism: 3 µm
- Range: 0 - 25
- Scale: Thimble and sleeve satin chrome finish, ø18 mm
- Size/Dimension: 0,345 X 0,215 X 0,044 M
