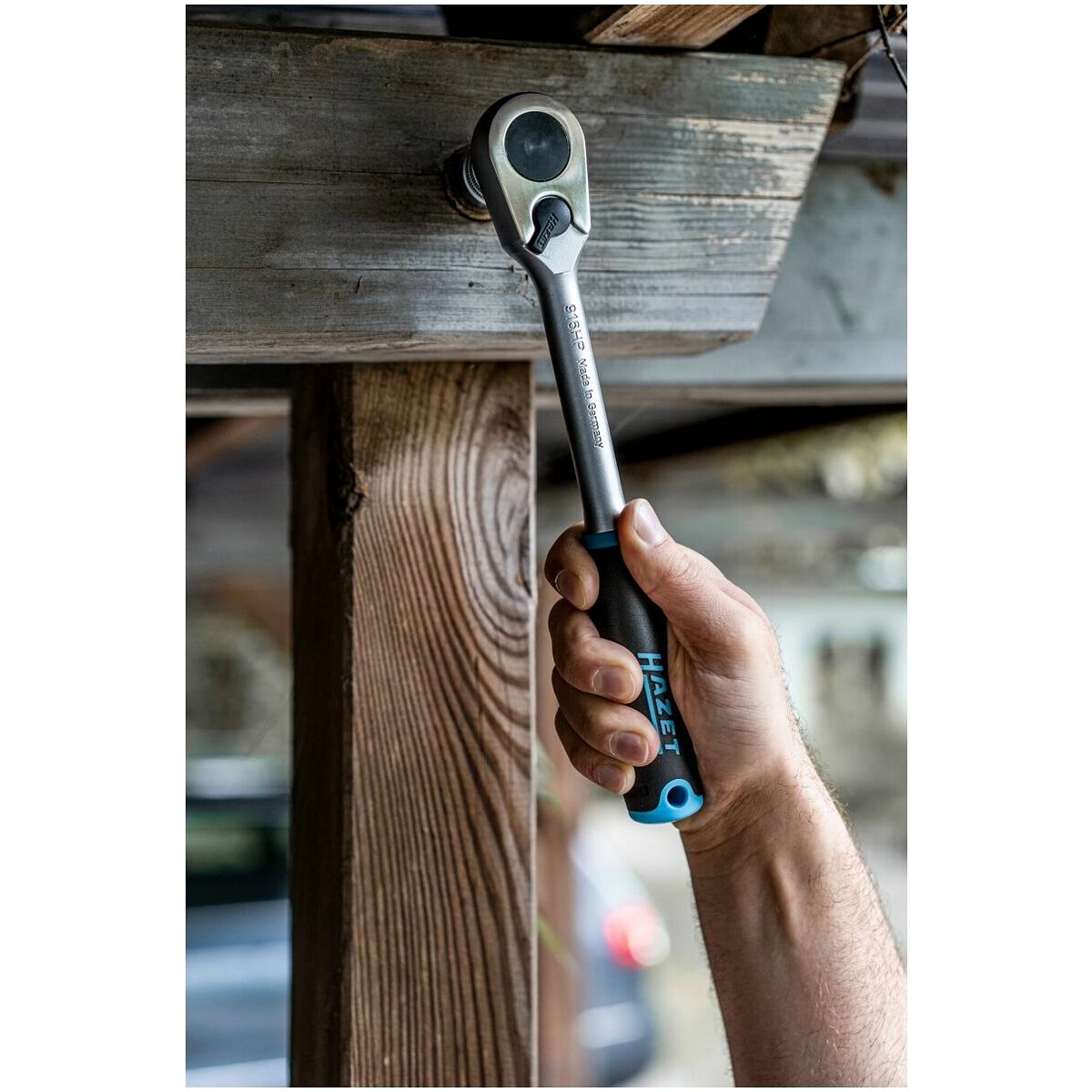

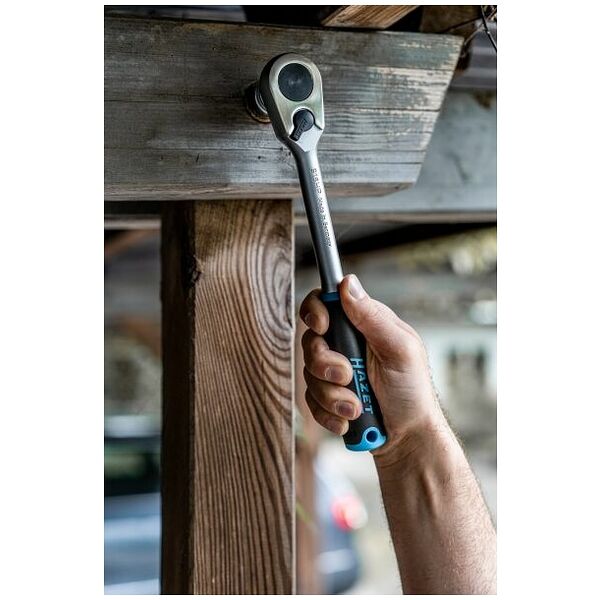

Reversible precision ratchet, 1/2 inch, Type: 1/2
Article no.: 640480 1/2
Article code:
Product details
Technical Data
| Quality and test seal | GS VPA Remscheid | |
| Min. working angle | 4 degrees | |
| Handle features | ergonomic | |
| Type of handle | standard handle | |
| Length of handle | 275 mm | |
| Width across flats | 12.5 mm | |
| Overall length | 275 mm | |
| Colour | silver | |
| Type of product | ratchet | |
| Number of teeth (detent) | 90 | |
| Direction of rotation changed using | changeover lever | |
| With ejector | no | |
| Long-term rated loading | 1,000 Nm | |
| Drive | handle | |
| Output drive | external square drive | |
| Telescopic function | no | |
| Material of tool | chromium vanadium steel | |
| Surface of tool | chrome-plated | |
| Standard | DIN 3120-A; DIN 3122 | |
| Content | single part |
Identification & Classification
| Article number | 640480 1/2 | |
| EAN / GTIN | 4000896213894 | |
| Manufacturer number | 916HP | |
| Manufacturer/responsible person | HAZET-WERK Hermann Zerver GmbH & Co. KG, Güldenwerther Bahnhofsstraße 25-29, 42857 Remscheid, Germany, www.hazet.com |
Description
Version:
Material selection and special forging method guarantee optimal functioning and long life.
With reversing lever for right-hand and left-hand threads, working arc 4°.
With reversing lever for right-hand and left-hand threads, working arc 4°.
Standard:
External square drive to DIN 3120-A 12.5 with spring ball.
Material:
Chrome vanadium steel, chrome-plated.
