Article no.: 201631 0,4X2
GARANT Diabolo solid carbide micro slot drill, TiAlN, ⌀ DC×L4: 0,4X2mm
Article no.: 201641 0,4X2
Article code:
- Tool material: Solid carbide
- Standard: Manufacturer’s standard
- Type: H
- Tolerance nominal ⌀: 0 / -0.01
- No. of teeth Z: 2
Product details
Technical Data
| Series | Diabolo | |
| Cutting edge ⌀ DC | 0.4 mm | |
| Coating | TiAlN | |
| Tool material | Solid carbide | |
| Standard | Manufacturer’s standard | |
| Type | H | |
| Tolerance nominal ⌀ | 0 / -0.01 | |
| No. of teeth Z | 2 | |
| Helix angle | 30 degrees | |
| Direction of infeed | horizontal, oblique and vertical | |
| Cutting width ae for milling operation | Full slot cutting depth 1×D; 0.1×D for side milling | |
| Shank | DIN 6535 HA to h5 | |

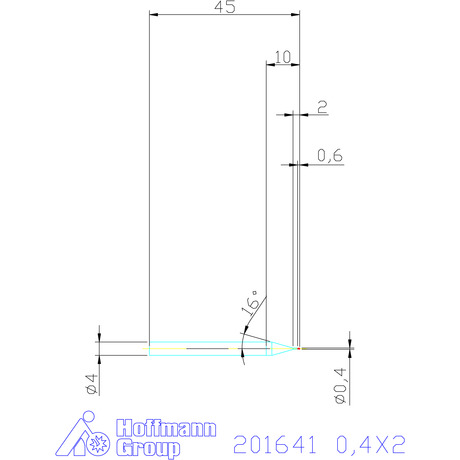

| Flute length Lc | 0.6 mm | |
| Overhang length L1 incl. recess | 2 mm | |
| Recess ⌀ D1 | 0.38 mm | |
| Overall length L | 45 mm | |
| Shank ⌀ Ds | 4 mm | |
| Corner chamfer angle | 90 degrees | |
| Feed fz for slot milling in steel < 65 HRC | 0.0023 mm | |
| Feed fz for side milling in steel < 65 HRC | 0.0029 mm | |
| Cutting speed vc in steel < 65 HRC | 50 m/min | |
| Correction factor for vc | 1.25 | |
| Colour ring | red | |
| Type of product | End / face mill |
Identification & Classification
| Article number | 201641 0,4X2 | |
| EAN / GTIN | 4045197358240 | |
| Manufacturer number | 201641 0,4X2 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
Application Table
P
220
P
220
P
210
P
190
H
180
H
120
H
72
H
55
M
95
M
75
N
140
Description
Version:
GARANT Diabolo:
Special geometry, coating and carbide for hard machining in the high-performance field. Suitable even for machining electrolytic copper. Double-relief ground with 2 chamfers hollow ground for high-precision hard machining.
Recess angle α = 16°.
Tolerances:
Special geometry, coating and carbide for hard machining in the high-performance field. Suitable even for machining electrolytic copper. Double-relief ground with 2 chamfers hollow ground for high-precision hard machining.
Recess angle α = 16°.
Tolerances:
- recess ⌀: D4 = 0 / −0.02 mm.
Note:
Correction factor for vc dependent on dimension L4
fz for ap = 0.05×D.
fz for ap = 0.1×D.
fz for ap = 0.05×D.
fz for ap = 0.1×D.
